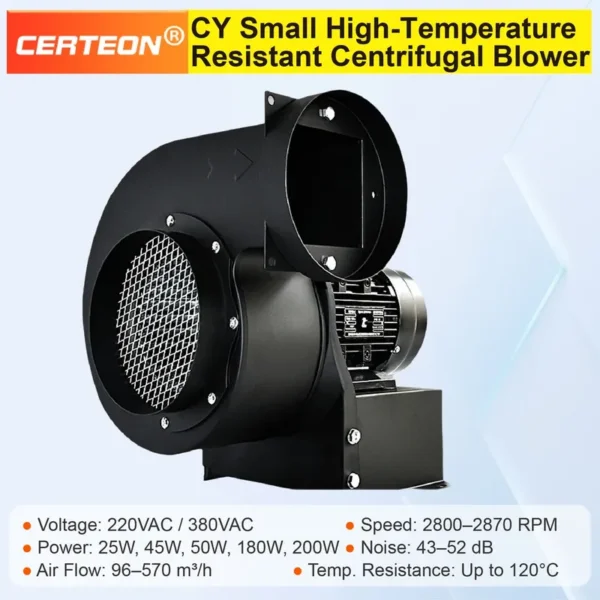

This centrifugal blower is published with the manufacturer’s full specification — voltage 220VAC / 380VAC, max air flow 570 m³/h. Made by Shanghai Chikong Automation Instrument Co., Ltd. (7 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Centrifugal Blower
- Model Number: CY076 CY100 CY125 CY127
- Power Source: AC
- Power Options: 25W, 45W, 50W, 180W, 200W
- Voltage: 220VAC / 380VAC
- Max Air Flow: 570 m³/h
- Air Flow: 96, 132, 198, 570 m³/h
Technical Specifications
| Grade | None |
|---|---|
| Application | industrial, boiler |
| Function | exhaust, draft |
| Power Source | AC |
| Max Air Flow | 570 m³/h |
| Motor Type | None |
| Noise Level | 43 45 48 52 dB |
| Blower Type | centrifugal |
| Fuel | None |
| Place Of Origin | Mainland China |
| Model Number | CY076 CY100 CY125 CY127 |
| Voltage | 220VAC / 380VAC |
| Power Options | 25W, 45W, 50W, 180W, 200W |
| Air Flow | 96, 132, 198, 570 m³/h |
| Speed | 2800, 2840, 2860, 2870 r/min |
| Selling Units | Single item |
| Single Package Size | 50.0X50.0X50.0 cm |
| Single Gross Weight | 25.0 kg |
Product Details
1.NOTE
Models: CY076, CY100, CY125, CY127.
Voltage: 220VAC / 380VAC.
Power Options: 25W, 45W, 50W, 180W, 200W.
Frequency: 50Hz.
Current Range: 0.2A, 0.3A, 0.4A, 0.47A, 0.9A.
Air Flow: 96, 132, 198, 570 m³/h.
Speed: 2800, 2840, 2860, 2870 r/min.
Noise Level: 43, 45, 48, 52 dB.
Temperature Resistance: Approx. 120°C.
Due to page limitations, some specifications may not be fully listed. If you have any special requirements or questions, please contact us before placing an order.
2.Parameters
| Model | Voltage (V) | Power (W) | Frequency (Hz) | Current (A) | Pressure (Pa) | Airflow (m³/h) | Speed (r/min) | Noise (dB) |
| CY076 | 220 | 25 | 50 | 0.2 | 127 | 96 | 2860 | 43 |
| CY100 | 220 | 45 | 50 | 0.3 | 176.4 | 132 | 2870 | 45 |
| CY125 | 220 | 200 | 50 | 0.9 | 450.8 | 570 | 2800 | 52 |
| CY125 | 380 | 180 | 50 | 0.47 | 450.8 | 570 | 2800 | 52 |
| CY127 | 220 | 50 | 50 | 0.4 | 298.9 | 198 | 2840 | 48 |
3.Features

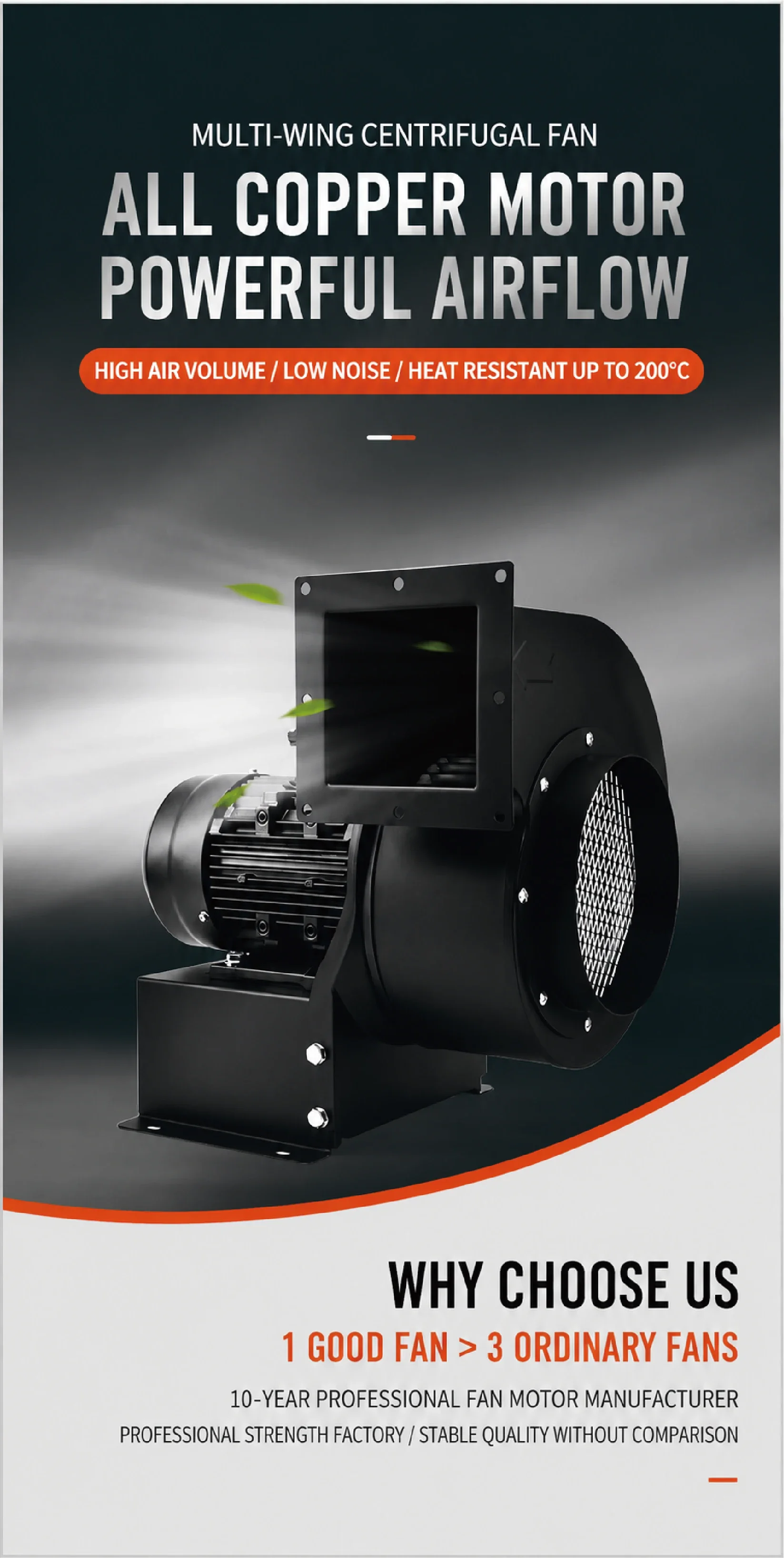

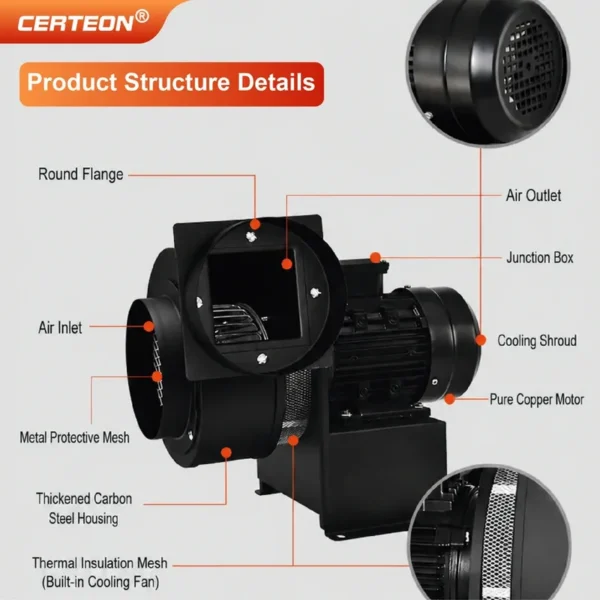

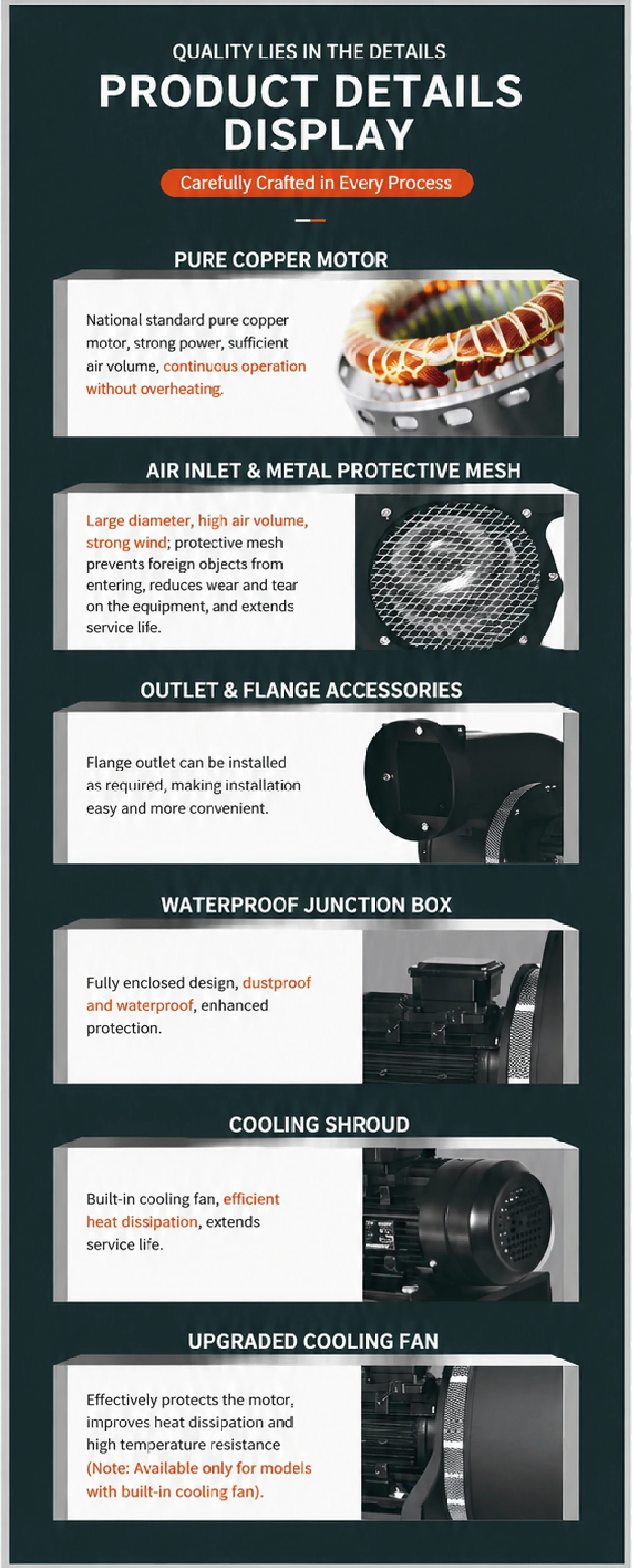

Pure Copper Motor
Built with premium copper windings and a high-efficiency motor for strong power output, stable operation, and extended service life. Designed for long-term continuous operation without overheating.

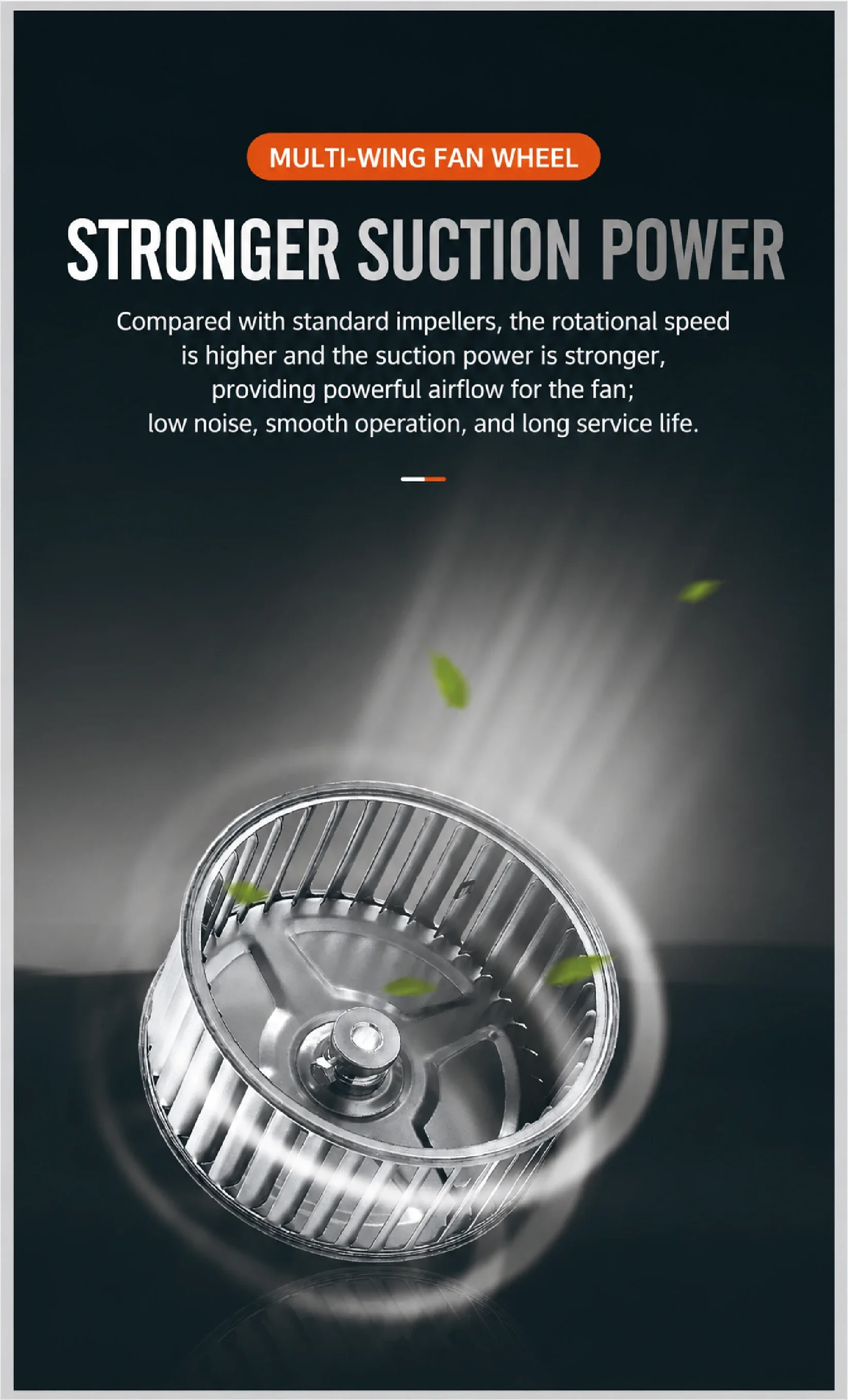

Multi-Wing Centrifugal Impeller
The advanced multi-blade impeller design generates higher airflow and stronger suction compared with conventional fan blades while maintaining smooth and quiet performance.

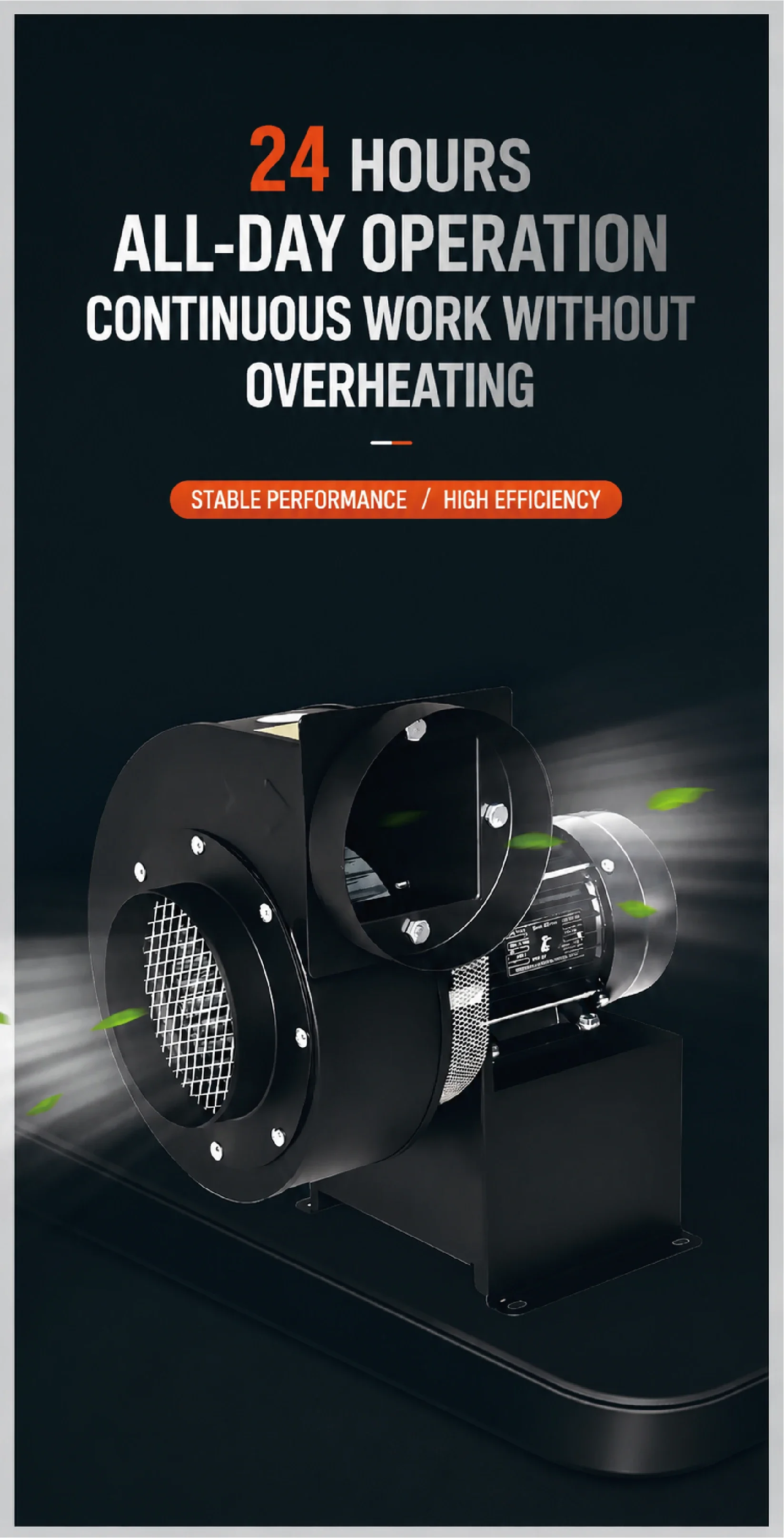

24/7 Continuous Operation
Engineered for around-the-clock operation with stable performance, energy efficiency, and reliable durability. Designed for continuous use without motor burnout.

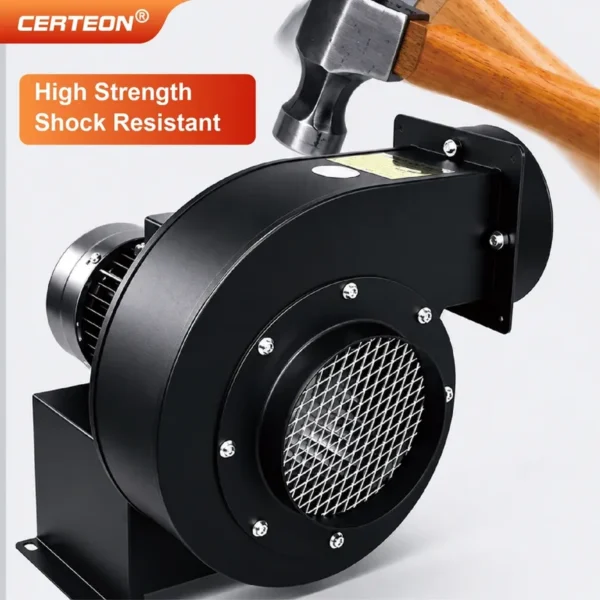

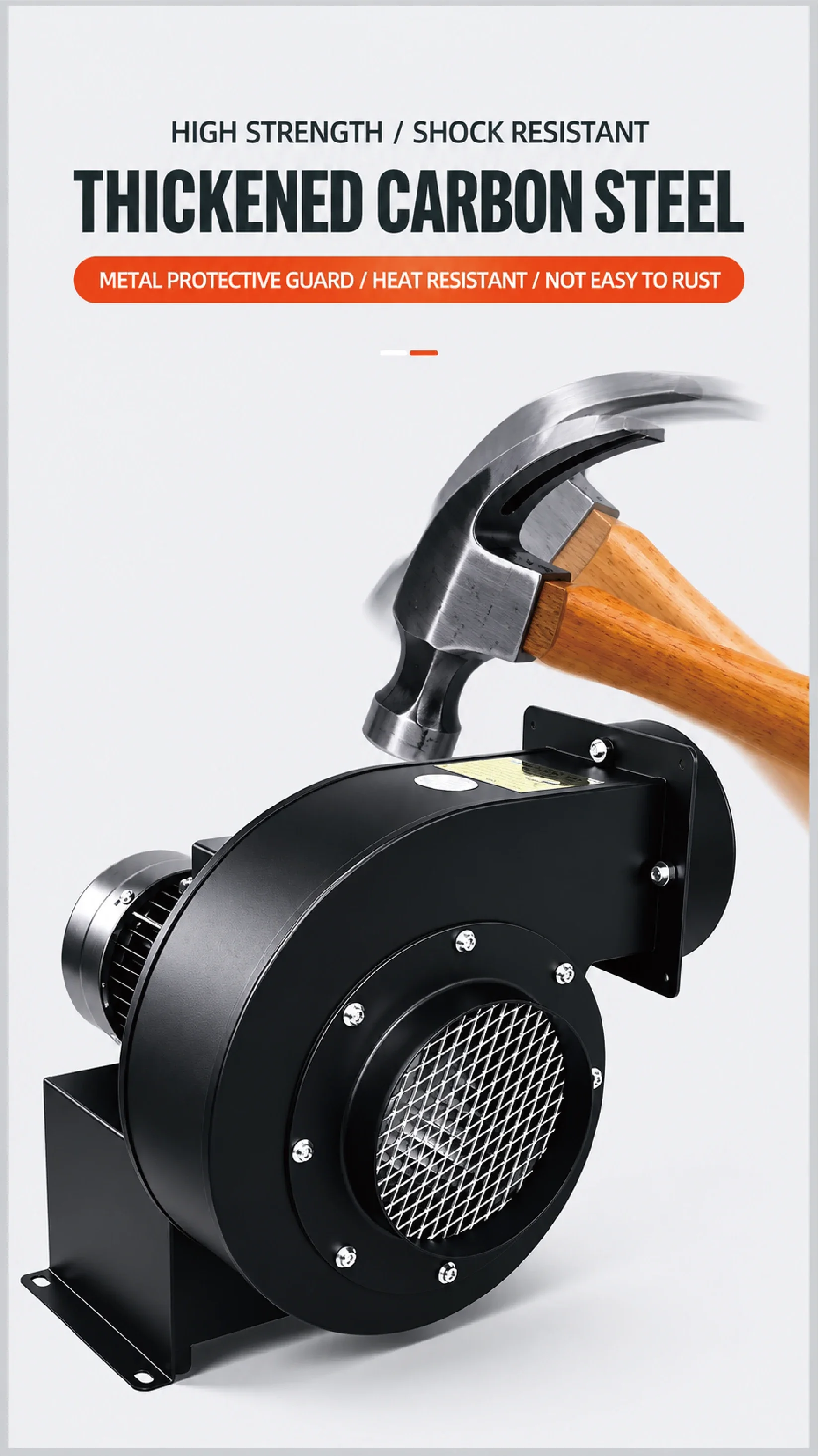

Thickened Carbon Steel Construction
Heavy-duty carbon steel housing provides excellent strength, vibration resistance, and impact protection for long-term industrial use.
Metal Protective Guard
Durable metal guard protects the impeller while offering corrosion resistance and enhanced operational safety.

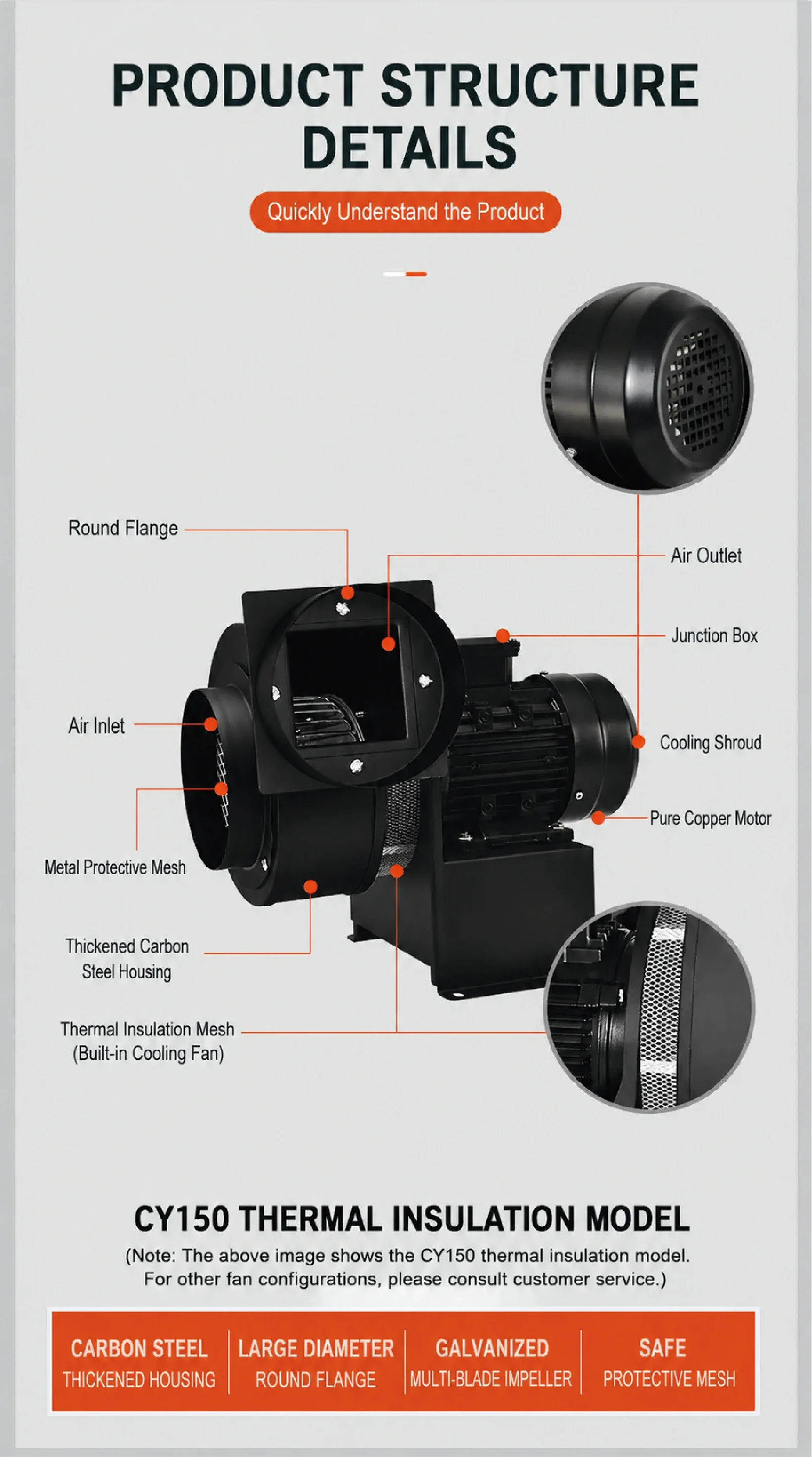

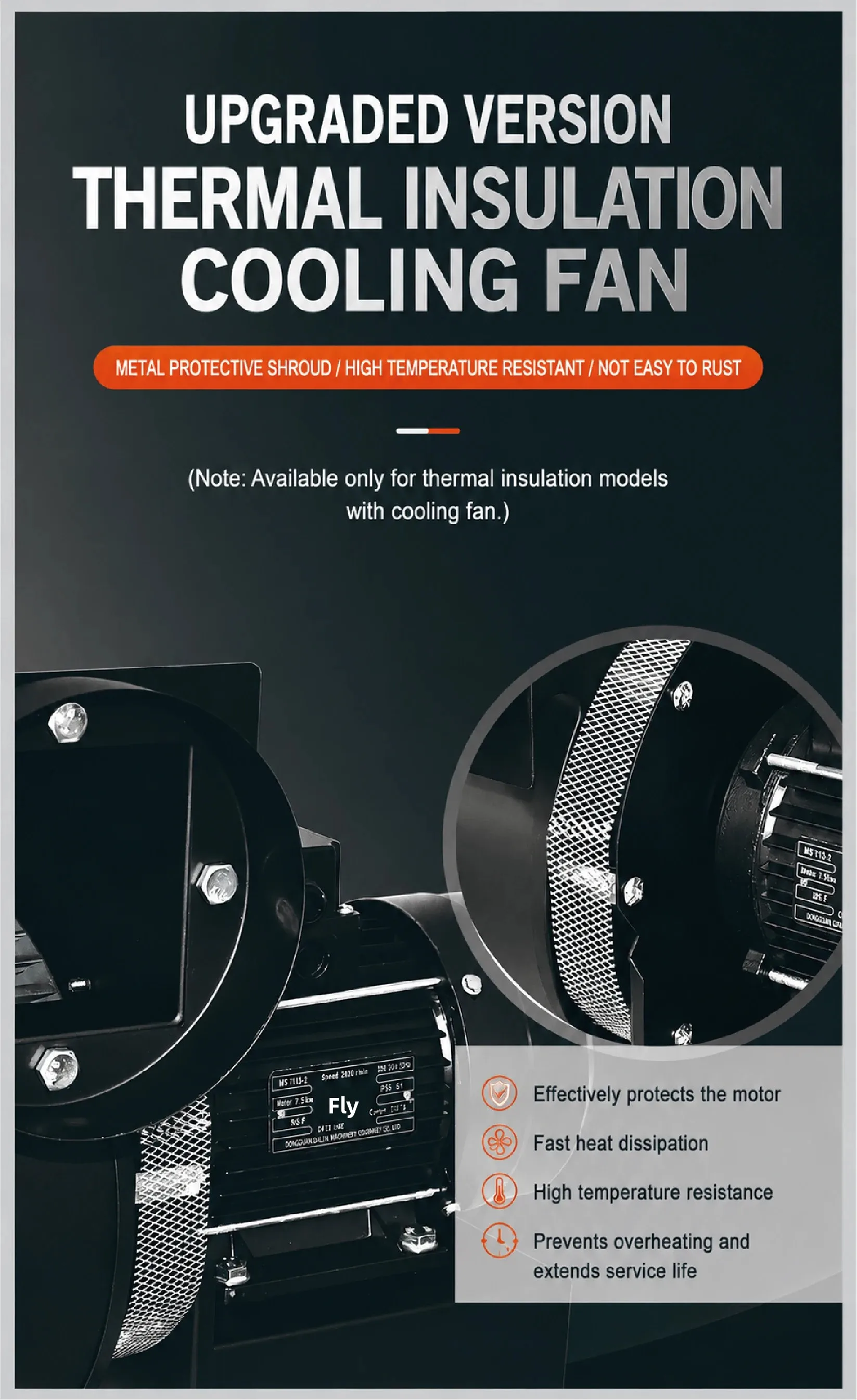

High-Temperature Heat-Insulated Version
The upgraded heat-insulated version is specially designed for high-temperature applications and can withstand ambient temperatures up to 200°C, making it suitable for hot air circulation, boiler air supply, combustion systems, and other demanding industrial environments.

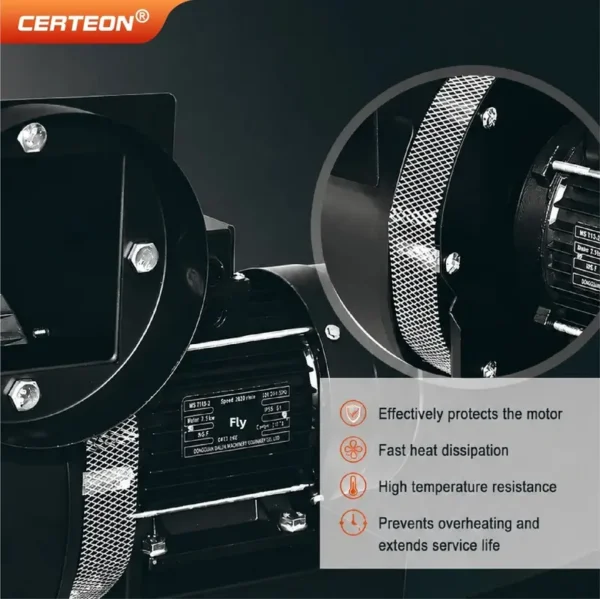

Auxiliary Cooling Fan (Heat-Insulated Models Only)
Available exclusively on heat-insulated models. The integrated cooling fan accelerates motor heat dissipation, improves temperature resistance, protects the motor from overheating, and extends service life.
Large Air Inlet with Protective Mesh
The large-diameter air inlet delivers higher airflow and stronger air pressure. The built-in protective mesh helps prevent dust and debris from entering the blower, reducing wear and maintenance requirements.
Waterproof Junction Box
Fully enclosed wiring box provides enhanced protection against dust and moisture for safer and more reliable operation.

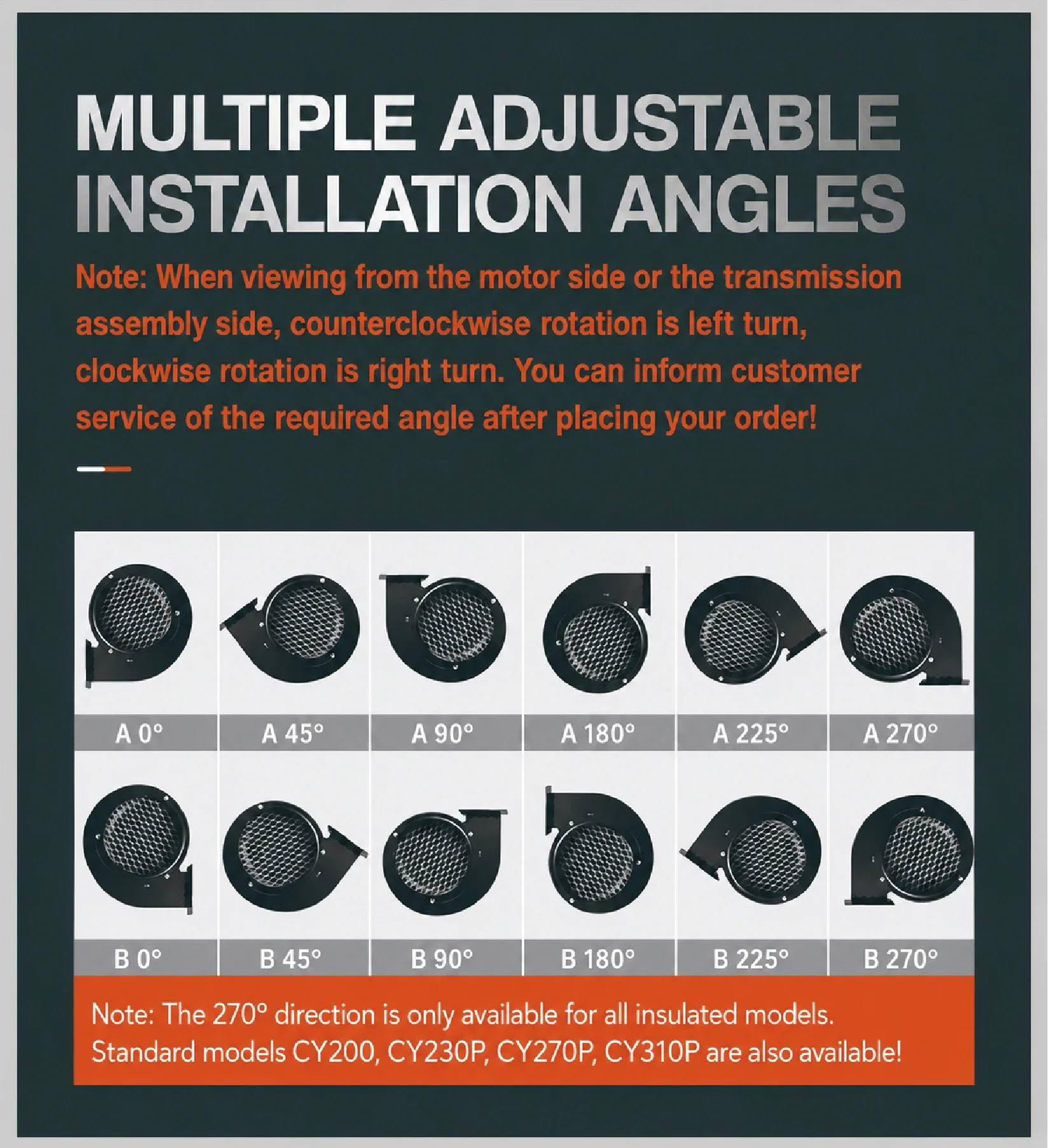

Flexible Installation Design
Includes a round flange adapter for convenient duct connection and supports multiple mounting angles to suit different installation requirements.
4.Applications
·Boiler combustion air supply
·Industrial combustion draft systems
·Kitchen ventilation and exhaust systems
·Factory ventilation and cooling
·Livestock and poultry farm ventilation
·BBQ smoke extraction and air supply
·Drying and heating equipment
·Hot air circulation systems (Heat-insulated version recommended)
·Equipment cooling and heat dissipation
·Workshop ventilation and air movement
5.FAQs
Q1: Can the blower operate continuously?
A: Yes. The blower is designed for 24-hour continuous operation with stable performance, efficient airflow, and reliable durability.
Q2: Can the blower be used in high-temperature environments?
A: Yes. The blower is suitable for operating environments up to approximately 120°C. For higher-temperature applications, the upgraded heat-insulated version can withstand temperatures up to 200°C and includes an auxiliary cooling fan for improved heat dissipation and motor protection.
Q3: Does the blower include installation accessories?
A: Yes. A round flange adapter is included for convenient installation and connection to ducts or ventilation systems.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal blower?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Can the centrifugal blower be supplied for my local voltage?
The standard configuration is 220VAC / 380VAC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
