Key specification for this centrifugal blower: 220 V, power source type Corded Electric. Everything below is reproduced from the factory data sheet. Made by Ningbo Haoyue Fan Manufacturing Co., Ltd. (4 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Centrifugal Blower
- Model Number: LKZ 10-8-600W
- Power Source Type: Corded Electric
- Voltage: 220 V
- Material: Stainless Steel
- Blade Material: Stainless Steel
- Noise Level: 40 dB and above
Technical Specifications
| Duct Diameter | 10 in |
|---|---|
| Mounting | Free Standing |
| Voltage | 220 V |
| Motor Type | AC Motor |
| Speed | 1200RPM |
| Material | Stainless Steel |
| Blade Material | Stainless Steel |
| Power Source Type | Corded Electric |
| Warranty | 3 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Noise Level | 40 dB and above |
| Place Of Origin | Zhejiang, China |
| Brand Name | Hoyofan |
| Model Number | LKZ 10-8-600W |
| Product Name | Industrial Centrifugal Fans |
| Application | Industrial Ventilation |
| Size | 10-8 |
| Feature | High Efficiency |
| Usage | Low Pressure Blowing |
| Fan Type | Centrifugal Fan |
| Staineless Steel | SGCC |
| Certification | CE |
| Bearing Type | Deep Groove Ball |
| Selling Units | Single item |
| Single Package Size | 50.5X36.5X45 cm |
| Single Gross Weight | 17.000 kg |

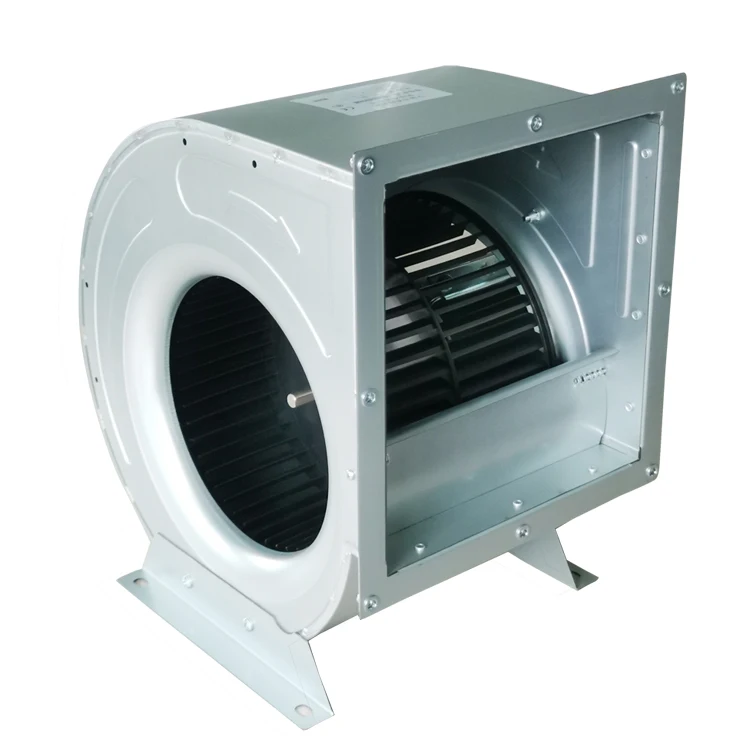

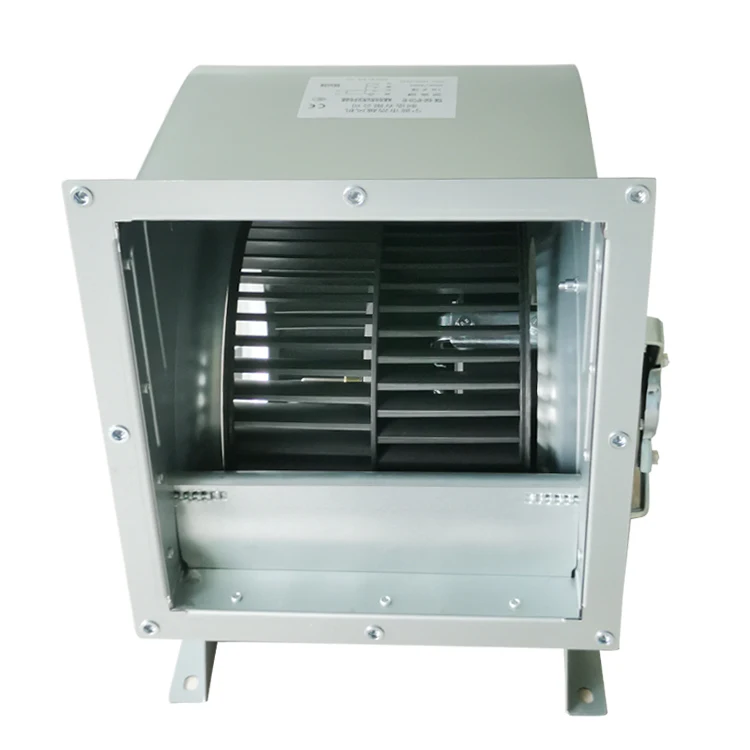

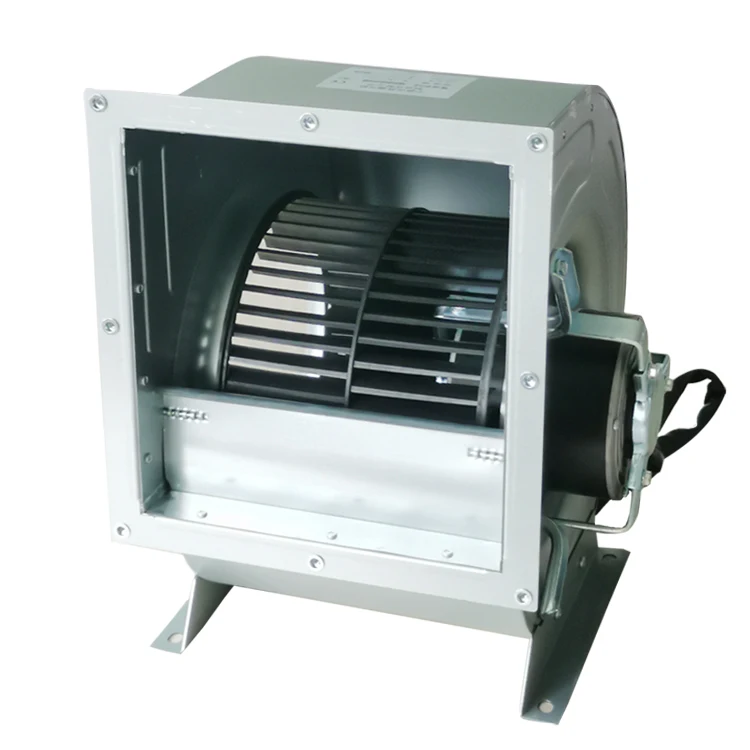

Product Details
- Housing: SGCC
- Impeller: Plastic + Glass Fiber
- Direction of rotation: Clockwise
- Type of shaft: C45 Carbon steel
- Motor: IP54 Aluminum shell, 3 speeds or single speed
- Insulation class: F.
- Mounting position: Free standing
- Power by: Direct driven motor, 115V/230V/380V/450V
- Balance impellers: 6.3 C.
- Optional for connecting box
- Optional for outlet flange
- Optional for standing brackets
- Optional for IP54 motor
- Optional for single speed

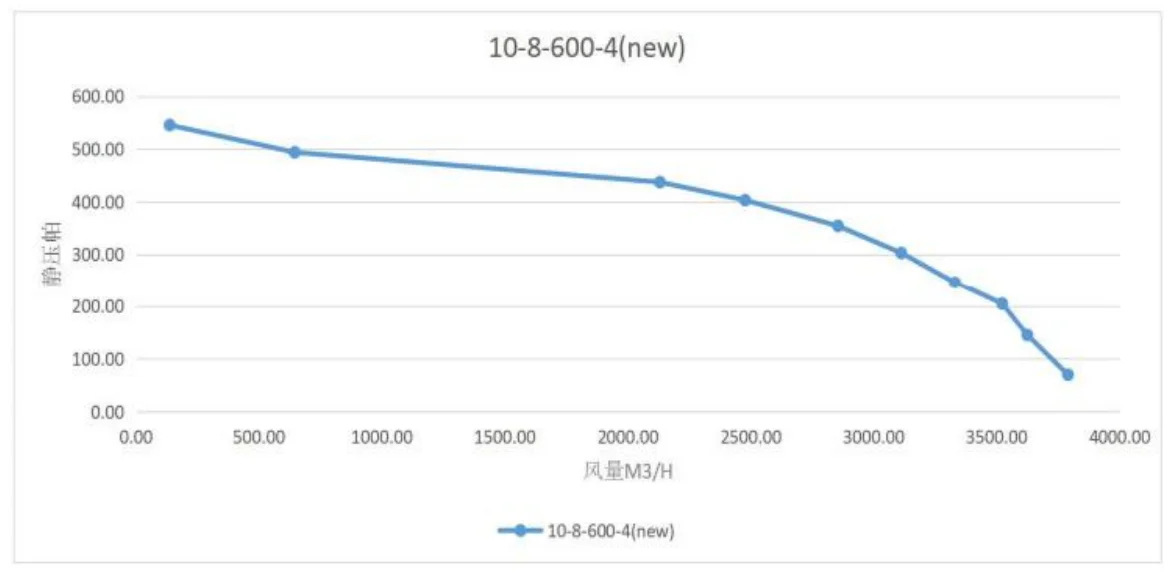

Main datas:
| MODEL | RATED VOLT | POWER | SPEED | AIR FLOW | Max Pressure | AMBITENT TEMP. |
| UNIT | V/HZ | W | RPM | m³ /h | Pa | ℃ |
| LKZ 10-8 | 115v/230v 50/60Hz | 600 | 1250 | 3800 | 500 | -25 to +50 |
Sizes of 10 inch blowers:
| Item No. | Motor(Rated) | Airflow(Max) | Static Pressure(Max) |
| LKZ 10-10-750W | 750W | 5000 m³/h | 700 Pa |
| LKZ 10-8-600W | 600W | 3700 m³/h | 500Pa |
| LKZ 10-10-600W | 600W | 3500 m³/h | 600Pa |
Ordering and Pricing
- Minimum order quantity: 59 piece
- Volume pricing:
- 59–499 piece: US $82.42 / piece
- 500–999 piece: US $80.01 / piece
- 1000+ piece: US $78.54 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal blower?
The standard minimum order quantity is 59 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this centrifugal blower carry?
It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the centrifugal blower be supplied for my local voltage?
The standard configuration is 220 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ningbo Haoyue Fan Manufacturing Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Ningbo Haoyue Fan Manufacturing Co., Ltd. range on HVACR Nexus.
