Centrifugal Blower, 60mm, Tangential, 230V, CFM

The centrifugal blower listed here carries voltage 230 VAC, 247.17 CFM / 420 m3/H, documented exactly as the manufacturer publishes it. Made by Pbm Motor And Fan(suzhou) Co., Ltd. (4 years on the platform, typical reply ≤5h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Centrifugal Blower

• Model Number: PC60B2A610L
• Voltage: 230 VAC
• Air Flow: 247.17 CFM / 420 m3/H
• Blade Material: Aluminium alloy
• Warranty: 5 year
• Place Of Origin: Jiangsu, China

Technical Specifications

Product Details

PRODUCT SPECIFICATIONS

1.General Characters

Rated Voltage	230 VAC	Life Expectance	30,000 Hours
Frequency	50 Hz	Direction of Rotation	Clockwise seen on rotor
Rated Speed	1900 RPM	Dimension	See dimension drawing
Input Current	0.19 A	Material of Impeller	Aluminum alloy
Input Power	43 W	Air Flow	247.17 CFM / 420 m³/H
Acoustical Noise	43 dB(A)	Static Pressure	5.10 mmH₂O / 50 Pa

2. Environmental Characters

Operating Temperature

-20℃ to 70℃

Storage Temperature

-40℃ to 80℃

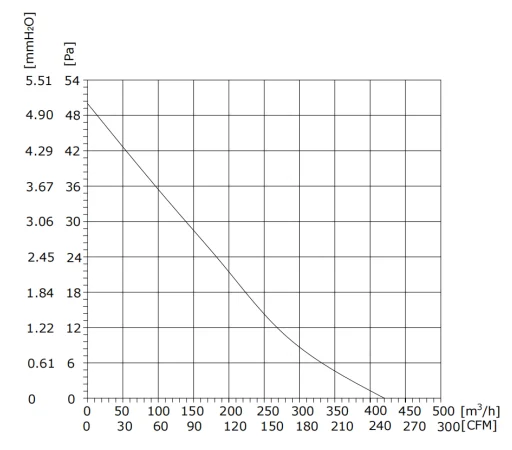

3. Performance Curve

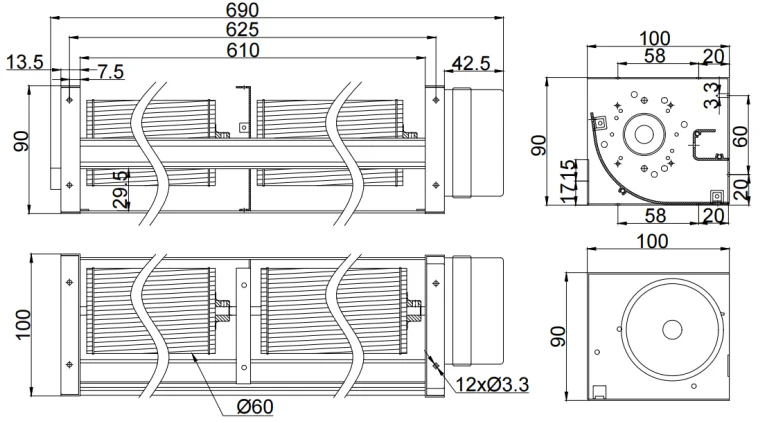

4. Outline Drawing

Certifications

Application Scopes

Recommend Products

Model Part No.	Rated  Voltage VAC	Air  Flow m³/H	Air  Pressure Pa	Rated  Speed RPM	Sound  Level dB(A)	Total  Length mm
PC60B2A520L	230	360	50	1900	43	600
PC60B2A610L	230	420	50	1900	43	690
PC60B2A640L	230	440	50	1900	43	720
PC60B2A700L	230	450	48	1800	42	780
PC60B2A750L	230	455	46	1700	42	830
PC60B2A870L	230	490	46	1500	40	950

PBM AC Tangential Blowers with Different Impeller Sizes

PBM Cross Flow Fan 30mm Blades

Application: Air Conditioners, Air Curtain Equipment, Heater, Dryers, Laser Instruments, Home Appliances, Floor Convector, Trench
Heater.

PBM Cross Flow Fan 40mm Blades

Application: Heat Pump, Hybrid Systems, Electrical Heating, Fireplace, Electric Corner Heater, Heat Recovery.

PBM Cross Flow Fan 45mm Blades

Application: Storage Heaters, Underfloor Convectors, Air Doors, Stove Jacket Cooling.

PBM Cross Flow Fan 48mm Blades

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

PBM Cross Flow Fan 50mm Blades

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

PBM Cross Flow Fan 60mm Blades

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

PBM Cross Flow Fan 65mm Blades

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.

Product Overview

Exhibition Show

Packing Detail

FAQ

Q: What are the typical applications for these cross-flow blowers?

A: They are ideal for home appliances including indoor stoves,fireplaces, ovens, wood burners, underfloor convectors, air doors, air curtains, air conditioners, and heaters.

Q:How about the delivery time ?
A:Within 25 days after we receive the order.

Q:What kind of payments do you support?
A:T/T & L/C, other types please contact us.

Q: What's the MOQ?
A: Generally speaking, the MOQ is 100 pieces. Different products have different MOQ. Please contact us.

Q: Transportation?
A: All available shipping ways could be applied, by courier, air or sea. Appointed shipping company or our own forwarders all could be used in shipment Full-way tracking the cargos for you before the goods arrive.

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–499 piece: US $36.44 / piece
  • 500–999 piece: US $34.42 / piece
  • 1000+ piece: US $33.49 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this centrifugal blower?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.

Can the centrifugal blower be supplied for my local voltage?

The standard configuration is 230 VAC. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
