Key specification for this centrifugal blower: 220V/380V/415V/440V/660V, power source type Electricity Powered. Everything below is reproduced from the factory data sheet. Made by Shandong Handun Environmental Technology Co., Ltd. (9 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Centrifugal Blower
- Model Number: 5-34 ;5-27;5-32
- Power Source Type: Electricity Powered
- Voltage: 220V/380V/415V/440V/660V
- Air Capacity: 2700m3/h
- Material: Aluminum
- Blade Material: Aluminum
Technical Specifications
| Mounting | Duct Fan |
|---|---|
| Voltage | 220V/380V/415V/440V/660V |
| Speed | 2000 RPM, 600 RPM, 1500 RPM, 800 RPM |
| Material | Aluminum |
| Blade Material | Aluminum |
| Power Source Type | Electricity Powered |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Noise Level | 40 dB and above |
| Place Of Origin | Shandong, China |
| Brand Name | Handun |
| Model Number | 5-34 ;5-27;5-32 |
| Name | Centrifugal Fans |
| Model | 5-32 4.8A |
| Air Capacity | 2700m3/h |
| Outlet Diameter | 150mm |
| Application | Industrial Transport Wood Powder |
| Pressure | 3900Pa |
| Feature | High Pressure High Temperature |
| Delivery Time | 15-20 days |
| Certificate | CE/ISO |
| Selling Units | Single item |
| Single Package Size | 71X63X77 cm |
| Single Gross Weight | 36.0 kg |
Product Details

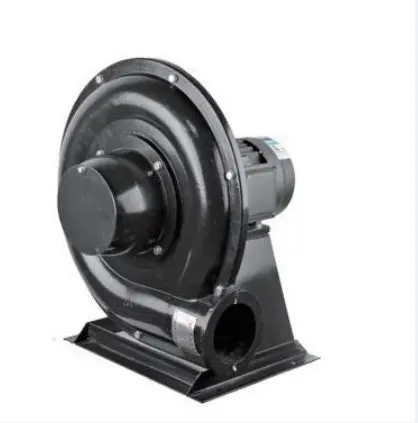

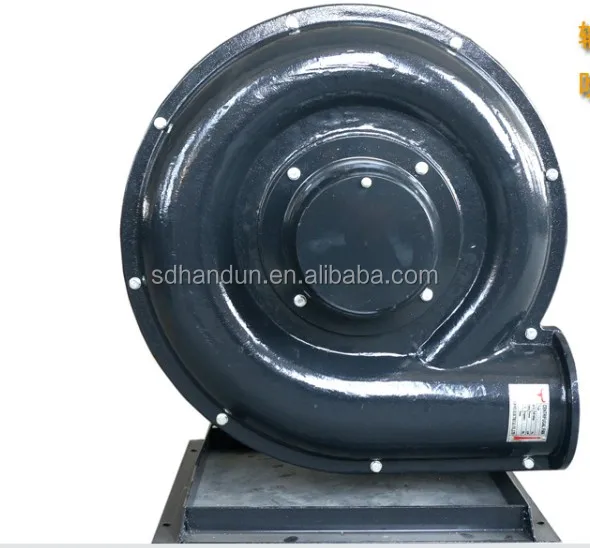

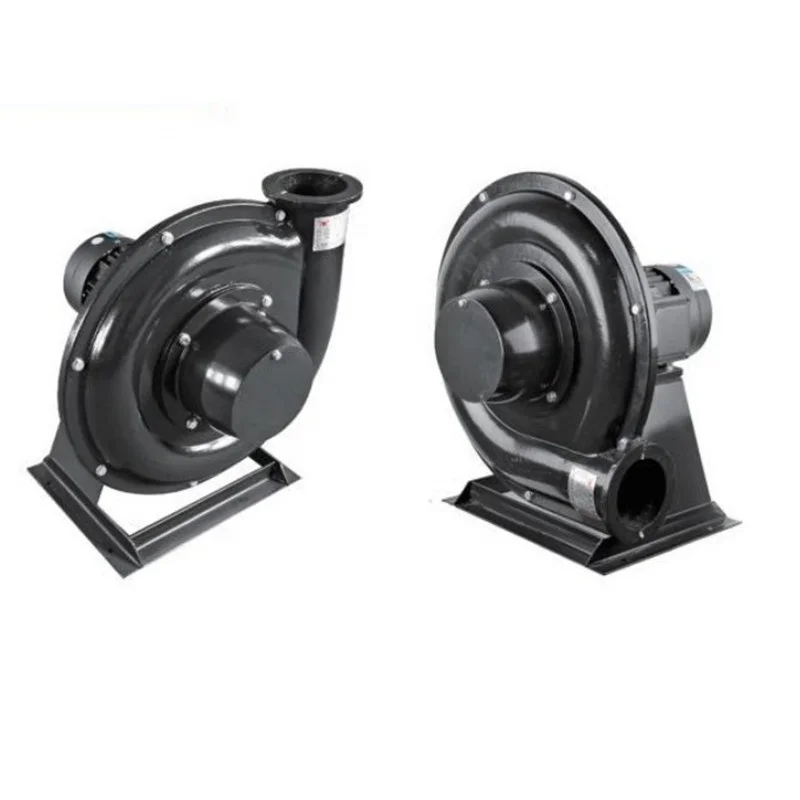

Cast Aluminum Centrifugal Blower Fan
The Model5-34 and 5-27/32 high-pressure centrifugal fan is extensively applied to transmit materials. The transmission medium is air or other non-flammable gases, which are harmless to human. The medium does not contain any adhesive materials. The gas temperature is ≤80℃,and the dust and particle volume are ≤150mg/m3. It is generally suitable for enforced high pressure ventilation in such industries as forging and smelting, glass, pottery, electroplating, battery and wireless sectors, etc. It is also used to deliver grain, fodder, ore powder, plastics, etc. in the processing industries. It is also suitable for the combined use with carton machinery and tempered glass equipment.
industrial systems such as Coal-fired power, Metallurgy, Papermaking, Cement and Glass production, Chemical industry, Material handling, Sewage treatment, Waste incineration, Subway ventilation, environment protection, mine, metallurgy, petro-chemical, tunnel,Industrial boiler and Dust removal systems etc. , and wind tunnel
l Provide the technical design and solutions
l Designing and manufacturing of non-standard equipment
l Supply accessories at any time
l Tele-technical consulting and services
l Other special technical service according to client’s requirements
l Close follow-up of all orders and keep customers informed timely
l Product quality and delivery time is strictly controlled
Ordering and Pricing
- Minimum order quantity: 10 set
- Volume pricing:
- 10–29 set: US $460 / set
- 30+ set: US $430 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal blower?
The standard minimum order quantity is 10 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this centrifugal blower carry?
It is supplied with CE/ISO documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the centrifugal blower be supplied for my local voltage?
The standard configuration is 220V/380V/415V/440V/660V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shandong Handun Environmental Technology Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, Trading Company. Browse the full Shandong Handun Environmental Technology Co., Ltd. range on HVACR Nexus.
