This centrifugal blower is published with the manufacturer’s full specification — 230 V, 50/60(Hz), power source type Corded Electric. Made by Ningbo Longwell Electric Technology Co., Ltd. (9 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Centrifugal Blower
- Model Number: LWFE3G146-092DS-10, LWFE3G146-072DS-01, LWFE3G146-092DS-02, LWFE3G146-092DS-03
- Power Source Type: Corded Electric
- Voltage: 230 V, 50/60(Hz)
- Material: Metal
- Blade Material: Metal
- Noise Level: 40 dB and above

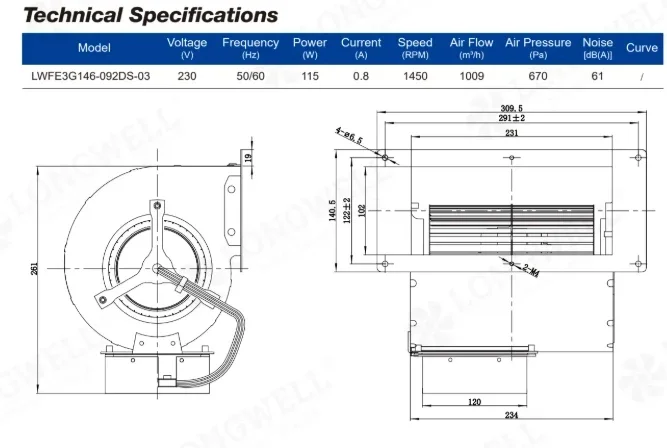

Technical Specifications
| Mounting | Free Standing |
|---|---|
| Voltage | 230 V, 50/60(Hz) |
| Motor Type | EC |
| Speed | 1500 RPM, 1350RPM, 1300RPM, 1450RPM |
| Material | Metal |
| Blade Material | Metal |
| Power Source Type | Corded Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Noise Level | 40 dB and above |
| Place Of Origin | Zhejiang, China |
| Brand Name | LONGWELL |
| Model Number | LWFE3G146-092DS-10, LWFE3G146-072DS-01, LWFE3G146-092DS-02, LWFE3G146-092DS-03 |

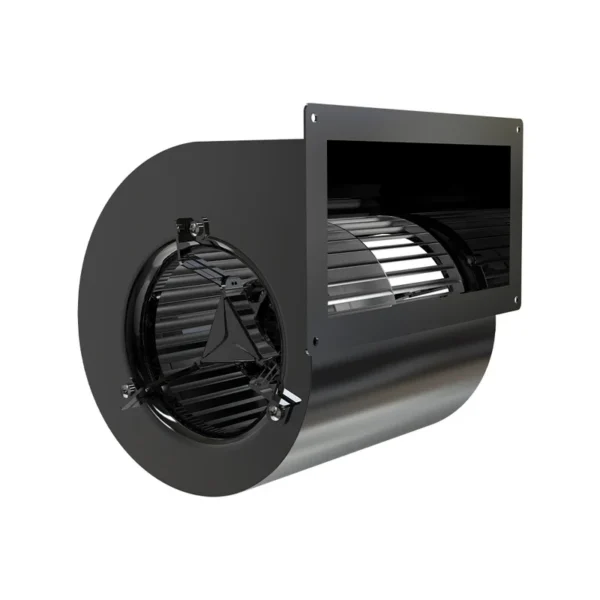

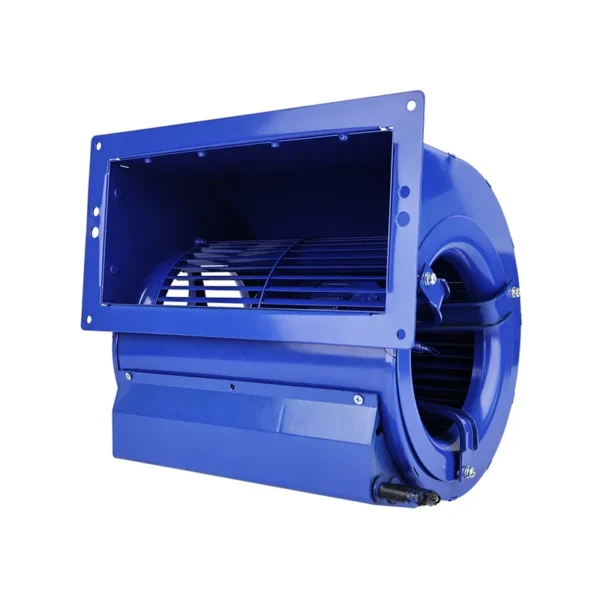

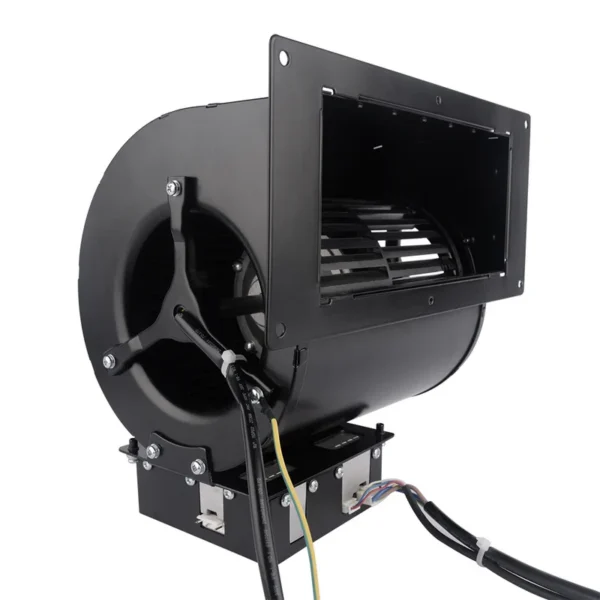

| Product Name | EC Dual Inlet Forward Centrifugal Fans |
| Bearing | Maintenance-free ball bearings |
| Operation Temperature | -30℃~+60℃ |
| Type Of Protection | IP54 |

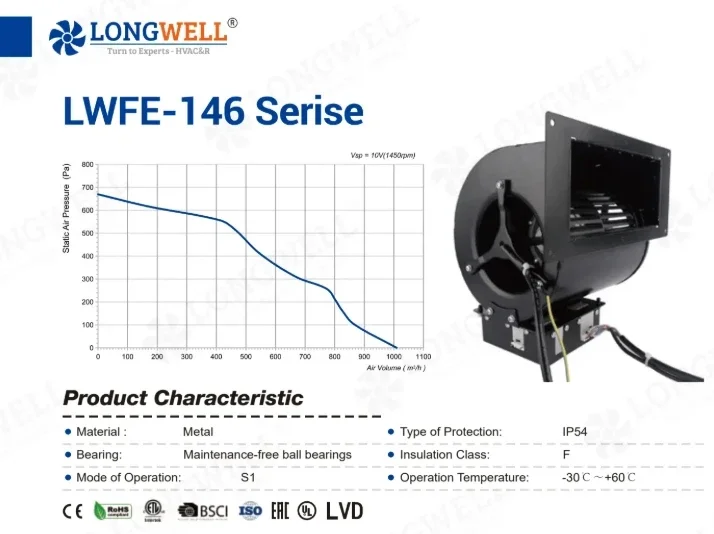

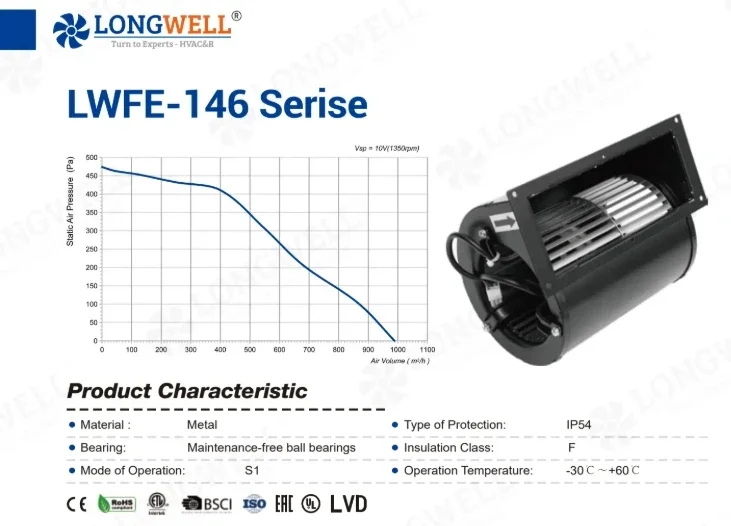

| Air Pressure | 474Pa,536Pa,670Pa |
| Type | Centrifugal Fan |
| Keyword | 146mm Centrifugal Fan |
| Current Draw | 0.6A,0.8A,0.95A |
| Application | Exhaust Ventilation |
| Feature | Low Noise Power Saving |
| Selling Units | Single item |
| Single Package Size | 150X50X50 cm |
| Single Gross Weight | 15.0 kg |
Product Details
Types : | Centrifugal Fan |
Voltage Ranges : | 230V |
Frequency : | 50/60 Hz |
Diamter : | 146mm ( impeller diameters ) |
Motor Types : | BLEC External Rotor Motor ( EC ) |
Speed : | 1300RPM,1350RPM,1450RPM |
Max.ambient Temp: | -30℃~+60℃ |
Certificating : | All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI |
Protection Level: | IP54 |
Electronic Protection: | Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start |
Working & Storage | Operating temperature：-30~60℃；Operating humidity：0 ~ 85 % RH Storing temperature：-30 ~ 70℃；Storing humidity：0 ~ 95 % RH Applicable altitude range：＜1000m |
Balancing | According to JB/T 9101-1999 requirements G6.3 |
Product Standards : | LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3 |
Mainly Applications | AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent / Medical equipments/Ventilation SYSTEM/ Equipments Cooling / Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans |
Q1.Why the Ec centrifugal fan is much efficiency than Ac centrifugal fan ?
Operate on either 50Hz or 60Hz;
Operate on a wide voltage range(200-277Vsingle Phase&380-480 Vthree phase );
Operates much cooler-longer life ;
Less heat for a refrigeration system to handle (increased refrigeration COP),30 % average energy saving compared to AC technology;
Q2. Does Longwell provide any speed control options for EC FANS ?
– Stepless control knob for infinitely variable speed setting
– Cable entries 4xM16 or M20
– 4mm mounting holes
Q3. how we connect fan unit to our application ,is there a wiring diagram ?
Q4. Life span of this kind of Centrifugal fans ?
100 % speed controllable; control signal 0-10 V DC / PWM; tach output.

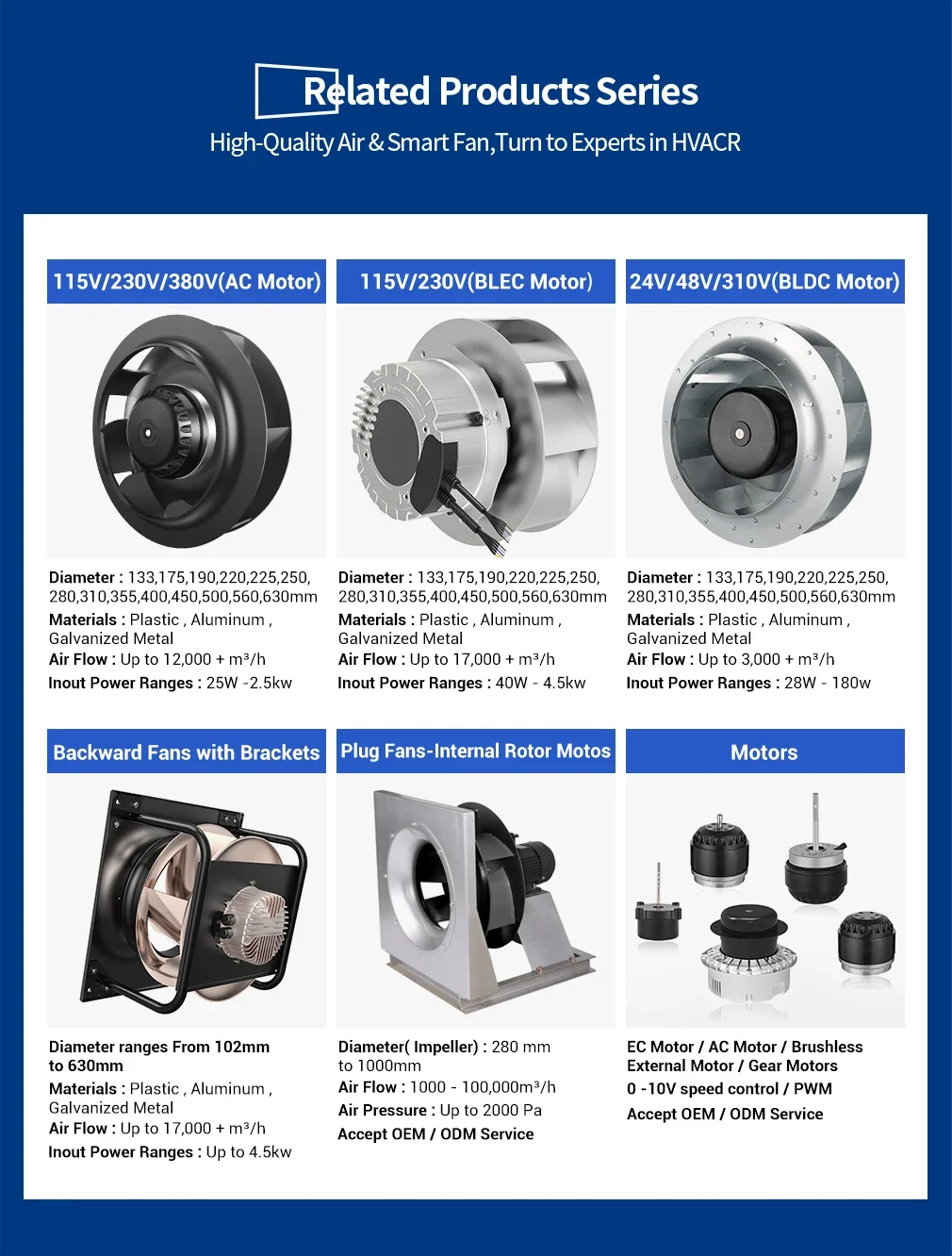

Q5. Are there any other AC DC EC centrifugal fans options or solutions for selection ?

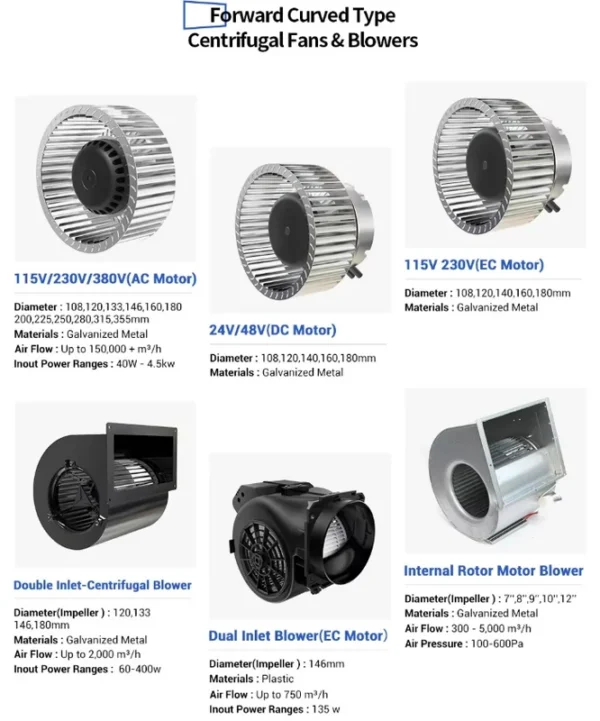

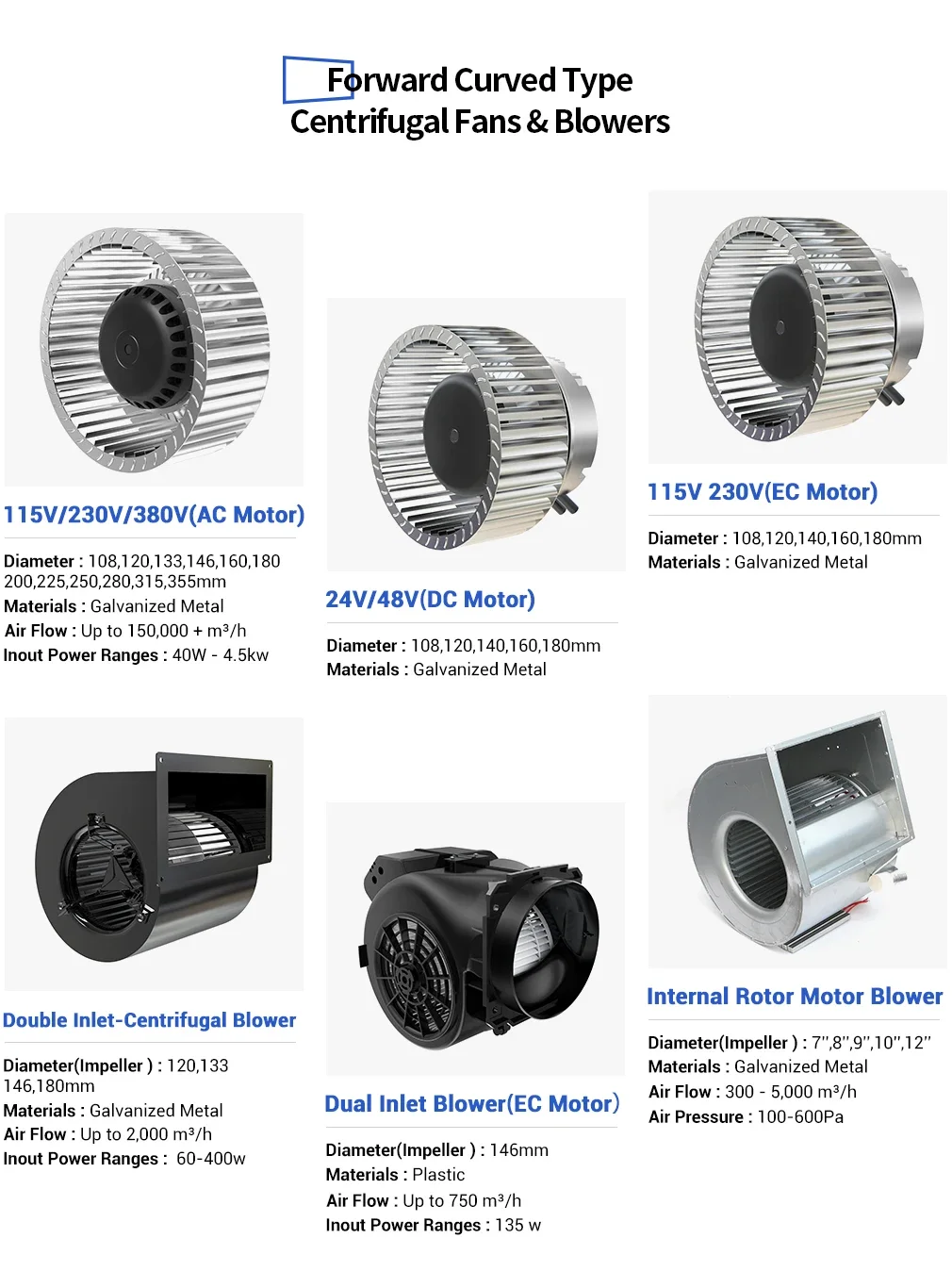

LONGWELL is a professional manufacturer of fans, blowers , motors and components for heating,venlation, air conditioner and refrigeration applications ,specialist in centrifugal fans, axial fans, AC /BLDC cross flow fans, single / double forward curved fan BLOWERS ,AC / BLDC/ECM motors as well as industrial fan blowers, inline duct fans , Poultry ventilation fans ( AC / DC /EC ) ,etc. Please check below photos for reference :
Longwell as a known and trustworthy DC cross flow fan Supplier in China , we assure you the best product quality and service.
If you are looking for DC cross flow fans for your manufacturing applications or electronic devices, do go through the features and specifications of our various models of DC cross flow fans. In case you require any further information or have technical queries, you can contact us directly at :
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–499 piece: US $72 / piece
- 500–999 piece: US $61 / piece
- 1000+ piece: US $54 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal blower?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal blower be supplied for my local voltage?
The standard configuration is 230 V, 50/60(Hz). Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Ningbo Longwell Electric Technology Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Ningbo Longwell Electric Technology Co., Ltd. range on HVACR Nexus.
