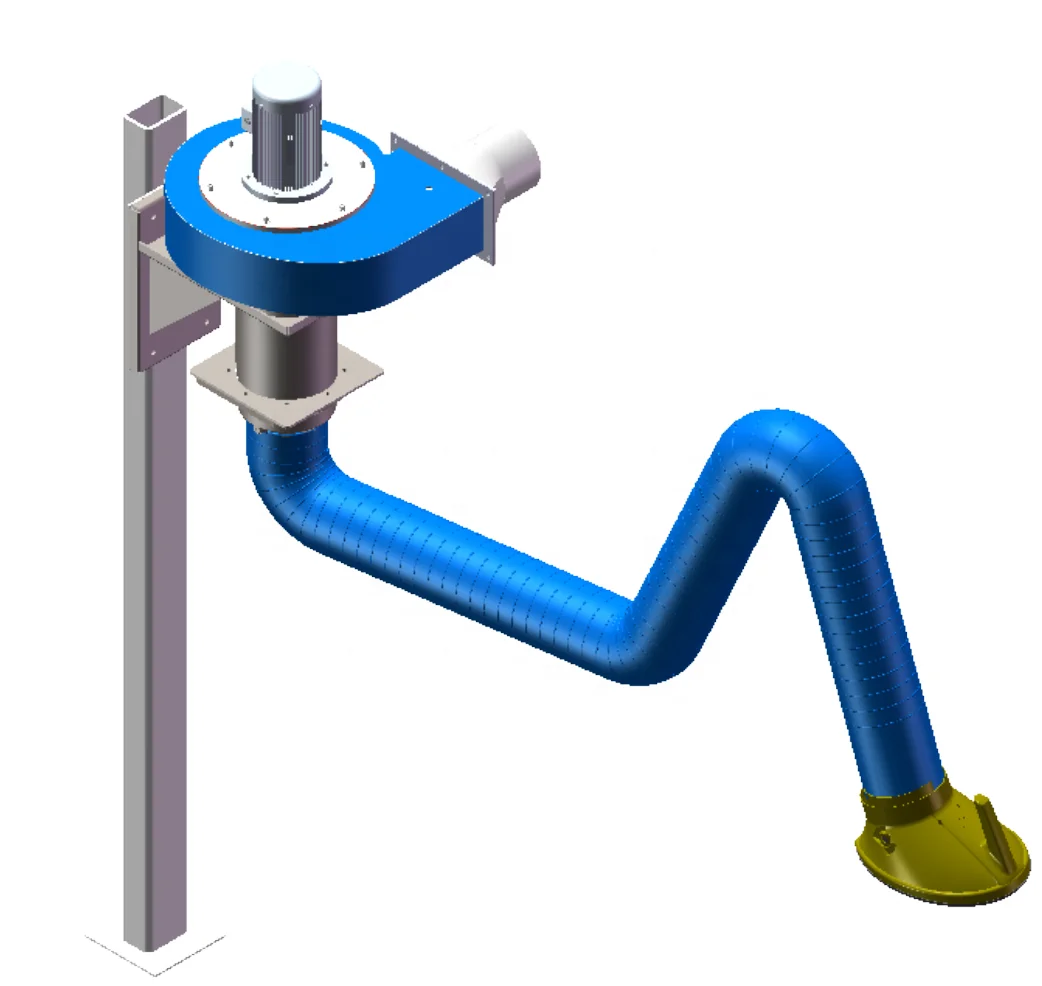

Centrifugal dust extraction fandust — model number DER-DRX. The complete factory specification follows. Made by Qingdao DEER Environmental Protection Technology Co., Ltd (8 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Centrifugal Dust Extraction Fandust
- Model Number: DER-DRX
- Inner Support Material: Aluminium Alloy
- Place Of Origin: Shandong, China
- Application: smoke fume collection connection hose
- Hood Type: horseshoe shape, straight
- Single Package Size: 5X5X4 cm
Technical Specifications
| Place Of Origin | Shandong, China |
|---|---|
| Brand Name | QINGDAO DEER |
| Model Number | DER-DRX |
| Name | Centrifugal Dust Extraction Fan/Dust and Fume Extraction Arms |
| Application | smoke fume collection connection hose |
| Inner Support Material | Aluminium Alloy |
| Hood Type | horseshoe shape, straight |
| Length | 1.5/2.0/3m |
| Color | red/white/black |
| Diameter | 150/160/200mm |
| Selling Units | Single item |
| Single Package Size | 5X5X4 cm |
| Single Gross Weight | 3.000 kg |
Product Details

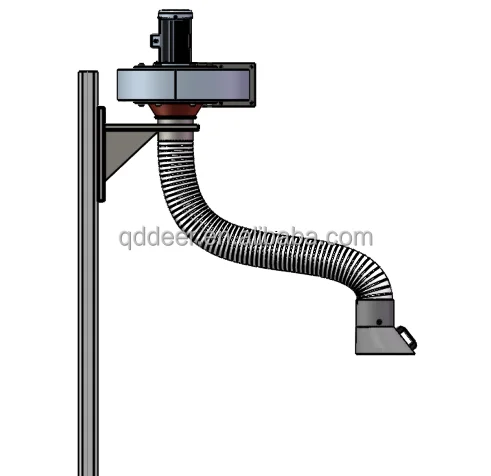

DEER DRX SERIES Inner Suppport Type Fume Extraction Arm
INNER SUPPORT TYPE :ALUMINIUM ALLOY+PVC HOSE
Techincal parameter
Length: 2m-5m Diameter: φ160mm The horizontal rotating parts of the extraction arm with straight tube type shaft coupling structure, flexible use, but also increased the effective angle, because the coupling links in the maintenance and use of the process is more convenient. Flexible suction arm link uses the aluminum material made to reduce its weight the more flexible and convenient in use, each link element are fluid design, water chestnut are the smooth transition processing reduces the resistance of gas through. A friction plate made of 80mm composite is used to increase the service life of the friction plate.

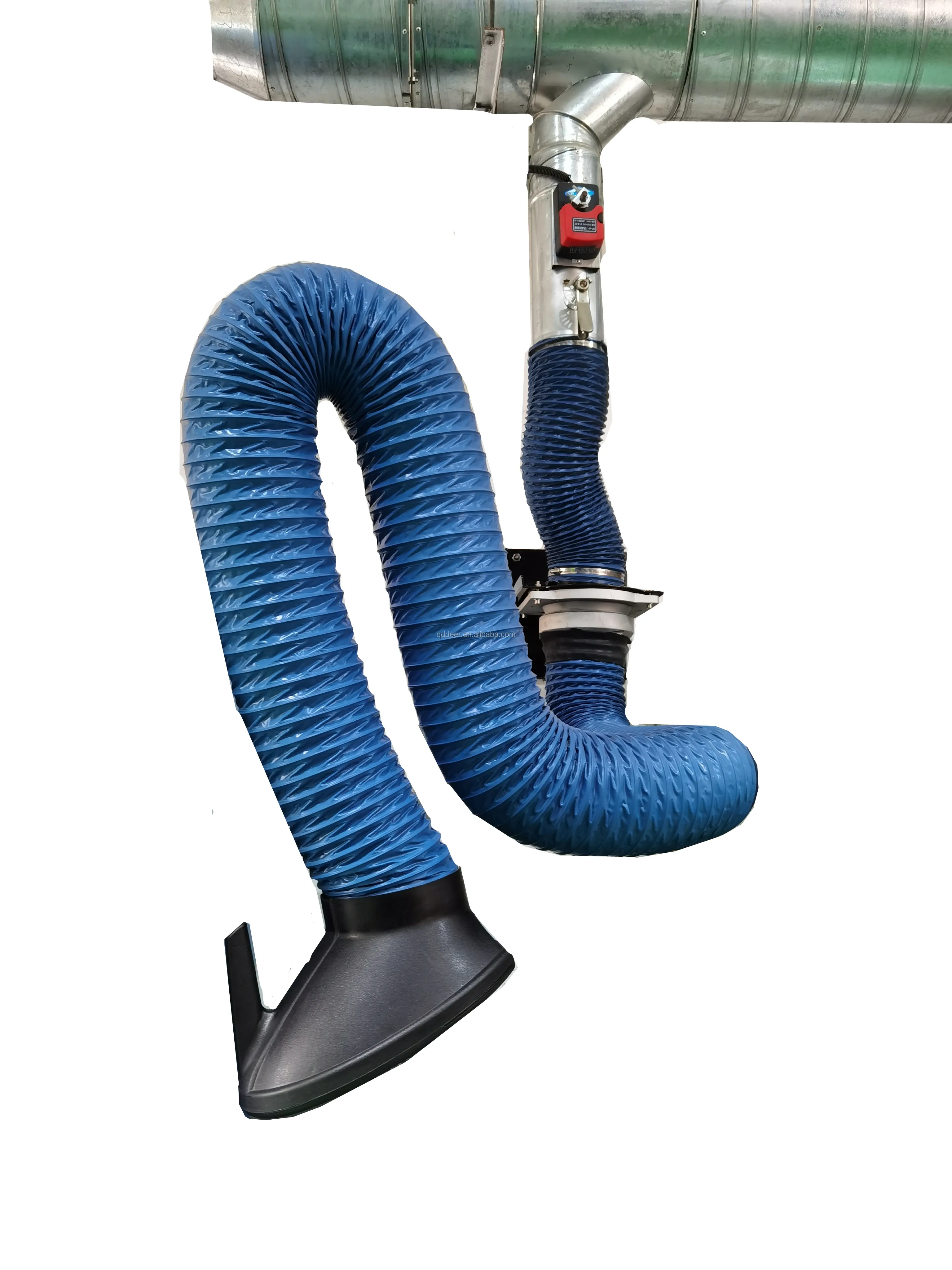

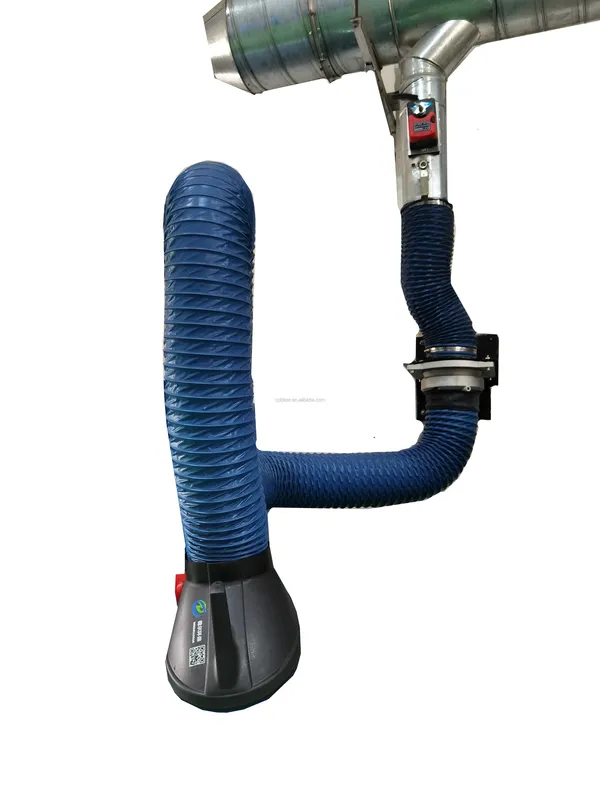

DEER-DRB SERIES Inner support type Extraction Arm
INNER SUPPORT TYPE(STAINLESS STEEL+PVC HOSE)
Facility Characteristics:
Facility Characteristics: 1, the suction arm of the frame is made of aluminum alloy material, never rust, corrosion, acid and
alkali salt, high temperature, light, high strength, with power equipment, operation and effort, hovering freely 2, the links are
used in fluid design, reducing gas through resistance. 3. For a wide range, supporting use in various types of welding smoke
purifier and with dedusting machine , can be directly installed in the walls or system with pipeline for smoke gas emissions, high
efficiency smoke gas collection ability. 4, equipment link rod parts are made by our company standard material, can custom made

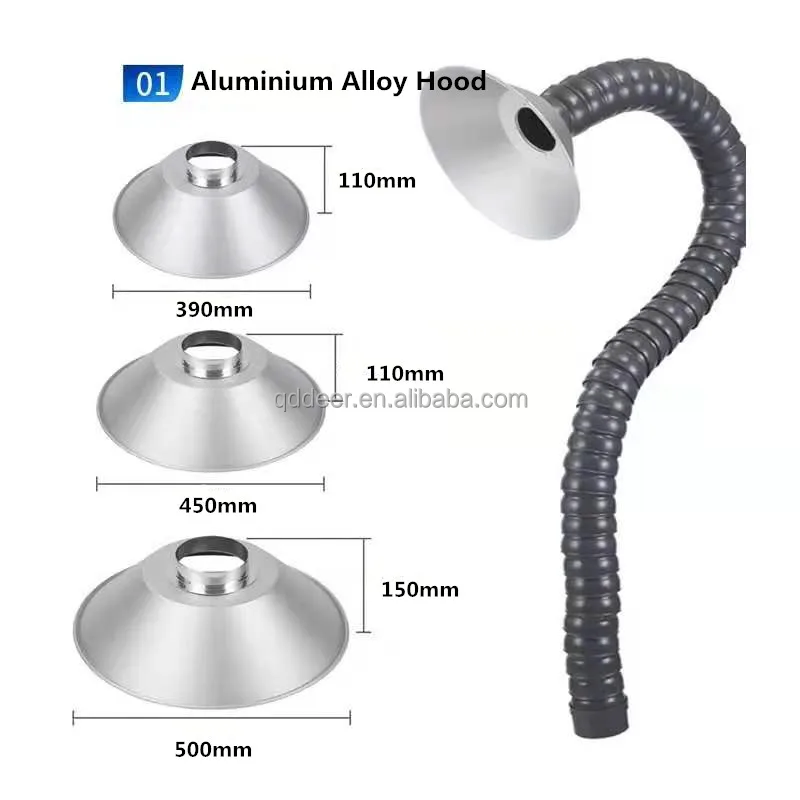

according to the actual use of arbitrary custom size. 5,optional accessories: hood fire network; working lamp; light, smoke,
temperature sensor.
alkali salt, high temperature, light, high strength, with power equipment, operation and effort, hovering freely 2, the links are
used in fluid design, reducing gas through resistance. 3. For a wide range, supporting use in various types of welding smoke
purifier and with dedusting machine , can be directly installed in the walls or system with pipeline for smoke gas emissions, high
efficiency smoke gas collection ability. 4, equipment link rod parts are made by our company standard material, can custom made
according to the actual use of arbitrary custom size. 5,optional accessories: hood fire network; working lamp; light, smoke,
temperature sensor.
Application places:

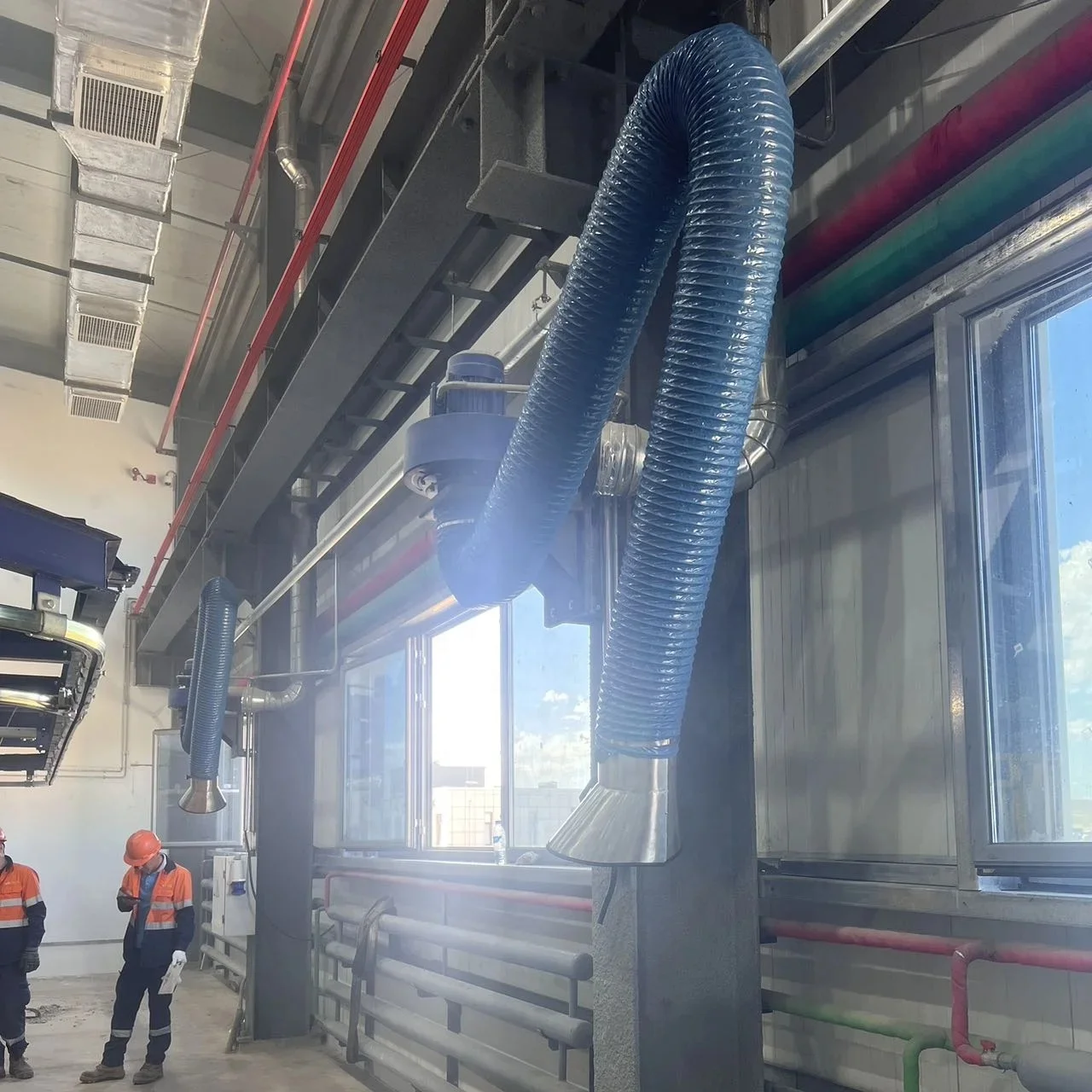

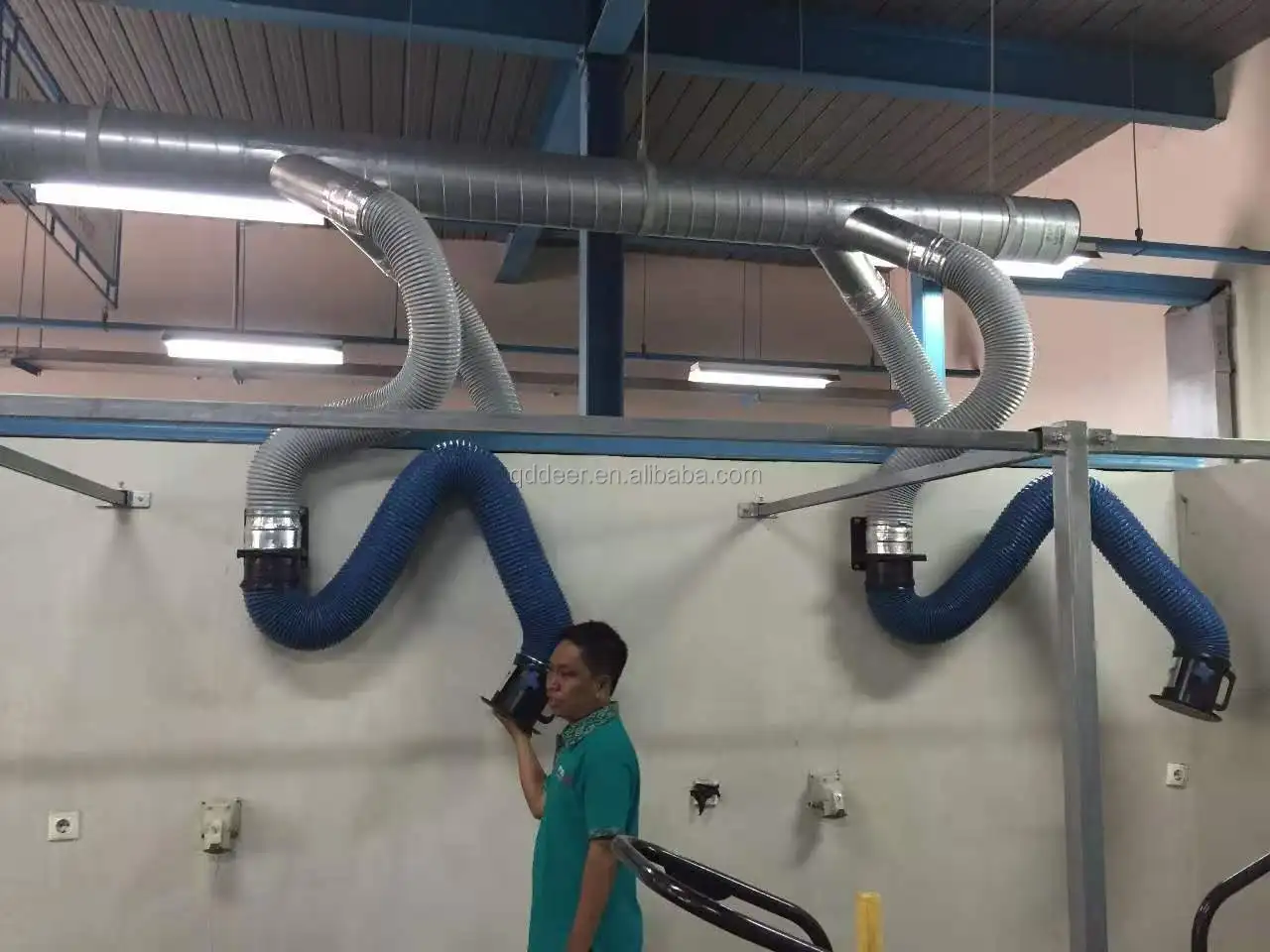

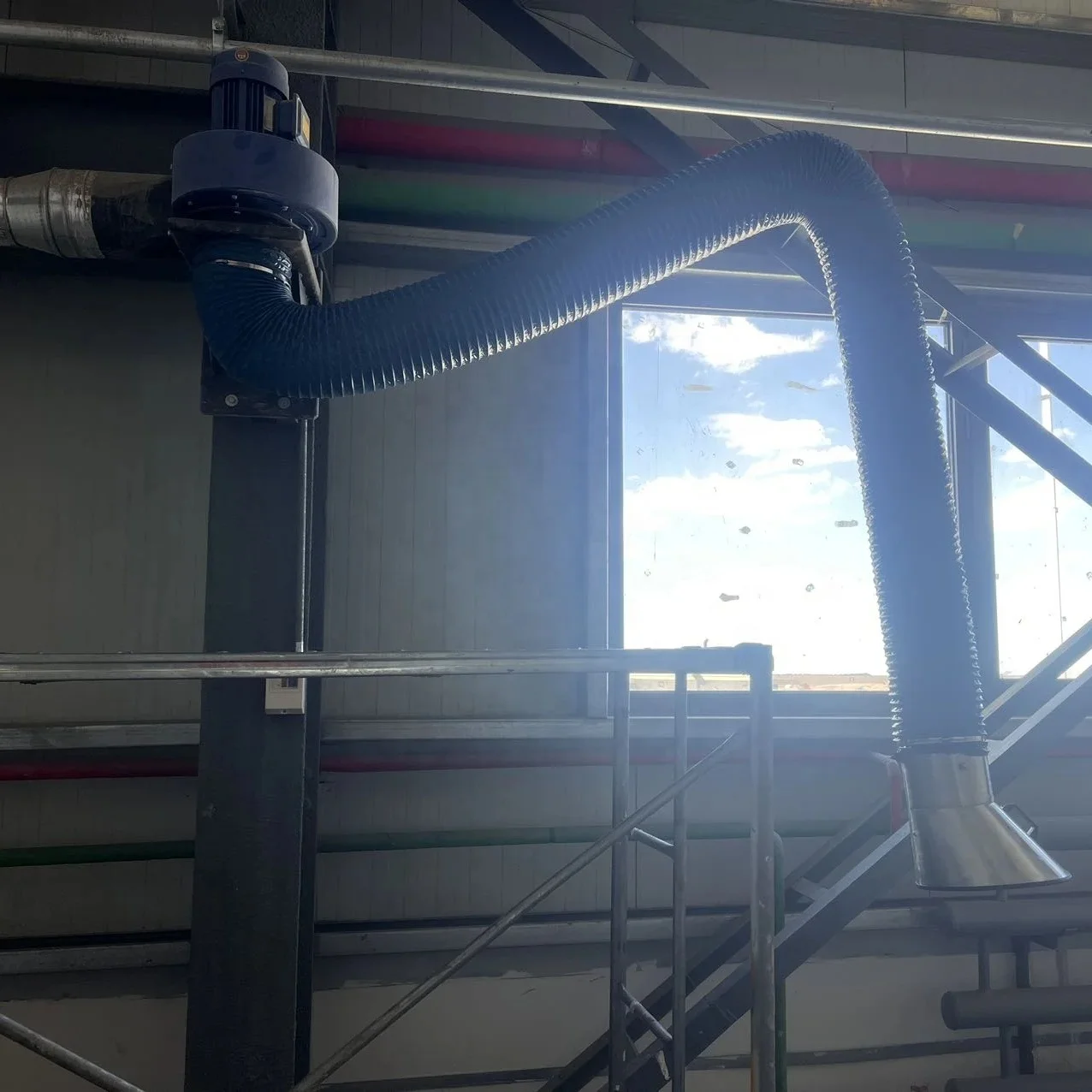

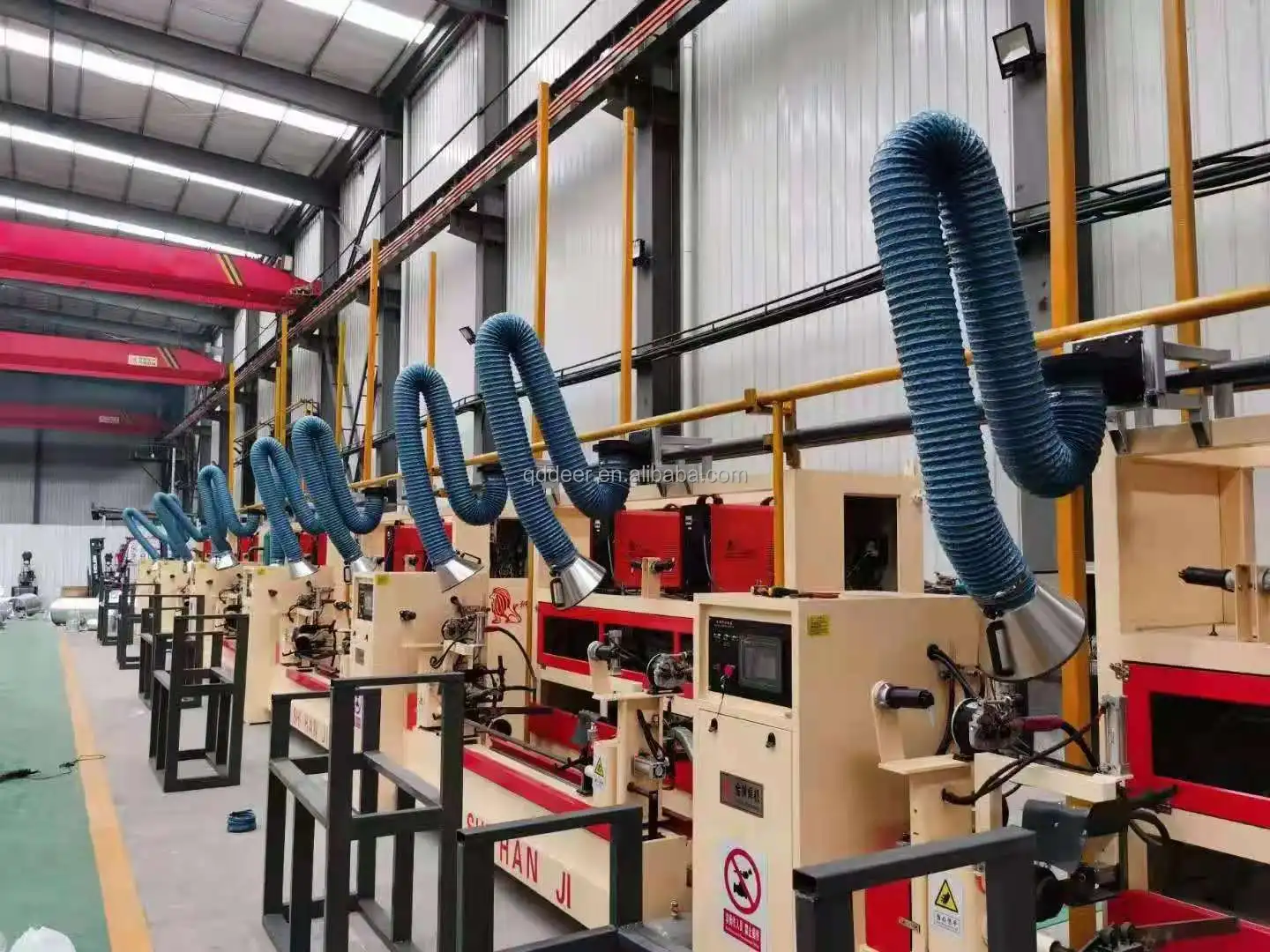

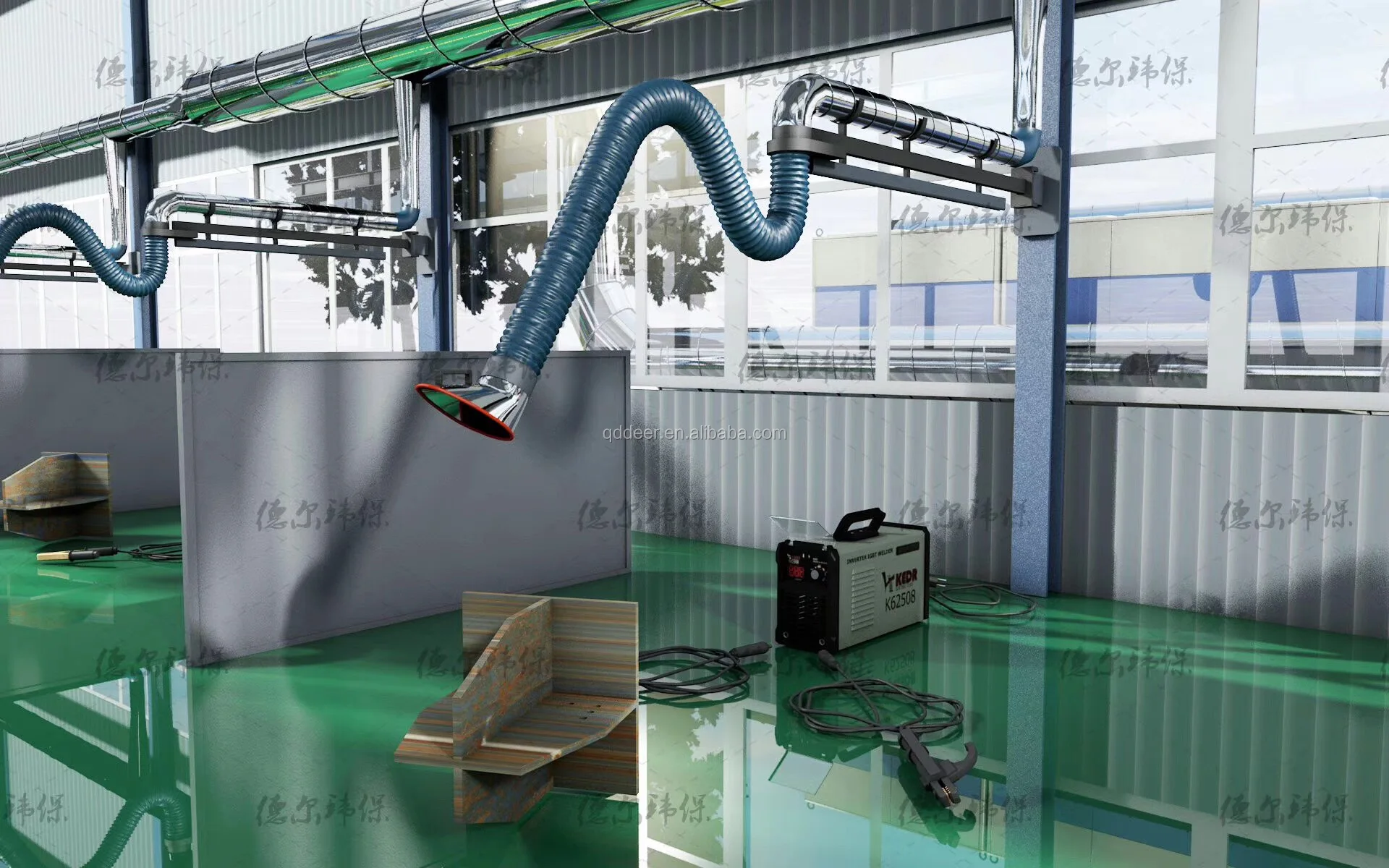

Suction arm is widely used in metal processing, welding fume, polishing, and thermal processing of oil mist treatment, peculiar smell removing, dust removing and other industries. Facility Characteristics: > Length: 2m-5m Diameter: φ150mm, φ160mm, φ200mm(other specification should be customized) > Import PVC steel wire air hose, anti-corrosion; endure acid, and high temperature 1400C Skeleton material: the spring steel is galvanized, and other metal components and fasteners are all stainless steel 304#. > Suction cover: stainless steel, 360 degree arbitrary hover with wind control valve for suction mouth
Facility Characteristics:

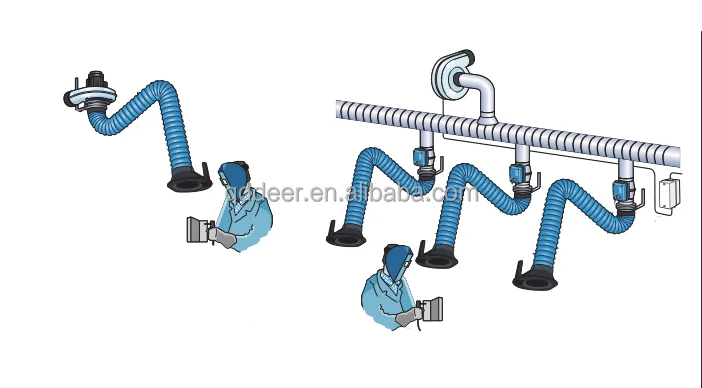

> Light weight, high strength, with power device, easy to operate, hover freely. It can be adjusted in any direction, and its capture effect is good. > Compared with the fixed pipeline system, flexible suction arm has unparalleled performance superiority. It can adapt to all kinds of complex conditions .Not only can with suction pipeline, but also can be placed any best capture location. Thus, it can capture welding fumes effectively >Can work according to the scene of the need to configure the different suction hood, for example, large type, round type, square shape, hat shape, etc. >Options: fire prevention network, work light, smoke/light/ temperature probe

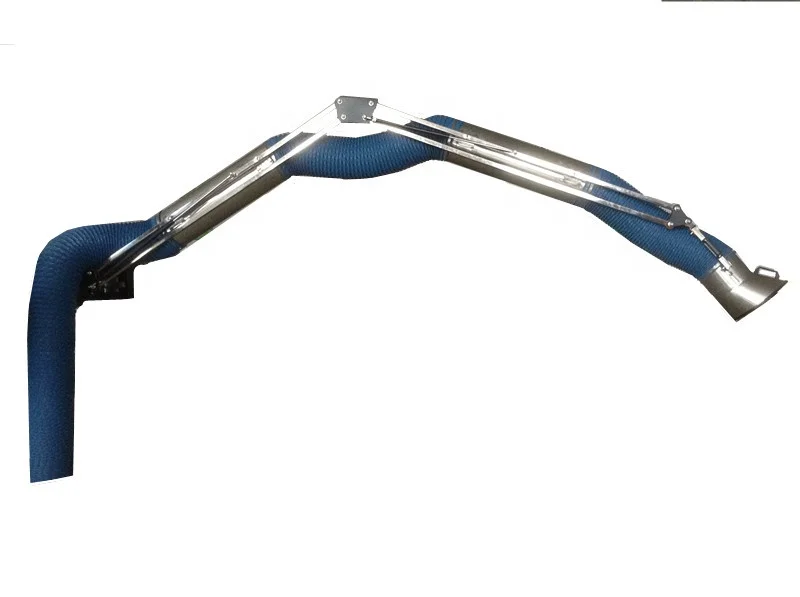

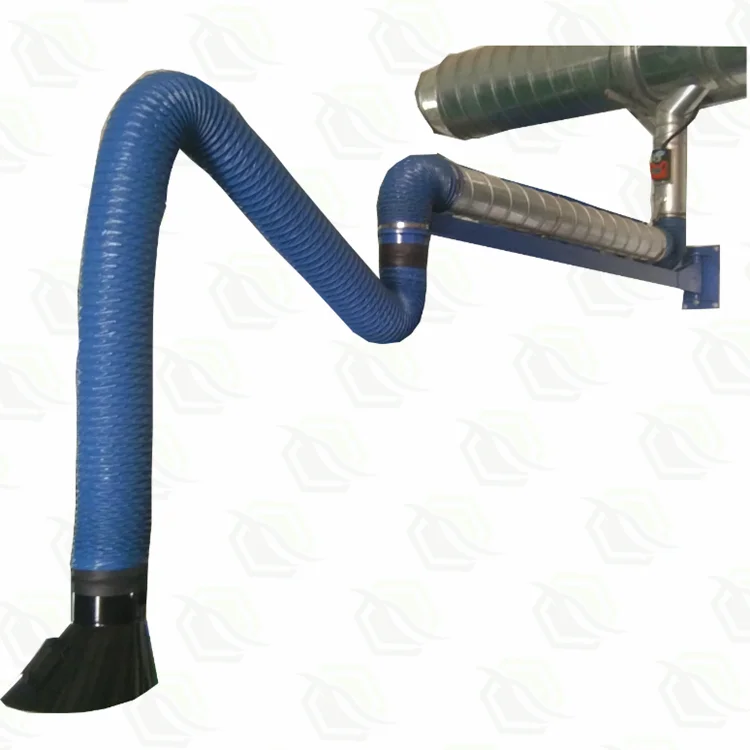

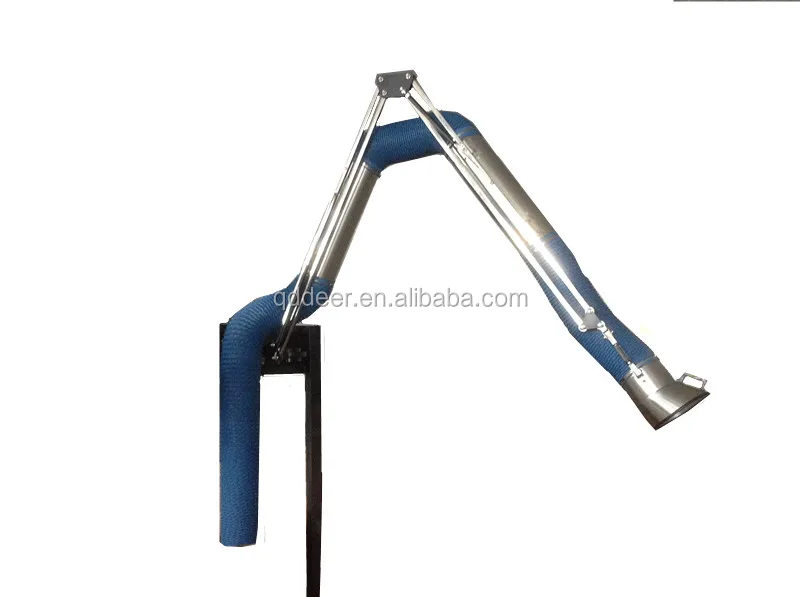

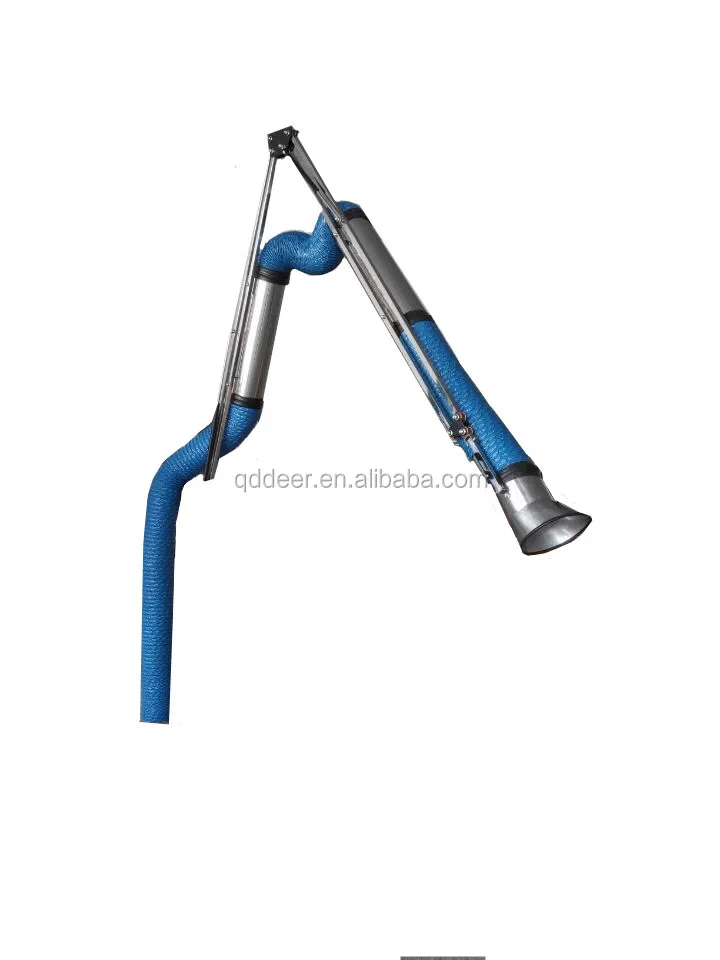

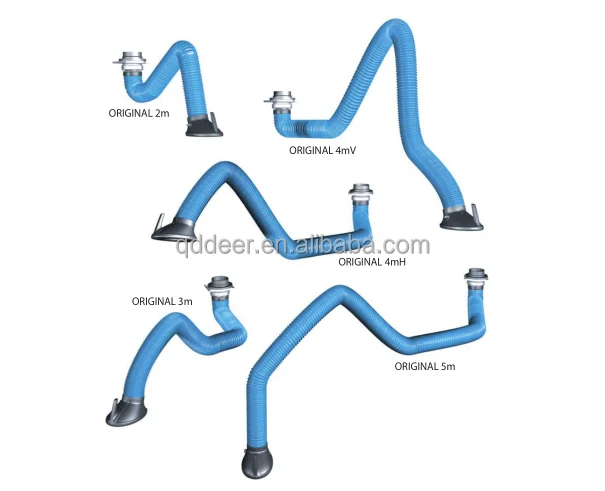

DEER DRW SERIES External Type Extraction Arm
(SUPPORT EXTERNAL TYPE STAINLESS STEEL STRUCTURE+PVC HOSE)
Facility Characteristics:
> Length: 2m-6m Diameter: φ150mm, φ160mm, φ200mm (other specification should be customized) > Import PVC steel wire air hose, anti-corrosion; endure acid, and high temperature 1400C Skeleton material: the spring steel is galvanized, and other metal components and fasteners are all stainless steel. > Suction cover: stainless steel, 360 degree arbitrary hover with wind control valve for suction mouth

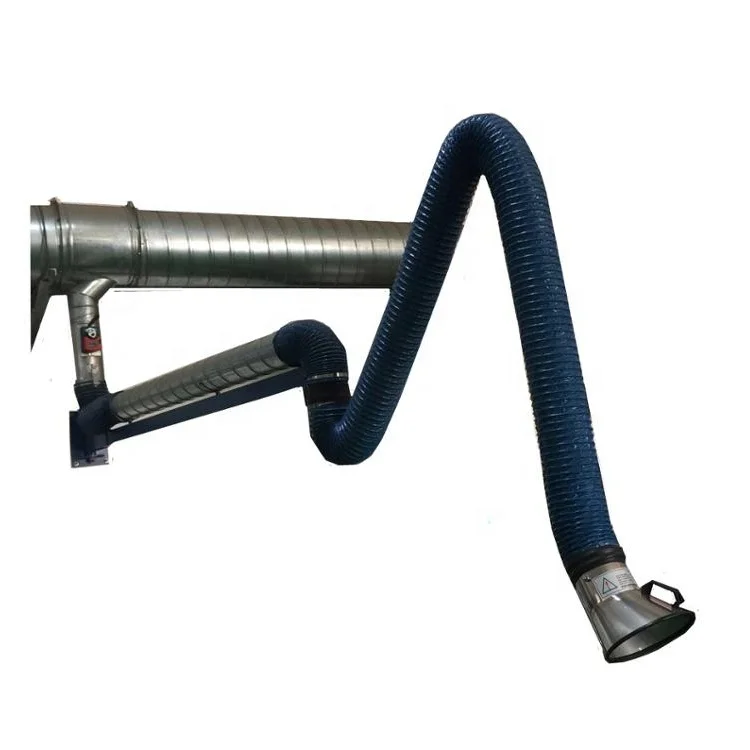

DEER DRC SERIES WITH EXTENSION ROD
INNER SUPPORT TYPE(STAINLESS STEEL+PVC HOSE)
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Facility Characteristics:
DJ SERIES extended arm is supported by slewing bearing, an extension of the installation on the wall support combined with conventional suction arm, equipped with a connection between the head, can all-around flexible rotation, achieve greater scope of work. Longer extension arm can be connected to the fan or suction pipe of the central purification system.
Lab Use:

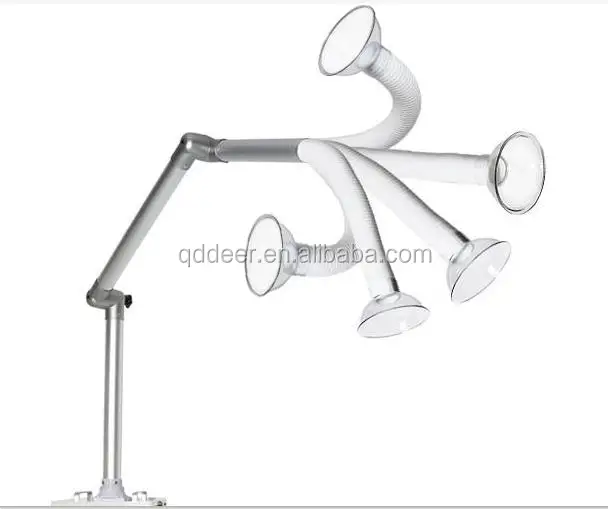

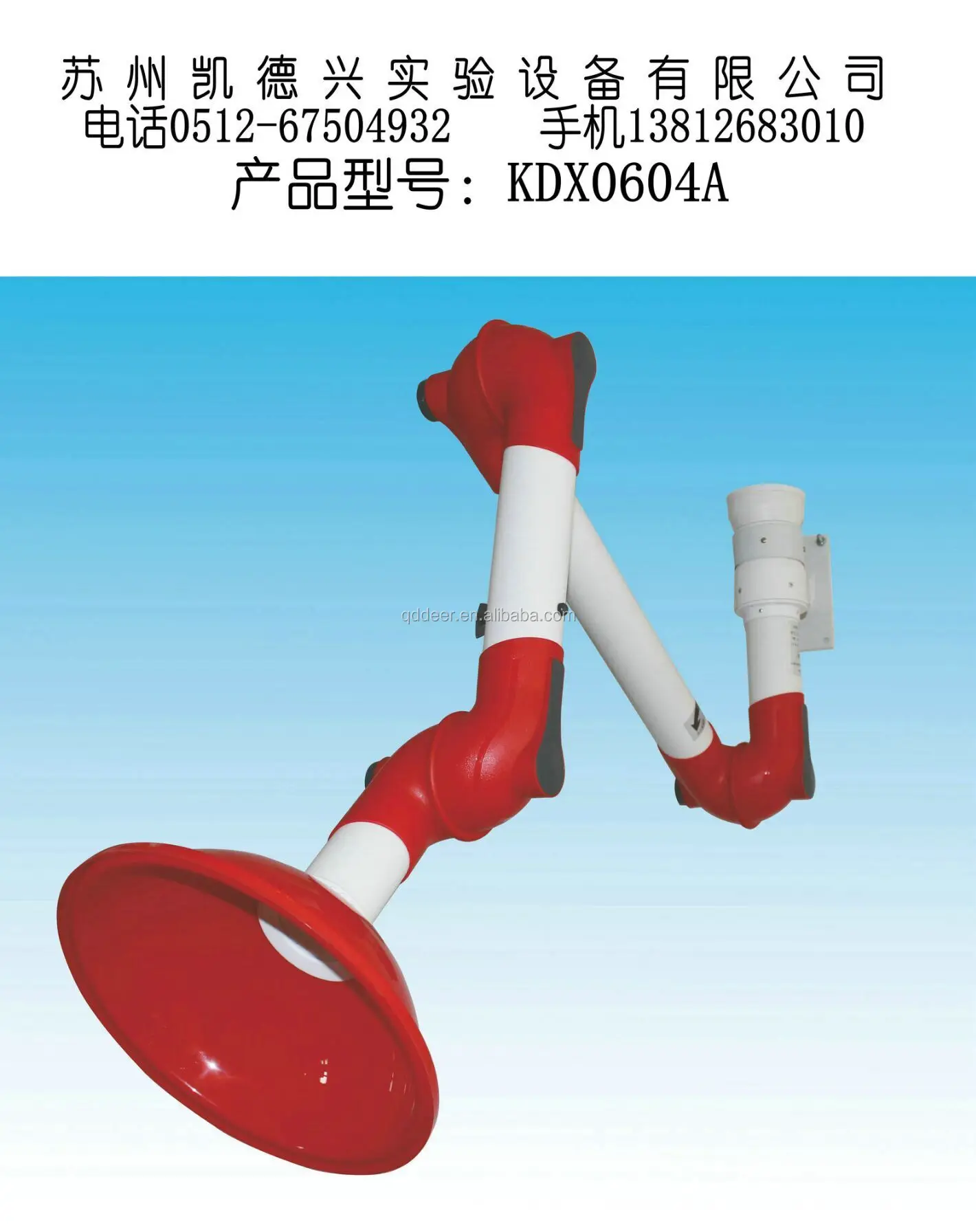

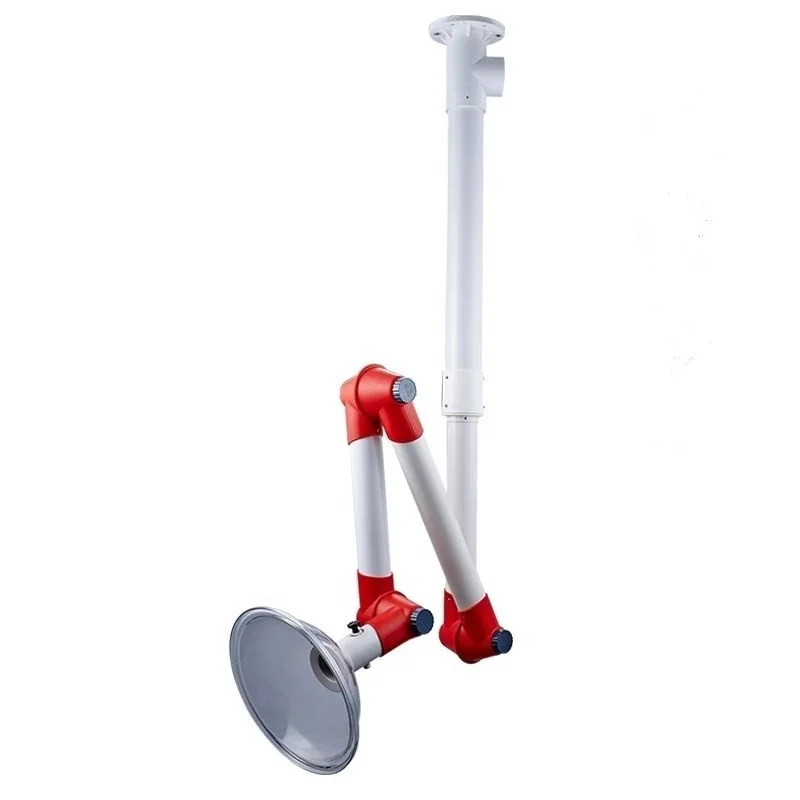

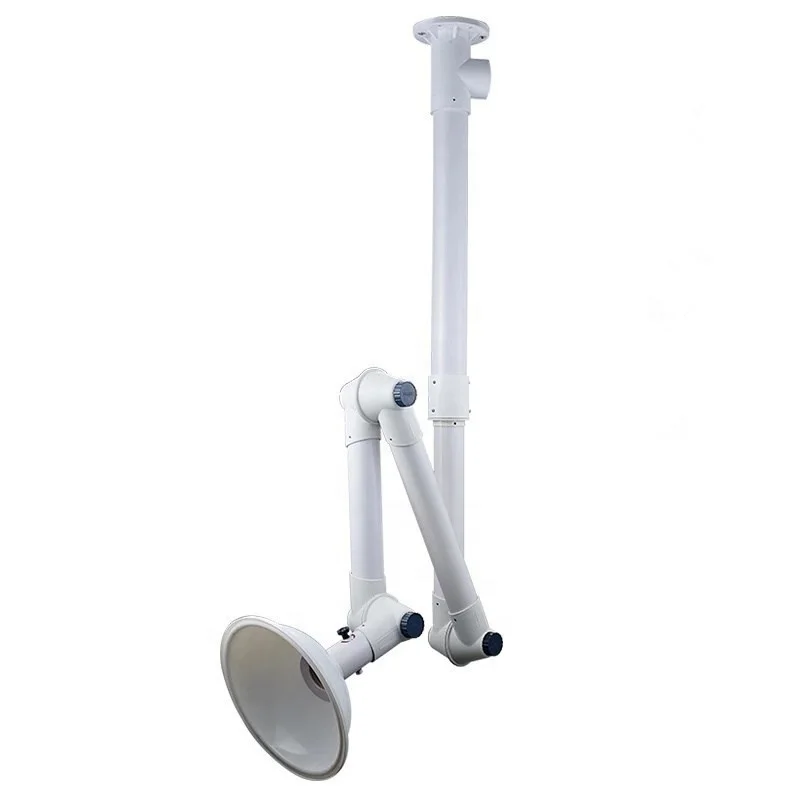

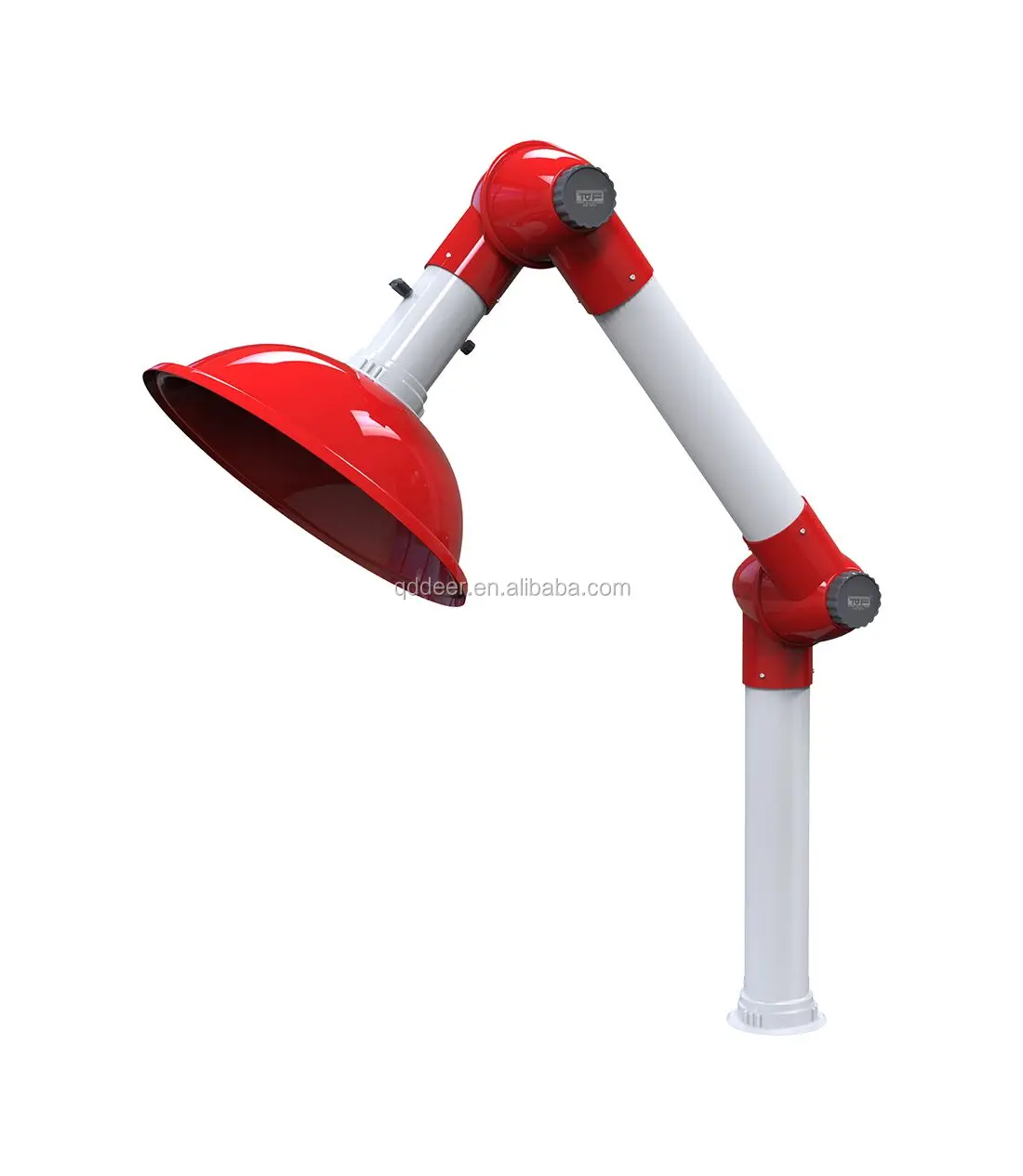

DRJ Multiple joints Flexible Extraction Arm PP material
DRJ SOLDERING FUME EXTRACTION ARM
Multiple joints new type of movable arm, can connect to single or multiple joints according to the actual Conditions Applications: electronic industry, soldering, laboratory, beauty salon, metal processing workshop, jewelry processing workshops, schools, factories chemical laboratory, mechanical processing workshop. Variety of installation: vertical, hanging, fixed on the wall or ceiling Specification: Diameter: 75mm, Length: 1.5m,2m,3m Hood size: 380mm; 200mm(RED/TRANSPARENT/GREY),has damper inside Material:PP Color:RED & GREY Wall mount spare parts: optional

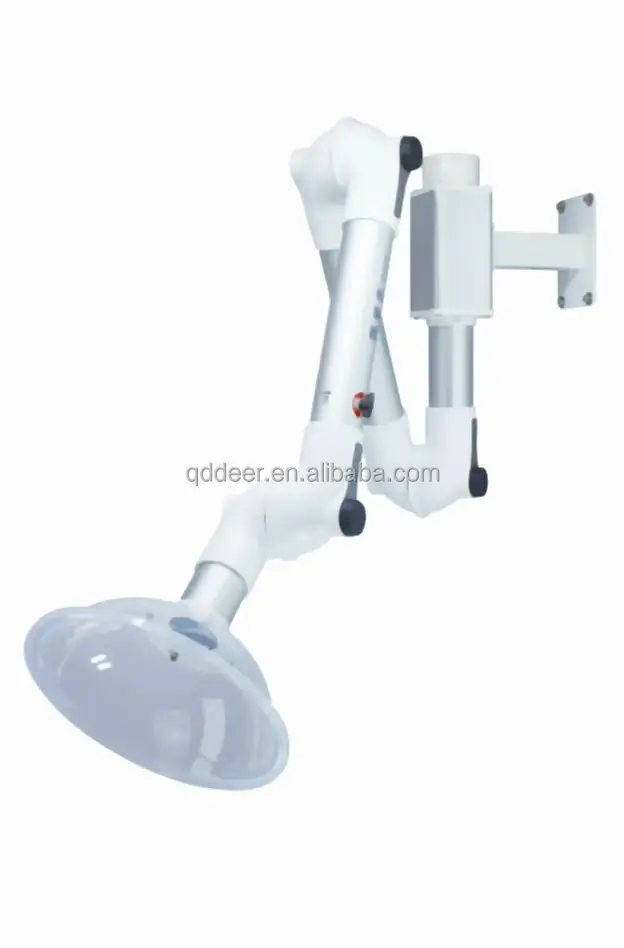

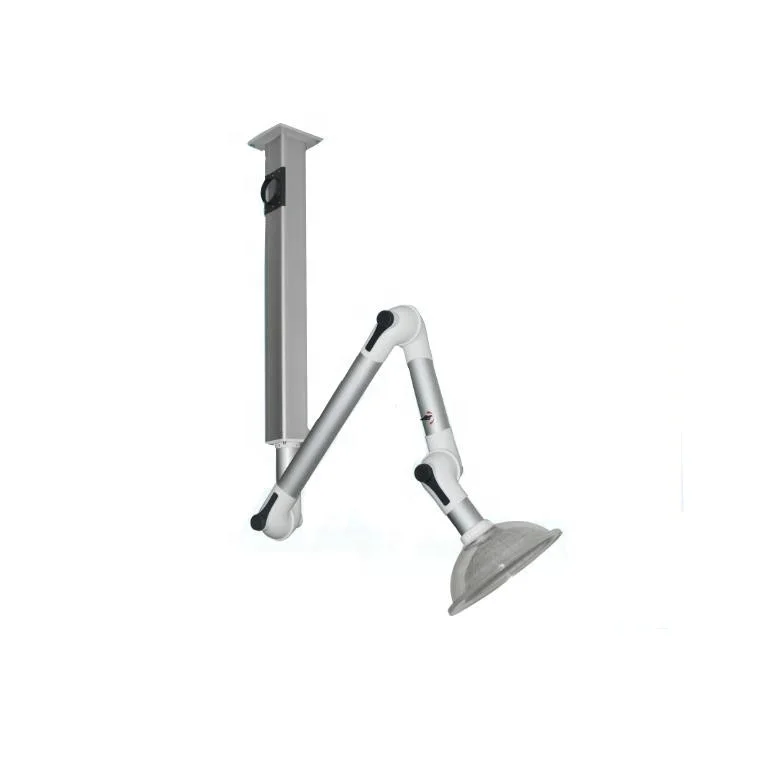

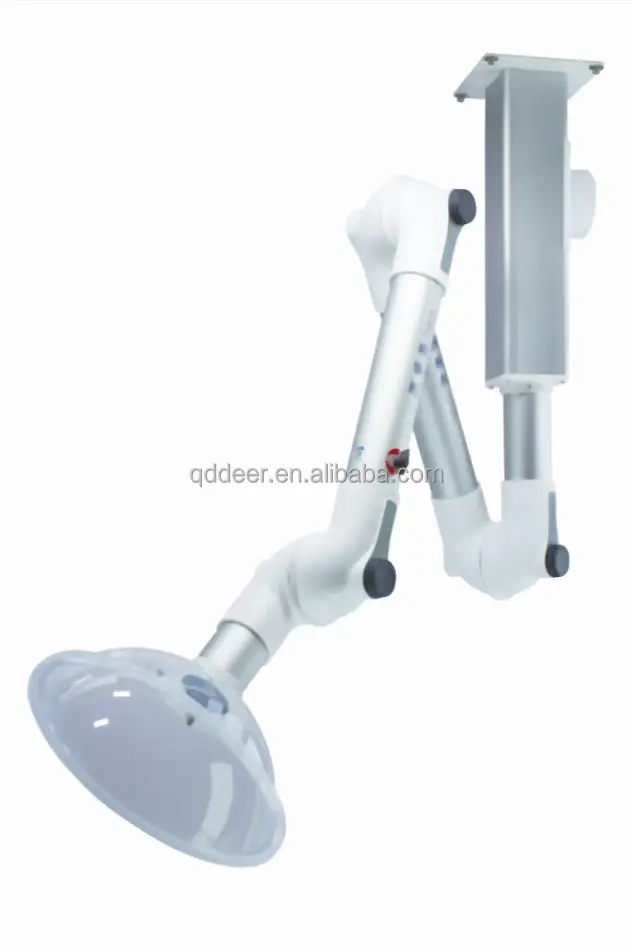

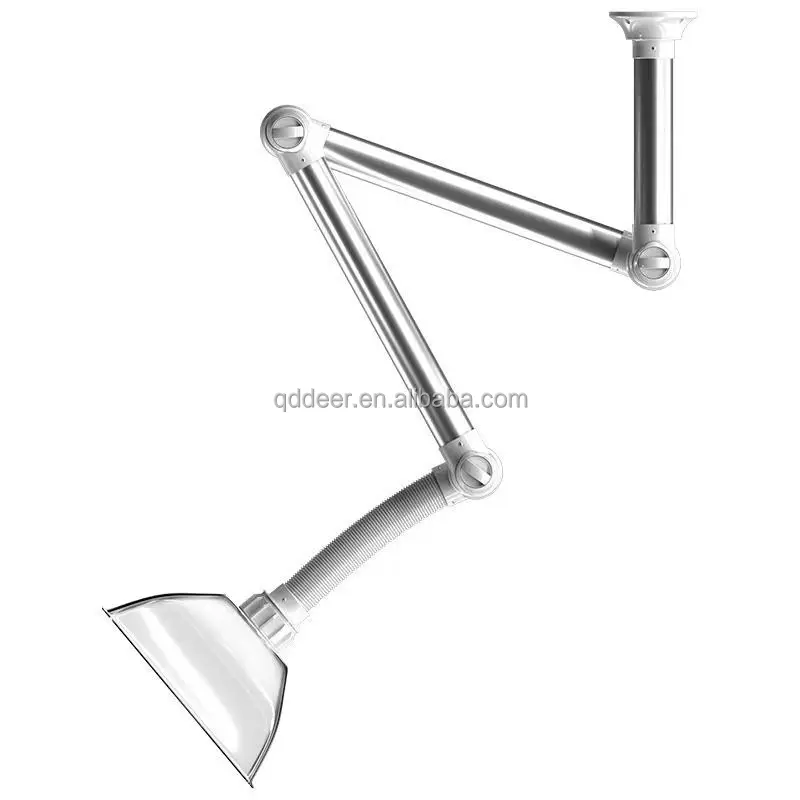

DRJ Flexible Soldering Extraction Arms Aluminium Alloy Type
Applications: electronic industry, soldering, laboratory, beauty salon, metal processing workshop, jewelry processing workshops, schools, factories chemical laboratory, mechanical processing workshop. Variety of installation: vertical, hanging, fixed on the wall or ceiling Specification: Diameter: 75mm, Length: 1.5m,2m,3m Hood size: 380mm; 200mm(RED/TRANSPARENT/GREY),has damper inside Material:PP+ALUMINIUM Color:RED & GREY Wall mount spare parts: optional

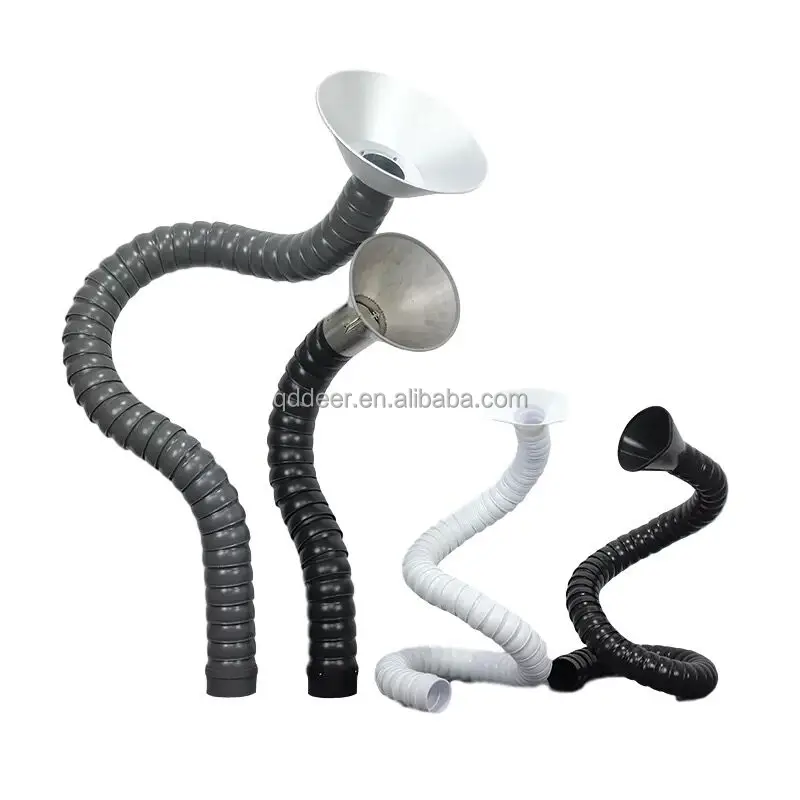

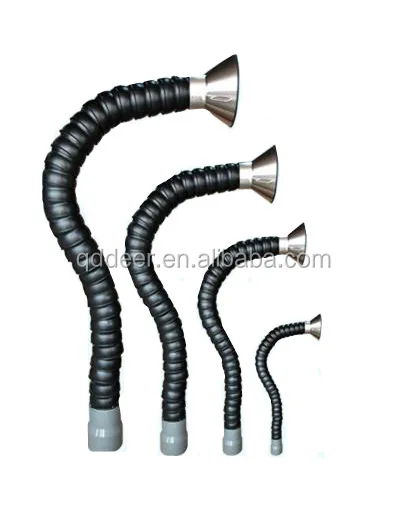

DRQ Flexible Soldering Extraction Arms
> Be consisting of 40mm length, joints connecting; > The length of the arms can be adjustable according to user's requirement（1.0m-8m） > PP joints material; > Smooth surface, anti-acid, oil and other chemical corrosion; > All direction, light weight, can be bent freely; > Connected with hood (horse hoof type, hat type, etc) and extractor or central ventilating system. >Diameter: 50mm;75mm,110mm,150mm,160mm,200mm Length: 1.0m-5.0m,can be custom made

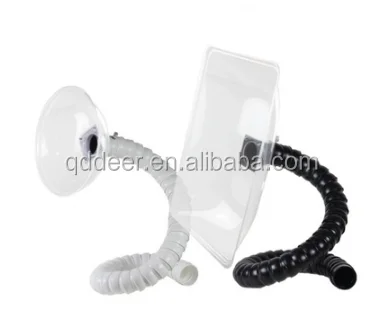

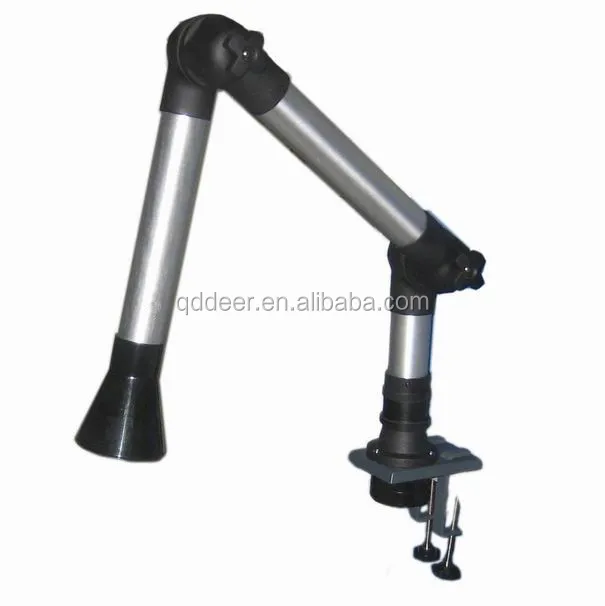

MINI A TYPE Flexible Extraction arms for laser and soldering
Title goes here.
> Can be stretched in any direction > Can stop anywhere in three-dimensional space > Equipped with internal frame in order to reduce pressure loss > Can be continuously used at 100 °C high temperature >Desk mounted type. Length: 1.0m; Diameter: 50mm >Material: aluminum Application places: Apply to machinery, food, medicine, chemical industry, electronics, laboratory and other places etc.

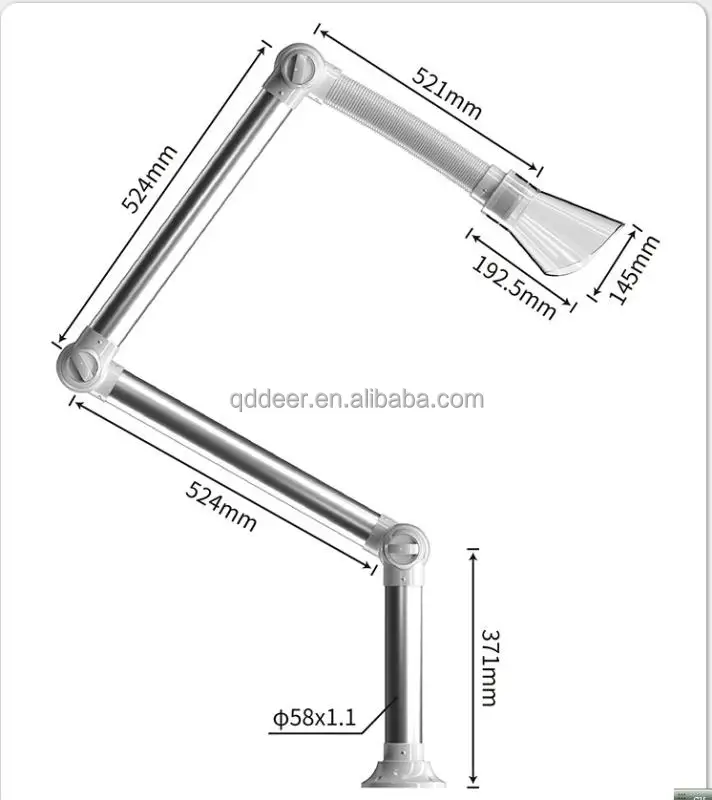

MINI B TYPE Flexible Extraction arms for laser and soldering
Title goes here.
> Can be stretched in any direction > Can stop anywhere in three-dimensional space > Equipped with internal frame in order to reduce pressure loss > Can be continuously used at 100 °C high temperature >Desk mounted type. Length: 1.8m; Diameter: 58mm >Material: aluminum Application places: Apply to machinery, food, medicine, chemical industry, electronics, laboratory and other places etc.
Company Profile
Qingdao Deer Environmental Protection Technology Co., Ltd
Qingdao Deer Environmental Protection Technology Co., Ltd has insisted on scientific and technological progress and increased investment in science and technology. The company has 11 independent R&D patents, Shandong Environmental Pollution Control Qualification Certificate, ISO9001 Quality Management System Certificate, ISO14001 Environmental Management System Certificate,OHSAS18001 Occupational Health and Safety Management System Certificate, High-tech Enterprise Certificate, etc.
Qingdao Deer Environmental Protection Technology Co., Ltd has established friendly strategic cooperative relations with famous domestic research institutes and design institutes and is
supported by a technical team of professors with solid theoretical knowledge and senior engineers with rich practical experience serves as the support, and constantly brings forth the new through the old according to the market demand.
supported by a technical team of professors with solid theoretical knowledge and senior engineers with rich practical experience serves as the support, and constantly brings forth the new through the old according to the market demand.
Contact us:
WECHAT:JUNO516
PHONE:+86 15865519554
QQ:986812685
EMAIL:JUNOLANG@QD-DEER.COM
Certifications
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1+ piece: US $188 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
