Centrifugal exhaust fan — 120V, blade material Stainless Steel. The complete factory specification follows. Made by Taizhou Defeng Mechanical And Electrical Co., Ltd. (12 years on the platform, typical reply ≤7h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Centrifugal Exhaust Fan
- Voltage: 120V
- Blade Material: Stainless Steel
- Warranty: 1 Year
- Place Of Origin: Zhejiang, China
- Application: Exhaust Ventilation
- Feature: High Efficiency
Technical Specifications
| Mounting | Duct Fan |
|---|---|
| Voltage | 120V |
| Blade Material | Stainless Steel |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | ODM |
| Place Of Origin | Zhejiang, China |
| Brand Name | FENGDA |
| Color | Black,Sliver,Peel,or other colours |
| Plug | American Plug,European Plug |
| Fan Mounted | Four Types |
| Application | Exhaust Ventilation |
| Feature | High Efficiency |
| Fan Type | AC Centrifugan Fan |
| Product | Air Extractor Fan |
| Type | Centrifugal Fan |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Specifications

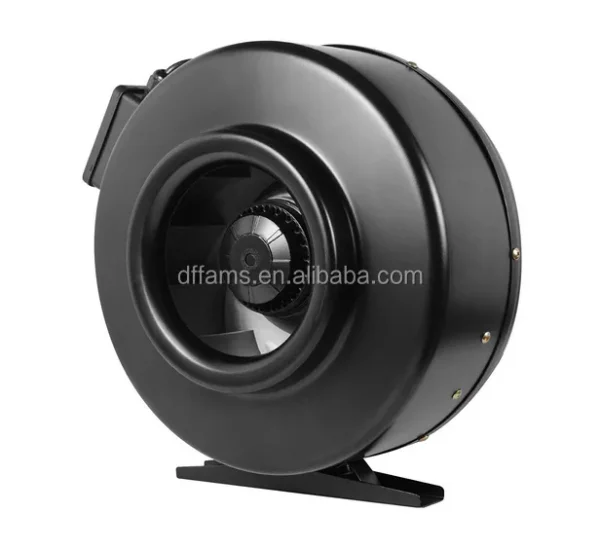

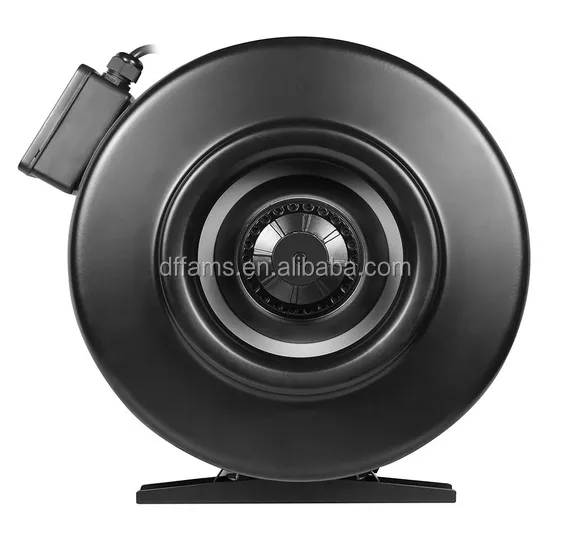

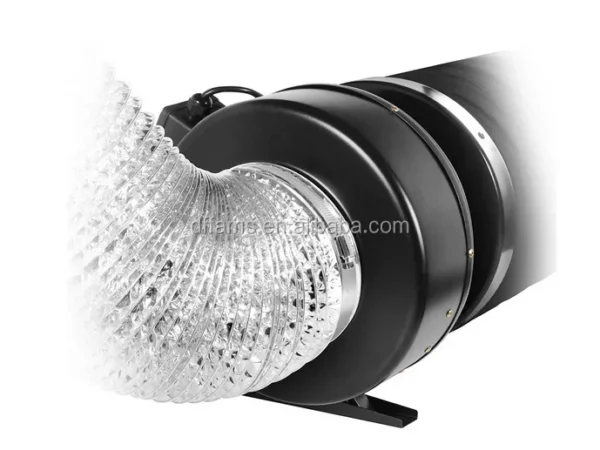

8 inch duct exhaust fan for booster
1.4/6/8/10/12 inch available
2.1 year warranty
3,High Quallity
4.CE,CCC approved
8 inch duct exhaust fan for booster
|
Model
| Voltage (v) | Frequency (Hz) | Power (W) | Current (A) | Speed (RPM) | Air Flow m³/h | Noise dB | Pressure Pa | IP Degree
| Weight Kg |
| GDF100 | 110/120 | 60 | 70 | 0.61 | 2700 | 345 | 49 | 350 | 44 | 3 |
| GDF125 | 110/120 | 60 | 75 | 0.65 | 2700 | 430 | 49 | 380 | 44 | 3 |
| GDF150 | 110/120 | 60 | 130 | 1.0 | 2650 | 700 | 50 | 430 | 44 | 4 |
| GDF160 | 110/120 | 60 | 135 | 1.1 | 2650 | 730 | 50 | 450 | 44 | 4 |
| GDF200 | 110/120 | 60 | 200 | 1.7 | 2650 | 1150 | 53 | 550 | 44 | 4.5 |
| GDF250 | 110/120 | 60 | 210 | 1.8 | 2550 | 1200 | 53 | 600 | 44 | 5 |
| GDF315 | 110/120 | 60 | 250 | 2.0 | 2550 | 1800 | 53 | 790 | 44 | 5.5 |
|
Model
| Voltage (V) | Frequecy (Hz) | Power (W) | Current (A) | Speed (RPM) | Air Flow m³/h | Noise dB | Pressure Pa | IP Degree
| Weight Kg |
| GDF100 | 220/240 | 50 | 60 | 0.26 | 2550 | 300 | 48 | 300 | 44 | 3 |
| GDF125 | 220/240 | 50 | 62 | 0.27 | 2550 | 370 | 48 | 330 | 44 | 3 |
| GDF150 | 220/240 | 50 | 100 | 0.47 | 2550 | 620 | 49 | 355 | 44 | 4 |
| GDF160 | 220/240 | 50 | 105 | 0.48 | 2550 | 660 | 49 | 380 | 44 | 4 |
| GDF200 | 220/240 | 50 | 150 | 0.7 | 2500 | 1000 | 52 | 430 | 44 | 4.5 |
| GDF250 | 220/240 | 50 | 160 | 0.71 | 2500 | 1100 | 52 | 490 | 44 | 5 |
| GDF315 | 220/240 | 50 | 220 | 1.0 | 2450 | 1600 | 53 | 710 | 44 | 5.5 |
1.The Voltage of the fan is 110-120V,60Hz or 220-240V,50/60Hz.
2.Leather Jacket: It is Desinged by our factory to lower noise,and it also could be air proof and rust proof.
3.Fan Mounted Feet: There are various kinds according to customer's request.
4.Colour:Orange Black Ash,Black,Sliver,White,Red,Blue,Etc
FENGDA was established in 1990,covering an area of 17,000 square meters,more than 200 employs.We professionally
manufacture various fans and motors,which widely used in ventilation,air condition,cooling and heating industry.
We have strong technology ,specialized production facilities and advanced inspection instruments,relying on professionally
R&D team,high efficiency production lines and scientific management."Low noise,high airflow volume,stable running and
long lifetime" to be our strongpoint.By national detection ,the technical values of noise,volume, temperature rising balance,
lifetime are better than other factories.
1. Q: Do you provide warranty for the goods?
A: Yes, we provide warranty for all the goods from us.
2. Q: Could FENGDA provide technology support?
A: We're in this field many years. If there's any problem, please contact with us,we'll provide suggestion from our engineer to help you solve problem.
3. Q: Does FENGDA keep goods in stock or only trading?
A: We have large warehouse for goods. Keep lots of goods in warehouse, so could promise fast delivery.
4. Q: Could you fill the invoice for customs as our requirement?
A: Yes, if there's any requirement for it, please tell us. We'll do it.
1.Freenhouse
2.Hydroponics
3.Kitchen
4.Worshop
5.House
6.Vessel
Ordering and Pricing
- Minimum order quantity: 100 piece
- Volume pricing:
- 100+ piece: US $36.6 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal exhaust fan?
The standard minimum order quantity is 100 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal exhaust fan be supplied for my local voltage?
The standard configuration is 120V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
