This centrifugal fan is published with the manufacturer’s full specification — 220 V, blade material Galvanized steel. Made by Shanghai Anneng Fan Co., Ltd. (17 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Centrifugal Fan
- Model Number: R3G140-H059-01F-H
- Voltage: 220 V
- Blade Material: Galvanized steel
- Warranty: 2 Years
- Certification: CCC CE ROHS
- Place Of Origin: Shanghai, China
Technical Specifications
| Mounting | Free Standing |
|---|---|
| Voltage | 220 V |
| Blade Material | Galvanized steel |
| Electric Current Type | EC |
| Warranty | 2 Years |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Place Of Origin | Shanghai, China |
| Brand Name | ANENG |
| Model Number | R3G140-H059-01F-H |
| Motor | Brushless External Rotor Motor |
| Rotor | Electrophoresis |
| Type Of Protection | IP44 |
| Insulation Class | Class "B" |
| Bearing | NMB Ball bearing |
| Life Time | 40000h+ |
| Color | Black |
| Weight | 2.2 kg |
| Cable Length | 450 mm |
| Certification | CCC CE ROHS |
| Type | Centrifugal Fan |
| Applicable Industries | hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, OTHER |
| Packaging Details | 1 for Sample, packing individually by foam carton; 2 for Mass, pallet package 120x100x120CM. |
| Port Of Dispatch | shanghai |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 10000 pieces per Month |
Product Details
Type: R3G140-H059-01F-H
(PS: ANNENG Reserved, Pirates Must Investigate.)
| Specification | |||||||
| Model Type: R3G140-H059-01F-H / Motor Type: 72mm | |||||||
| Rated Voltage | Frequency | Rated Current | Input Power | Speed | Air Flow | Air Flow | Static Pressure |
| (VAC) | (Hz) | (A) | (W) | (RPM) | (CFM) | (m3/h) | (Pa) |
| 220 | 50/60 | 0.92 | 120 | 2050 | 304 | 518 | 450 |
| Details Description | |||||||
| Current Leakage | <=3.5mA | ||||||
| Operation Mode | continuous operation S1 | ||||||
| Direction of Rotation | clockwise, seen on rotor | ||||||
| Mounting Position | at will | ||||||
| Insulation Class | "B" | ||||||
| Cable Length | 450mm | ||||||
| Bearing | ball bearing (NMB) | ||||||
| Net weight | 2.2kg | ||||||
| Surface of Rotor | electrophoresis | ||||||
| Number of Blades | / | ||||||
| Type of Protection | IP44 | ||||||
| Speed control | 0-10v / PWM signal | ||||||
| Approval | CE | ||||||
| Operate Life | >=40,000hours | ||||||
| *Motor Protection Function | |||||||
| 1. Soft Start (8 seconds) | |||||||
| 2. Polarity Protection | |||||||
| 3. Undervoltage Protection | |||||||
| 4. Overvoltage Protection | |||||||
| 5. Current Limit Protection | |||||||
| 6. Over Current Protection | |||||||
| 7. Blocking Protection | |||||||
| 8. 3 Self Starting Function | |||||||
| 9. Stepless Speed regulation Function | |||||||
| 10. FG Speed Signal Output (open drain) | |||||||

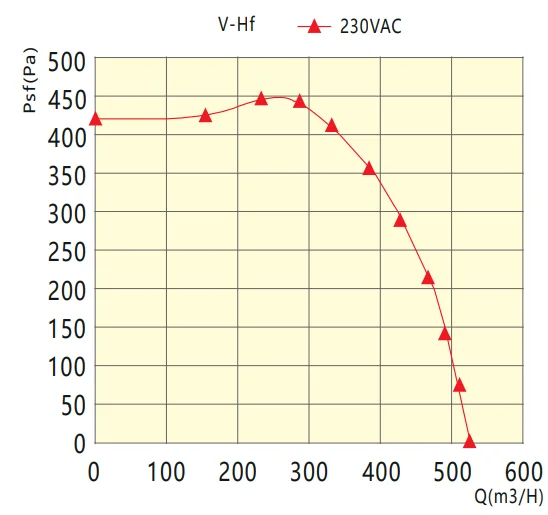

| Characteristic Curves | |||||||
|
| |||||||

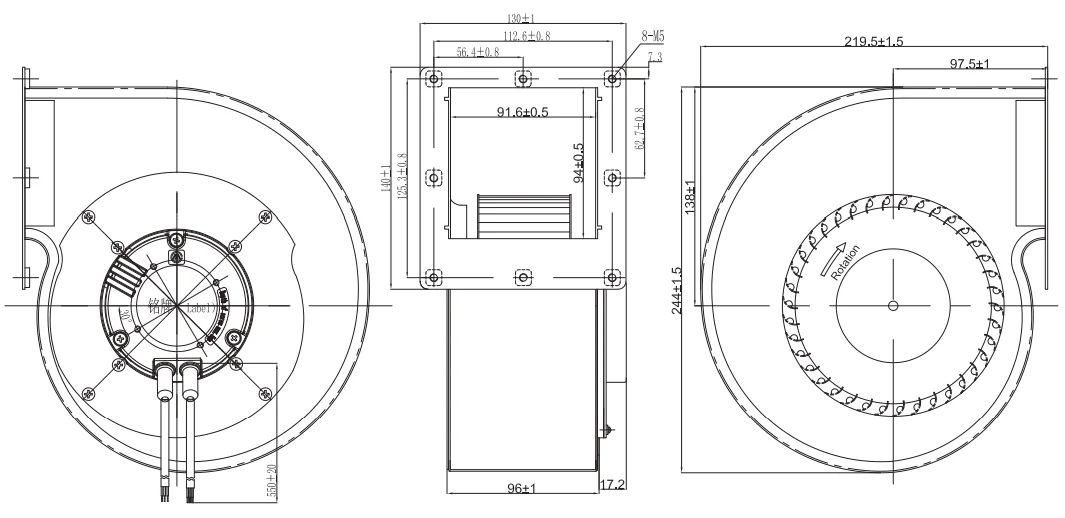

| Drawing | |||||||
 | |||||||
Factory Display
| 1. for Sample, packing individually by foam carton; 2. for Mass, pallet package 120x100x120CM. |
 |
 |
| Quality Guarantee We are professional manufacturer in ac,dc,ec centrifugal fans with brushless external rotor motor. All the fans are produced by ourselves independently, including the motor. So we have more confidence on the products' qulaity and performance. Price Guarantee The products are sold by our own factory directly. So the reason for low price is simple: no middlemen. Delivery Time Guarantee We will make production on time as order and send the goods according to mutual confirmed delivery time. We will try our best to avoid risk of any delay. Service Guarantee We adopt the mode of combining the sales team and engineers team. So we can provide the responsible suggestion and recommendation when we contact at first time.We will check all details before accepting the order, and keep quality before delivery.
Our Friends, Let's creat a beautiful future! |
Ordering and Pricing
- Minimum order quantity: 50 piece
- Volume pricing:
- 50–199 piece: US $74 / piece
- 200–499 piece: US $72 / piece
- 500+ piece: US $70 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 50 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this centrifugal fan carry?
It is supplied with CCC CE ROHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 220 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
