Centrifugal fan — type Industrial Baghouse Dust Collector. The complete factory specification follows. Made by Maycare (Nanjing) Environmental Solutions Co., Ltd. (3 years on the platform, typical reply ≤4h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Centrifugal Fan
- Warranty: 1 Year
- Place Of Origin: Jiangsu, China
- Application: Industrial Dust Collect
- Type: Industrial Baghouse Dust Collector
- Minimum Particle Size: 0.5~2um
- Weight: 500 kg
Technical Specifications
| Warranty | 1 Year |
|---|---|
| Condition | New |
| Place Of Origin | Jiangsu, China |
| Brand Name | MayCare |
| Minimum Particle Size | 0.5~2um |
| Weight | 500 kg |
| Product Name | Centrifugal Fan Cyclone Industrial Filter Cartridge Dust Collector |
| Application | Industrial Dust Collect |
| Usage | Clean Dust Air |
| Performance | High Dust Removal Efficiency |
| Keyword | Filter Cartridge Dust Collector |
| Function | Removing Dust Particles |
| Cleaning Way | Auto Pulse Jet Cleaning System |
| Type | Industrial Baghouse Dust Collector |
| Structure | Pulse Jet System |
| After-Sales Service Provided | Online Support |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
Products Description

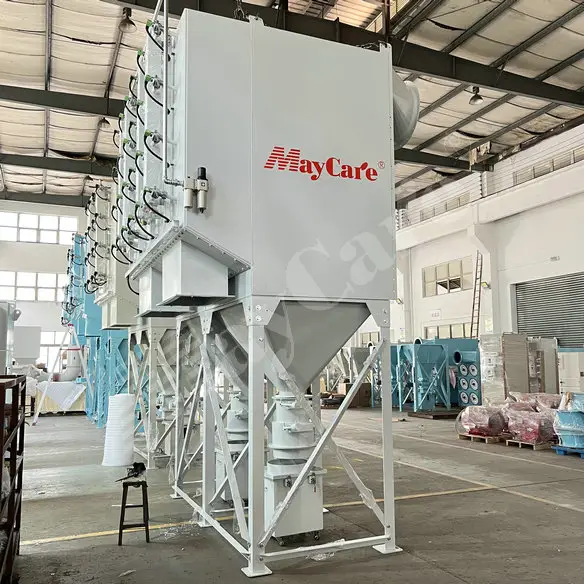

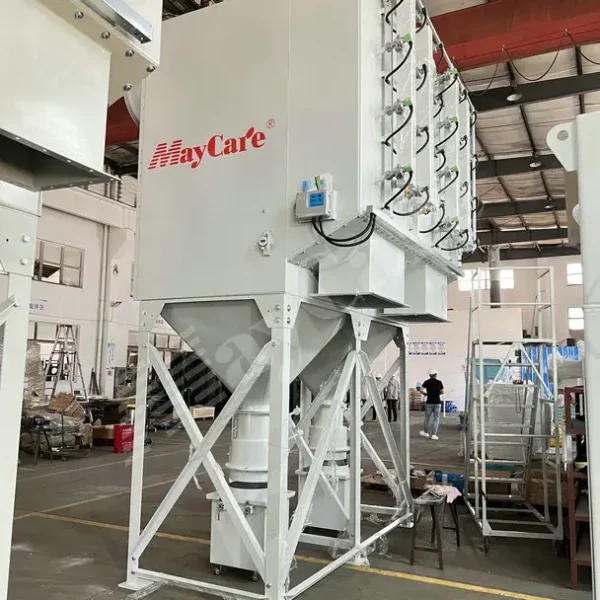

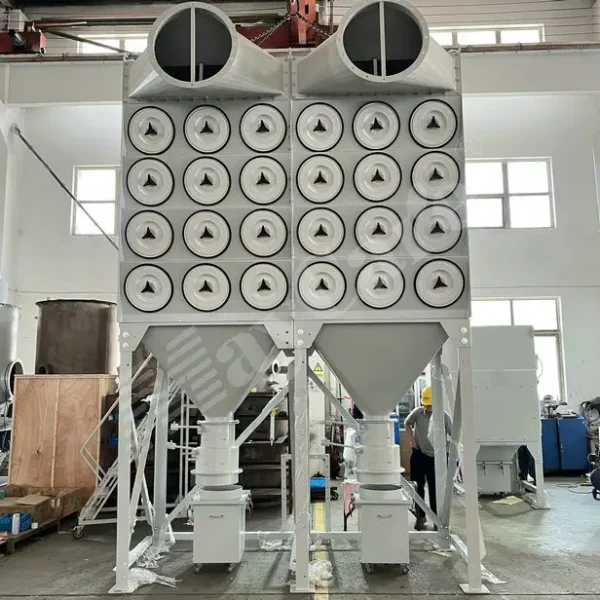

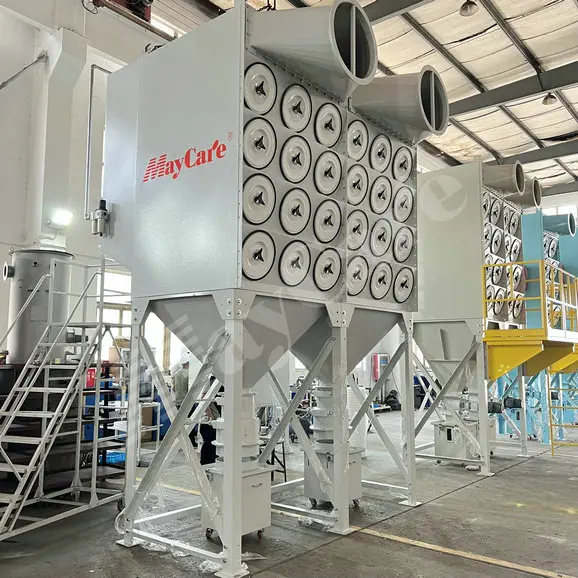

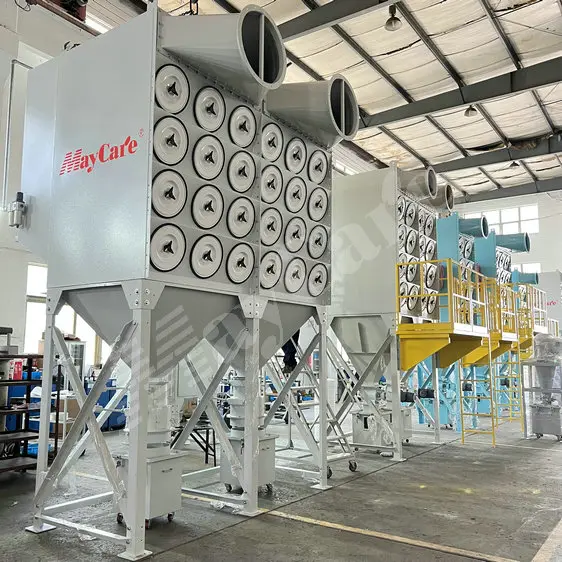

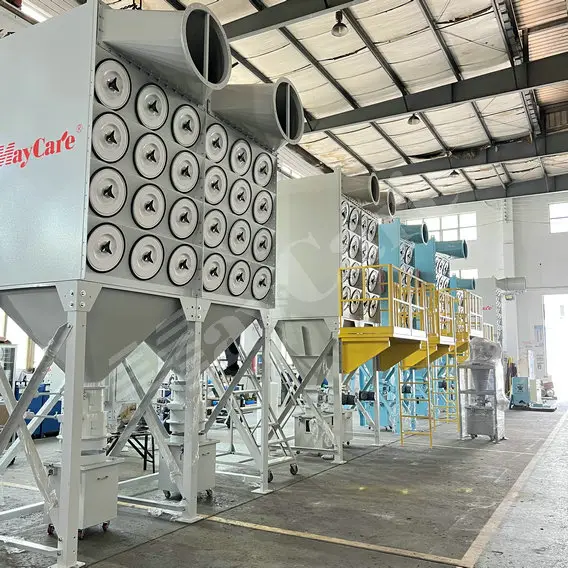

MC-IDC CARTRIDGE DUST COLLECTOR
The IDC series dust collector utilizes gravity and downward airflow for self-cleaning. Dust-laden air enters from the top and
exits from another top side, following the principle of "inertial settling" for downward dust flow.
exits from another top side, following the principle of "inertial settling" for downward dust flow.
This design ensures that dust
settles downward without being carried back to the cartridge. During operation, dust-laden air enters the gravity settling dust
collector from the top inlet, passes through the cartridge, capturing dust on the outer surface. Clean air is released through the
center of the cartridge into the clean air chamber and discharged through the outlet. For cleaning, a solid control timer selects
a pair of cartridges for high-pressure compressed air cleaning. Dust is dislodged and falls into the dust hopper, eliminating
"secondary dusting" and improving efficiency
settles downward without being carried back to the cartridge. During operation, dust-laden air enters the gravity settling dust
collector from the top inlet, passes through the cartridge, capturing dust on the outer surface. Clean air is released through the
center of the cartridge into the clean air chamber and discharged through the outlet. For cleaning, a solid control timer selects
a pair of cartridges for high-pressure compressed air cleaning. Dust is dislodged and falls into the dust hopper, eliminating
"secondary dusting" and improving efficiency
Product Features
– The series adopts advanced filtration technology and high-pressure pulse automatic ash cleaning technology to maximize the service life of the filter elements.
– Modular design, compact structure, and reduced footprint.
– Simple equipment installation, easy maintenance, and quick replacement of filter elements
–Verified by CFD fluid analysis software, the equipment effectively suppresses industrial dust, protecting the filter core andextending the filter element's service life.
– Professionally customized dust removal fans to ensure safe and reliable operation of the equipment.
Product Paramenters
Model | W x L x H Size (mm) | No. of Filters | Filter Area(m2) | Airflow(CMH) |
IDC2-4 | 1023x1618x2295 | 4 | 80 | 2400~3200 |
IDC2-8 | 1023x2140x2820 | 8 | 160 | 4800~6400 |
IDC2-12 | 1532x2140x2820 | 12 | 240 | 7200~9600 |
IDC3-6 | 1023x1618x2768 | 6 | 120 | 3600~4800 |
IDC3-12 | 1023x2140x3294 | 12 | 240 | 7200~9600 |
IDC3-18 | 1532x2140x3294 | 18 | 360 | 10800~14400 |
IDC4-16 | 1023x2140x3767 | 16 | 320 | 9600~12800 |
IDC4-24 | 1532x2140x3294 | 24 | 480 | 14400~19200 |
IDC3-24 | 2040x2140x3294 | 24 | 480 | 14400~19200 |
IDC3-36 | 3055x2140x3294 | 36 | 720 | 21600~28800 |
IDC3-48 | 4071x2410x3294 | 48 | 960 | 28800~38400 |
IDC3-60 | 5088x2140x3294 | 60 | 1200 | 43200~57600 |
IDC3-72 | 6105x2140x3294 | 72 | 1400 | 43200~57600 |
IDC4-32 | 2040x2410x3767 | 32 | 640 | 19200~25600 |
IDC4-48 | 3060x2140x3767 | 48 | 960 | 28800~38400 |
IDC4-64 | 4080x2140x3767 | 64 | 1280 | 38400~51200 |
IDC4-80 | 5100x2140x3767 | 80 | 1600 | 48000~64000 |
IDC4-96 | 6120x2140x3767 | 96 | 1920 | 57600~76800 |
IDC4-112 | 7140x2140x3767 | 112 | 2240 | 67200~89600 |
IDC4-128 | 8160x2140x3767 | 128 | 2560 | 76800~102400 |
Manufacturing Strength
Application Case
Macare Horizontacl Pulse Cartridge Dust Collector professional and popular use in below:
Dust control in industries such as electronics, lithium batteries, shipbuilding, smelting, non-ferrous metal processing, chemical industry, grain, food processing, pharmaceuticals, textiles, and fiberglass, among others
Certifications
Why Choose Us
FAQ
Mayair(Nanjing)Environmental Solutions Co., Ltd – Dust Collector Product
Q1. Are you true manufacture or Trade company?
A:We are professional manufacture in China, located in Nanjing, more than 16 years.
Our head factory in Nanjing, Wuxi also have one factory for Horizontal dust collector.
Q2. What strengths you have?
A: Excellent technology and produce line, professional sales and R&D department, CE certificate of dust collector equipment.
Q3. Would it be possible for us to visit your factory?
A: Welcome to visit our any one factory at any working time.
Q4. How can we get the quotation of dust collector?
A: Dust type&Dust Size, Filter Area&Airflow, Temperature of dust, Dust emission requirements,Equipment installation area
Q5. What is your product range?
A: Whole complete set dust collector equipment and duct system.
Q1. Are you true manufacture or Trade company?
A:We are professional manufacture in China, located in Nanjing, more than 16 years.
Our head factory in Nanjing, Wuxi also have one factory for Horizontal dust collector.
Q2. What strengths you have?
A: Excellent technology and produce line, professional sales and R&D department, CE certificate of dust collector equipment.
Q3. Would it be possible for us to visit your factory?
A: Welcome to visit our any one factory at any working time.
Q4. How can we get the quotation of dust collector?
A: Dust type&Dust Size, Filter Area&Airflow, Temperature of dust, Dust emission requirements,Equipment installation area
Q5. What is your product range?
A: Whole complete set dust collector equipment and duct system.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $5500 / set
- 10–49 set: US $5000 / set
- 50+ set: US $4500 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Maycare (Nanjing) Environmental Solutions Co., Ltd., based in China. The company 3 years as a verified Alibaba.com supplier, Trading Company. Browse the full Maycare (Nanjing) Environmental Solutions Co., Ltd. range on HVACR Nexus.
