Key specification for this centrifugal fan: 110v 230V, power source type Corded Electric. Everything below is reproduced from the factory data sheet. Made by Shanghai Anneng Fan Co., Ltd. (17 years on the platform, typical reply ≤4h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Centrifugal Fan
- Model Number: R3G175-H038-01B K3G175-H038-01B, R3G175-H038-02B, R3G175-H038-03B, R3G175-H038-04B
- Power Source Type: Corded Electric
- Voltage: 110v 230V
- Material: Plastic
- Blade Material: Plastic
- Noise Level: 40 dB and above
Technical Specifications
| Duct Diameter | 175mm |
|---|---|
| Mounting | Free Standing |
| Voltage | 110v 230V |
| Speed | 4000 RPM, 2000 RPM, 3 000 RPM, 3500rpm |
| Material | Plastic |
| Blade Material | Plastic |
| Power Source Type | Corded Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Noise Level | 40 dB and above |
| Place Of Origin | Shanghai, China |
| Brand Name | ANENG |
| Model Number | R3G175-H038-01B K3G175-H038-01B, R3G175-H038-02B, R3G175-H038-03B, R3G175-H038-04B |
| Motor | EC Brushless External Rotor Motor |
| Type Of Production | IP55 |
| Insulation Class | Class "B" |
| Bearing | ball bearing NMB |
| Life Time | 40000h+ |
| Weight | 1.9kg |
| Application | machine suction, cooling, etc |
| Cable Length | 450 mm |
| Certification | CCC CE UL ROHS |
| Selling Units | Single item |
| Single Package Size | 25X25X18 cm |
| Single Gross Weight | 8.0 kg |
Product Details

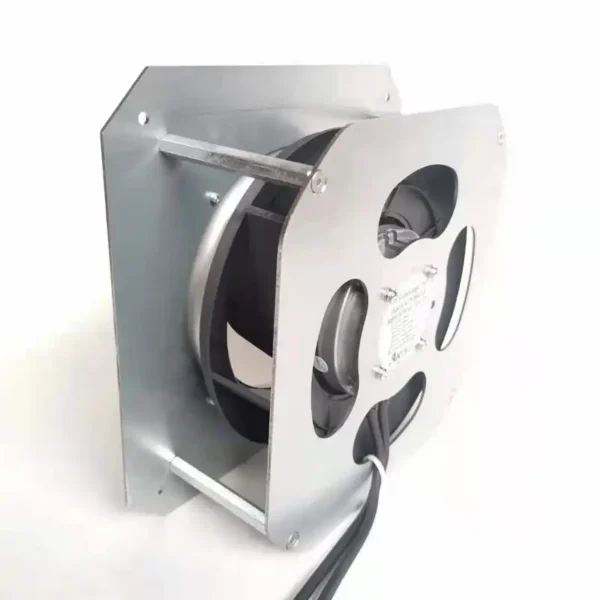

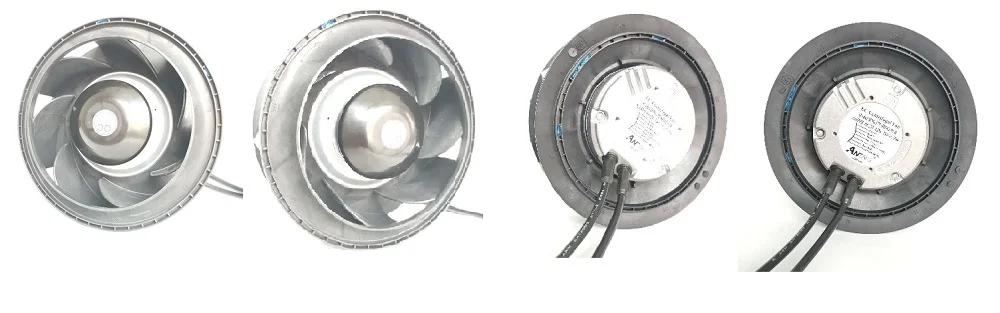

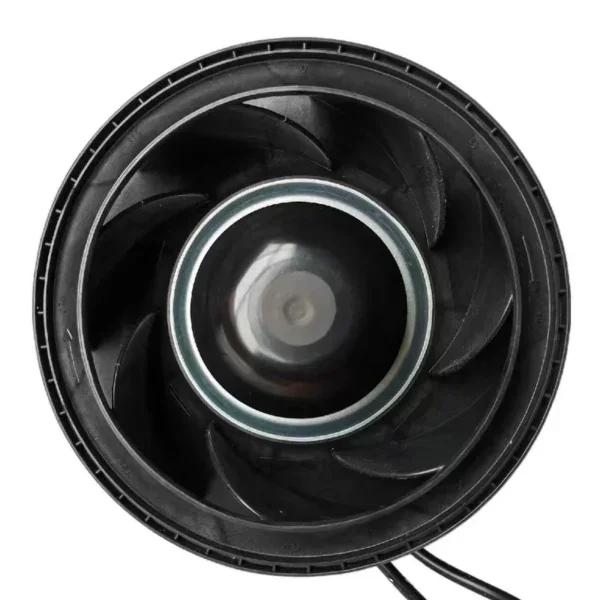

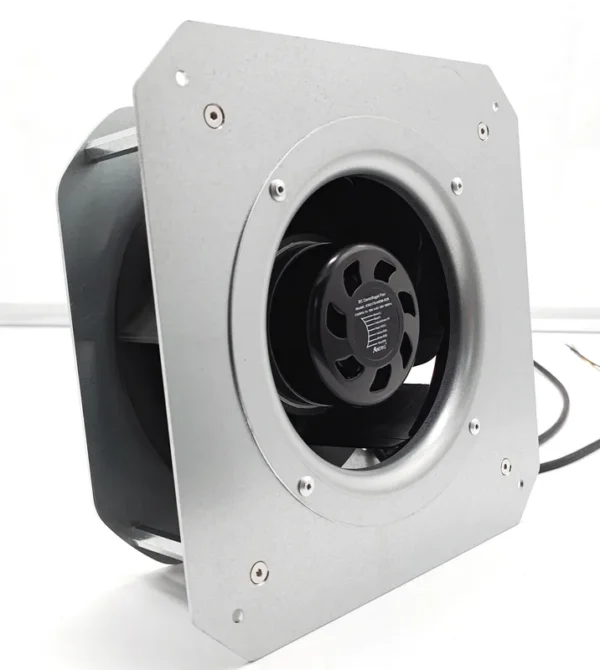

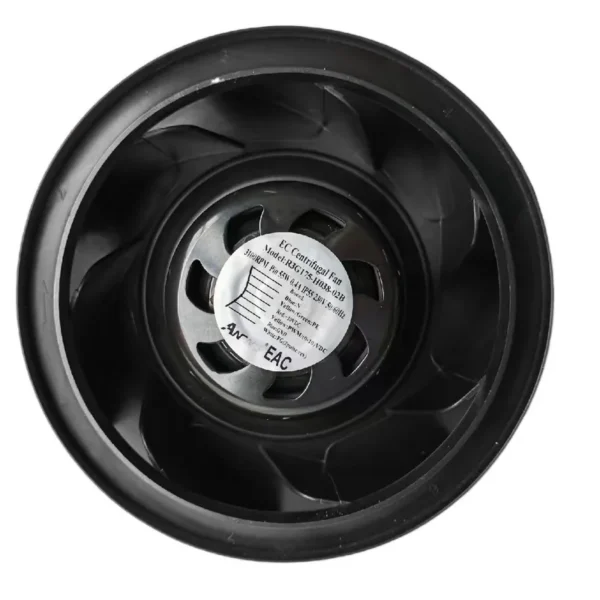

110V 230V EC Electric Centrifugal Fan with 175mm Backward Curved Radial EC Motorized Impeller Industrial Cooling Ventilation Type: R3G175-H038-01B, R3G175-H038-02B,R3G175-H038-03B, R3G175-H038-04B, K3G175-H038-01B
Factory Display
| Quality Guarantee We are professional manufacturer in ac,dc,ec centrifugal fans with brushless external rotor motor. All the fans are produced by ourselves independently, including the motor. So we have more confidence on the products' qulaity and performance. Price Guarantee The products are sold by our own factory directly. So the reason for low price is simple: no middlemen. Delivery Time Guarantee We will make production on time as order and send the goods according to mutual confirmed delivery time. We will try our best to avoid risk of any delay. Service Guarantee We adopt the mode of combining the sales team and engineers team. So we can provide the responsible suggestion and recommendation when we contact at first time.We will check all details before accepting the order, and keep quality before delivery.
Our Friends, Let's creat a beautiful future! |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–99 piece: US $66 / piece
- 100–199 piece: US $62 / piece
- 200+ piece: US $60 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this centrifugal fan carry?
It is supplied with CCC CE UL ROHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 110v 230V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shanghai Anneng Fan Co., Ltd., based in China. The company 17 years as a verified Alibaba.com supplier, Trading Company. Browse the full Shanghai Anneng Fan Co., Ltd. range on HVACR Nexus.
