Centrifugal fan — 24V / 48V, power source type Corded Electric. The complete factory specification follows. Made by Shanghai Anneng Fan Co., Ltd. (17 years on the platform, typical reply ≤3h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Centrifugal Fan
- Model Number: D1G133-L190-01F
- Power Source Type: Corded Electric
- Voltage: 24V / 48V
- Material: Galvanized Steel
- Blade Material: Galvanized steel
- Noise Level: 40 dB and above
Technical Specifications
| Duct Diameter | 133mm |
|---|---|
| Mounting | Free Standing |
| Voltage | 24V / 48V |
| Motor Type | DC Motor |
| Speed | 1850rpm |
| Material | Galvanized Steel |
| Blade Material | Galvanized steel |
| Power Source Type | Corded Electric |
| Warranty | 2 Years |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Noise Level | 40 dB and above |
| Place Of Origin | Shanghai, China |
| Brand Name | ANENG |
| Model Number | D1G133-L190-01F |
| Motor | Brushless External Rotor Motor |
| Type Of Protection | IP44 / IP55 |
| Bearing | NMB Ball Bearing |
| Life Time | 40000h+ |
| Color | Silvery/black |
| Weight | 3.4 kg |
| Application | machine cooling, hot air extraction, etc. |
| Cable Length | 450 mm/customized |
| Certification | CCC CE ROHS |
| Selling Units | Single item |
| Single Package Size | 25X25X20 cm |
| Single Gross Weight | 4.0 kg |
Product Details
"We promise the products you will get are as true as you can see !"

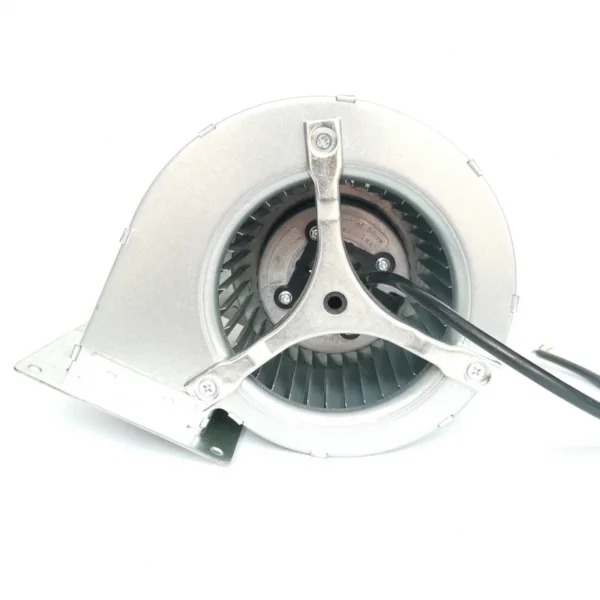

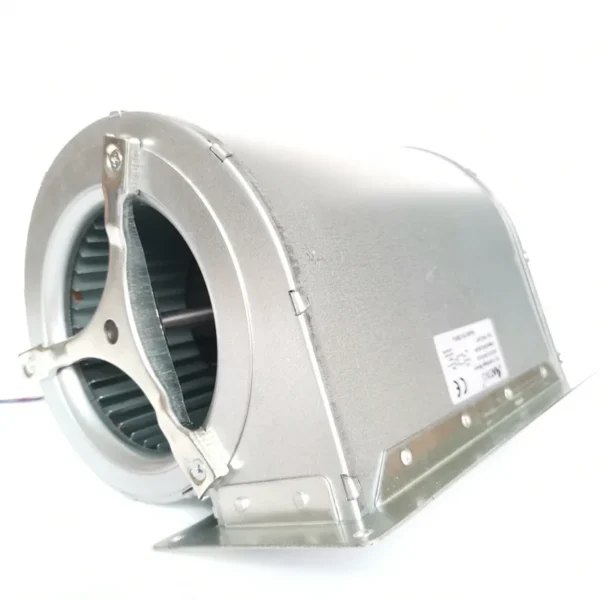

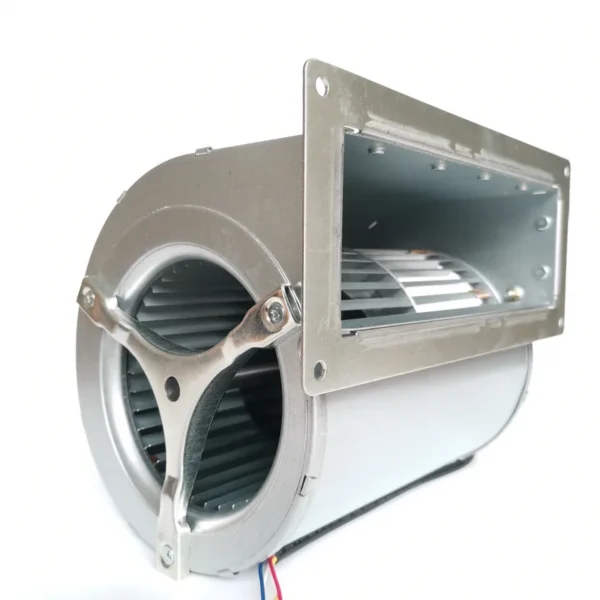

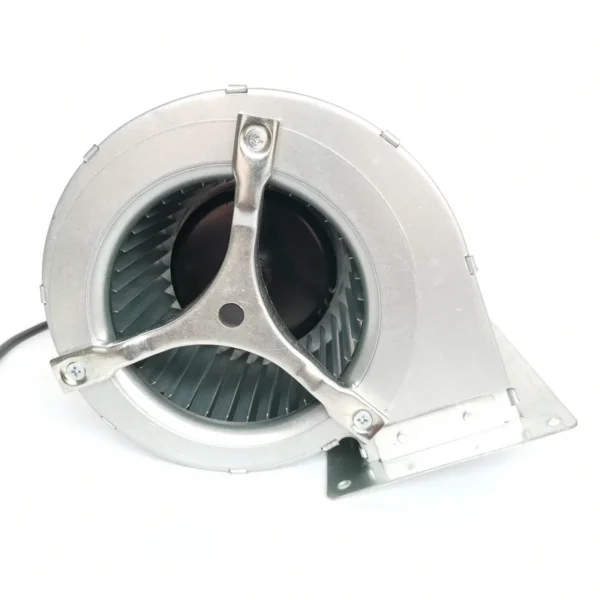

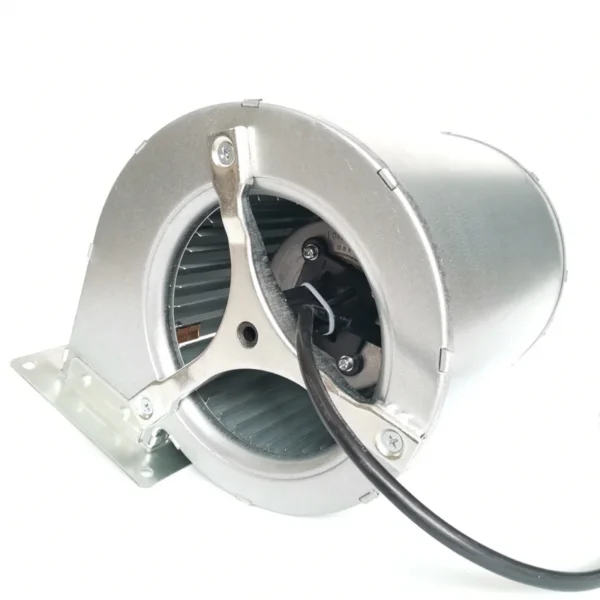

Type: D1G133-L190-01F 800m3/h 125W Powerful dc Centrifugal Fan Brushless External Rotor Motor IP44 IP55 24v 48v radial cooling fan
(PS: ANNENG Reserved, Pirates Must Investigate.)
Factory Display
|
|
| Quality Guarantee We are professional manufacturer in ac,dc,ec centrifugal fans with brushless external rotor motor. All the fans are produced by ourselves independently, including the motor. So we have more confidence on the products' qulaity and performance. Price Guarantee The products are sold by our own factory directly. So the reason for low price is simple: no middlemen. Delivery Time Guarantee We will make production on time as order and send the goods according to mutual confirmed delivery time. We will try our best to avoid risk of any delay. Service Guarantee We adopt the mode of combining the sales team and engineers team. So we can provide the responsible suggestion and recommendation when we contact at first time.We will check all details before accepting the order, and keep quality before delivery.
Our Friends, Let's creat a beautiful future! |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–49 piece: US $66 / piece
- 50–99 piece: US $64 / piece
- 100+ piece: US $62 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this centrifugal fan carry?
It is supplied with CCC CE ROHS documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 24V / 48V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
