Key specification for this centrifugal fan: voltage 115/120V, blade material Galvanized sheet. Everything below is reproduced from the factory data sheet. Made by Hangzhou Jinjiu Electric Appliance Co., Ltd. (6 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Centrifugal Fan
- Model Number: YWF 4E-315-136A
- Voltage: 115/120V
- Blade Material: Galvanized sheet
- Material: Wind wheel galvanized sheet; rotor cast aluminum
- Warranty: 1 Year
- Certification: ce
Technical Specifications
| Mounting | Ceiling Fan |
|---|---|
| Voltage | 115/120V |
| Blade Material | Galvanized sheet |
| Electric Current Type | AC |
| Warranty | 1 Year |
| After-Sales Service Provided | Free Spare Parts |
| Customized Support | other |
| Place Of Origin | Zhejiang, China |
| Brand Name | no |
| Model Number | YWF 4E-315-136A |
| Product Name | ac centrifugal fan |
| Material | Wind wheel galvanized sheet; rotor cast aluminum |
| Protection Level | IP54 |
| Insulation Class | Class F |
| Bearing | Maintenance-free ball bearing |
| Current | 1.6A |
| Certification | ce |
| Packaging Details | 1.standard packing:24pcs/ctn; 30ctn/pallet. 2.Foam packing:20pcs/ctn,(blade will packing with motors together; 30ctn/pallet. 3.Single packing:1pcs/box; 24box/ctn;30ctn/pallet. |
| Port Of Dispatch | Ningbo/Shanghai |
| Selling Units | Single item |
| Single Package Size | 44X33X21 cm |
| Single Gross Weight | 18.0 kg |
| Supply Ability | 200000 sets per Month |
Product Details
FFU centrifugal fans uses AC capacitors to operate asynchronous motors,which are divided into two categories: inner rotor and external transmitter.The fan has two modes of speed control,which is controlled by thyristor stepless speed regulation and motor winding tapping. The conventional three speed adjustment speed;the use of advance technology to design the fan ,with the advantage of convenient installation reliable operation, low noise, large air volume,energy saving and high efficiency;superior to similar products;Has the advantage of cheep high quality.
This series of centrifugal fans are mainly used for ventilation and air exchange of various equipment such as FFU air filter unit, air purifier, air conditioner outside machine, etc.

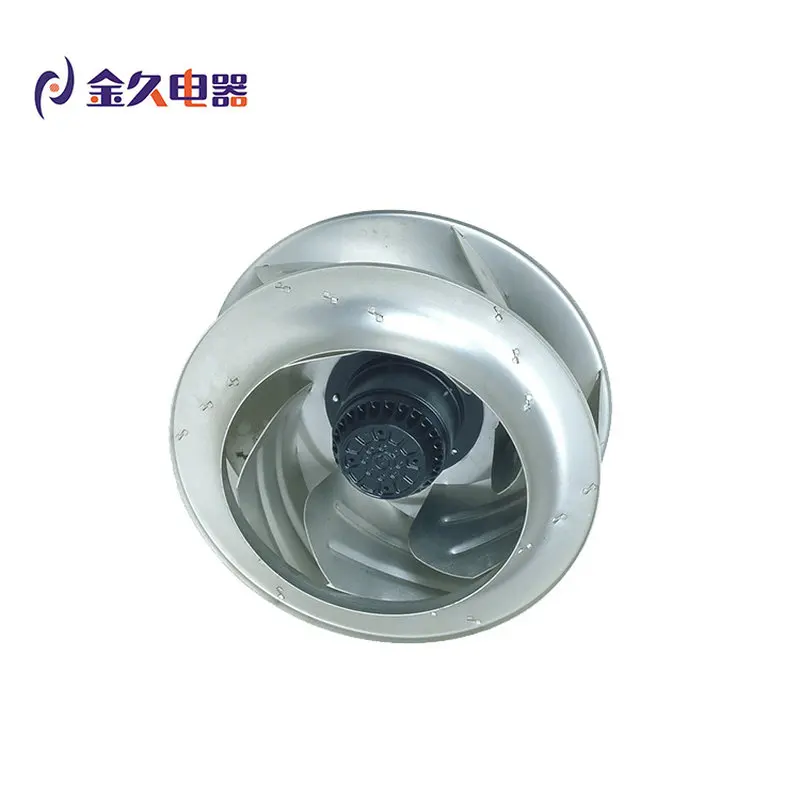

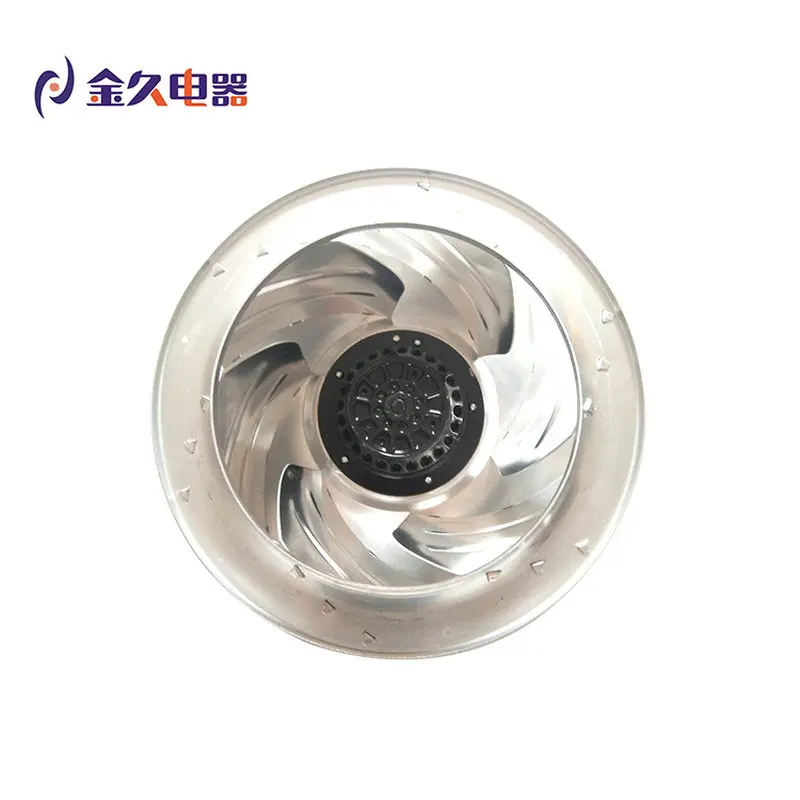

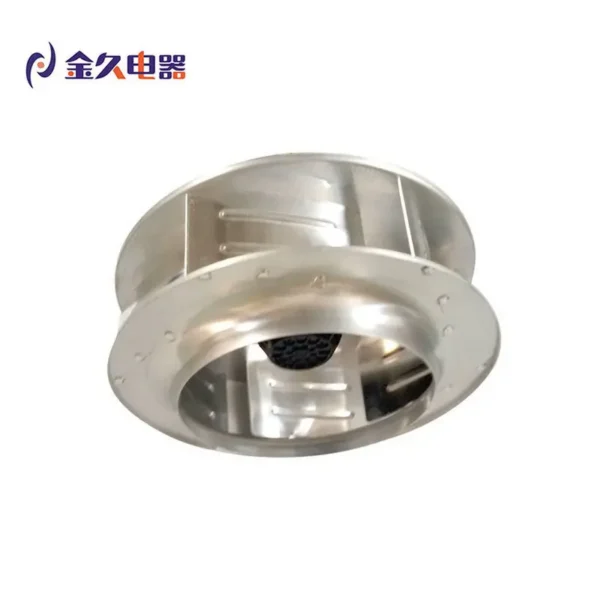

Backward centrifugal fan
Ordering and Pricing
- Minimum order quantity: 3000 set
- Volume pricing:
- 3000–4999 set: US $2.24 / set
- 5000–9999 set: US $2.14 / set
- 10000+ set: US $2.09 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 3000 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this centrifugal fan carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 115/120V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Hangzhou Jinjiu Electric Appliance Co., Ltd., based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Hangzhou Jinjiu Electric Appliance Co., Ltd. range on HVACR Nexus.
See more in Centrifugal Fans on HVACR Nexus.
