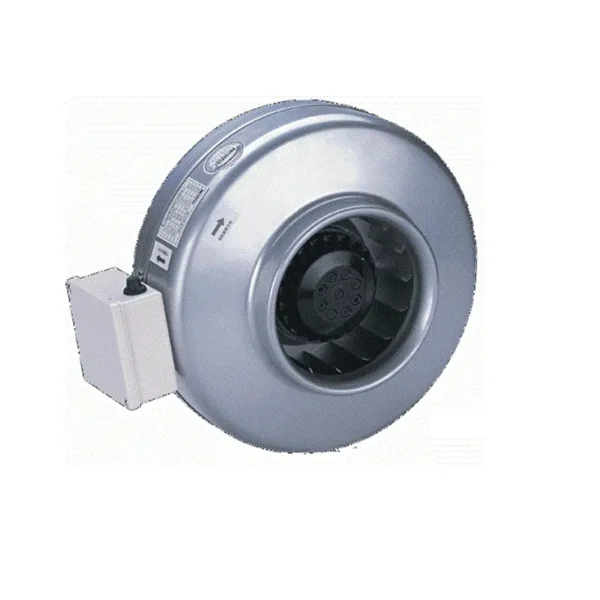

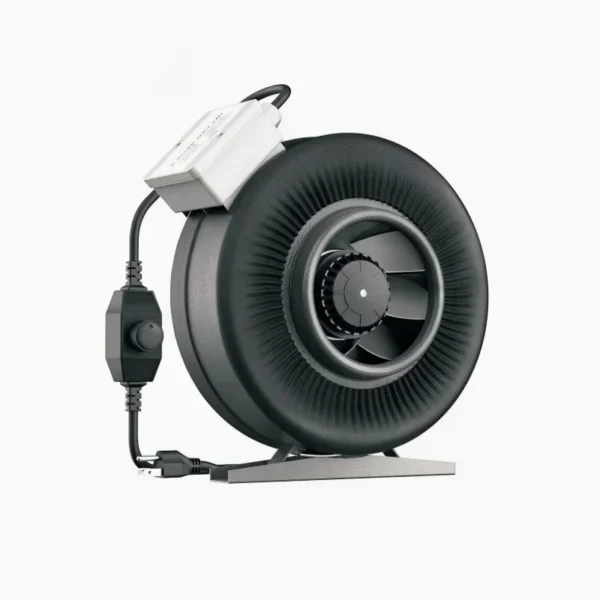

Key specification for this centrifugal fan: power source Electric, material Copper wires. Everything below is reproduced from the factory data sheet. Made by Jinan Retek Industries Inc (15 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Centrifugal Fan
- Power Source: Electric
- Material: Copper wires
- Warranty: 1 Year
- Place Of Origin: Shandong, China
- Application: Commercial
- Feature: High Quality Materials
Technical Specifications
| Type | Fan Motor |
|---|---|
| Application | Commercial |
| Material | Copper wires |
| Thickness | 2.0 mm |
| Power Source | Electric |
| Warranty | 1 Year |
| After-Sales Service Provided | Onsite Installation |
| Feature | High Quality Materials |
| Operating Language | English |
| Place Of Origin | Shandong, China |
| Brand Name | RETEKOOL |
| Selling Units | Single item |
| Single Package Size | 120X120X20 cm |
| Single Gross Weight | 5.985 kg |
Product Details
| Model | D (mm) | D1 (mm) | L (mm) | L1 (mm) | L2 (mm) | F (mm) | ||||||||||
| GDF100 | 98 | 237 | 204 | 25 | 25 | 42 | ||||||||||
| GDF125 | 122 | 237 | 193 | 25 | 31 | 42 | ||||||||||
| GDF150 | 147 | 278 | 195 | 25 | 25 | 42 | ||||||||||
| GDF160 | 157 | 278 | 195 | 25 | 25 | 42 | ||||||||||
| GDF200 | 197 | 333 | 210 | 25 | 25 | 42 | ||||||||||
| GDF250 | 247 | 333 | 210 | 29 | 29 | 42 | ||||||||||
| GDF300 | 297 | 402 | 270 | 28 | 28 | 42 | ||||||||||
| GDF315 | 315 | 402 | 265 | 30 | 25 | 42 | ||||||||||
| Model | Voltage (V | Frequency (Hz) | Power (W) | Current (A) | Speed (RPM) | Air Flow m³h | Noise dB | Pressure Pa | IPDegree | Weight Kg | ||||||
| GDF100 | 110/120 | 60 | 70 | 0.61 | 2700 | 345 | 49 | 350 | 44 | 3 | ||||||
| GDF125 | 110/120 | 60 | 75 | 0.65 | 2700 | 430 | 49 | 380 | 44 | 3 | ||||||
| GDF150 | 110/120 | 60 | 130 | 1.0 | 2650 | 700 | 50 | 430 | 44 | 4 | ||||||
| GDF160 | 110/120 | 60 | 135 | 1.1 | 2650 | 730 | 50 | 450 | 44 | 4 | ||||||
| GDF200 | 110/120 | 60 | 200 | 1.7 | 2550 | 1150 | 53 | 550 | 44 | 4.5 | ||||||
| GDF250 | 110/120 | 60 | 210 | 1.8 | 2550 | 1200 | 53 | 600 | 44 | 5 | ||||||
| GDF300 | 110/120 | 60 | 235 | 1.95 | 2520 | 1580 | 53 | 750 | 44 | 5.5 | ||||||
| GDF315 | 110/120 | 60 | 250 | 2.0 | 2550 | 1800 | 53 | 790 | 44 | 5.5 | ||||||
Model | Voltage V | Frequency (Hz) | Power (W) | Current (A) | Speed (RPM) | Air Flow m³h | Noise dB | Pressure Pa | IPDegree | Weight Kg | ||||||
| GDF100 | 220/240 | 50 | 60 | 0.26 | 2550 | 300 | 48 | 300 | 44 | 3 | ||||||
| GDF125 | 220/240 | 50 | 62 | 0.27 | 2550 | 370 | 48 | 330 | 44 | 3 | ||||||
| GDF150 | 220/240 | 50 | 100 | 0.47 | 2550 | 620 | 49 | 355 | 44 | 4 | ||||||
| GDF160 | 220/240 | 50 | 105 | 0.48 | 2550 | 660 | 49 | 380 | 44 | 4 | ||||||
| GDF200 | 220/240 | 50 | 150 | 0.7 | 2500 | 1000 | 52 | 430 | 44 | 4.5 | ||||||
| GDF250 | 220/240 | 50 | 160 | 0.71 | 2500 | 1100 | 52 | 490 | 44 | 5 | ||||||
| GDF300 | 220/240 | 50 | 185 | 0.85 | 2450 | 1450 | 53 | 700 | 44 | 5.5 | ||||||
| GDF315 | 220/240 | 50 | 220 | 1.0 | 2450 | 1600 | 53 | 710 | 44 | 5.5 | ||||||
If any needs,please contact us,
Best regards!
Vito
Ordering and Pricing
- Minimum order quantity: 50 unit
- Volume pricing:
- 50+ unit: US $65.98 / unit
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 50 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Jinan Retek Industries Inc, based in China. The company 15 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Jinan Retek Industries Inc range on HVACR Nexus.
