Key specification for this centrifugal fan: 12v-24V, blade material Plastic. Everything below is reproduced from the factory data sheet. Made by Shenzhen Cheng Gao Da Electronic Techology Co., Ltd. (7 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Centrifugal Fan
- Model Number: CGD17569HV12
- Voltage: 12v-24V
- Blade Material: Plastic
- Warranty: 5 year
- Place Of Origin: Guangdong, China
- Application: Industrial Equipment
Technical Specifications
| Mounting | Free Standing |
|---|---|
| Voltage | 12v-24V |
| Blade Material | Plastic |
| Electric Current Type | DC |
| Warranty | 5 year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Place Of Origin | Guangdong, China |
| Brand Name | SZCGFAN |
| Model Number | CGD17569HV12 |
| Product Name | dc Centrifugal Fan |
| Application | Industrial Equipment |

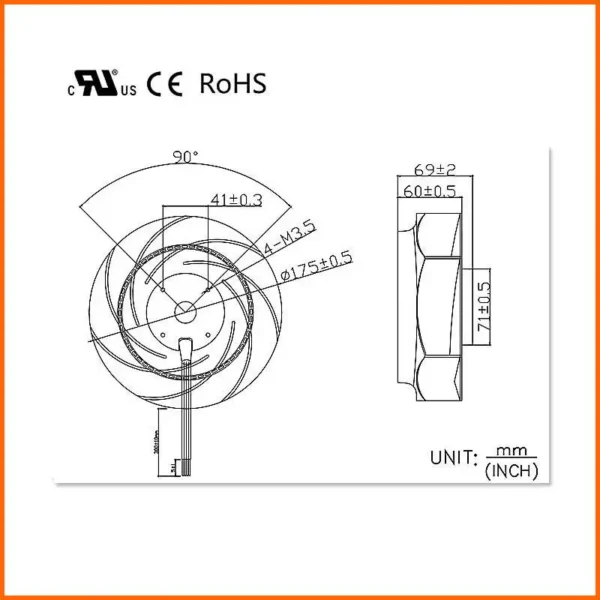

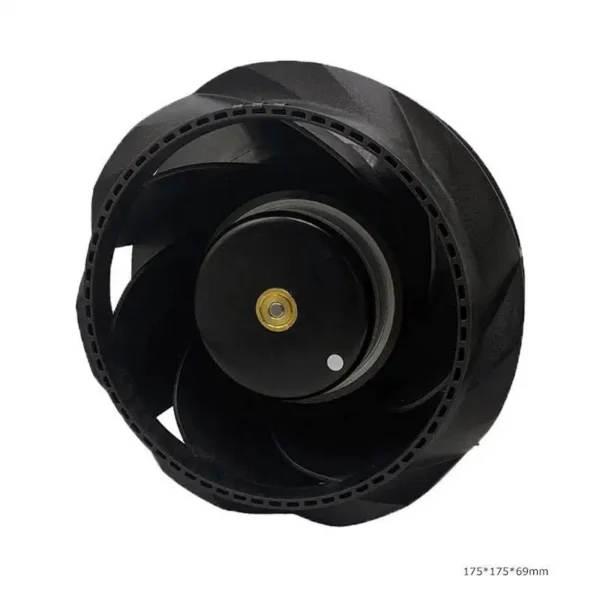

| Size | 175*69mm |
| Usage | Assembly |

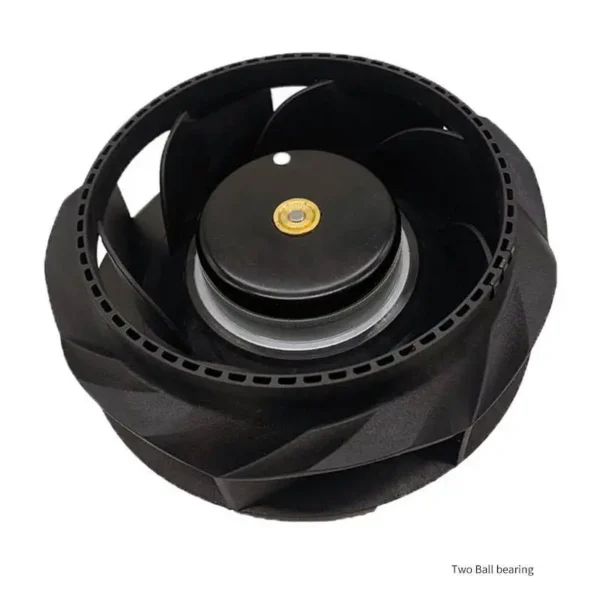

| Bearing Type | two ball |
| Color | CE, RoHS |
| Tolerance | plus or minus 10% |
| Mute | silent fan |
| Current | 2.1A |
| Impeller | Plastic UL94V-0 |
| Packaging Details | The strip separates the product and the carton is used for the outer packaging. |
| Selling Units | Single item |
| Single Package Size | 30X30X25 cm |
| Single Gross Weight | 1.12 kg |
Product Details
Bearing type | two ball |
Mute | Silent fan |
Dimensions (length × width × height) | 175*69mm |
Weight | 0.8kg |
Certification | CE, ROHS, FCC |
Warranty period | 5 years |
Service system | one year replacement, five years warranty |
Material | PBT |
Surface treatment | none |
Thickness | 69mm |
Processing type | assembly |
Tolerance | plus or minus 10% |
Application | Industrial equipment |
Drawing type | 2D |
Colour | Black |
Whether CNC processing | no |
OEM service | yes |
After-sales service provided | one year replacement, five-year warranty |
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–100 piece: US $25 / piece
- 101–2000 piece: US $23 / piece
- 2001–10000 piece: US $21 / piece
- 10001+ piece: US $20 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 12v-24V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Cheng Gao Da Electronic Techology Co., Ltd., based in China. The company 7 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Shenzhen Cheng Gao Da Electronic Techology Co., Ltd. range on HVACR Nexus.
