Centrifugal fan — 230 V, 220 V, power source type Corded Electric. The complete factory specification follows. Made by Suzhou Fanova Motor Co., Ltd. (2 years on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Centrifugal Fan
- Model Number: FF3G140-2AGL-90
- Power Source Type: Corded Electric
- Voltage: 230 V, 220 V
- Rated Voltage: 230V
- Material: Galvanized Steel Plate / Stainless Steel
- Blade Material: Stainless Steel
Technical Specifications
| Duct Diameter | 8 in |
|---|---|
| Mounting | Any |
| Voltage | 230 V, 220 V |
| Motor Type | Brushless Motor |
| Speed | 2580RPM |
| Material | Galvanized Steel Plate / Stainless Steel |
| Blade Material | Stainless Steel |
| Power Source Type | Corded Electric |
| Warranty | 2 Years |
| After-Sales Service Provided | Video Technical Support |
| Customized Support | OEM, ODM, OBM |
| Noise Level | 35–39 dB |
| Place Of Origin | Jiangsu, China |
| Brand Name | FANOVA |
| Model Number | FF3G140-2AGL-90 |
| Fan Type | EC Forward Centrifugal Fans |
| Impeller Material | Galvanized Steel Plate |
| Rated Voltage | 230V |
| Product Name | Industrial Centrifugal Fans |
| Application | Exhaust Ventilation |
| Keyword | Exhaust Fan Ventilation |
| Usage | Fresh Air |
| Function | Ventilaion |
| Feature | High Performance |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |

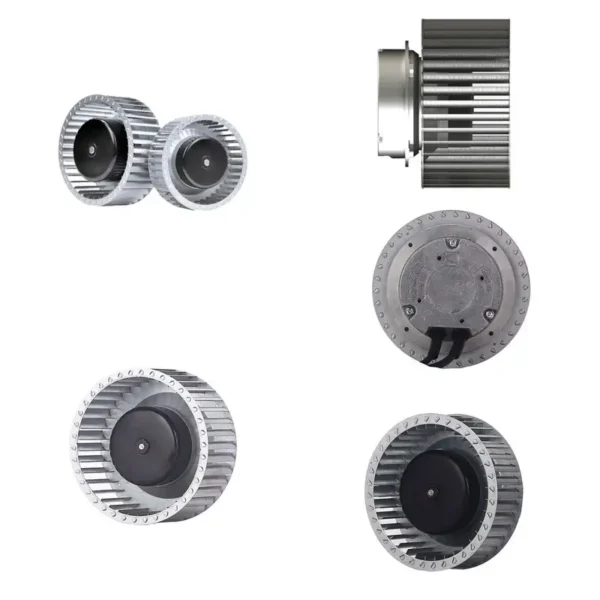

Product Details
Products Description
Model | Rated Voltage | Operating Voltage | Frequency | Rated Current (A) | Rated Speed (RPM) | Rated Power (W) | Sound Level (dB) | Air Flow (m³/h) | Air Pressure (Pa) |
FF3G108-2AGL-70 | 230VAC | 184~270 | 50/60Hz | 0.38 | 2800 | 50 | 64 | 240 | 350 |
FF3G120-2AGL-70 | 230VAC | 184~270 | 50/60Hz | 0.48 | 2580 | 65 | 65 | 309 | 338 |
FF3G133-2AGL-70 | 230VAC | 184~270 | 50/60Hz | 0.7 | 2600 | 82 | 66 | 290 | 560 |
FF3G140-2AGL-90 | 230VAC | 184~270 | 50/60Hz | 1.06 | 2580 | 150 | 70 | 543 | 636 |
FF3G160-2AGL-90 | 230VAC | 184~270 | 50/60Hz | 1.06 | 2050 | 150 | 71 | 630 | 620 |
FF3G180-2AGL-90 | 230VAC | 184~270 | 50/60Hz | 1.35 | 1600 | 200 | 70 | 970 | 670 |
FF3G180-2AGL-20 | 230VAC | 184~270 | 50/60Hz | 2.2 | 2460 | 495 | 76 | 1320 | 1265 |
FF3G200-2AGL-90 | 230VAC | 184~270 | 50/60Hz | 1.5 | 1600 | 220 | 74 | 1000 | 980 |
FF3G200-2AGL-20 | 230VAC | 184~270 | 50/60Hz | 2.5 | 1900 | 500 | 76 | 1650 | 700 |
FF3G225-2AGL-20 | 230VAC | 184~270 | 50/60Hz | 1.5 | 1250 | 355 | 74.9 | 1741 | 1053 |
Voltage Output | Output +10VDC, max. 1.1 mA (Can be used as speed control input voltage or FG signal pull-up voltage,and need to be circumscribed in series with a pull -up resister, details as connection diagram.) | ||
Dielectric Resistance | 10mA maximum at 1800VAC 50Hz one second Between frame and (+) terminal | ||
Life Expectance | 50,000 Hours(L10) | ||
Leakage Current | ≤3.5mA (Max. ) | ||
Direction of Air Flow | Straight forward from air outlet | ||
Motor | External rotor EC motor | ||
Technical features | Motor current limitation | ||
Soft starting Protection | |||
Under/Over voltage detection | |||
Thermal overload protection for electronics/motor | |||
Line undervoltage detection | |||
Locked-rotor Protection | |||
Reverse Polarity Protection | |||
Operating Temperature | -25ºC (Min. ) | 60ºC (Max. ) | |
Heat sink of IC | 115ºC (Max. ) | ||
Other electronic parts | 85ºC (Max. ) | ||
Ball bering | 80ºC (Max. ) | ||
Lead Wire | 120ºC (Max. ) | ||
Storage Temperature | -40ºC to 75ºC | ||
Operating Humidity | 5% to 90% RH | ||
Storage Humidity | 5% to 95% RH | ||
Electronics housing material | Die-cast aluminum | ||
Operation Mode | S1 | ||
Motor bearing | Ball bearing | ||
Valid For Approval/Standard | CE,RoHS,ErP2015 | ||
1. High Efficiency: Our centrifugal fans are capable of delivering high airflow rates and pressure while minimizing energy
consumption, ensuring optimal performance and efficiency.
2. Low Noise: Employing advanced fluid dynamics technology to adjust blade angles for high airflow while minimizing noise levels.
3. Wide Application Range: Suitable for a diverse range of industries and environments, including industrial ventilation, HVAC systems, agriculture, construction, automotive, and more, offering flexible customized solutions (OEM/ODM).
4. Sustainable Development: Our fans are designed with energy-saving and environmentally friendly features. Utilizing new materials such as fiberglass-reinforced plastic, they meet eco-friendly energy requirements, withstand harsh working conditions, and provide long-term reliability.
5. Easy Installation and Maintenance: Equipped with installation grilles and duct mounting options, our fans feature user-friendly designs and easily maintainable components, facilitating hassle-free maintenance.
consumption, ensuring optimal performance and efficiency.
2. Low Noise: Employing advanced fluid dynamics technology to adjust blade angles for high airflow while minimizing noise levels.
3. Wide Application Range: Suitable for a diverse range of industries and environments, including industrial ventilation, HVAC systems, agriculture, construction, automotive, and more, offering flexible customized solutions (OEM/ODM).
4. Sustainable Development: Our fans are designed with energy-saving and environmentally friendly features. Utilizing new materials such as fiberglass-reinforced plastic, they meet eco-friendly energy requirements, withstand harsh working conditions, and provide long-term reliability.
5. Easy Installation and Maintenance: Equipped with installation grilles and duct mounting options, our fans feature user-friendly designs and easily maintainable components, facilitating hassle-free maintenance.

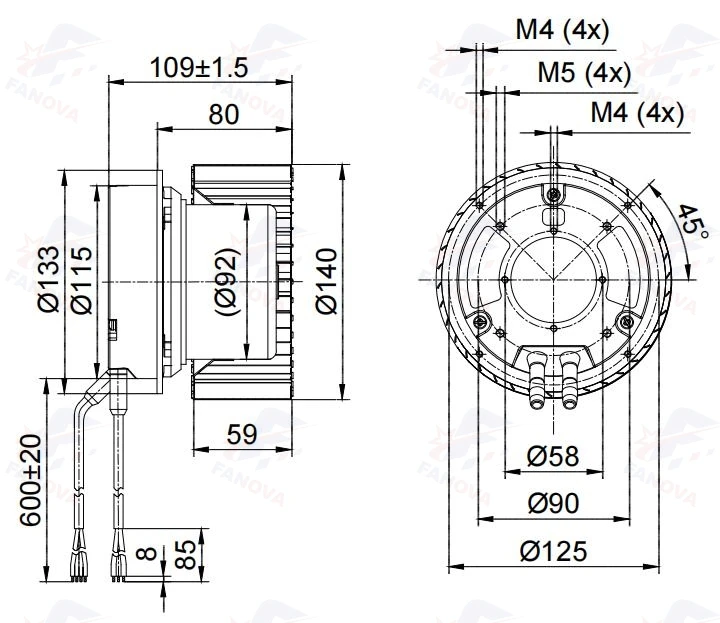

Product Drawing

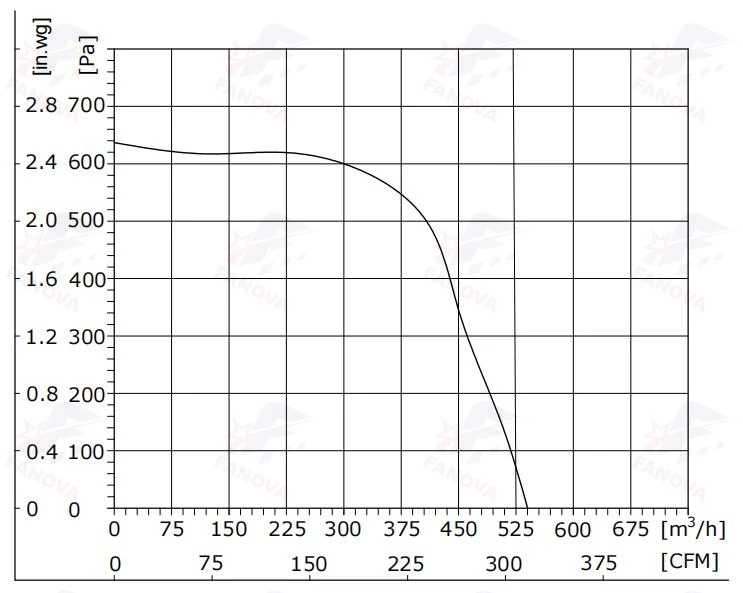

Aerodynamic Performance Charts

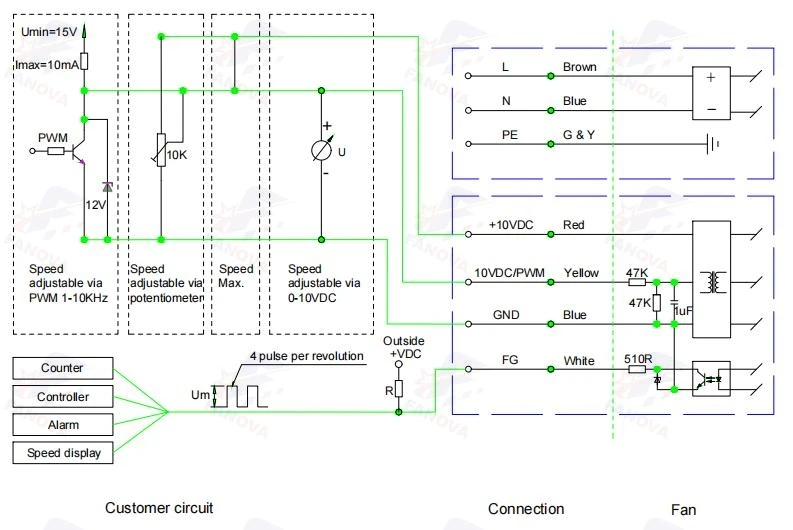

Connection Diagram
Contact us for detailed specifications
Applications
HVAC
EC fans are widely applied in HVAc systems, especially where speedcontrol function is required and noise reduction matters.
Cooling
EC fans are essentially fans with brushless Dc motor, combining theadvantages of Ac and Dc power.
Air Purification
Apart from smart control and energy-saving, the compact size is oneof the significant features of EC fans.
Refrigeration
Energy-saving is the most important feature that will be taken into
consideration because the evaporator fan motors run twenty four
hours a day.
Automotive equipment
The EC brushless motorized fans can be used both in combustionengine thermal circuits and in electric vehicles.
Medical Equipment
EC fans, with high performance, efficient energy consumption, low
noise level,etc, are also favored in medical industry.
EC fans are widely applied in HVAc systems, especially where speedcontrol function is required and noise reduction matters.
Cooling
EC fans are essentially fans with brushless Dc motor, combining theadvantages of Ac and Dc power.
Air Purification
Apart from smart control and energy-saving, the compact size is oneof the significant features of EC fans.
Refrigeration
Energy-saving is the most important feature that will be taken into
consideration because the evaporator fan motors run twenty four
hours a day.
Automotive equipment
The EC brushless motorized fans can be used both in combustionengine thermal circuits and in electric vehicles.
Medical Equipment
EC fans, with high performance, efficient energy consumption, low
noise level,etc, are also favored in medical industry.
Product packaging
Domestic:7 days, Foreign: around 12 days old opening within 45 days of R&D.
