This centrifugal fan is published with the manufacturer’s full specification — rated voltage/frequency 230VAC/50HZ, power source A.C. Source. Made by Changzhou 1st Sunflower Intelligence Technology Co., Ltd. (22 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Centrifugal Fan
- Model Number: SFFS133/072
- Power Source: A.C. Source
- Power (W): 60/50/40W
- Rated Voltage/Frequency: 230VAC/50HZ
- Material: Galvanized Sheet Steel
- Rotating Speed: 1460/1100/800RPM
Technical Specifications
| Application | Commercial, Hotel, Industrial, Garage, RV, Household |
|---|---|
| Size | 133mm |
| Power Source | A.C. Source |
| Noise | 60dB |
| Number Of Blades | 0 |
| App-Controlled | No |
| Warranty | 3 Years |
| Private Mold | No |
| Logo/Graphic Design | Laser Printing, Inkjet Printing |
| Packaging Types | Carton |
| Operating Language | English |
| Place Of Origin | Jiangsu, China |
| Brand Name | OEM |
| Material | Galvanized Sheet Steel |
| Power (W) | 60/50/40W |
| Model Number | SFFS133/072 |
| Motor Model | 02D |
| Rated Voltage/Frequency | 230VAC/50HZ |
| Rotating Speed | 1460/1100/800RPM |
| Capacitor | 2.0uF/450VDB |
| Ambient Temperature | minus 25 to 45℃ |
| Protection Type | IP44 |
| Insulation Class | Class B |
| Rotation | Clockwise |
| Duty Cycle | Continuous |
| Thermal Protection | Yes |
| Selling Units | Single item |
Product Details
Product Description
As an indispensable cooling solution in modern industrial and technological fields, our AC centrifugal fans are widely used in various cutting-edge industries, including new energy, AI data centers, robotics, electric vehicles, medical equipment, and communication infrastructure, thanks to their exceptional cooling performance and reliability.
Applications of AC Centrifugal Fan
Application: Cooling system and ventilation
Example: In the wind turbine generator cabin, AC centrifugal fans are used to cool the generator, gearbox and transformer and other equipment to ensure stable operation in high temperature environment. At the same time, fans are also used for ventilation of the cabin and tower to prevent equipment overheating.
2. Solar power generation
Application: Photovoltaic module cooling and equipment ventilation
Example: In large photovoltaic power stations, AC centrifugal fans are used to cool photovoltaic modules to prevent efficiency loss caused by high temperature. In addition, fans are also used to dissipate heat from inverters and transformers to ensure that these devices work normally in high temperature environments.
Application: Photovoltaic module cooling and equipment ventilation
Example: In large photovoltaic power stations, AC centrifugal fans are used to cool photovoltaic modules to prevent efficiency loss caused by high temperature. In addition, fans are also used to dissipate heat from inverters and transformers to ensure that these devices work normally in high temperature environments.
3. Energy storage system
Application: Battery cooling and environmental control
Example: In lithium-ion battery energy storage systems, AC centrifugal fans are used to cool battery packs to prevent battery overheating, extend service life and ensure safety. At the same time, fans are also used to maintain the temperature and humidity of the operating environment of energy storage equipment.
Application: Battery cooling and environmental control
Example: In lithium-ion battery energy storage systems, AC centrifugal fans are used to cool battery packs to prevent battery overheating, extend service life and ensure safety. At the same time, fans are also used to maintain the temperature and humidity of the operating environment of energy storage equipment.
4. Industrial robots
Application: Cooling of motors and drives
Example: In industrial robots, AC centrifugal fans are used to cool servo motors and drives to prevent them from overheating due to long-term operation. For example, in welding robots in automobile manufacturing plants, fans ensure that motors and drives work stably in high-temperature environments.
Application: Cooling of motors and drives
Example: In industrial robots, AC centrifugal fans are used to cool servo motors and drives to prevent them from overheating due to long-term operation. For example, in welding robots in automobile manufacturing plants, fans ensure that motors and drives work stably in high-temperature environments.
5. Service robots
Application: Heat dissipation of electronic components
Example: In service robots used in hotels or hospitals, AC centrifugal fans are used to cool internal electronic control boards and power modules to prevent system failures caused by overheating. For example, fans in food delivery robots ensure that their electronic components maintain a suitable temperature during long-term operation.
Application: Heat dissipation of electronic components
Example: In service robots used in hotels or hospitals, AC centrifugal fans are used to cool internal electronic control boards and power modules to prevent system failures caused by overheating. For example, fans in food delivery robots ensure that their electronic components maintain a suitable temperature during long-term operation.
6. Medical robots
Application: Equipment cooling and environmental control
Example: In surgical robots, AC centrifugal fans are used to cool high-power lasers and electronic control systems to ensure precise operation during surgery. For example, fans in the da Vinci surgical system are used to maintain equipment temperature to ensure safe surgery.
Application: Equipment cooling and environmental control
Example: In surgical robots, AC centrifugal fans are used to cool high-power lasers and electronic control systems to ensure precise operation during surgery. For example, fans in the da Vinci surgical system are used to maintain equipment temperature to ensure safe surgery.
7. AI servers and data centers
Application: Heat dissipation of server cabinets
Example: In AI servers and data centers, AC centrifugal fans are used to cool server cabinets to prevent overheating of CPUs, GPUs, and other high-power components. For example, Google data centers use centrifugal fans for efficient heat dissipation to ensure that servers remain stable during long-term high-load operation.
Application: Heat dissipation of server cabinets
Example: In AI servers and data centers, AC centrifugal fans are used to cool server cabinets to prevent overheating of CPUs, GPUs, and other high-power components. For example, Google data centers use centrifugal fans for efficient heat dissipation to ensure that servers remain stable during long-term high-load operation.
8. Data base station
Application: Cooling of base station equipment
Example: In 5G and data base stations, AC centrifugal fans are used to cool base station equipment, such as RF modules and power supply equipment. For example, 5G base stations use centrifugal fans for heat dissipation to ensure stable operation of the equipment in high temperature environments.
Application: Cooling of base station equipment
Example: In 5G and data base stations, AC centrifugal fans are used to cool base station equipment, such as RF modules and power supply equipment. For example, 5G base stations use centrifugal fans for heat dissipation to ensure stable operation of the equipment in high temperature environments.

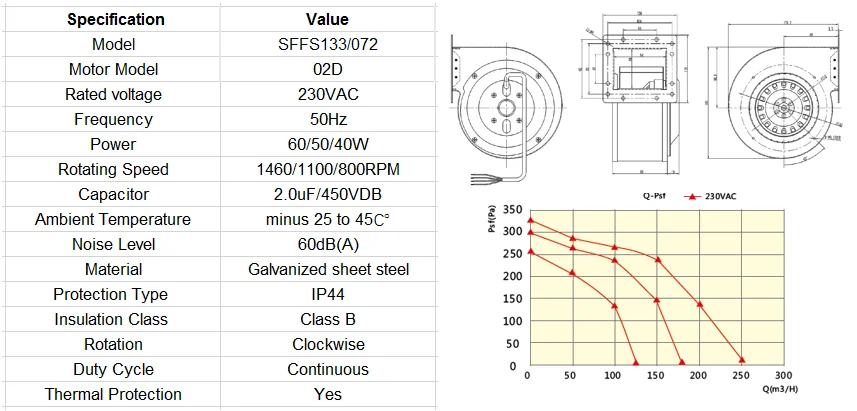

Specfication
The AC centrifugal fan highly practical and economically beneficial for industrial, commercial, and residential applications.
1. High Efficiency: The curve shows the fan's performance across different flow rates (Q), indicating that it can maintain high efficiency over a wide range of flow conditions. This means the fan can provide stable performance in various operating scenarios.
2. Energy Saving: Since the fan operates within the high-efficiency range, it can reduce energy consumption, thereby lowering operational costs. This is a significant economic benefit for users who rely on the fan for long-term use.
3. Reliability: The smoothness of the performance curve indicates stable fan operation, reducing the likelihood of failures and the need for maintenance. This enhances the equipment's reliability and minimizes downtime and repair costs.
4. Wide Applicability: The fan can operate under different flow rate requirements, making it suitable for a variety of applications. Whether low or high flow rates are needed, the fan can provide the corresponding performance support.
5. Ease of Control: The clarity of the performance curve makes it easier to control and adjust the fan. Users can fine-tune the fan's operating state based on actual needs to achieve optimal results.
The fan can be designed &manufactured with customized request.
2. Energy Saving: Since the fan operates within the high-efficiency range, it can reduce energy consumption, thereby lowering operational costs. This is a significant economic benefit for users who rely on the fan for long-term use.
3. Reliability: The smoothness of the performance curve indicates stable fan operation, reducing the likelihood of failures and the need for maintenance. This enhances the equipment's reliability and minimizes downtime and repair costs.
4. Wide Applicability: The fan can operate under different flow rate requirements, making it suitable for a variety of applications. Whether low or high flow rates are needed, the fan can provide the corresponding performance support.
5. Ease of Control: The clarity of the performance curve makes it easier to control and adjust the fan. Users can fine-tune the fan's operating state based on actual needs to achieve optimal results.
The fan can be designed &manufactured with customized request.
Ordering and Pricing
- Minimum order quantity: 50 set
- Volume pricing:
- 50+ set: US $46 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 50 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 230VAC/50HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
