Centrifugal Fan, 250W, 220V/380V

The centrifugal fan listed here carries 220 V, 380 V, blade material Zinc plating, documented exactly as the manufacturer publishes it. Made by Zhejiang Hongke Electromechanical Co., Ltd. (6 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Centrifugal Fan

• Voltage: 220 V, 380 V
• Blade Material: Zinc plating
• Speed: 2840RPM
• Place Of Origin: Zhejiang, China
• Current Type: AC
• Single Package Size: 28X24X29 cm

Technical Specifications

Product Details

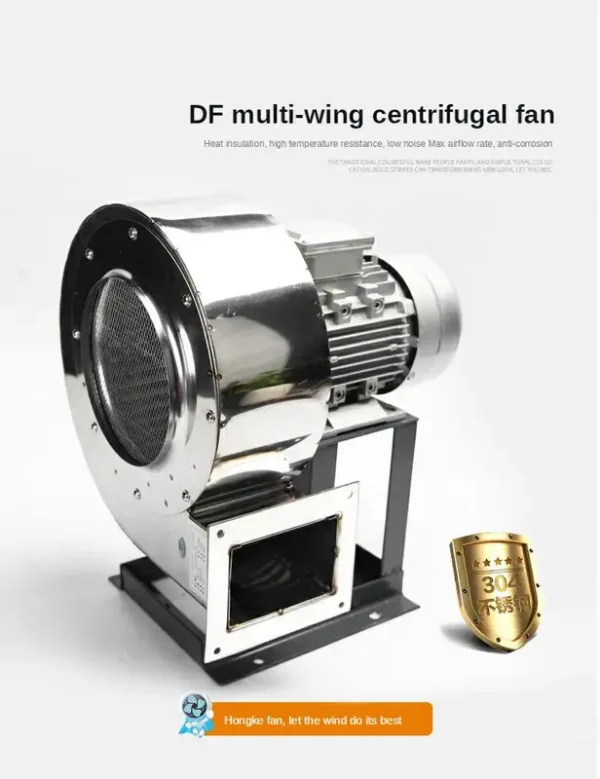

DF VANE

CENTRIFUGAL FAN

Tough big suction strong wind

STRONG WIND

COPPER ELECTRODE

DURABLE

WIDELY USED

Hongke Fan only makes high-end products

OFFICIAL PRODUCT

Not let go of every detail

STRONG WIND

Automatic blade stamping,automatic inserting

automatic rolling, and the wind blows out more evenly.

COPPER MOTOR

Pure copper motor High efficiency, low heat generation

low power consumption. safe and stable operation.

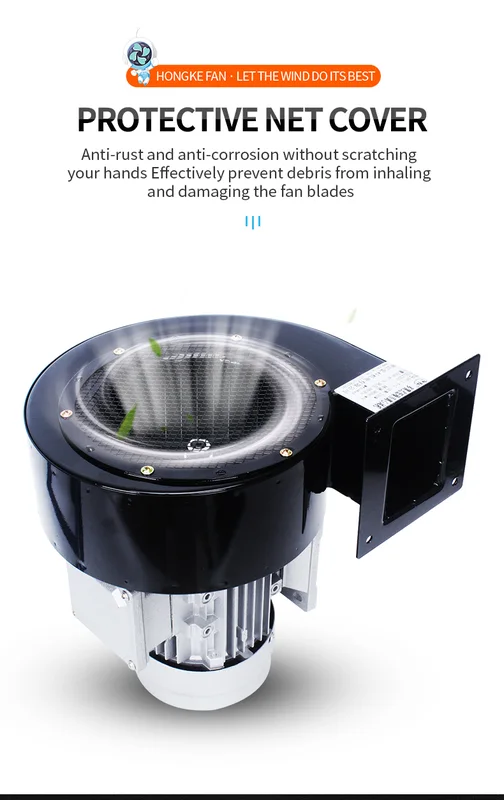

PROTECTIVE NET COVER

Anti-rust and anti-corrosion without scratching

your hands Effectively prevent debris from inhaling

and damaging the fan blades.

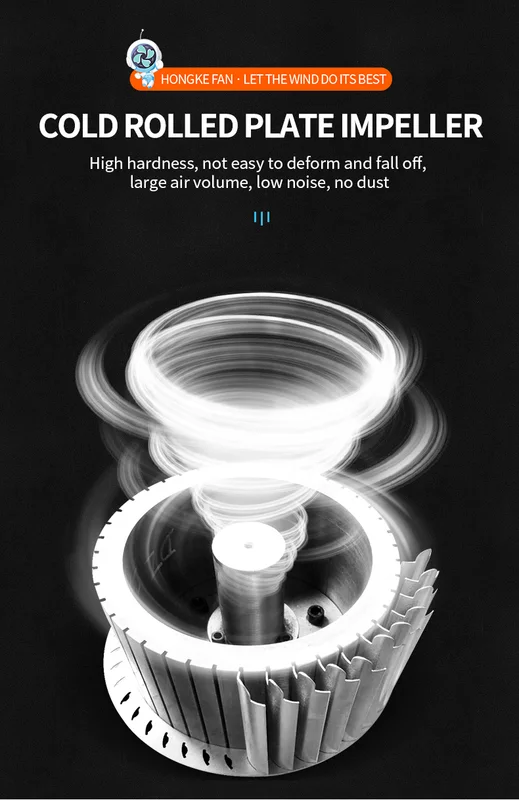

COLD ROLLED PLATEIMPELLER

High hardness, not easy to deform and fall off

large airvolume, low noise, no dust.

ALUMINUM SHELL

Fast heat dissipation, light weight,

high temperature resistance

corrosion resistance, not easy to rust.

ALUMINUM SHELL

Fast heat dissipation, light weight,

high temperature resistance,

corrosion resistance, not easy to rust.

model	Voltage (V)	frequency (Hz)	Rotating speed (r/min)	flow (m³/H)	Full pressure (Pa)	noise (dB)	colour
DF-120W	220/380	50	2800	305	412	72	black
DF-180W	220/380	50	2800	405	450	75	black
DF-250W	220/380	50	2800	504	860	75	black
DF-370W	220/380	50	2800	660	850	76	black
DF-550W	220/380	50	2800	860	1020	76	black
DF-750W	220/380	50	2800	1200	1210	80	black
DF-1100W	220/380	50	2800	1900-2700	1380-1240	82	black
DF-1500W	220/380	50	2800	2600-3500	1360-1220	83	white
DF-2200W	220/380	50	2800	3500-4600	1470-1300	84	white

model	F-G-H	A	B	C	D	ΦE
DF-120W	270-190-215	117	117	66	69	105
DF-180W	288-191-214	117	133	66	83	105
DF-250W	280-235-276	118	120	59	81	135
DF-370W	305-235-275	114	154	59	106	135
DF-550W	345-304-330	122	122	73	79	160
DF-750W	345-300-332	125	148	73	105	160
DF-1100W	400-335-387	205	181	155	130	160
DF-1500W	385-425-364	216	190	161	130	160
DF-2200W	430-460-395	216	190	161	130	160

MULTI-ANGLE OPTIONAL

Viewed from the motor end or the transmission group end,

counterclockwise rotation is left-handed, clockwise rotation is right-handed.

Note: The factory default is 0 degrees left-handed, other angles are customized. and the delivery time is five days

SHOW DETAILS

ingenuity and quality,we don't miss every detail

COOLING NET COVER

Surface phosphate treatment

Electrostatic spray paint uniform color

Good heat dissipation

AIR INLET NET COVER

The air inlet is equipped with a net cover Effectively prevent debris from entering it Damage to the impeller

ONE THICKENED SHELL

Advanced cutting technology Smooth and flat surface High wear resistance and hardness

FAQ

Q: Can your product label, packaging and design be customized?

A: Yes, we offer customized services about these. Q:What is your monthly production capacity? A: The capacity of our factory is 8000 units per month Q:What is your minimum order quantity? A: There is no limit. Customers are big or small.No matter how many you order We will provide high quality products and perfect service. Q:Can l obtain samples for quality inspection?

A:Yes, we provide samples. Q:How long is the lead time? A: Conventional products are delivered in small quantities on the same day.Bulk order 3-5 days. Q:How long is the fan's service life? A: Normal use 5-10 years.For quality problems, we provide one-year replacement.

Q:How to guarantee the quality? A: Strict process control and professional product quality inspection team to ensure the product Percent of pass;in addition, we improve the after-sales support system for the products Take full responsibility for quality problems in use

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–49 piece: US $53.48 / piece
  • 50–499 piece: US $52.48 / piece
  • 500+ piece: US $51.48 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this centrifugal fan?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

Can the centrifugal fan be supplied for my local voltage?

The standard configuration is 220 V, 380 V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Zhejiang Hongke Electromechanical Co., Ltd., based in China. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Zhejiang Hongke Electromechanical Co., Ltd. range on HVACR Nexus.
