Centrifugal Fan, 651130ML, Cast, ROOTS

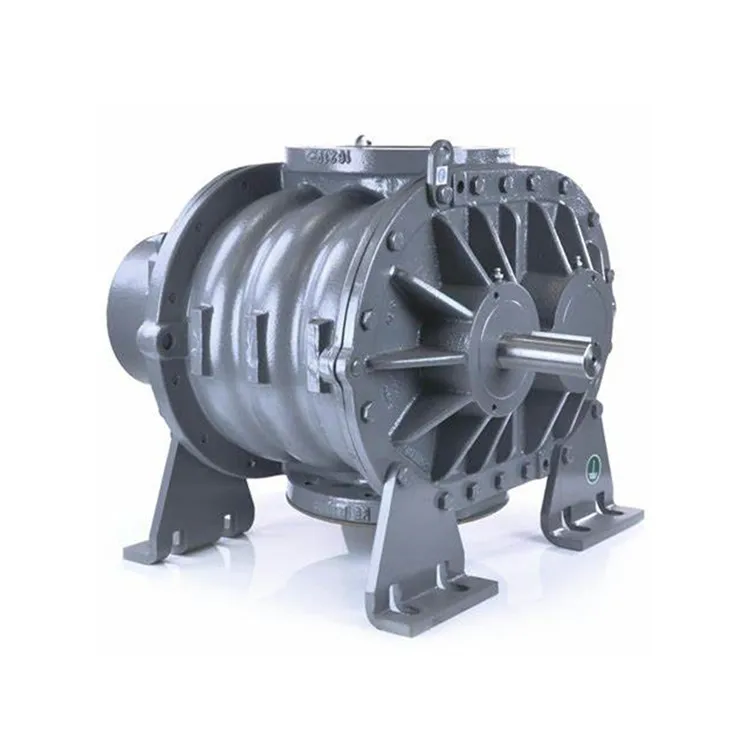

 ROOTS Blower 651130ML Rigid Monolithic Cast Iron Housing Product Name: ROOTS Blower 651130ML Model Number: 651130ML, 56URAI Product Description Due to the removable mounting feet, these units can be easily adapted to any of the four drive shaft positions – right, left, bottom, or top. When operated at speed and pressure ratings, the compact and robust design allows for continuous service. The basic model consists of a cast iron housing and involute cast iron impellers. The carburized and ground alloy steel timing gears are fixed to steel shafts with tapered fits and locking nuts. The use of oversized wear-resistant bearings, including cylindrical roller bearings on the drive shaft to withstand V-belt tension. The Universal RAI features thrust control, with gear end splash lubrication and grease-lubricated drive end. Available accessories include drivers, safety valves, inlet and outlet silencers, inlet filters, check valves, extended bases, V-belts or flexible couplings, and drive protection. Performance Features
– Removable steel mounting feet
– Rigid monolithic cast iron housing
– Wear-resistant bearings
– Thrust control
– Splash-lubricated cylindrical timing gears
– Standard pipe connections
– Balanced, precision-machined two-lobe impellers
– Ground steel shafts Technical Specifications
– Origin: Germany
– Flow Range: 580 CFM
– Pressure: max. 13 psi
– Vacuum: max. 15" Hg
– Speed: max. 2850 rpm
– Speed: min. 763 rpm
– Temperature: max. 225°F
– Connection: 4" FPT
– Shaft Diameter: 1.125"
– Tail End Lubrication: Grease
– Gear End Lubrication: Oil
– Required Oil for Gear End (Horizontal Units): 27.6 oz
– Required Oil for Gear End (Vertical Units): 16 oz
– Unit Weight: 170 lbs (77.3 kg)
– Shipping Box Dimensions: 24.5" × 19.5" × 20" (622mm × 495mm × 508mm)
