The centrifugal fan listed here carries 220V/380V/415V, blade material Steel plate, documented exactly as the manufacturer publishes it. Made by Wuxi Luoshe Jiangnan Fan Factory (18 years on the platform, typical reply ≤8h). For a binding price and lead time, send the volume you need and where it ships to.

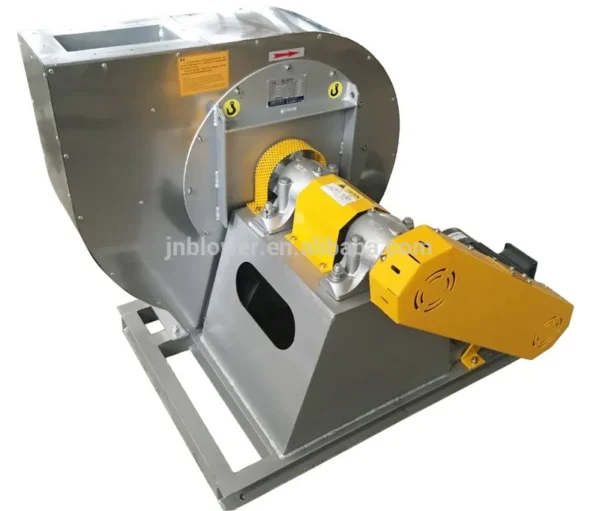

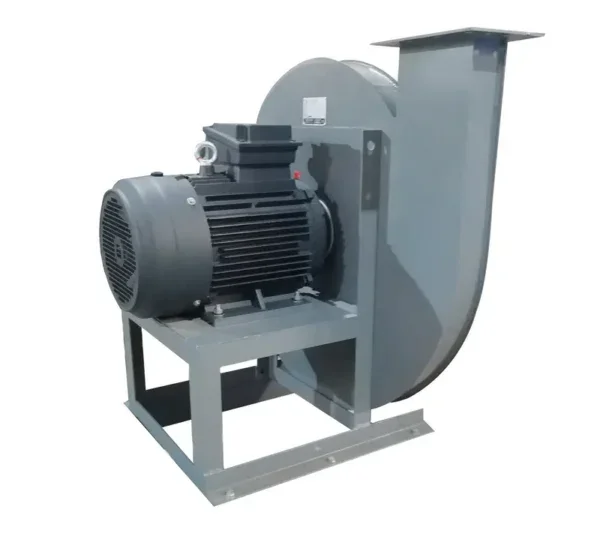

Key Features of This Centrifugal Fan
- Model Number: 4-72-10C
- Voltage: 220V/380V/415V
- Blade Material: Steel plate
- Rotation Speed: 630-1250 r/min
- Warranty: 1 Year
- Place Of Origin: Jiangsu, China
Technical Specifications
| Mounting | Free Standing |
|---|---|
| Voltage | 220V/380V/415V |
| Blade Material | Steel plate |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Place Of Origin | Jiangsu, China |
| Brand Name | JN |
| Model Number | 4-72-10C |
| Color | as customer need |
| Base | as customer need |
| Rotation Speed | 630-1250 r/min |
| Volume Flow | 17571-48797 m3/h |
| Total Pressure | 475-2373 Pa |
| Service | OEM |
| Selling Units | Single item |
| Single Package Size | 145X126X130 cm |
| Single Gross Weight | 650.0 kg |
Product Details
No. | Power (Kw) | Rotation Speed (r/min) | Volume Flow(m³/h) | Total Pressure (Pa) |
2.8A | 1.5 | 2900 | 1131-2356 | 994-606 |
3.2A | 2.2 | 2900 | 1688-3517 | 1300-792 |
1.1 | 1450 | 844-1758 | 324-198 | |
3.6A | 3 | 2900 | 2664-5268 | 1578-989 |
1.1 | 1450 | 1332-2634 | 393-247 | |
4A | 5.5 | 2900 | 4012-7419 | 2014-1320 |
1.1 | 1450 | 2006-3700 | 501-329 | |
4.5A | 7.5 | 2900 | 5712-10562 | 2554-1673 |
1.1 | 1450 | 2856-5281 | 634-416 | |
5A | 15 | 2900 | 7728-15455 | 3187-2019 |
2.2 | 1450 | 3864-7728 | 790-502 | |
6A | 4 | 1450 | 6677-13353 | 1139-724 |
1.5 | 960 | 4420-8841 | 498-317 | |
6C | 15 | 2240 | 10314-20628 | 2734-1733 |
11 | 2000 | 9209-18418 | 2176-1380 | |
7.5 | 1800 | 8288-16576 | 1760-1116 | |
5.5 | 1600 | 7367-14734 | 1389-881 | |
3 | 1250 | 5756-11511 | 846-537 | |
2.2 | 1000 | 4605-9209 | 541-344 | |
1.1 | 800 | 3684-7367 | 346-220 | |
7C | 18.5 | 1800 | 13161-26322 | 2395-1519 |
15 | 1600 | 11698-23397 | 1890-1199 | |
11 | 1450 | 10602-21204 | 1553-984 | |
7.5 | 1250 | 9140-18279 | 1151-731 | |
5.5 | 1120 | 8189-16378 | 924-586 | |
4 | 1000 | 7312-14623 | 736-468 | |
8C | 37 | 1800 | 28105-36427 | 2920-2302 |
30 | 1800 | 19646-25240 | 3143-3032 | |
22 | 1600 | 17463-22435 | 2478-2390 | |
11 | 1250 | 13643-25297 | 1507-1106 | |
7.5 | 1120 | 12224-15705 | 1209-1166 | |
5.5 | 1000 | 10914-14022 | 963-929 | |
5.5 | 900 | 14052-18213 | 725-572 | |
3 | 800 | 8732-16190 | 615-452 | |
2.2 | 710 | 7749-11085 | 485-450 | |
10C | 37 | 1250 | 34863-48797 | 2373-1877 |
30 | 1120 | 31237-43722 | 1902-1505 | |
18.5 | 1000 | 27890-39038 | 1514-1199 | |
15 | 900 | 25101-35134 | 1225-970 | |
11 | 800 | 22312-31230 | 967-766 | |
7.5 | 710 | 19802-27717 | 761-603 | |
5.5 | 630 | 17571-24594 | 599-475 | |
12C | 75 | 1120 | 53978-75552 | 2746-2172 |
55 | 1000 | 63953-67457 | 1859-1729 | |
37 | 900 | 43375-60712 | 1767-1399 | |
30 | 800 | 38556-53966 | 1395-1104 | |
18.5 | 710 | 34218-47895 | 1097-869 | |
15 | 630 | 30362-42498 | 863-684 | |
11 | 560 | 31774-37776 | 646-540 | |
7.5 | 500 | 24097-33728 | 543-430 | |
12C | 110 | 1000 | 76535-107124 | 2985-2361 |
75 | 900 | 68881-96412 | 2412-1908 | |
55 | 800 | 61228-85699 | 1903-1506 | |
37 | 710 | 54340-76058 | 1497-1185 | |
30 | 630 | 48217-67488 | 1177-932 | |
18.5 | 560 | 42859-59990 | 929-736 | |
15 | 500 | 38267-53562 | 741-587 | |
11 | 450 | 34441-48206 | 599-474 | |
7.5 | 400 | 30614-42850 | 474-375 | |
5.5 | 355 | 27170-38029 | 372-295 |
2.Designing and manufacturing of non-standard equipment
4.Tele-technical consulting and services
5.Other special technical service according to client’s requirements
6.Close follow-up of all orders and keep customers informed timely
7.Product quality and delivery time is strictly controlled
A:air flow, total pressure or static pressure,voltage,working condition.
Q2:How long is the warranty time?
Q3:Can you produce the OEM orders?
A:Yes,we have R&D dept which can provide professional solutions for you.
Q4:What kind of certificates can you provide?
A:Our factory have ISO9001 and CE certificates.
Q5:How do you control the product's quality?
A:All the products have quality testing and dynamic balance before delivery.
Ordering and Pricing
- Minimum order quantity: 2 set
- Volume pricing:
- 2–4 set: US $3000 / set
- 5–9 set: US $2800 / set
- 10+ set: US $2600 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 2 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 220V/380V/415V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

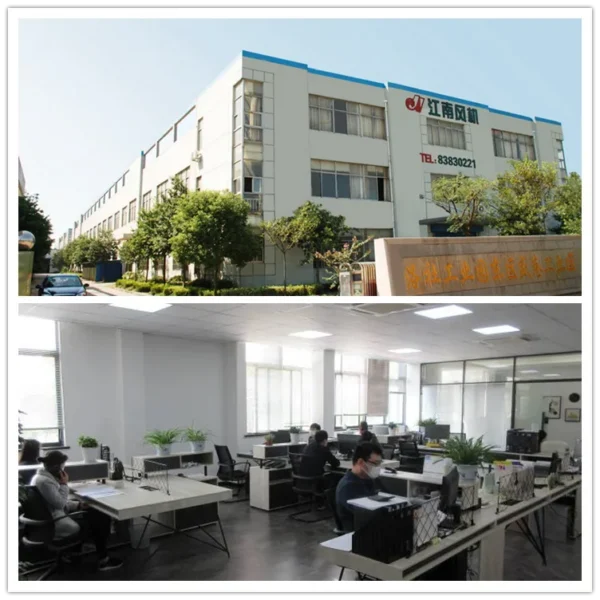

About the Manufacturer
This product is produced by Wuxi Luoshe Jiangnan Fan Factory, based in China. The company 18 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Wuxi Luoshe Jiangnan Fan Factory range on HVACR Nexus.
