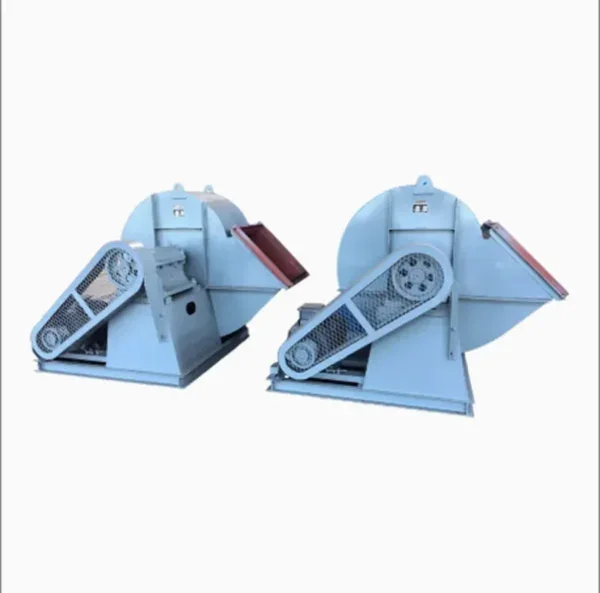

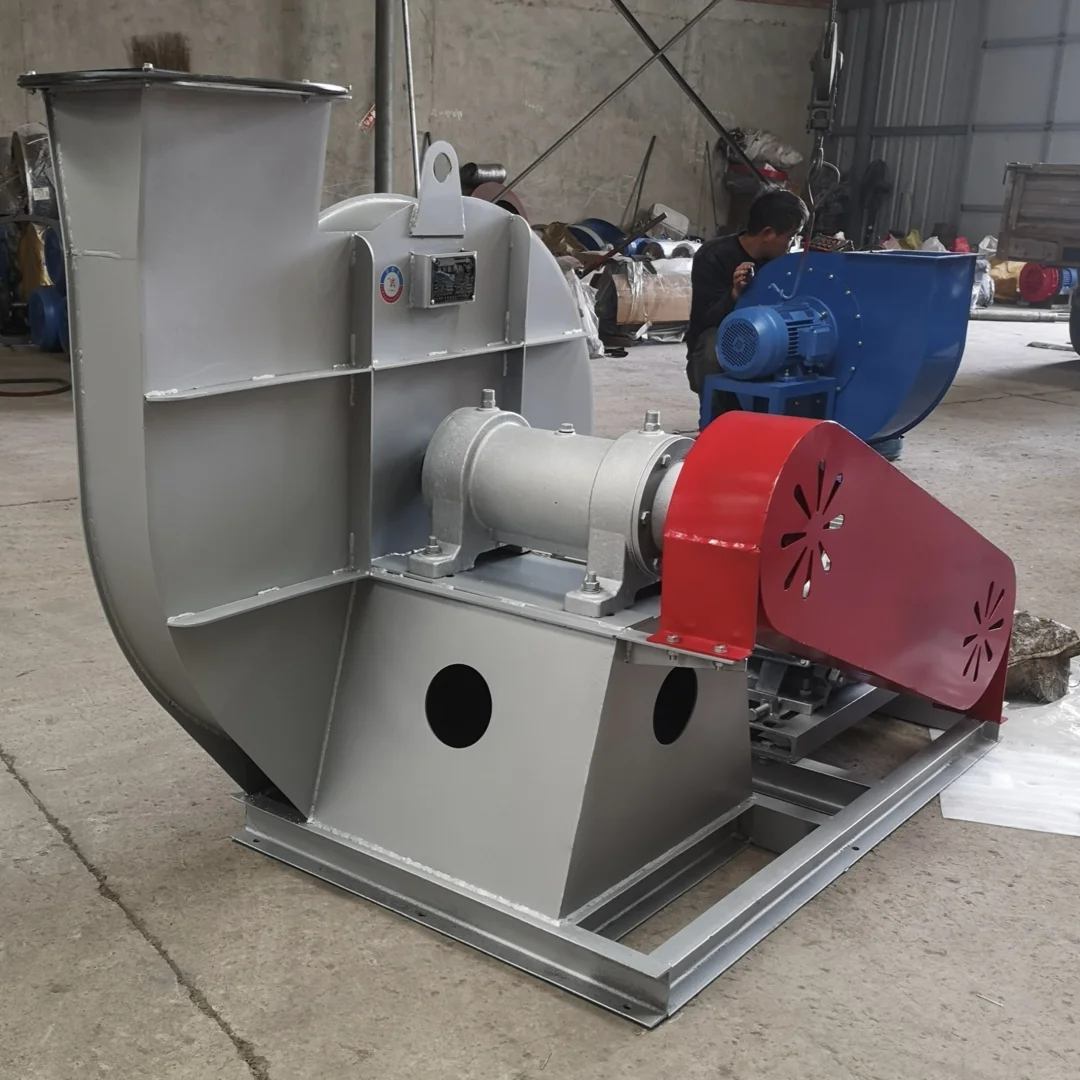

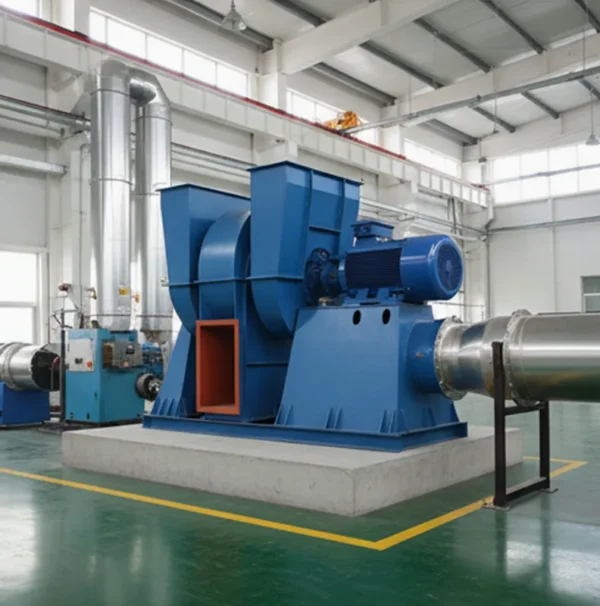

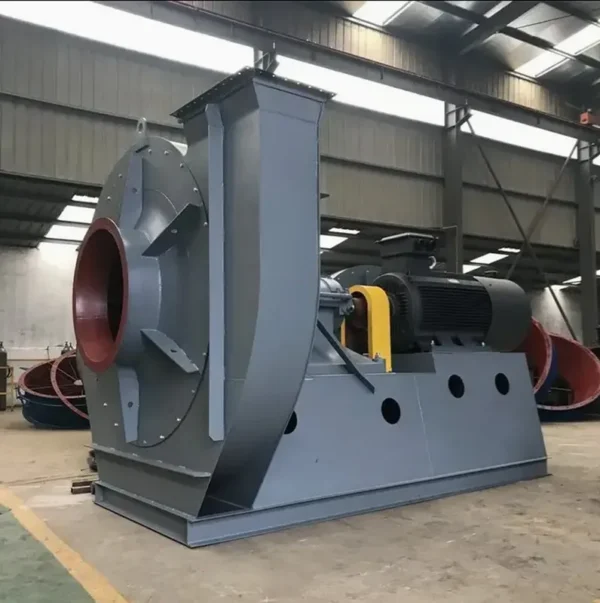

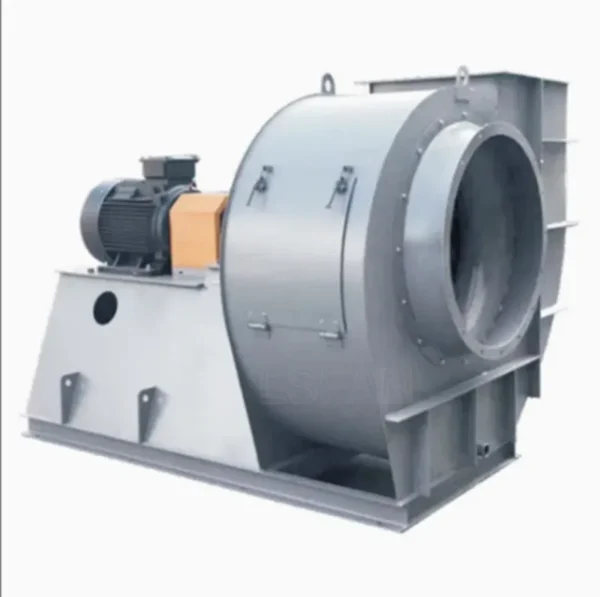

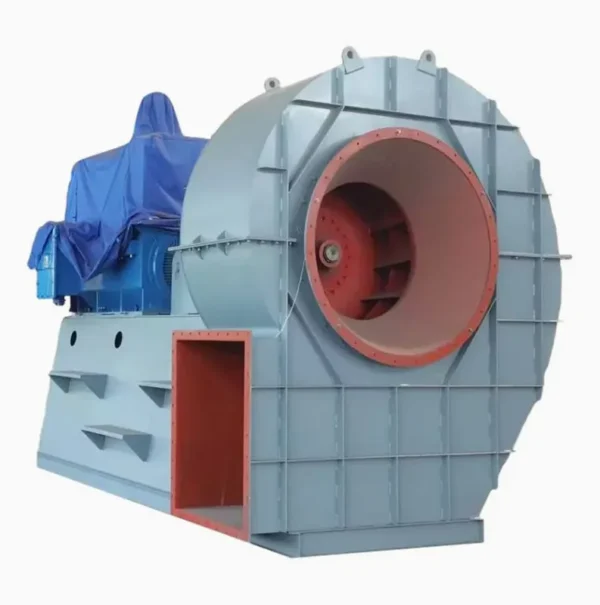

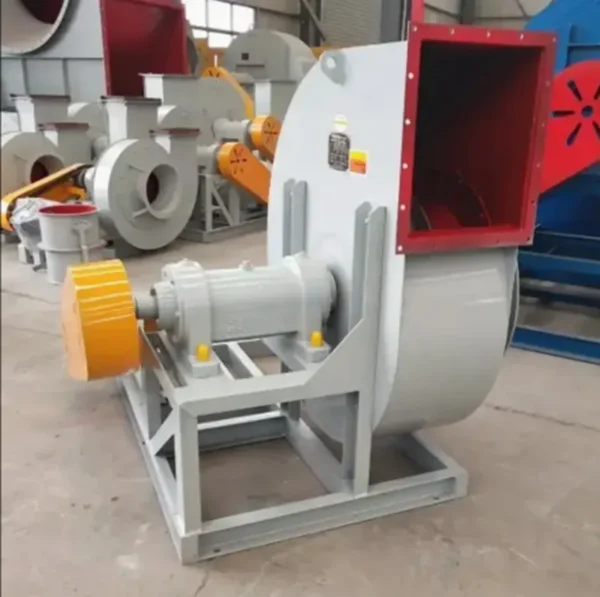

Centrifugal Fan

This centrifugal fan comes from Henan Rhine Machinery. The specification below is the factory’s own. Supplier profile: 1 year on the platform. For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Centrifugal Fan

• Warranty: 2 Years
• Place Of Origin: Henan, China
• Weight (Kg): 1000
• Single Gross Weight: 0.0 kg
• Core Components: PLC, Gearbox, Motor, Engine
• Key Selling Points: High Productivity

Technical Specifications

Product Details

Products Description

High-Pressure Centrifugal Fan

This product is widely used for high-pressure forced ventilation in industries such as forging furnaces, glass, electroplating,ceramics, batteries, and radio. It is also extensively applied in material transportation for grain, feed, and mineral powder processing industries, as well as in supporting equipment for carton machinery and tempered glass equipment. The conveyed medium is air or other non-combustible, harmless, and non-corrosive gases.

Product Parameter

9-19	NO.	R/Min	Pa	m³/H	KW
		4A	2900	3665~3253	824~1704	2.2/3
		4.5A	2900	4684~4112	1174~2504	4/5.5
		5A	2900	5768~5080	1610~3488	7.5/11
		5.6A	2900	7273~6400	2262~4901	11/18.5
		6.3A	2900	9265~8148	3220~6978	18.5/30
		7.1A	2980	11717~10426	4610~9988	37/55
		8D	2900	15034~13362	6594~14287	75/110
				1450	3620~3231	3297~7144	7.5/15
		9D	1450	4655~4101	4695~10171	15~22
		10D	1450	5941~4958	6440~15455	30~37
		11.2D	1450	7364~6246	9047~21713	45/75
				960	3182~2705	5990~14375	15/22
		12.5D	1450	9229~7822	12577~30186	75/110
				960	3975~3377	8327~19985	22/37
		14D	1450	11668~9878	17670~42409	132/220
				960	5004~4249	11699~28078	37/75
		16D	1450	15425~13035	26377~63305	315/410
				960	6570~5775	17463~41912	75/110

9-20	NO.	R/Min	Pa	m³/H	KW
	4A	2840	3567~3793	690~1110	1.5/2.2
			2880	3714~3303	1250~1670	3
	5A	2900	5929~5439	1340~2970	5.5/7.5
			2930	5155	3240	11
	6A	2930	8271~8938	2595~5250	11~18.5
			2940	8467	5775	22
			2950	8144	6300	30
	7D	2940	11260	4125	22
			2950	11760~12172	4960~7500	30/37
			2970	11858~11094	8350~10020	55
	8D	2970	14700~15876	6155~13700	55~90
			2980	14475	14950	110
			1440	3675~3930	3080~4300	5.5/7.5
			1460	3969~3616	4960~7480	11/15
	10D	1470	5743~6203	6010~10905	18.5~30
			1480	6047~5655	12150~14600	37/45
	12D	1480	8281~8957	9830~22290	37~90
			1486	8467	24300	110
	14D	1480	11270	15610	90
			1486	11662	18910	110
			1497	12025~12201	22150~25450	132
			1486	12201	28750	160
			1487	12103~11858	31990~35400	185
			1489	11515	38580	250
	16D	1486	14700	23300	160
			1487	15190	28225	185
			1489	15680~15925	33060~42910	250~315
			1450	15778~14945	47740~57590	355

Application

Including but not limited to: boiler ventilation, large building air exchange, gas transportation, smoke exhaust, and air blowing.Approved customization.

Product Packaging

Company Profile

Brand name	Rhine Machinery
Establishment time	since 1989
Production line	3
Factory area	10,000m²
Persons number	≥300
Main business	grain dryer,centrifugal fan,crushing machine

Main Products: Grain Dryer , ‪Grain Drying Machine , ‪Paddy Dryer , ‪Corn Dryer

Dryer Henan Rhine Machinery Co., Ltd is a professional manufacturer of grain drying equipment that integrates research and development,production, sales, installation, debugging, and after-sales service. The company′s core products include a series of grain drying equipment for 20ton, 32 tons, 40 tons, 120 tons, 150 tons, 200 tons, 300 tons, 2500tons and above. Also Independent research and development of centrifugal fan,crushing machine.

The company has strong technical strength, complete production equipment, complete testing methods, and stable product quality.
The product is sold to various regions abroad and domestically, and has received unanimous praise from domestic and foreign users.The company, together with the standard setter and operation team of China′s grain drying industry, focus on the production and sales of grain dryers and grain drying tower equipment. It is an international ISO9001 quality certification enterprise, and has been awarded the "contract abiding and trustworthy enterprise"and "exemplary organization of quality management". For many years, the company has attached great importance to technological exchange and cooperation, absorbing and learning from successful experiences and new technologies at home and abroad. It has signed a long-term strategic cooperation agreement with the China Academy of Agricultural Mechanization Sciences and invested a large amount of funds in the research and development of new equipment, striving to become the most leadind drying equipment manufacturer in the industry.

FAQ

1.the quality of production
Our machine are manufactured strictly according to national and international standard, and we take a test on every equipment before delivery.
2.Guaranteed
Our products are distributed throughout the world, being involved in more than Asia, Africa and South America countries and regions. And our products win the good reputation of our foreign customers.
3.How about price?
Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that “ for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity”.

Contact Us

Ordering and Pricing

• Minimum order quantity: 1 liter
• Volume pricing:
  • 1–4 liter: US $100 / liter
  • 5+ liter: US $90 / liter
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this centrifugal fan?

The standard minimum order quantity is 1 liter. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
