Centrifugal fan — 230V AC, power source type Corded Electric. The complete factory specification follows. Made by Wenzhou Jason Fan Manufacturer Co., Ltd. (18 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Centrifugal Fan
- Model Number: C2E-220.44B
- Power Source Type: Corded Electric
- Voltage: 230V AC
- Material: Plastic
- Blade Material: Plastic
- Noise Level: 67dB
Technical Specifications
| Duct Diameter | 8.66in |
|---|---|
| Mounting | Duct Fan |
| Voltage | 230V AC |
| Motor Type | AC Motor |
| Speed | 2500 RPM |
| Material | Plastic |
| Blade Material | Plastic |
| Power Source Type | Corded Electric |
| Warranty | 5 year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM |
| Noise Level | 67dB |
| Place Of Origin | Zhejiang, China |
| Brand Name | Jason Fan |
| Model Number | C2E-220.44B |
| Size | 220mm x 220mm x73mm |
| Product Name | Backward Curved Centrifugal Fan |
| Bearing Type | Dual ball bearing |
| Selling Units | Single item |
| Single Package Size | 54X54X54 cm |
| Single Gross Weight | 25.0 kg |
Product Details

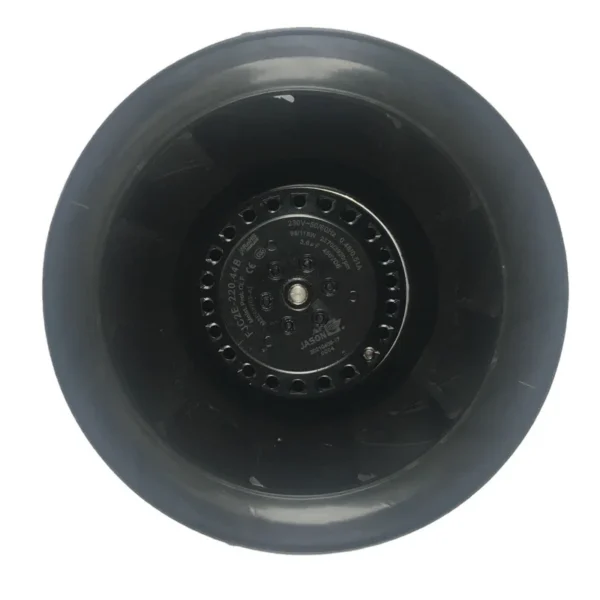

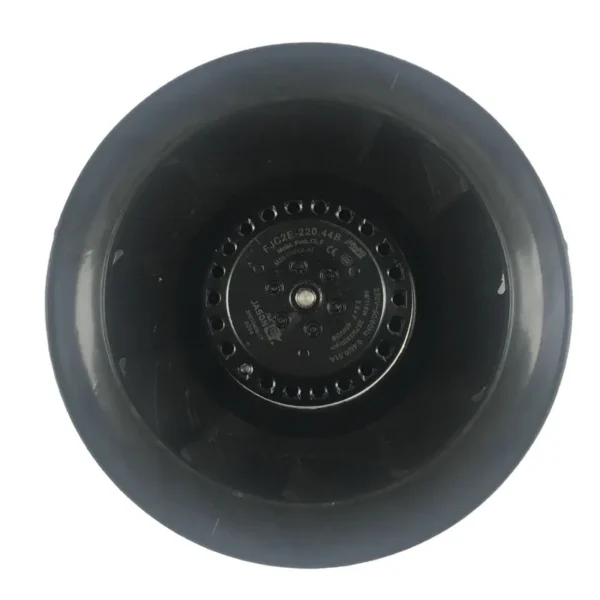

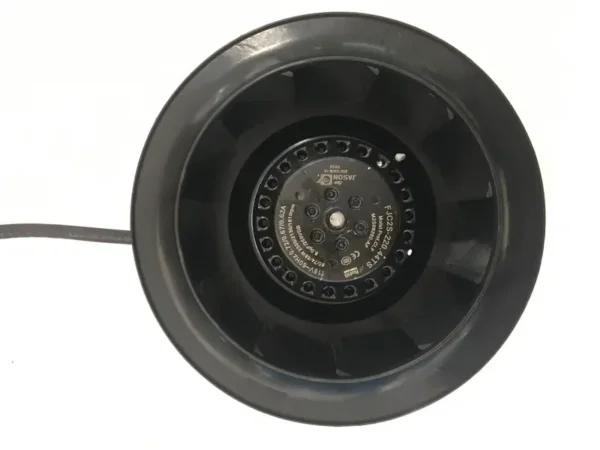

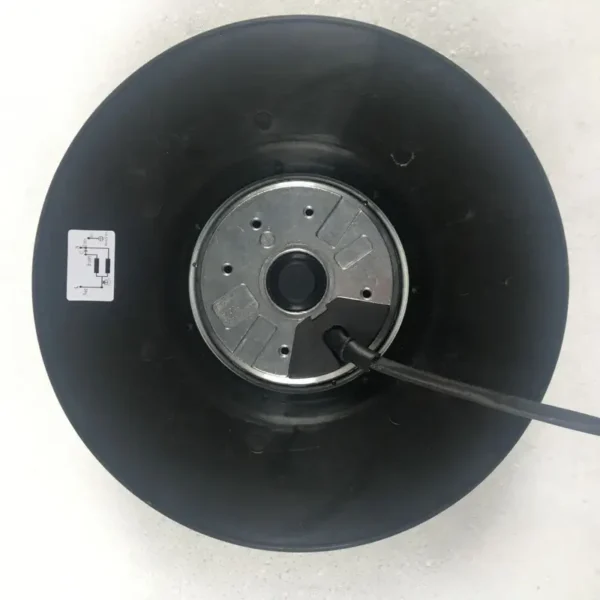

8.66in Jasonfan Wind Wheel C2E-220.44B 220V 98/118W 220MM 500CFM UL Certified Centrifugal Fan for Home Use and air Purifier
· Size: 220mm x 220mm x73mm
· Impeller: plastic blades
· Lead wire
· Operation temperation:-40°C to +80°C
· Ball bearing
| Specifications | |
| Category | Centrifugal fan |
| Type | C2E-220.44B |
| Rated Voltage | 230V |
| Frequency | 50/60Hz |
| Current | 0.46/0.51A |
| Input Power | 98/118W |
| Speed | 22600/2900RPM |
| Max Air Flow | 98/118CFM |
| StaticPressure | 380/550Pa |
| Noise | 67/70dB |
| Certificate | UL,CE,CCC |
Q: Are you a factory or trading company?
A: We are a factory.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Yueqing City,Zhejiang Province, China, about 30 mins from Wenzhou Airport .Warmly welcome to visit us!
Q: What products do you make?
A: We have been producing AC cooling axial fans , Centrifugal fans, Filter fans etc since established in 2006.
Q: What information do you need in order to get a quotation?
A: Generally, we need the information like quantity, size, voltage , air flow to select a right or a similar fan for you and quote you.
Q: Can I have samples for testing before placing orders?
A: Yes. We suggest that our customers have some samples of their required fans for quality testing first.
Q: Can I have a discount for the quoted price?
A: Yes. The price is quoted based on the quantity.
Q: How is your quality control systerm?
A : Each fan needs to go though strict inspection by QC before delivery, or inspected by 3rd party who customer appoints.
Q: Does the product have CE,UL etc approval?
A : Yes. All of our products have CE,RoHS approval, some have UL approval.
Q: Can you make the fan with our company's logo?
A : Yes.
Q: What is your payment term?
A : TT,LC.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–499 piece: US $27.7 / piece
- 500–2999 piece: US $24.5 / piece
- 3000+ piece: US $23.5 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 230V AC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Wenzhou Jason Fan Manufacturer Co., Ltd., based in China. The company 18 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Wenzhou Jason Fan Manufacturer Co., Ltd. range on HVACR Nexus.
