External Rotor Axial Fan, KITDOO, Copper, 5kg

External rotor axial fan — material Copper, type Axial fan motor. The complete factory specification follows. Made by Foshan Kitdoo Refrigeration Equipment Co., Ltd. (2 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This External Rotor Axial Fan

• Material: Copper
• Warranty: 1 Year
• Place Of Origin: Guangdong, China
• Application: Refrigeration Parts
• Type: Axial fan motor
• Weight (Kg): 5

Technical Specifications

Product Details

Product Description

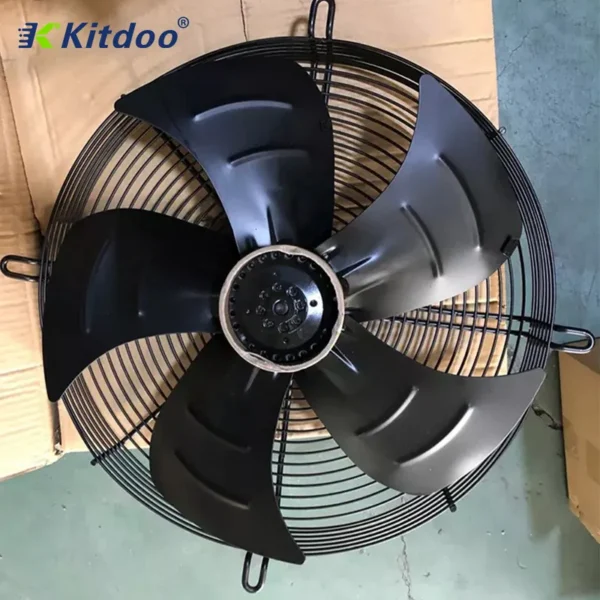

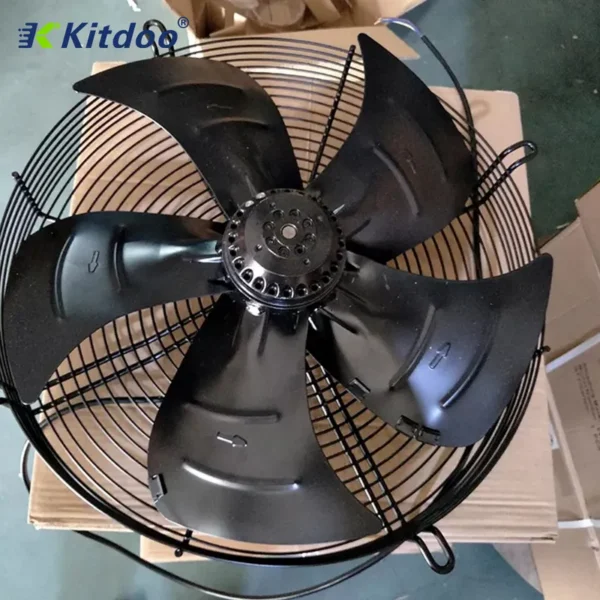

1,External Rotor Fan Blade adopts advanced aerodynamic design, which is beautiful appearance, high efficiency.
2,Fan rotor is directly with rotor and blade, that adopt dual-side dynamic balance, dynamic balance achieved G6.3.

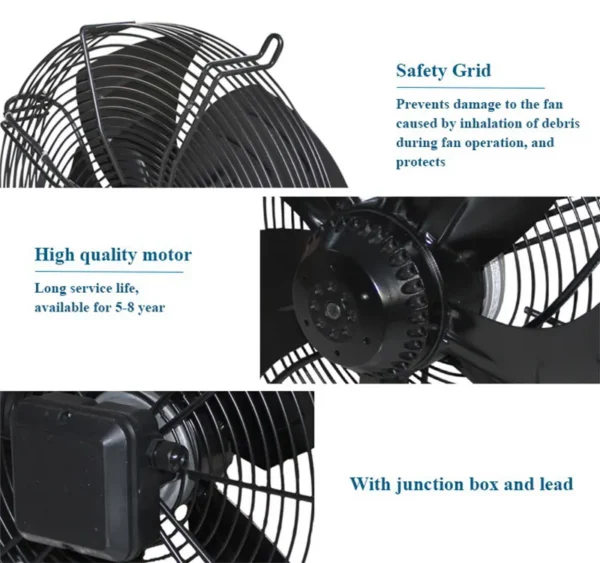

3,The fan blade, rotor and grid is all sprayed, the surface is bright appearance that is not easy oxidation and discoloration, and has good corrosion-resistant effect, motor cover also by the special treatment.
4,The insulation grade ambient temperature:-25°C~+60°C, if the temperature range exceed the above, our factory can be customized according to customer requirements.
5,The insulation grade of currently supplied fan is B-class, F-class and H-class, the protection class is IP54. At present, we can also supply the fan of working environment temperature:-40°C~+60°C and -25°C~+80°C. All fans can install thermal protection in them. Our factory will put the IP56 external rotor motor with new structure soon, and this structure has got national patent. It can apply to the high humidity and bad environment.
6,Fans have single-phase capacitor running and three-phase asynchronous running. Single-phase motor has 220V/50HZ and 220V/60HZ. Three-phase motor has 380V/50HZ and 380V/60HZ. At the same time can provide customers with motors of the special requirements: special voltage, dual voltage and so on.

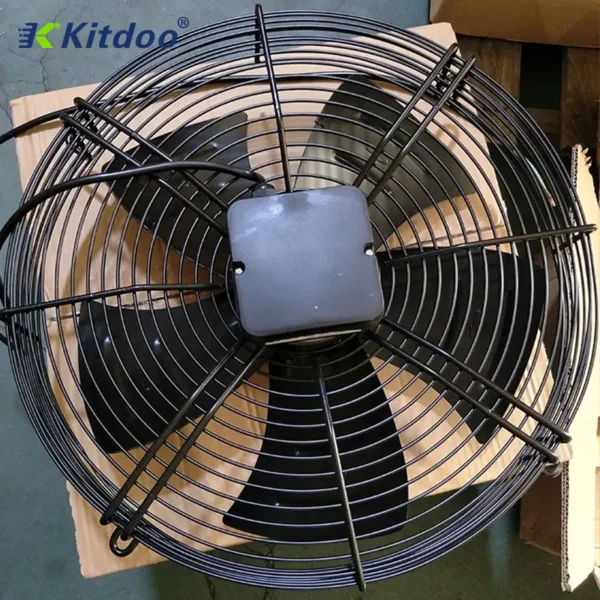

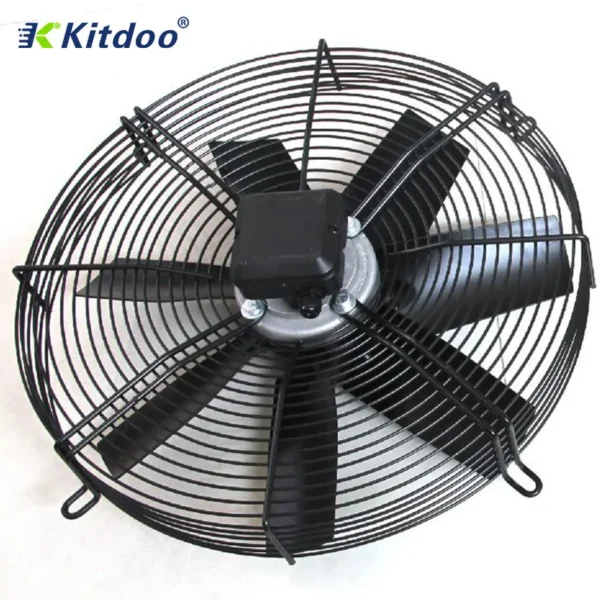

7,The line fan motor can be directly leaded out, and can provide various forms of water-proof junction box for the user's
selection.

	Voltage	Frequency	Current	Input Power	speed	Capacitor	Fow/0P2]	Noise	mpat
Model No.D	V	Hz	A	W	RPM	μF	m³/h /CFM	dB(A)	Min/Max('C)
YWFA2S-300S-5DIA00	220/230	50	0.50	110	2500	4	1900/1117	61	30/+60
				60	0.70		156	2600			2050/1205	62
YWFA2T-300S-5DIA00	380/400	50	0.19	110	2500	1	1850/1088	61	30/+60
				60	0.24		140	2650			2000/1176	62
YWF A4S-300S-5DIA00	220/230	50	0.42	90	1350	3	1800/1058	52	30/+60
				60	0.48		110	1600			2100/1235	55
YWF A4T-300S-5DIA00	380/400	50	0.25	90	1400	1	18501088	53	-30/+60
				60	0.23		110	1620			2100/1235	56
YWF-A2S-300S-5DIA05	115/120	50	1.10	124	2400	14	1800/1058	66	30/+60
				60	1.35		155	2700			2100/1235	68
YWF A4S-300S-5DIA05	115/120	50	0.68	75	1360	10	1800/1058	52	30/+60
				60	0.78		90	1600			2100/1235	55

	Voltage	Frequency	Current	Input Power	Speed	Capacitor	Fow/0P2]	Noise	mpat
Model No.D	V	Hz	A	W	RPM	μF	m/h/CFM	dB(A)	Min/ Max('C)
YWF.A4S-350S-5DIA00	220/230	50	0.60	135	1380	4	2750/1617	58	-30/+60
				60	0.83		190	1550			3100/1823	60
YWFA4T-350S-5DIA00	380/400	50	0.30	135	1360	1	2750/1617	58	-30/+60
				60	0.34		170	1500			3050/1794	60
YWF.A6S-350S-5DIA00	220/230	50	0.40	80	950	3	1560/920	53	30/+60
				60	0.37		83	1100			1800/1060	54
YWFA6T-350S-5DIA00	380/400	50	0.29	70	920	/	1950/1147	53	30/+60
				60	0.20		80	1070			2150/1264	54
YWF.A4S-350S-5DIA05	15/120	50	1.20	135	1350	12	2670/1570	58	30/+60
				60	1.60		175	1500			2900/1705	60

	Voltage	Frequency	Current	Imput Power	Speed	Capacitor	Fon/OPs]	Noise	Tempture
Model No.D	V	Hz	A	W	RPM	μF	m/h/CFM	dB(A)	Min/Max('C)
YWF.A4S-400S-5DIA00	220/230	50	0.90	190	1350	6	3500/2060	60	-30/+60
				60	1.22		270	1580			3800/2235	65
YWFA4T-400S-5DIA00	380/400	50	0.50	190	1370	1	3500/2060	60	·30/+60
				60	0.47		245	1620			3800/2235	65
YWF.A4S-400S-5DIA00	220/230	50	0.50	110	950	4	2800/1647	55	·30/+60
				60	0.54		120	1100			3000/1765	57
YWFA4T-400S-5DIA00	380/400	50	0.31	110	930	1	2800/1647	55	·30/+60
				60	0.30		135	1050			3000/1765	57
YWF.A4S-4005-5DIA05	115/120	50	1.70	190	1350	24	3500/2060	60	-30/+60
				60	2.20		270	1500			3800/2235	65
YWFA6S-400S-5FIA05	115/120	50	0.80	80	920	12	2800/1647	55	-30/+60
				60	1.10		110	1000			3000/1765	57

Ordering and Pricing

• Minimum order quantity: 1 unit
• Volume pricing:
  • 1+ unit: US $16 / unit
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this external rotor axial fan?

The standard minimum order quantity is 1 unit. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this external rotor axial fan carry?

It is supplied with CCC,CE,RoHs,UL documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
