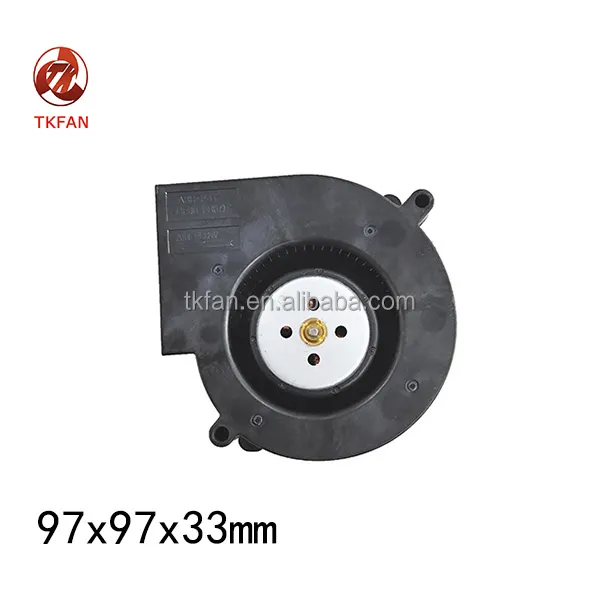

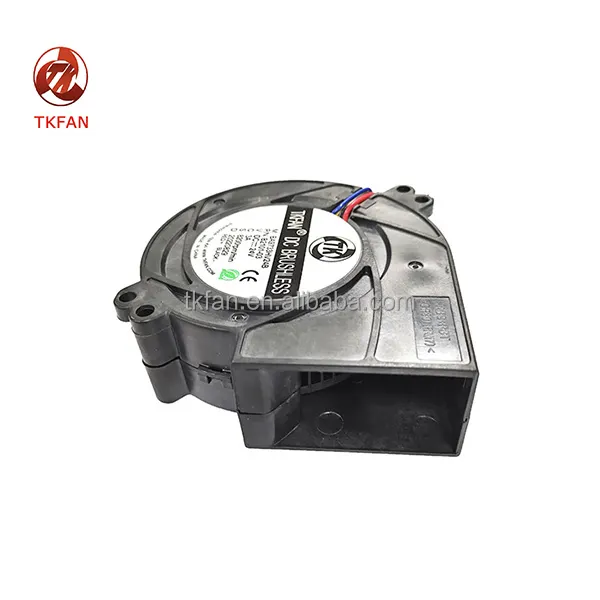

Centrifugal Fan, 8200, 9733, 97*33mm, 9BMC12P2G001

The centrifugal fan listed here carries 12V, 65cfm, documented exactly as the manufacturer publishes it. Made by Shenzhen Tengkai Special Electrical Co., Ltd. (14 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Centrifugal Fan

• Model Number: BA9733HV12B-B2101
• Voltage: 12V
• Air Flow: 65cfm
• Blade Material: Plastic

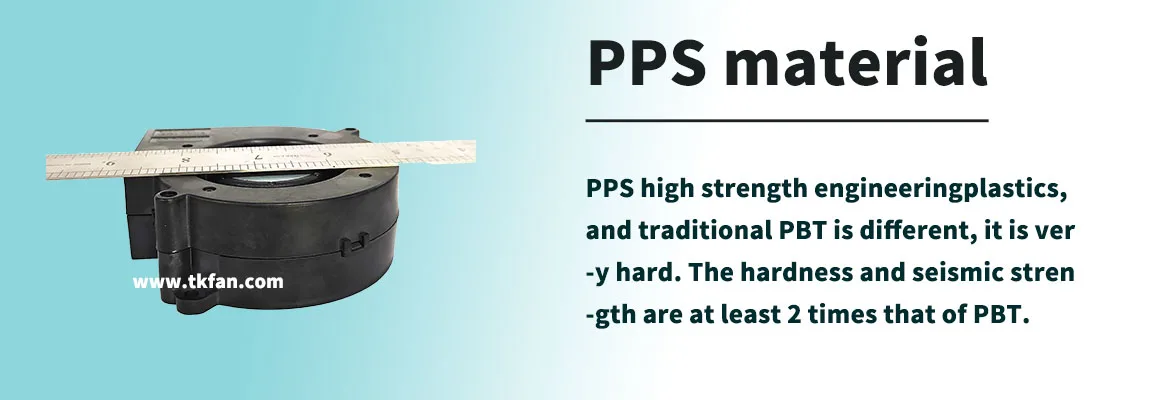

• Material: PPS
• Speed: 8200rpm

Technical Specifications

Product Details

1. Technical Data

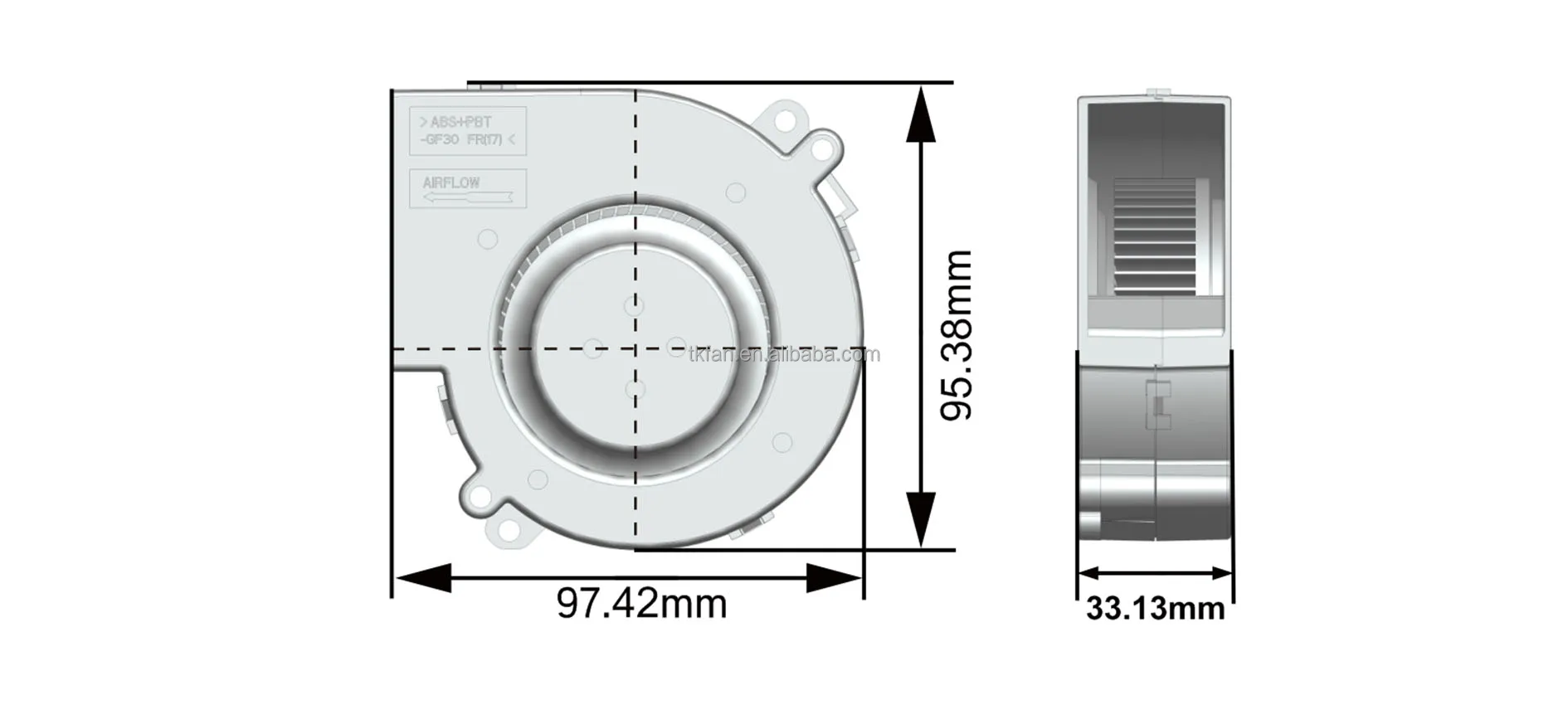

1.1 Fan structure drawing

9733 DC Blower

Model	P/N Code	Voltage	Current	Speed	Air Flow	Air Pressure	Noise
PART.NO.	BY	VDC	Amp	R.P.M	CFM	mmH2O	dB-A
BA9733HV12B			12	6.2	8200	65.3	198.77	69
BA9733HV24B			24	3.1	8200	65.3	198.77	69

Remark:The model marked with red color is standard model, it in stock, and can be shipped immediately.

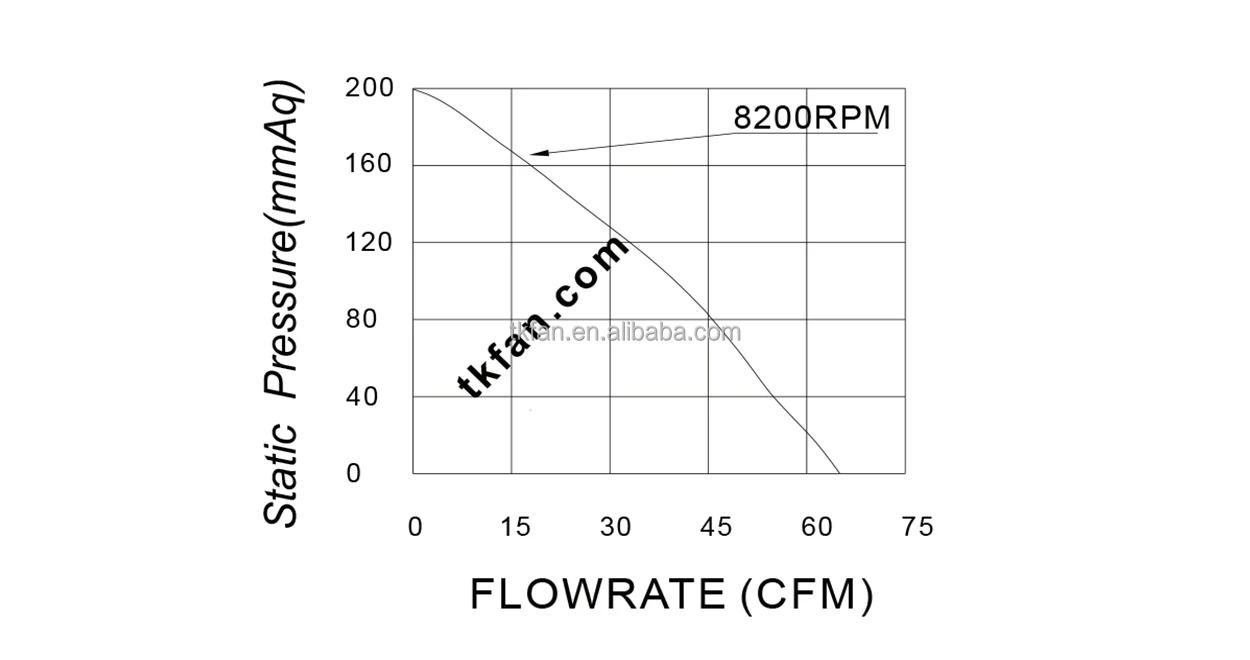

1.2 P-Q Curve and Data

1.3 PWM (duty cycle control) Introduction

With this function,the speed can be controlled by applying a pulse width modulated signal whose frequency maybe in the range of 25k Hz~30kHz.High voltage means 3~10V.Low voltage means 0~0.8V.Normally two kinds “Speed Vs duty cycle curve” are used.

2. Products Description

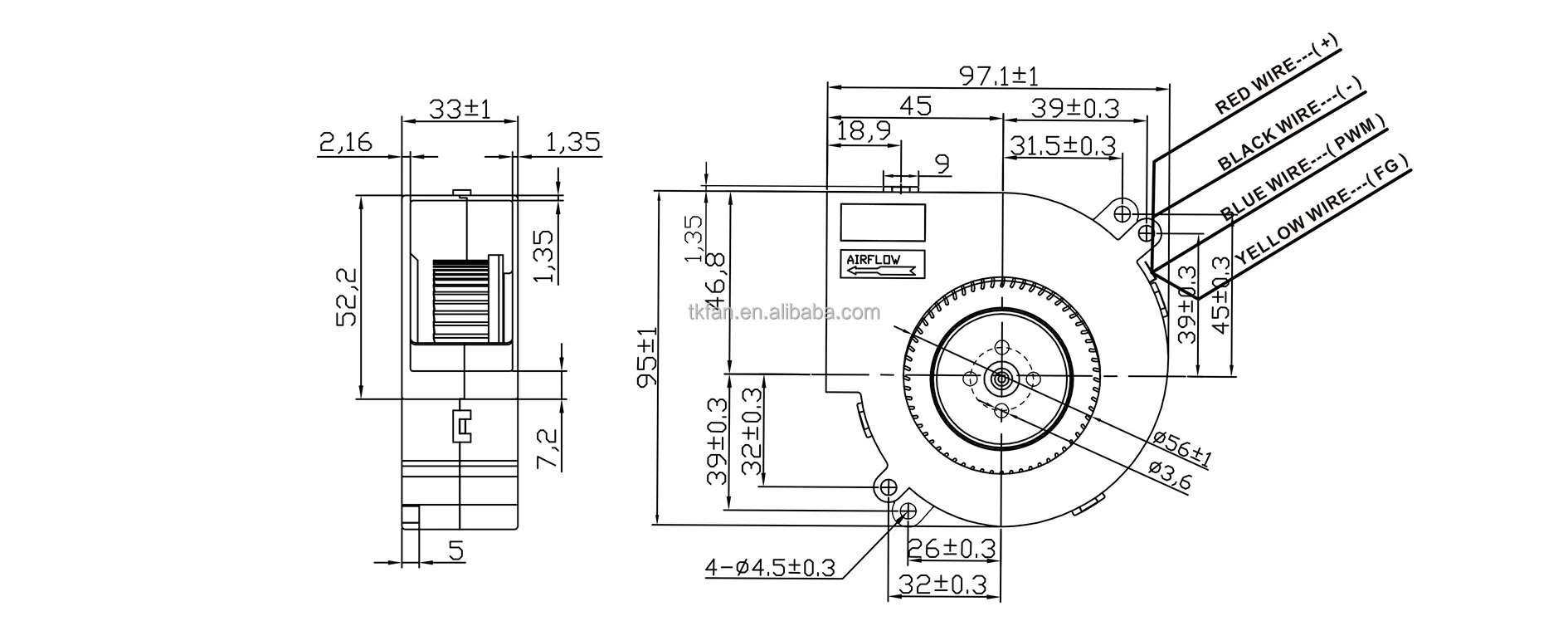

2.1 Dimenaional Drawing

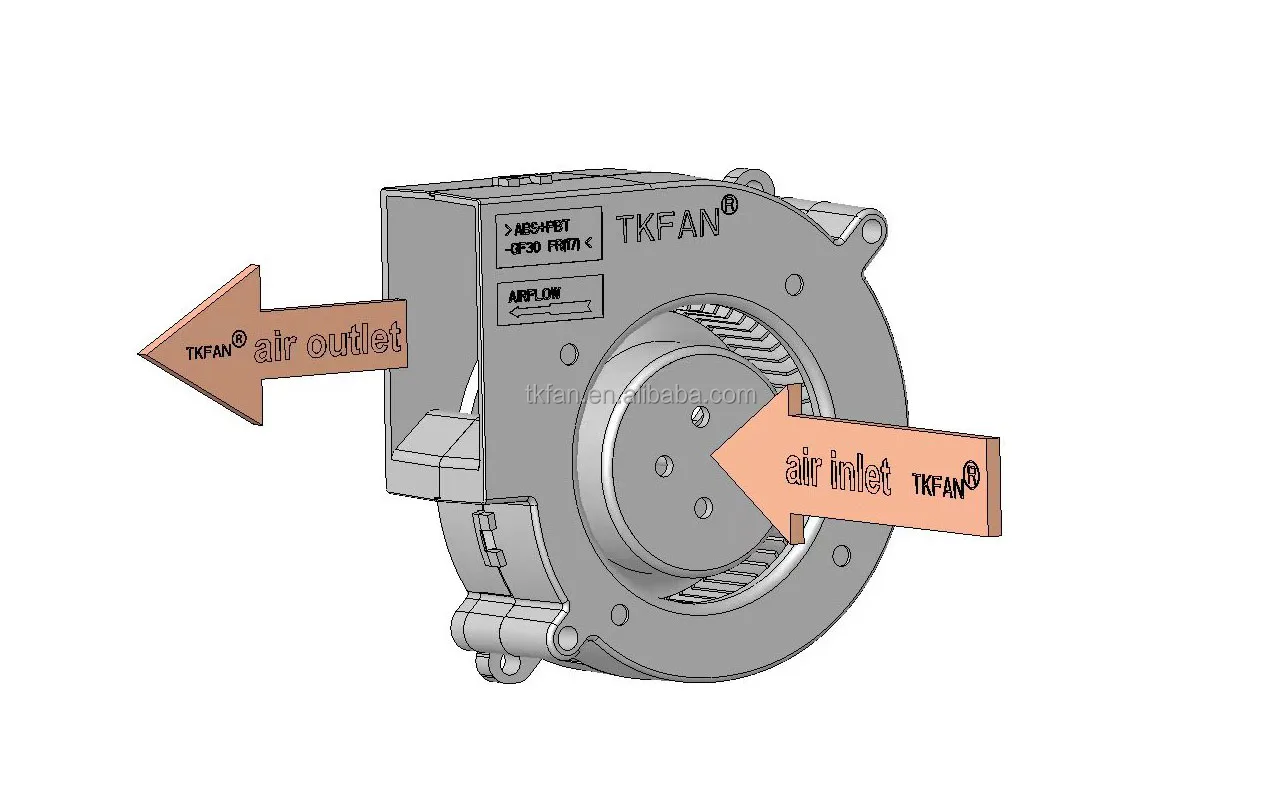

2.2 Air flow diagram-Examples

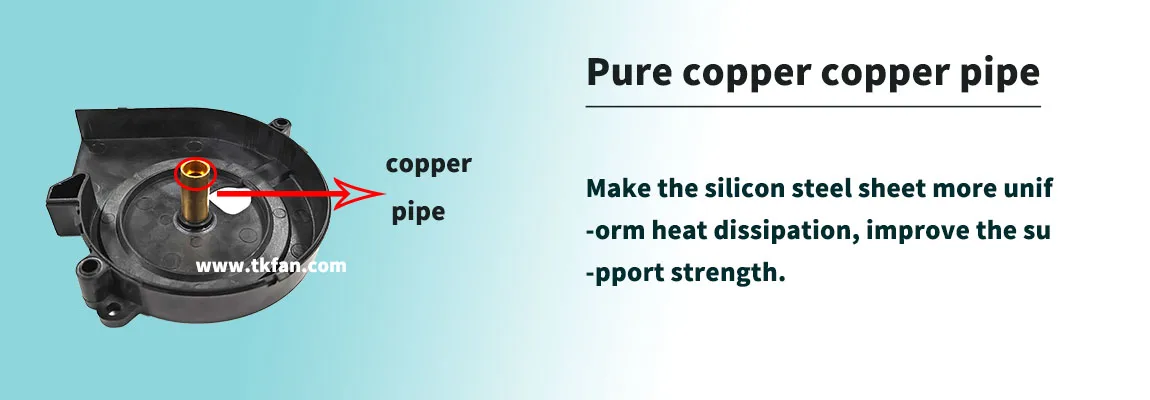

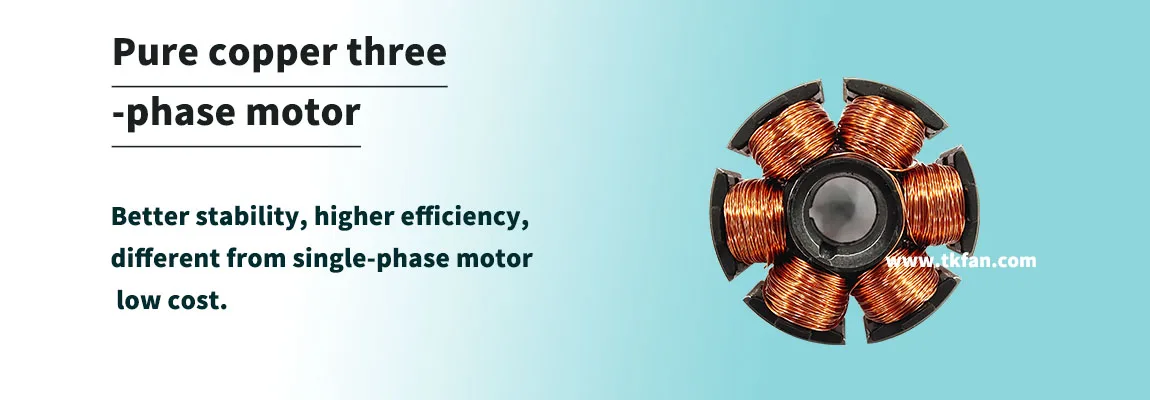

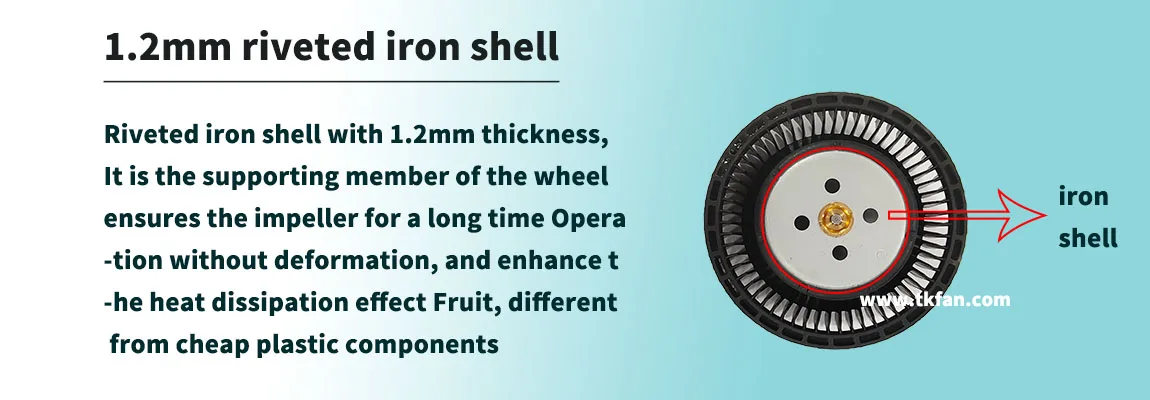

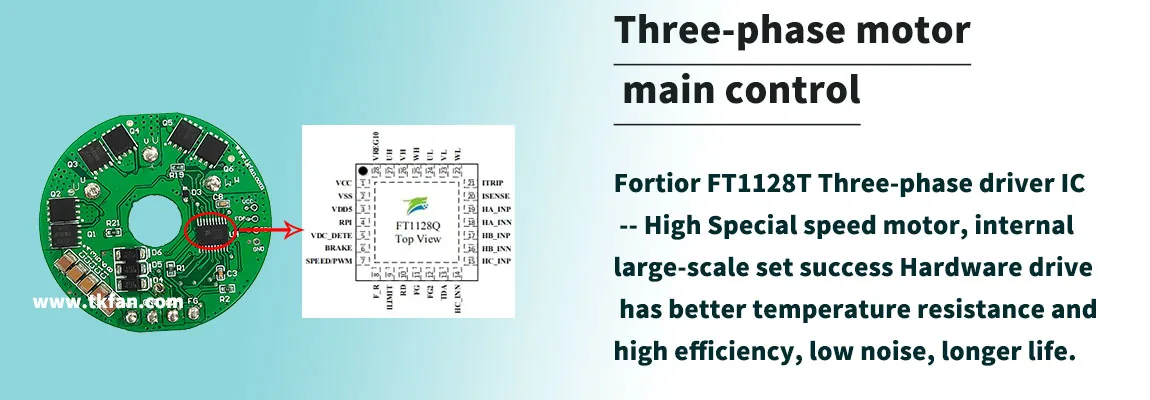

2.3 Product Feature

3. Company Profile

Company Profile

We are a professional manufacturer of fans and blowers with 12 years of experience in the industry. Our main products include: DC fan, DC blower, DC centrifugal fan, high pressure blower. Our company has a noise-free 16db room and a 4-range wind tunnel system,which allows us to conduct accurate testing and research and development. We can measure the minimum air volume up to 0.1 CFM and the maximum pressure up to 100,000 pa, ensuring the stable and reliable performance of our products.Our products are widely used in medical systems, home CPAP, portable CPAP, agricultural machinery, aviation machinery, home appliance industry, energy vehicles and other fields. We are actively committed to providing high quality fan and blower solutions for various industries. We are committed to developing high-end, competitive products, and constantly improve the level of technology and product quality. Our products enjoy a good reputation in the market and have been praised by customers.We welcome you to visit ourfactory and learn about our production equipment and technical strength.

Factory

Office

R&D equipment

R&D equipment

Assembly line

Warehouse

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–4 piece: US $16.7 / piece
  • 5+ piece: US $16.4 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this centrifugal fan?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this centrifugal fan carry?

It is supplied with ce rohs UL documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the centrifugal fan be supplied for my local voltage?

The standard configuration is 12V. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
