Centrifugal Fan, Depends, Ball Mill

Key specification for this centrifugal fan: capacity Depends, type Ball Mill. Everything below is reproduced from the factory data sheet. Made by Henan Zhongke Engineering & Technology Co., Ltd. (2 years on the platform, typical reply ≤1h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Centrifugal Fan

• Capacity(T/H): Depends
• Warranty: More Than 5 Years
• Place Of Origin: Henan, China
• Application: Stone Powder Grinding
• Type: Ball Mill
• Motor Type: AC Motor

Technical Specifications

Product Details

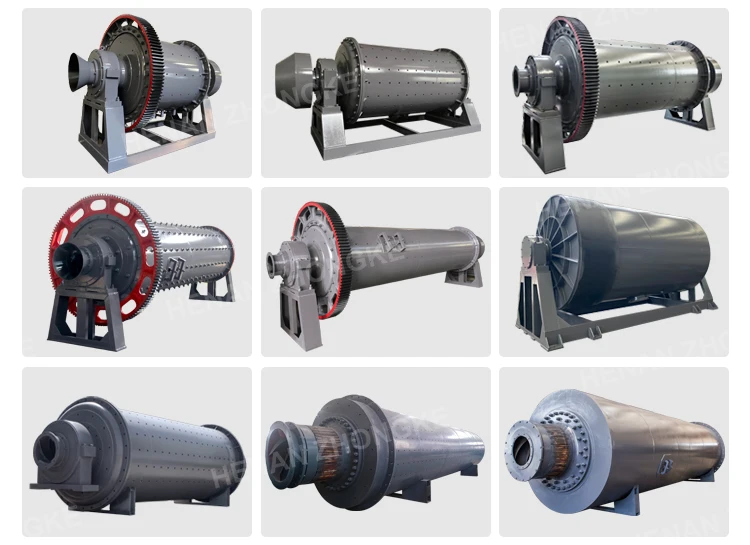

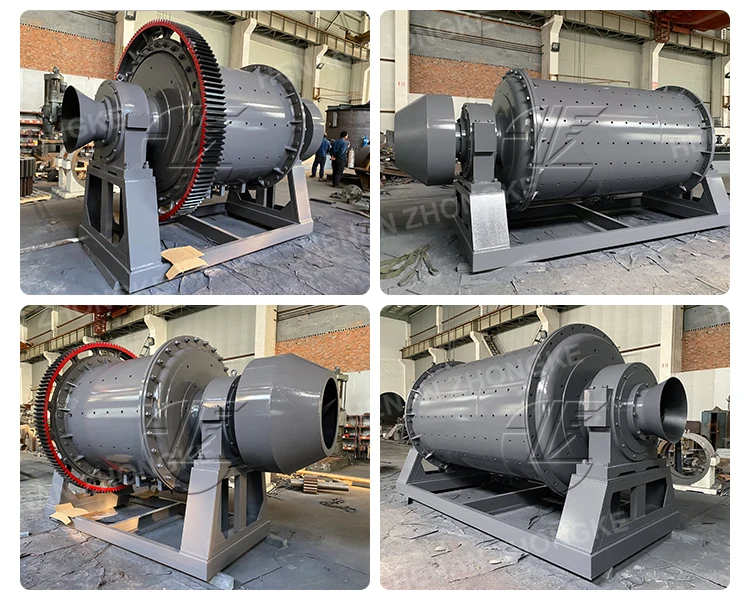

Product show

leading manufacturer ofball mill

Rotary Kiln refers to rotating calcination kiln, belongs to construction material equipment. According to different materials, rotary kiln can be divided into cement kiln, metallurgy chemical kiln and lime kiln. The cement kiln is used for makeing cement clinker and there are dry and wet methods to make cement. Metallurgy chemical kiln is applied in metallurgy industries and ironworks for lean iron ore, chromium ore and ferronickel ore calcination. Lime kiln is mainly used for calcine dolomite and active lime which is used in steel plant and ferroalloy factory.

Henan zhongke ball mills

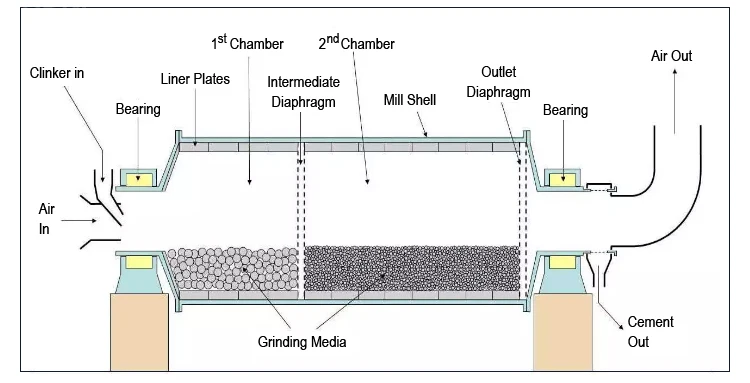

Ball mill is the key milling equipment after materials has been crushed. It is widely used in cement, silicate, new construction material, refractory material, ferrous metal and nonferrous Metal as well as ceramics. It is widely applied to grind ores in dry or wet process. Working principle: The ball mill is horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid. Material goes into the first chamber through the feeding inlet. Inside the First chamber, there are stage liners and ripple liners as well as steel balls. The shell rotates so as to generate electricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material. After the primary grinding, materials go into the second chamber through segregate screen. In the second chamber, there are flat liners and steel ball, after the secondary grinding, material is discharged from the discharging. Then finished.

Specifications Ball Mill:

1.for cement, silicate, ceramic  2.wet or dry ball mill  3. overflow or grate ball grinder  4.ISO CERT

Ball Mill:Ball Mill grinds material by rotating a cylinder with steel grinding balls, causing the balls to fall back into the cylinder and onto the material to be ground. The rotation is usually between 4 to 20 revolutions per minute, depending upon the diameter of the mill. The larger the diameter, the slower the rotation. If the peripheral speed of the mill is too great, it begins to act like a centrifuge and the balls do not fall back, but stay on the perimeter of the mill. The point where the mill becomes a centrifuge is called the "Critical Speed", and ball mills usually operate at 65% to 75% of the critical speed.

Ball Mill Features: 1. Is an efficient tool for grinding many materials into fine powder. 2. The ball mill is used to grind many kinds of mine and other materials, or to select the mine. 3. Ball mill is widely used in building material, and chemical industry. 4. There are two ways of grinding: the dry way and the wet way. 5. Ball mill can be divided into tabular type and flowing type according to differentexpelling mine.  6. To use the ball mill, the material to be ground is loaded into the neoprene barrel that contains grinding media. 7. As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.  8. The longer the ball mill runs, the finer the powder will be. 9. Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the ball mill runs. 10. Our ball mills have been used to grind glass, powder food products, create custom varnishes, make ceramic glaze, powder various chemicals. 11. Complet ely enclosed welded design in high-grade steel. – Direct drive via bearing journal with top-mounted gearbox. Motor connected to gearbox via a V-belt drive. – Product discharge via slots located around the periphery of the drum. Ball mill Working Principle: The ball mill is a horizontal rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

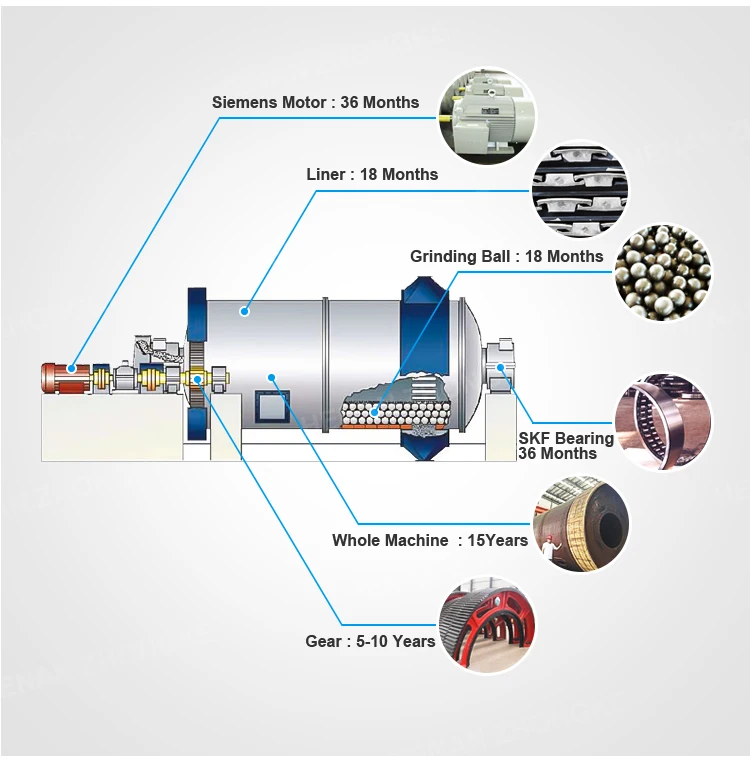

Schematic Diagram

Main Technical Parameters

Type	Rotary speed (r/min)	Balls load(t)	Feeding size (mm)	Discharging size(mm)	Capacity(t/h)	Motor power(kw)	Weight(t)
Ø900*1800	36-38	1.5	≤20	0.075-0.89	0.65-2	18.5	4.6
Ø900*3000	36	2.7	≤20	0.075-0.89	1.1-3.5	22	5.6
Ø1200*2400	36	3	≤25	0.075-0.6	1.5-4.8	30	12
Ø1200*3000	36	3.5	≤25	0.074-0.4	1.6-5	37	12.8
Ø1200*4500	32.4	5	≤25	0.074-0.4	1.6-5.8	55	13.8
Ø1500*3000	29.7	7.5	≤25	0.074-0.4	2-5	75	15.6
Ø1500*4500	27	11	≤25	0.074-0.4	3-6	110	21
Ø1500*5700	28	12	≤25	0.074-0.4	3.5-6	130	24.7
Ø1830*3000	25.4	11	≤25	0.074-0.4	4-10	130	28
Ø1830*4500	25.4	15	≤25	0.074-0.4	4.5-12	155	32
Ø1830*6400	24.1	21	≤25	0.074-0.4	6.5-15	210	34
Ø1830*7000	24.1	23	≤25	0.074-0.4	7.5-17	245	36
Ø2100*3000	23.7	15	≤25	0.074-0.4	6.5-36	155	34
Ø2100*4500	23.7	24	≤25	0.074-0.4	8-43	245	42
Ø2100*7000	23.7	26	≤25	0.074-0.4	8-48	280	50
Ø2200*4500	21.5	27	≤25	0.074-0.4	9-45	280	48.5
Ø2200*6500	21.7	35	≤25	0.074-0.4	14-26	380	52.8
Ø2200*7000	21.7	35	≤25	0.074-0.4	15-28	380	54
Ø2200*7500	21.7	35	≤25	0.074-0.4	15-30	380	56
Ø2400*3000	21	23	≤25	0.074-0.4	7-50	245	54
Ø2400*4500	21	30	≤25	0.074-0.4	8.5-60	320	65
Ø2700*4000	20.7	40	≤25	0.074-0.4	12-80	400	94
Ø2700*4500	20.7	48	≤25	0.074-0.4	12-90	430	102
Ø3200*4500	18	65	≤25	0.074-0.4	—–	800	137

Application:

1.DOLOMITE 2.PLATINUM 3.MARBLE 4.CALCITE

1.CALCIUM ORE 2.CHROMIUM ORE 3.COBALT ORE 4.GRANITE

1.talc 2.Chemical Industry 3.Building material 4.Gold mine

1.Phosphate rock 2.Bauxite 3.Aluminum ore 4.Gangue

1.Magnesium ore 2.Manganese ore 3.Nickel ore 4.Bentonite

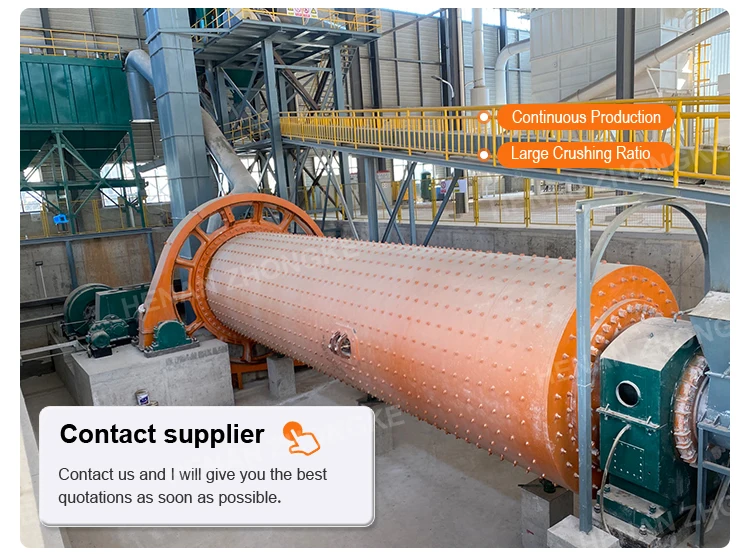

Product details

Schematic Diagram

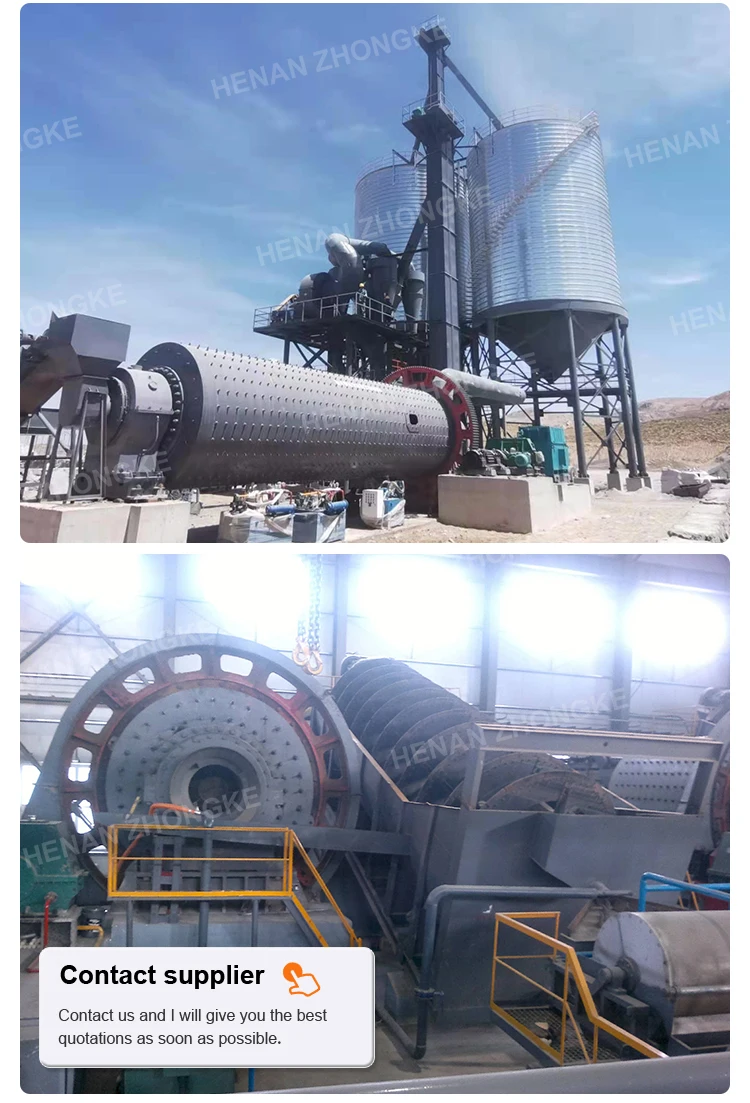

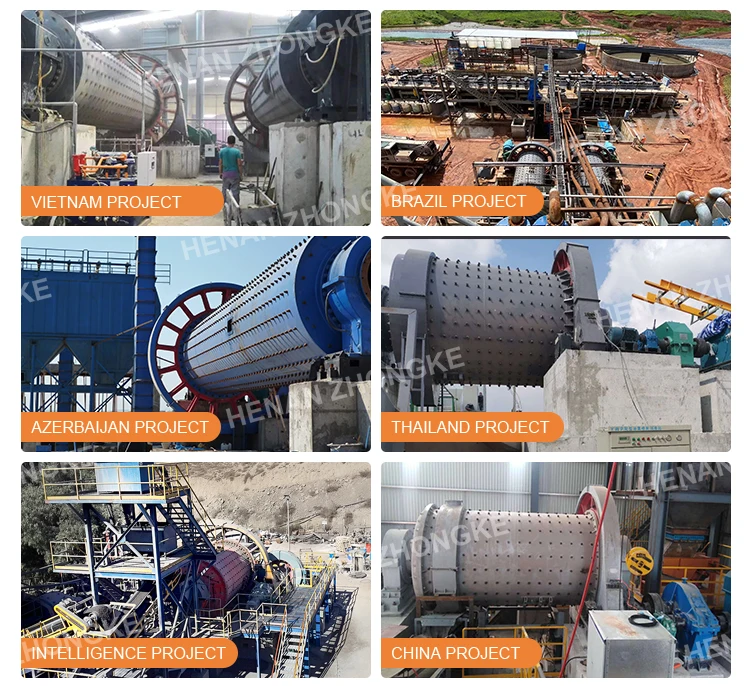

Our Project

We assigned the best engineers to our customer site, make sure all the machines run perfectly.

Company Information

Henan Zhongke Engineering & Technology Co.,Ltd. is specialized in large and medium-sized series of mining machinery, metallurgical machinery, building materials equipments, cement equipment and rotary kiln. R&D, production and marketing into a joint-stock enterprise, our company is headquartered in Zhengzhou Country’s High-tech Industrial Development Zone, which consists of three branches, a research and development department.

Since the establishment of our company, always adopt advanced modern management system, and focused on innovation, has brought together a number of scientific and technological elite, our company develop very fast we have over 500 employees, 29 senior engineers and more than 100 middling technicians. We have a good long-term cooperation with domestic scientific research units, have introduced advanced technology and testing system at home and abroad.

Our company pays more attention to basic managements, we constantly improve and perfect the quality management system to ensure to provide high-quality products, work site achieve fixation management, logistic achieve ABC management; our office achieve computer automatization; production technology adopt computer management; product development process design using CAD,CAPP, PROE technology. We have completed ISO9001-2000 quality certification.

Our company constantly insist on the development of new products and development investment funds for technological renovation to meet with different requirements from different countries. Our products are very popular in Africa, South America and Southeast Asia.

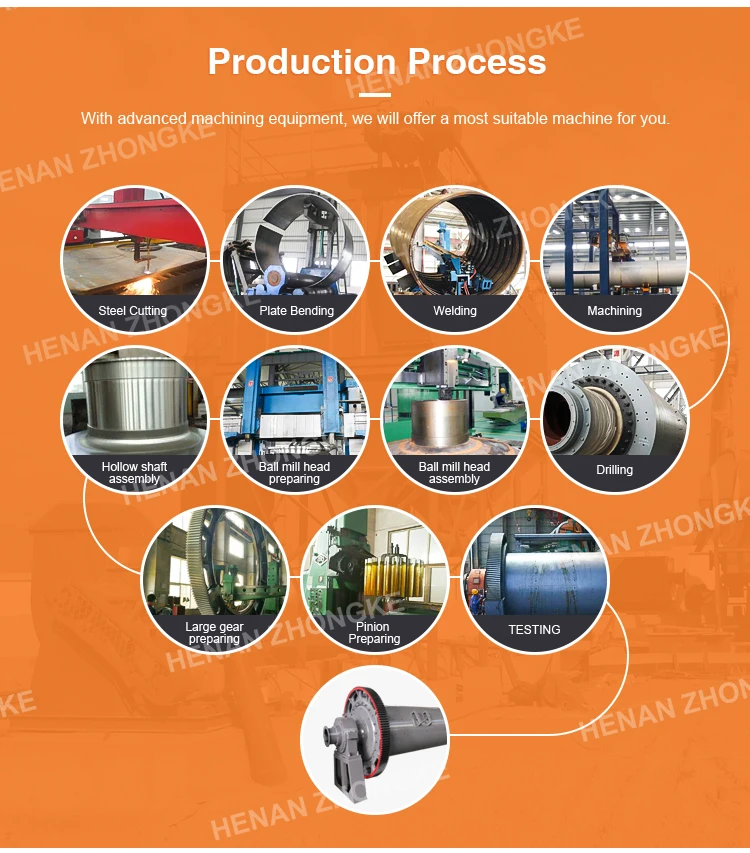

Production process 1.Steel Cutting 2.Plate Bending 3.Welding 4.Machining 5.Drilling 6.Ball mill head assembly 7.Ball mill head preparing 8.Hollow shaft assembly 9.Large gear preparing 10.Pinion Preparing 11.Testing 12.Ball Mill

Our service

Service—customers is the first!

We not only have experienced engineers and after-sales groups,but deal with the trade through internet and form our own sales network.

1. Pre-sale services: Act as a good adviser and assistant of clients, enable them to get rich and generous returns on their investments. 1>. Select equipment model; 2>. Design and manufacture products according to clients' special requirement; 3>. Train technical personnel for clients. 2. Services during the sale: Respect clients, devote ourselves to improving the total value of clients. 1>. Pre-check and accept products ahead of delivery; 2>. Help clients to draft solving plans. 3. After-sale services: Provide considerate services to minimize clients' worries. 1>. Assist clients to prepare for the first construction scheme; 2>. Install and debug the equipment; 3>. Train the first-line operators; 4>. Examine the equipment; 5>. Take initiative to eliminate the troubles rapidly; 6>. Provide perfect service; 7>. Provide technical exchanges.

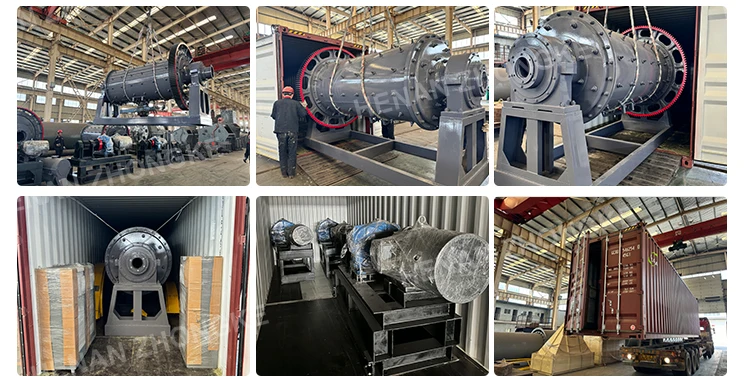

Packaging & Shipping

Packaging Details:We will make different packaging according to different machine sizes .standard international export packing, container, wooden box. Delivery Time:We will customize according to the actual needs of customers. Senior designers start to design the plan. After receiving the deposit, we will complete the delivery within 20 to 30 working days. Our factory is capable of shipping large machine even more than 100 tons

FAQ

Q1: How long is the warranty of the ball mill? A1: Our warranty period is one year generally. Q2: How long shall we replace the grinding ball? A2: Usually 6-12 months(Depends on the hardness of your raw material) Q3: Can I visit your factory? A3: Yes. We warmly welcome you to visit our factory. We will take you to our customer site to have a real look. We will arrange a car to pick you up at the Xinzheng International Airport. Q4: Do you provide equipment operation training? A4: Yes. We can send professional engineers to the working site for installation, adjustment, and operation training. All of our engineers have passports. Q5: Do you provide beneficiation flow chart? A5: Yes. Our experienced engineers are specialized in designing process flow for various ores beneficiation, including iron ore, tin ore, copper ore, gold ore, lead zinc ore, manganese ore, etc. Q6: Can you test our samples? A6: Yes. You can send your samples to us for test and analysis.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1+ set: US $12000 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this centrifugal fan?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a More Than 5 Years warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Henan Zhongke Engineering & Technology Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Henan Zhongke Engineering & Technology Co., Ltd. range on HVACR Nexus.
