Key specification for this centrifugal fan: 220 V, air flow 500 – 2000m³/h. Everything below is reproduced from the factory data sheet. Made by Guangdong Leapin Environmental Technology Co., Ltd. (4 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Centrifugal Fan
- Model Number: DPT15-A, DPT20-A, DPT20-B, DPT25-A, DPT25-B
- Power: 30-60W
- Voltage: 220 V
- Air Flow: 500 – 2000m³/h
- Blade Material: Plastic
- Speed: 800-1200 r/min

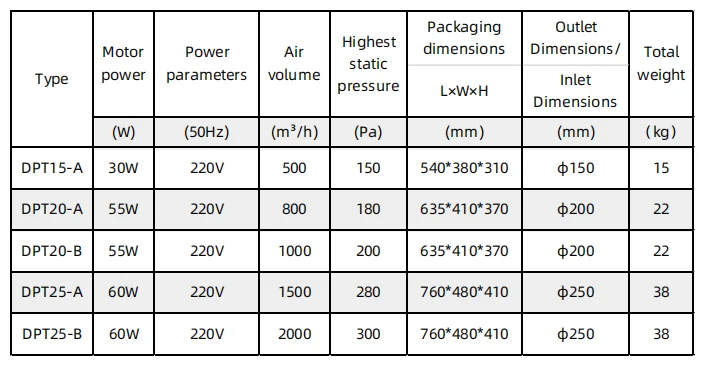

Technical Specifications
| Mounting | Duct Fan |
|---|---|
| Voltage | 220 V |
| Blade Material | Plastic |
| Electric Current Type | AC |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM, ODM, OBM |
| Place Of Origin | Guangdong, China |
| Brand Name | LEAPIN |
| Model Number | DPT15-A, DPT20-A, DPT20-B, DPT25-A, DPT25-B |
| Product Name | Inline centrifugal fan |
| Air Flow | 500 – 2000m³/h |
| Pressure | 150 – 300Pa |
| Motor | Copper Motor |
| Application | Exhaust Ventilation |
| Speed | 800-1200 r/min |
| Fan Type | Pipe Exhaust Fan |
| Size | Customer’s Request |
| Power | 30-60W |
| Motor Frequency | 50Hz |
| Type | Centrifugal Fan |
| Applicable Industries | hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company, Other |
| Core Components | motor, Impeller |
| Selling Units | Single item |
| Single Package Size | 76X48X41 cm |
| Single Gross Weight | 38.0 kg |
Product Details
Industrial Fan Producer Leapin Silent Inline Motor Duct Extractor Centrifugal Exhaust Ventilation Fans | ||

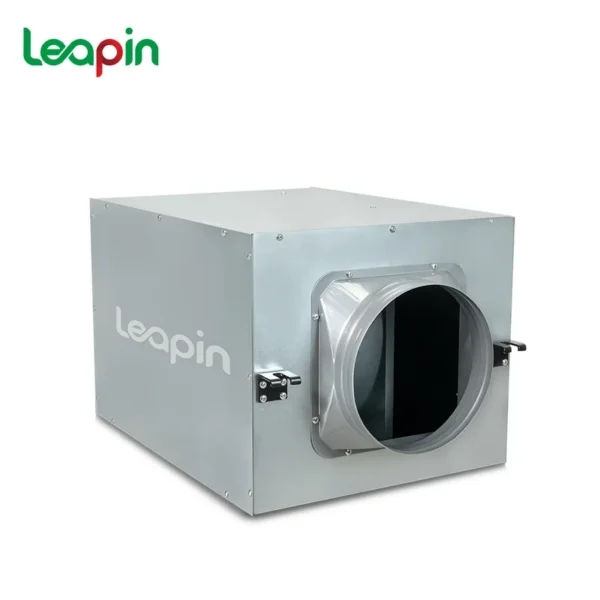

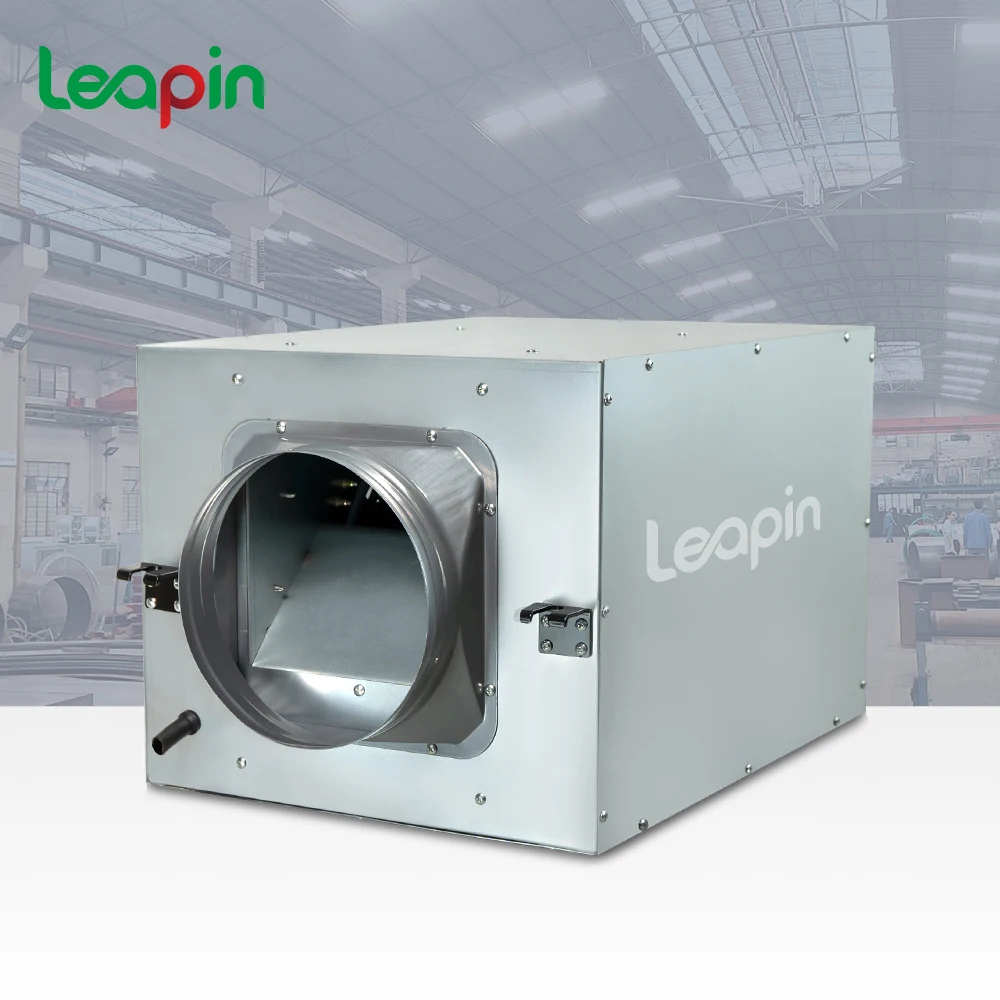

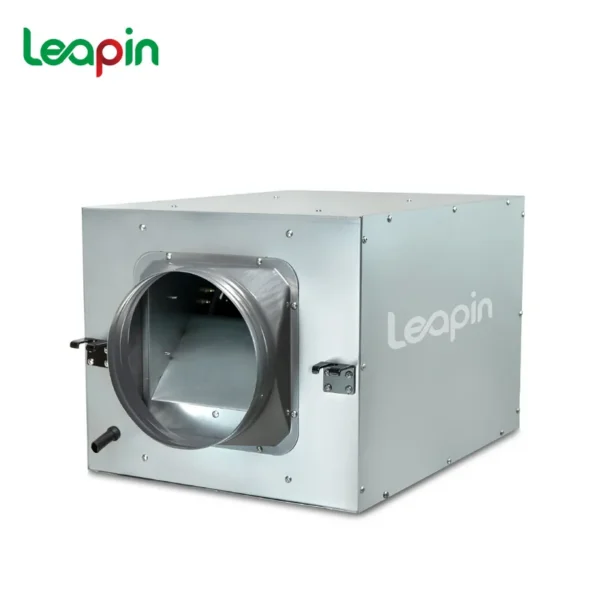

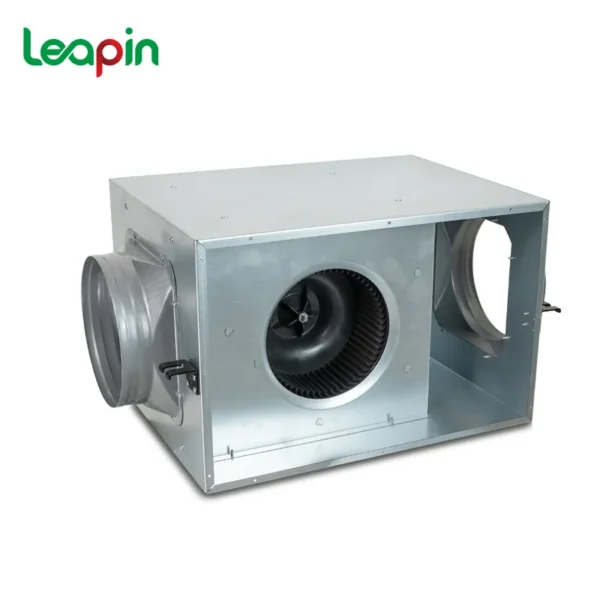

Product name | DPT series Inline centrifugal fans | |

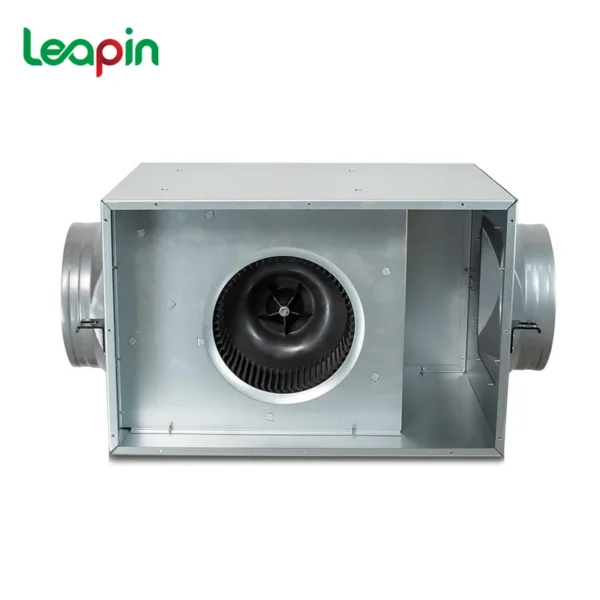

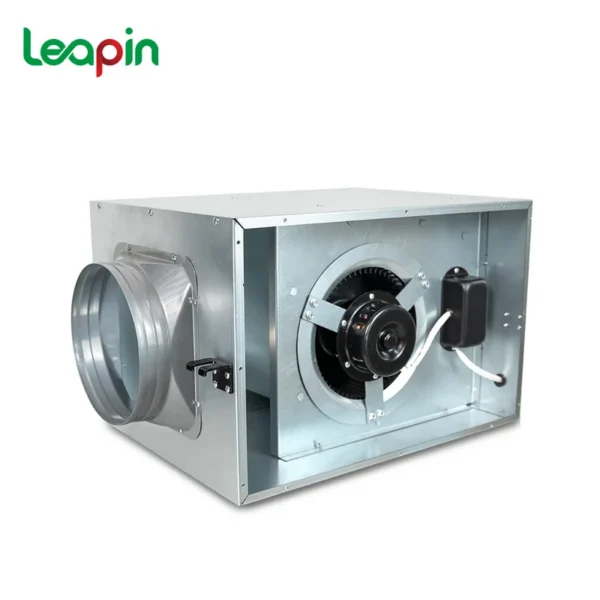

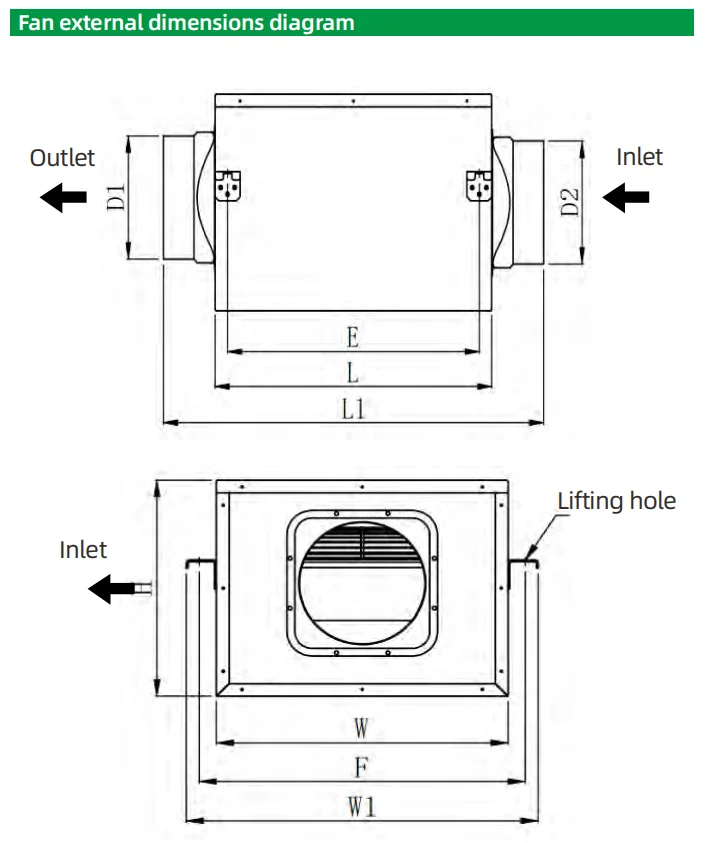

Summary | DPT series duct-type silent fan adopts a dual-suction and direct-coupled motor structure design, which can maintain ventilation and air exchange in places while keeping low noise. The straight-through duct design, with a 180° air outlet direction, better meets the needs of long-distance air supply and ventilation. | |

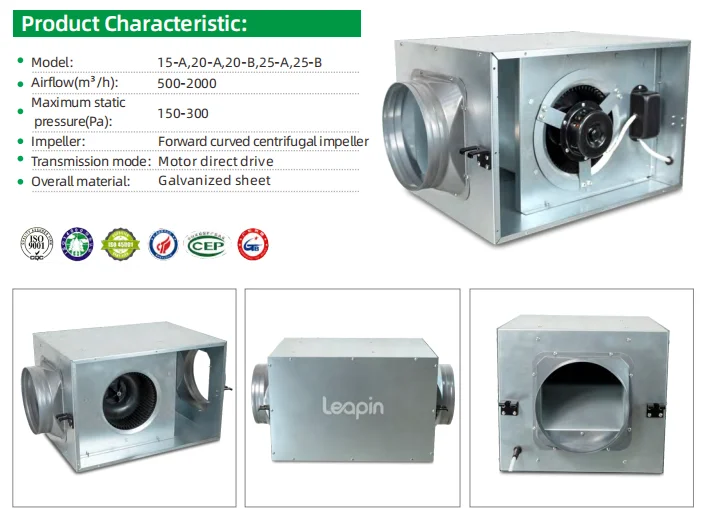

Features | Forward-inclined double-suction impeller, direct-coupled motor drive, Corrosion-resistant outer casing, lightweight and compact design, small size, and easy installation. | |
Advantages | Low Noise: The operating noise of the fan is as low as 23 decibels. a) Scientifically reasonable dual-suction duct design, symmetrical and smooth ducts, minimal body vibration, low noise. b) Utilizing a forward-inclined impeller made of high-polymer materials, the long, narrow, and dense blades reduce the wind noise generated by impeller and air friction from the source. c)High-quality motor, low-resistance silent bearings, smooth lubrication. | |
Compact Size: The fan has a compact structure, and the overall design is lightweight and small, making it especially suitable for ceiling installations. | ||
Durable and Aesthetic: The entire unit is constructed with highquality galvanized steel plate, coated with a layer of protective paint for an elegant and corrosion-resistant appearance. | ||
Application | It is suitable for ventilation and air exchange in environments with low noise requirements, such as various forms of air-conditioning units, air purification equipment and ventilation equipment in homes, offices, conference rooms, bathrooms and entertainment venues. | |
Ordering and Pricing
- Minimum order quantity: 1 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 220 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer

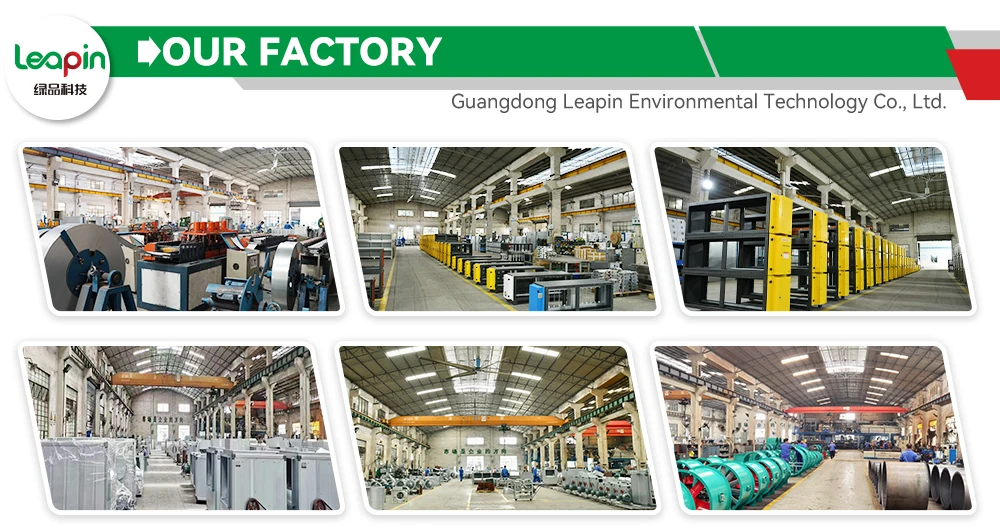

This product is produced by Guangdong Leapin Environmental Technology Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Guangdong Leapin Environmental Technology Co., Ltd. range on HVACR Nexus.
