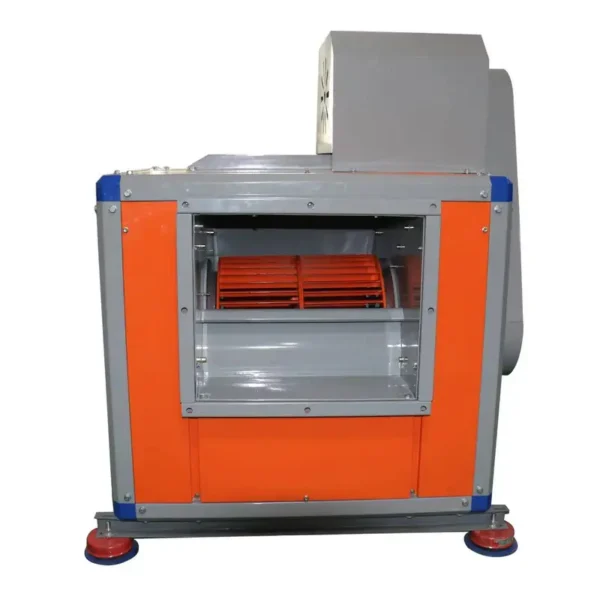

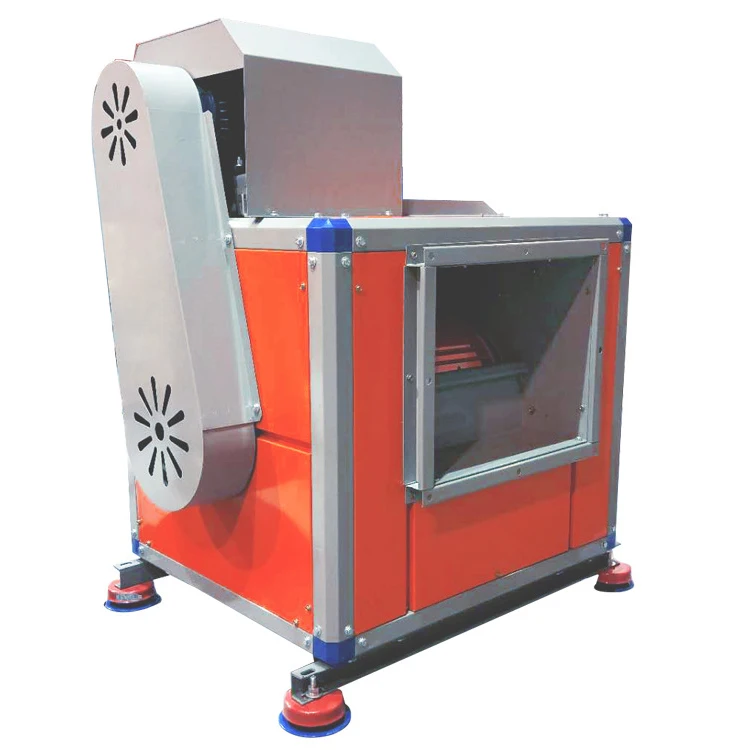

Centrifugal Fan, Stainless Steel

Key specification for this centrifugal fan: blade material Stainless Steel, model number Cabinet type centrifugal fan. Everything below is reproduced from the factory data sheet. Made by Zhejiang Qiba Fan Technology Co., Ltd. (4 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Centrifugal Fan

• Model Number: Cabinet type centrifugal fan
• Voltage: Other
• Blade Material: Stainless Steel
• Material: Stainless steel, Galvanized sheet
• Warranty: 1 Year
• Certification: Other

Technical Specifications

Product Details

Products Description

Product details

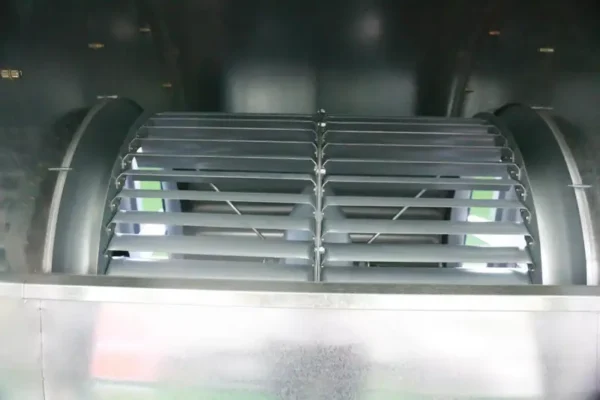

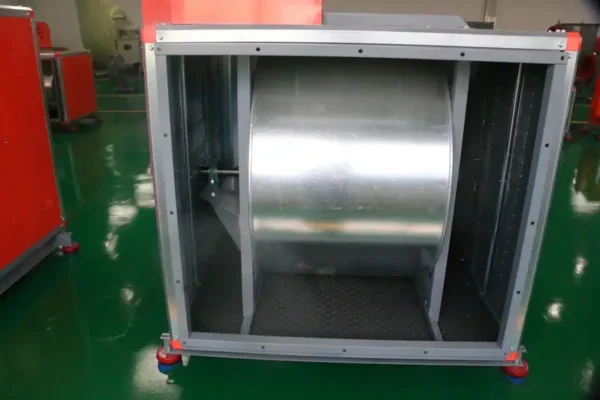

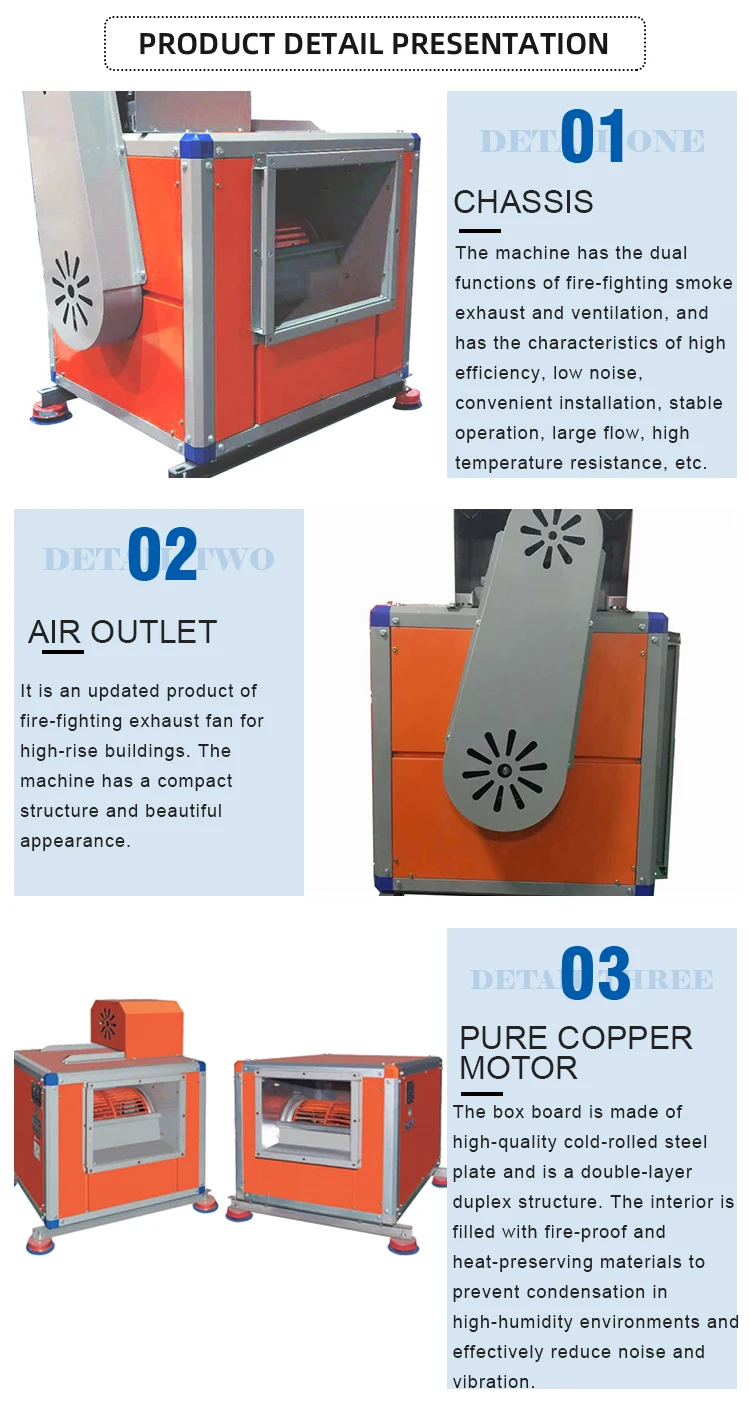

Details	The utility model has the functions of fire fighting, smoke exhaust and ventilation and air exchange, and has the advantages of high efficiency, low noise, convenient installation, stable operation, large flow rate, high temperature resistance, compact mechanism, beautiful appearance, and the box body adopts the profile frame, the assembling design of the box board, filling the fire-proof and heat-insulating material inside, prevents the condensation phenomenon under the high temperature environment, and can reduce the noise and vibration effectively

Item	Speed	Power	Air Fiow	Total Pressure	Noise
		r/min	kw	m³	pa	db
9	900	0.55-4	1650-3150	186-195	<58
		1100	0.75-4	2450-4050	280-285	<60
		1300	1.1-4	3400-4600	382-401	<61
		1400	1.5-4	2585-4954	443-465	<62
10	900	0.75-4	2000-3500	236-238	<60
		1100	1.1-4	2500-4500	351-354	<61
		1200	1.5-4	2500-5000	411-415	<62
		1400	2.2-4	2708-5415	481-487	<63
12	900	1.5-4	3650-6100	314-341	<61
		1000	2.2-4	3750-6750	413-425	<62
		1100	3.0-4	4150-7500	503-514	<63
		1180	3.0-4	4453-8048	578-591	<64
15	700	2.2-4	4500-8250	303-316	<61
		800	3.0-4	5000-9500	398-413	<62
		900	3.0-4	5250-10050	444-465	<64
		1050	5.5-4	6384-12653	682-722	<66
18	600	2.2-4	6030-11030	301-308	<62
		700	3.0-4	6550-13050	405-423	<63
		800	5.5-4	8150-14950	532-557	<64
		900	7.5-4	8850-16550	670-693	<65
20	550	3.0-4	7900-13750	312-340	<66
		650	4.0-4	9650-16250	438-475	<68
		700	5.5-4	10050-17420	545-588	<68
		940	11-4	11813-21567	790-850	<70
22	550	4.0-4	9850-17250	342-359	<68
		650	5.5-4	11970-20250	463-507	<69
		700	7.5-4	1283-21940	545-588	<70
		840	11-4	15698-26775	790-850	<72
25	500	5.5-4	14980-25500	371-374	<70
		600	11-4	18000-30050	526-540	<71
		650	15-4	19500-33080	630-632	<72
		740	18.5-4	22197-37999	723-817	<74
28	450	7.5-6	19500-30050	376-377	<71
		550	11-6	23970-37050	552-563	<72
		600	15-6	25650-40570	658-671	<73
		680	22-6	29310-45867	849-871	<75
30	400	7.5-6	21000-35480	350-355	<72
		500	15-6	26810-44110	555-557	<73
		600	30-6	31050-53960	787-802	<75
		640	30-6	33130-57575	896-913	<76

What information do ineed to provide in order to get a quotation?

Generally. information about Size, Air Flow, Air Pressure, Voltage ofrequiredfans is needed in order to select a right fan for you and provide you a quotaton.

How To Order?

Step 1,please tell us what model and quantity you need; Step 2, then we will make a PI for you to confirm the order details: Step 3, when we confirmed everything, can arrange the payment; Step 4, finally we deliver the goods within the stipulated time.

When will make delivery ?

Delivery Time
—Sample Order: 1-3 days after receipt of the full payment.
—Stock Order: 3-7days after receipt of the full payment
—OEM Order: 12-30days after receipt of the deposit.

After-sales Service.

1 year warranty for all kinds of products;lf you find any defective accessories first time, we will give you the new parts forfree to replace in the next order, as an experienced manufacturer, you can restassured of the quality and after-sales service.

How do you control the product's quality?

All the products have quality testing and dynamic balance before delivery.

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1–9 set: US $234 / set
  • 10–49 set: US $222 / set
  • 50+ set: US $198 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this centrifugal fan?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Which certifications does this centrifugal fan carry?

It is supplied with Other documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.

Can the centrifugal fan be supplied for my local voltage?

The standard configuration is Other. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Zhejiang Qiba Fan Technology Co., Ltd., based in China. The company 4 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Zhejiang Qiba Fan Technology Co., Ltd. range on HVACR Nexus.
