Centrifugal fan — voltage 220/1/50 or 380/3/50 V/Ph/Hz, blade material SS400/SUS201/SUS304/SUS316. The complete factory specification follows. Made by TOMECO MECHANIC ELECTRICAL JOINT STOCK COMPANY (6 years on the platform, typical reply ≤11h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Centrifugal Fan
- Model Number: CFE.LQ01-2X
- Voltage: 220/1/50 or 380/3/50 V/Ph/Hz
- Blade Material: SS400/SUS201/SUS304/SUS316
- Warranty: 1 Year
- Certification: Other
- Place Of Origin: Vietnam
Technical Specifications
| Voltage | 220/1/50 or 380/3/50 V/Ph/Hz |
|---|---|
| Blade Material | SS400/SUS201/SUS304/SUS316 |
| Electric Current Type | AC |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Customized Support | OEM |
| Place Of Origin | Vietnam |
| Brand Name | TOMECO |
| Model Number | CFE.LQ01-2X |
| Certification | Other |
| Port Of Dispatch | Hai Phong Port, Huu Nghi Port, Noi Bai Port |
| Selling Units | Single item |

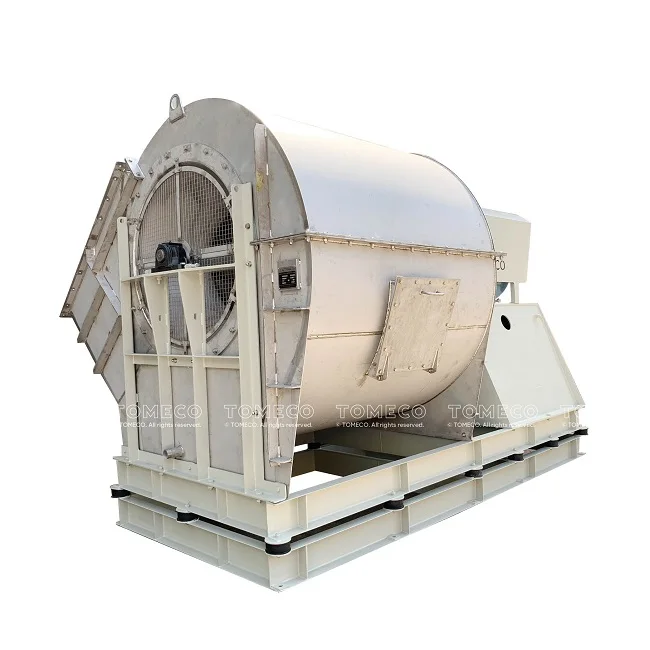

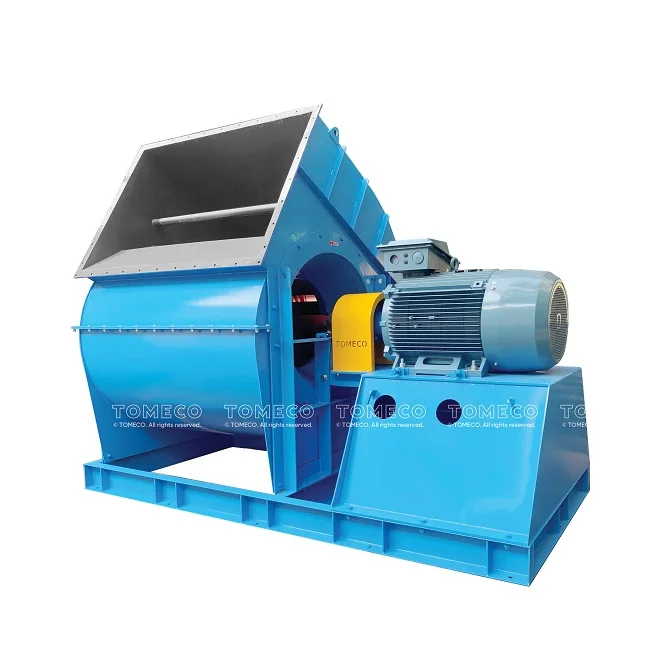

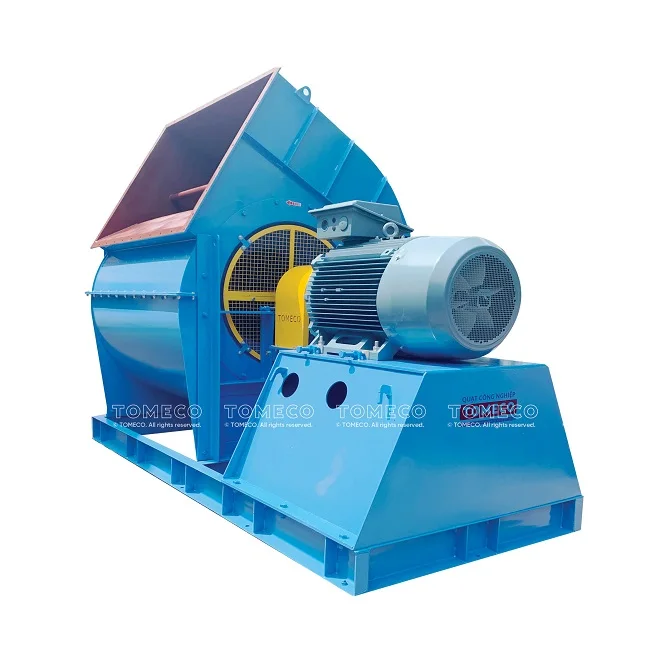

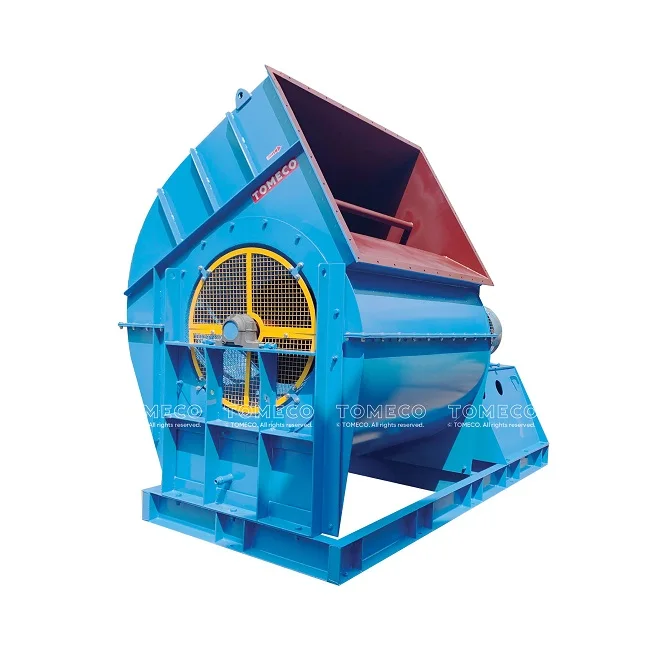

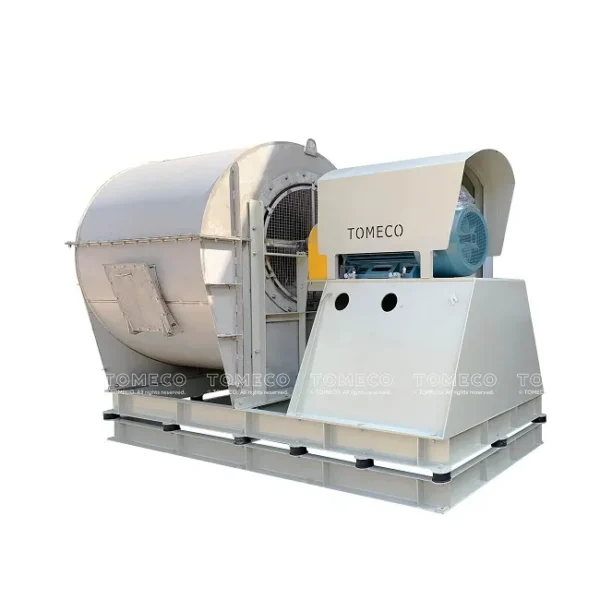

Product Details
inlet-side rim is designed as a proper companion for the inlet cone. All impellers are statically and dynamically balanced to
grade 6.3 and provide smooth operation prior to being assembled in the fan, followed by final balance of the entire

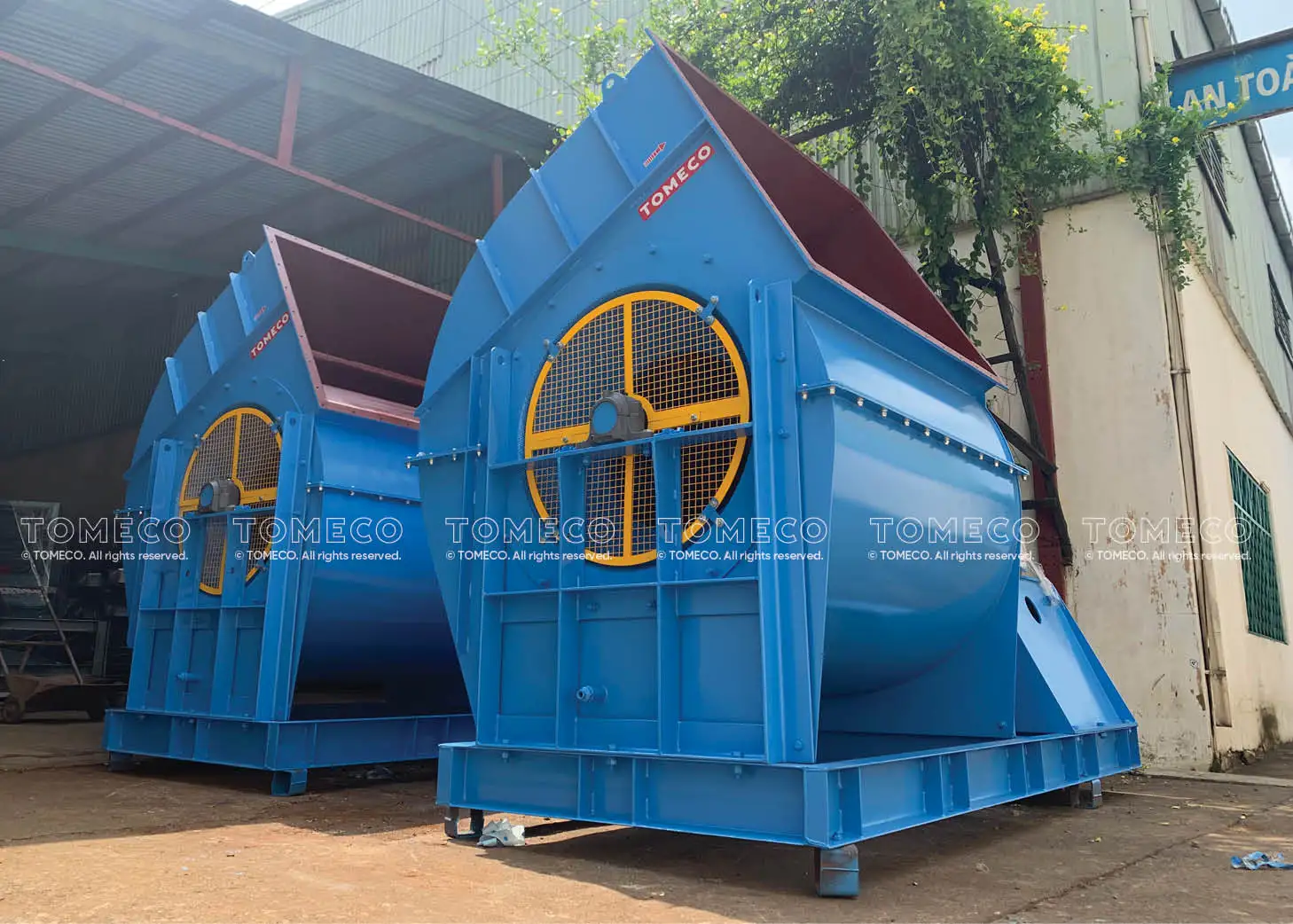

rotating assembly. All LQ01,LQ02,LQ03-2X fan housings are continuously-welded and reinforced with rigid bracing to increase structural
integrity.
With the use of bearings with clearance C3 it is possible to effect the suction of fluids at a temperature higher than 40°C up to max 80°C.
operation. Fans are dynamically balanced and calibrated on a digital dynamic balancer, in accordance with ISO 10816. Materials and important components such as motors and bearings are imported from international manufacturer.
Air volume | 50.000-600.000 | m3/h |
Pressure | 500-3.000 | Pa |
Motor power | 37-560 | kW |
Speed | 720-1450 | Rpm |
Impeller diameter | 400-2.300 | mm |
Voltage | 380/3/50; 6kV/3/50 | V/Ph/Hz |
Material | SS400/SUS201/SUS304/SUS316 |
Drive type | Direct Coupling |
Motor brand | ABB/SIEMENS/WEG/HEM(VIETNAM) |
Motor type | Foot mount |
Impeller design | Backward Curved |
Finish | Powder coated, Epoxy coated, hot dip galvanized |
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $2000 / set
- 10+ set: US $200 / set
- Ships from: VN
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fan?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this centrifugal fan carry?
It is supplied with Other documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the centrifugal fan be supplied for my local voltage?
The standard configuration is 220/1/50 or 380/3/50 V/Ph/Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by TOMECO MECHANIC ELECTRICAL JOINT STOCK COMPANY. The company 6 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full TOMECO MECHANIC ELECTRICAL JOINT STOCK COMPANY range on HVACR Nexus.
