Key specification for this centrifugal fans: voltage 110,220,380,440,460V, capacity 501-1000l/h. Everything below is reproduced from the factory data sheet. Made by Nanjing Kingreat Machinery Co., Ltd. (13 years on the platform, typical reply ≤9h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of These Centrifugal Fans
- Power(W): 2.2-11 KW
- Voltage: 110,220,380,440,460V
- Capacity: 501-1000l/h
- Setting Speed: 4000 RPM
- Warranty: 1 Year
- Place Of Origin: Jiangsu, China
Technical Specifications
| Product Type | centrifuge |
|---|---|
| Capacity | 501-1000l/h |
| Setting Speed | 4000 RPM |
| Voltage | 110,220,380,440,460V |
| Core Components | PLC, Bearing, Motor |
| Power(W) | 2.2-11 KW |
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Video Outgoing-Inspection | Provided |
| Key Selling Points | Quality service |
| Place Of Origin | Jiangsu, China |
| Weight (Kg) | 2000 |
| Dimension(L*W*H) | depend on model choosing |
| Description | automatic Bottom Discharge Centrifuge |
| Application | Chemical, food, light industry |
| Discharge | automatic bottom discharge |
| Operation Type | Batch |
| MOC | 304,316 |
| Electrical Control Cabinet | optional |
| Selling Units | Single item |
| Single Package Size | 120X100X150 cm |
| Single Gross Weight | 1000.000 kg |
Product Details

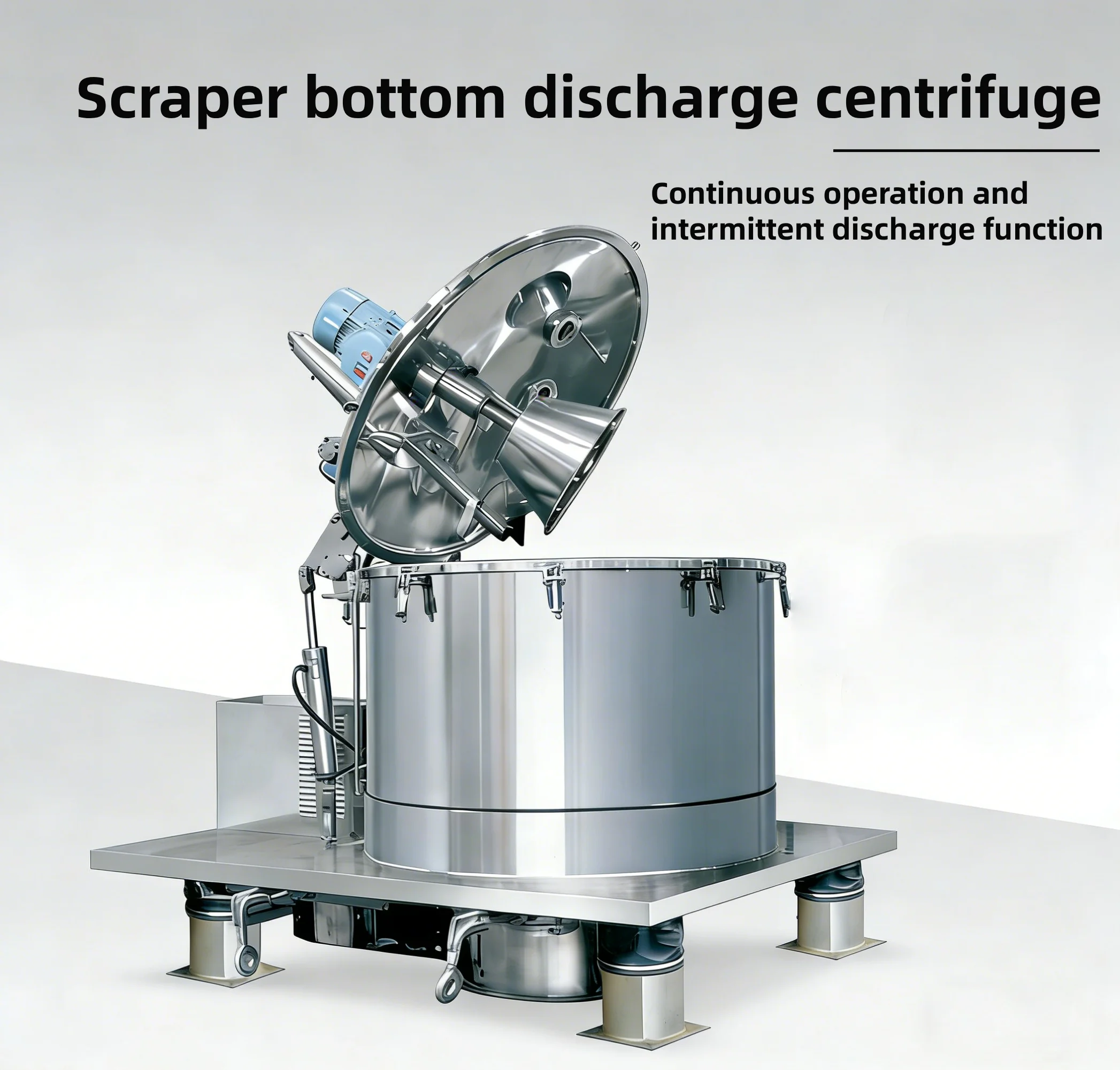

The Bottom Discharge Centrifuge is a fully automatic solid-liquid separation system designed for efficient handling of medium to large batch processes. Unlike Top Discharge models, where manual cake removal is necessary, this machine ensures automatic cake discharge through an integrated scraper mechanism, making it highly suitable for applications demanding consistency, safety, and reduced operator intervention.
Advantages
Working Principle

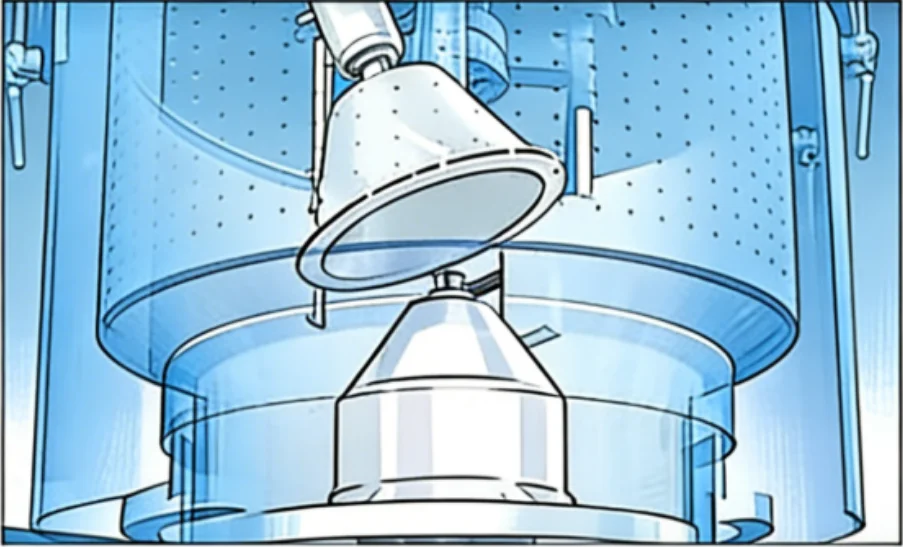

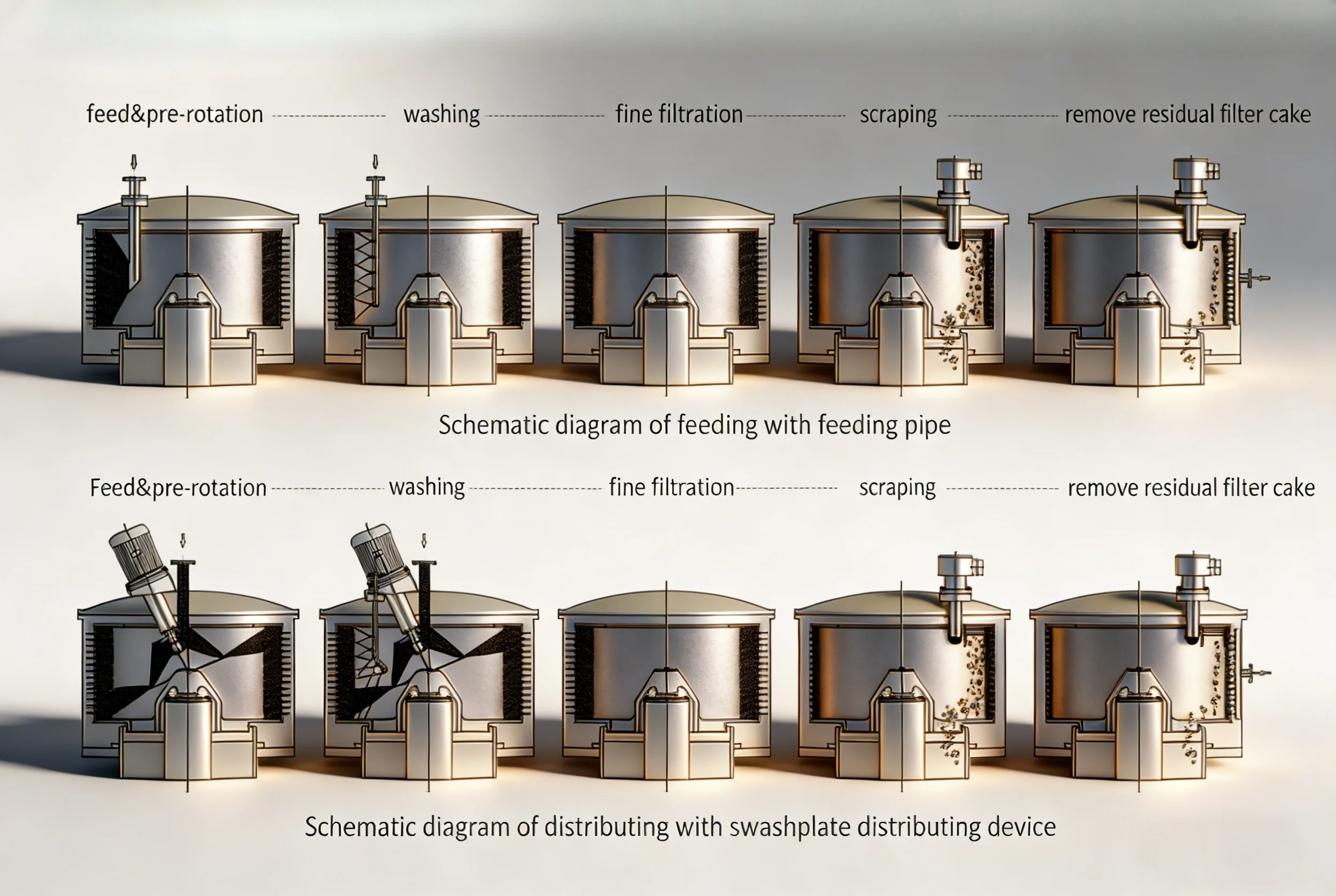

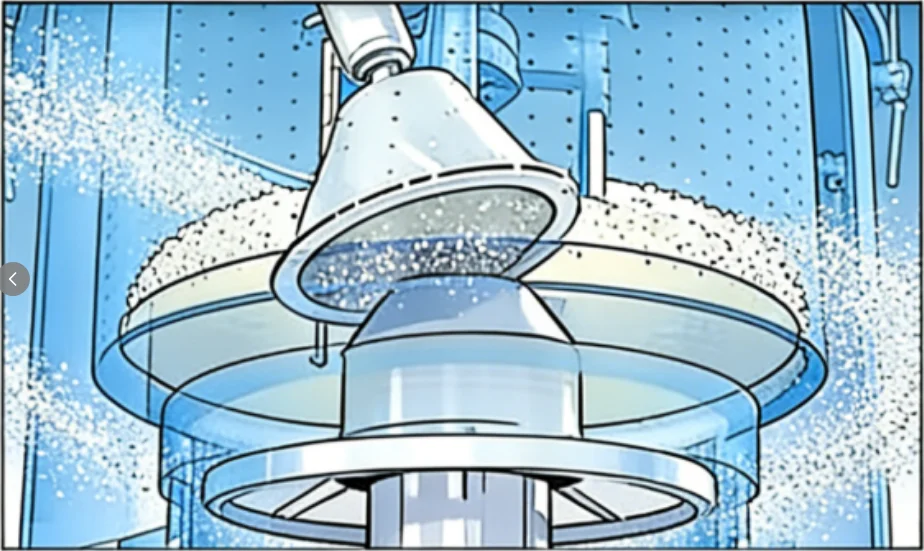

The motor drives the drum to rotate. Under the control of the program, when the feed speed is reached, the material to be separated enters the high-speed rotating drum through the feed pipe, stops feeding when the feed reaches the preset volume, and rises to the high-speed separation. Under the action of centrifugal force, the material is filtered through the filter cloth (filter screen), and the liquid phase passes through the filter cake layer and discharged from the outlet pipe through the drum hole. The solid phase is left in the drum to form a cylindrical cake, and then the cake can be washed. After the separation requirements are met, the speed is reduced to the discharging speed, and the scraper device operates to scrape the cake from the inner wall of the drum and then discharge through the discharge port at the lower part of the centrifuge.
Cake removal rate higher than 99%
Application industry
Suitable for separating suspension containing solid particles > 0.01mm,widely used in Chemical industry pharmaceutical industry,food industry, environmental protection industry, mining and metallurgy industry. the Bottom Discharge Centrifuge combines high separation efficiency with gentle cake handling, making it ideal for crystalline
and fragile products.
and fragile products.
For example: gypsum, thiamine, glauberite, iron sulfate, copper sulfate, nickel sulfate. Potassium chloride, ester acid,sand, soda, rubber additives, dyes, plastic raw materials, soap, grease, various resins, salt, monosodium glutamate, food additives, starch sugar, vitamins, antibiotics, herbicides, insect repellent, copper, zinc, aluminum and other mineral powder dehydration.

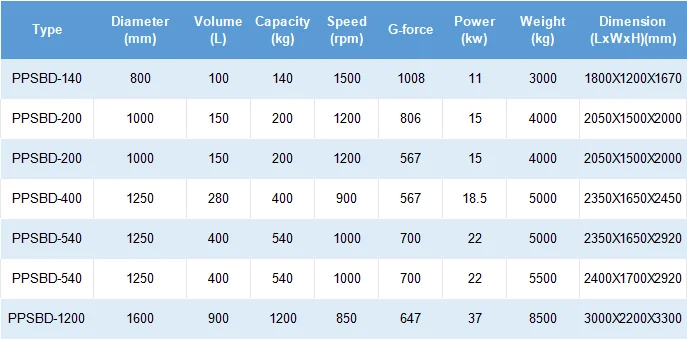

Technical Parameter
Detailed Images

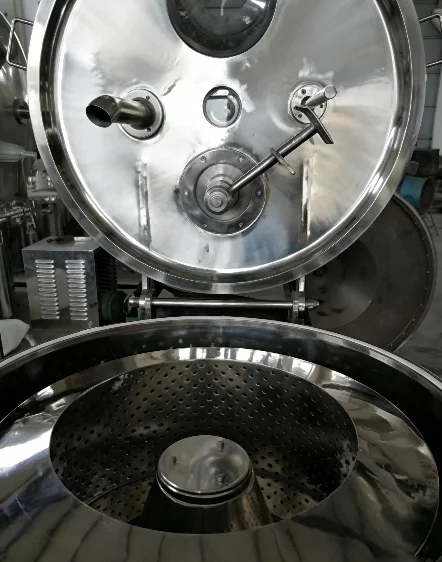

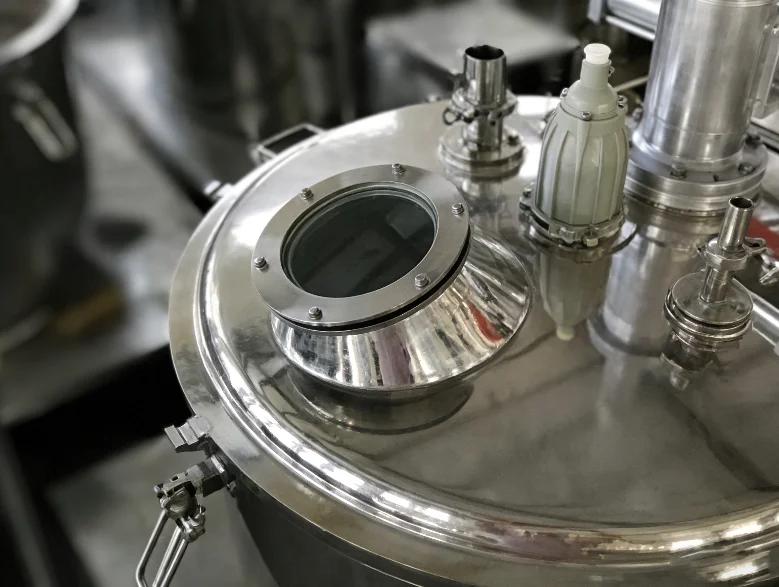

The upper cover
The upper cover has feeding port, cleaning water feedingport, also observe port and light hole, nitrogen gas port ifneed.Most important is the scraper device.All the port onthe upper cover, the size can be customized.

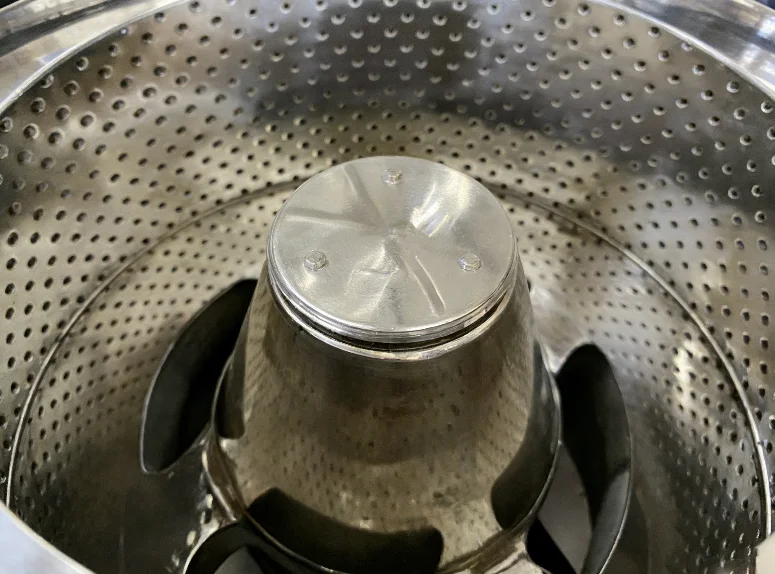

The bowl
The bowl is the main part of scraper centrifuge.Same asfilter centrifuge, there are many small holes. Difference is abig hole for bottom discharge automatically when scraperworking.All stainless steel material or better meterial.
The flip cover
The scraper centrifuge height is higher than normalfilter centrifuge, due to the scraper device. All material isstainless steel material. If the raw liquid is salt,the materialneed to be made more corrosion resistant.
Company overview
Nanjing Kingreat specializes in advanced solid-liquid separation equipment and comprehensive industrial solutions. We are dedicated to delivering reliable, high-efficiency machinery for global clients. Core Products: We focus on the manufacturing of top-tier basket centrifuges, decanter centrifuges, and a full range of durable spare parts. Tailored Solutions: We go beyond hardware. Our engineering team provides customized separation solutions designed to seamlessly integrate into your workflow,excelling in heavy-duty sectors like chemical manufacturing and palm oil processing. Manufacturing Excellence: Built on strict quality assurance and precision engineering, our equipment guarantees durability, safety, and continuous high performance in the most demanding environments.
Packaging&shipping
FAQs
Can you customize the centrifuge for our specific industry applications?
Yes, absolutely. Our engineering team provides tailored solutions based on your material properties. We can customize
materials(e.g., SS304/316L), explosion-proof standards, and structural designs to perfectly suit demanding applications like chemical processing or palm oil extraction.
materials(e.g., SS304/316L), explosion-proof standards, and structural designs to perfectly suit demanding applications like chemical processing or palm oil extraction.
How do you ensure the quality and safety of your heavy machinery?
We implement strict quality control throughout the entire manufacturing process. Every centrifuge undergoes rigorous testing before shipment, including precision dynamic balancing tests, to ensure safe, stable, and vibration-free operation under high speeds.
Do you provide installation guidance and after-sales support?
Yes. We offer comprehensive support including detailed operational manuals, video tutorials for installation, and 24/7 online technical assistance. If necessary, we can also dispatch engineers to your site for commissioning and training.
Are spare parts readily available if we need replacements?
As the original manufacturer, we maintain a complete inventory of standard spare parts for all our basket and decanter
centrifuges. We guarantee fast dispatch via express air freight to minimize your production downtime.
centrifuges. We guarantee fast dispatch via express air freight to minimize your production downtime.
How do you pack the equipment to prevent damage during long-distance shipping?
All our centrifuges are securely fastened and packed in export-standard, fumigation-free wooden cases. We use multi-layer protective wrapping and reinforced blocking to withstand the rigors of long-distance ocean freight.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–4 set: US $7000 / set
- 5–9 set: US $5000 / set
- 10+ set: US $3000 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fans?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal fans be supplied for my local voltage?
The standard configuration is 110,220,380,440,460V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
