The centrifugal fans listed here carries 400V, 50Hz, model number HPT 1530, documented exactly as the manufacturer publishes it. Made by EBR METAL MAKINE IC VE DIS TIC LTD STI (9 years on the platform, typical reply ≤6h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of These Centrifugal Fans
- Model Number: HPT 1530
- Voltage: 400V, 50Hz
- Warranty: 1 Year
- After Warranty Service: Video technical support
- Warranty Of Core Components: 1 Year
- Certification: CE
Technical Specifications
| Voltage | 400V, 50Hz |
|---|---|
| Motor Type | Servo Motor |
| Machinery Test Report | Not Available |
| Video Outgoing-Inspection | Not Available |
| Warranty | 1 Year |
| Core Components | Motor, PLC |
| Key Selling Points | Easy to Operate |
| Place Of Origin | Turkey |
| Brand Name | EBR METAL |
| Model Number | HPT 1530 |
| Dimension(L*W*H) | 2500 x 1500 x 4500 |
| Condition | New |
| After-Sales Service Provided | Field installation, commissioning and training |
| Applicable Industries | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction works |
| After Warranty Service | Video technical support |
| Local Service Location | Turkey |
| Showroom Location | Turkey |
| Marketing Type | New Product 2020 |
| Warranty Of Core Components | 1 Year |
| Dimensions | 1600x3100mm |
| Certification | CE |
| Year | 2020 |
| Packaging Details | As Per International Standard |
| Port Of Dispatch | ANY TURKISH PORT |
| Selling Units | Single item |
| Supply Ability | 1 piece per Month |
Product Details
Product Description
EBR METAL Plasma Cutting Machine can easily be operated and carried. It’s produced with latest production Technologies and used well-known and accepted cutting CNC equipments. High Plasma Technology provides high quality cutting on a wide range of material type and thickness. The acceleration of the system moves the torch or part, vibration features, accuracy on movement control, cutting speed and repetition availability, strong mono block frame, accuracy rails, rack and pinion and servo motors provides the high cutting quality on the plasma cutting machine.
CUTTING WIDTH A | mm | 1600 |
CUTTING LENGTH | mm | 3100 |
TOTAL WIDTH B | mm | 2500 |
TOTAL HEIGHT C | mm | 1500 |
INTER GAP D | mm | 250 |
TORCH DISTANCE E | mm | 0 – 200 |
TABLE HEIGHT | Mm | 780 |
SPEED | m/min | 20 |
MACHINE AXIS | – | X , Y1 , Y2 , |
POSITIONING ACCURACY | mm | ± 0,1 DIN 28206 |
REPITITION ACCURACY | mm | ± 0,05 DIN 28206 |
CNC UNIT | HYPERTHERM EDGE CONNECT | |
CNC MOTORS | MITSUBISHI | |
CAD/CAM SOFTWARE | HYPERTHERM PRONEST LT | |
PLASMA HEAD | HYPERTHERM | |

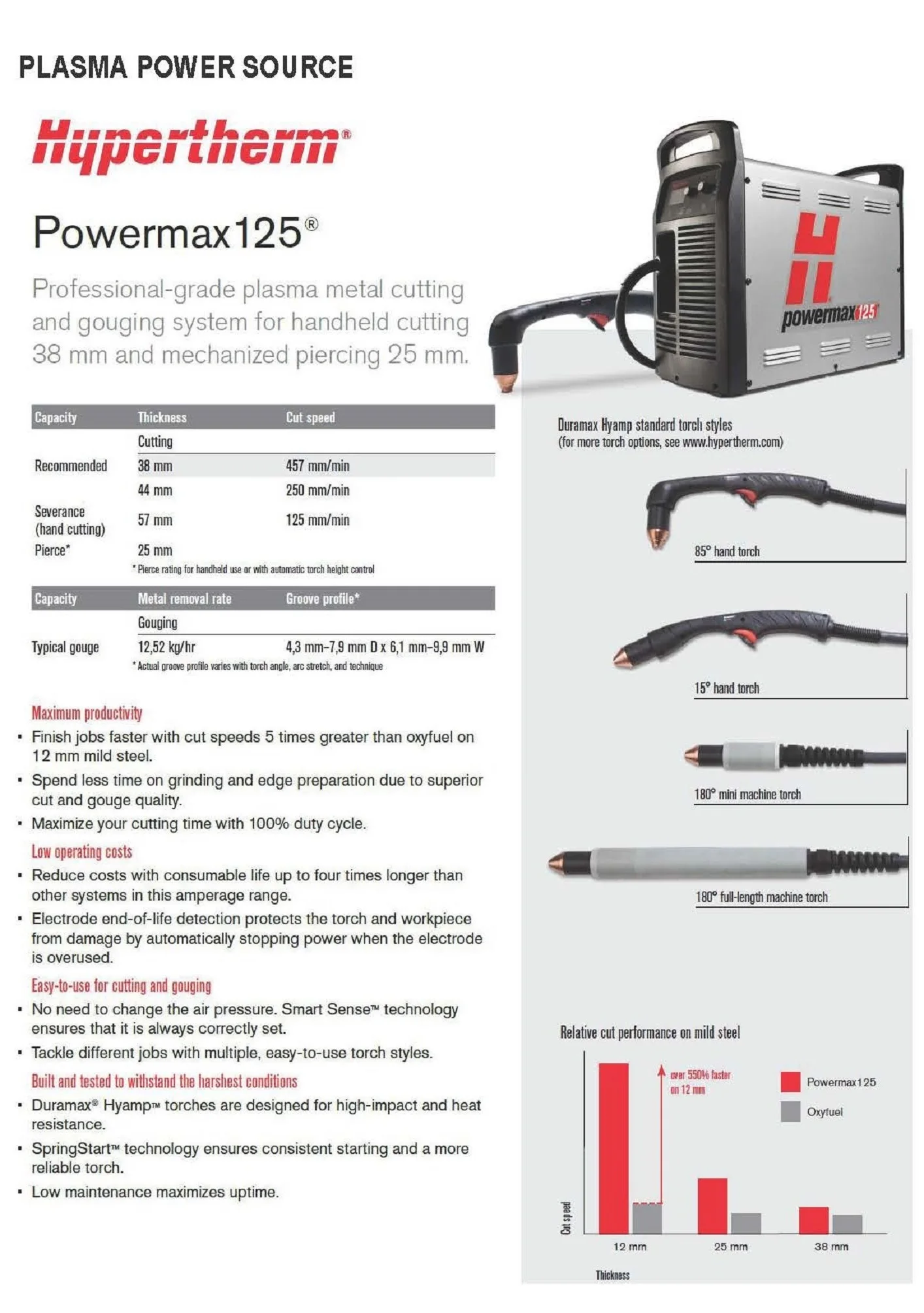

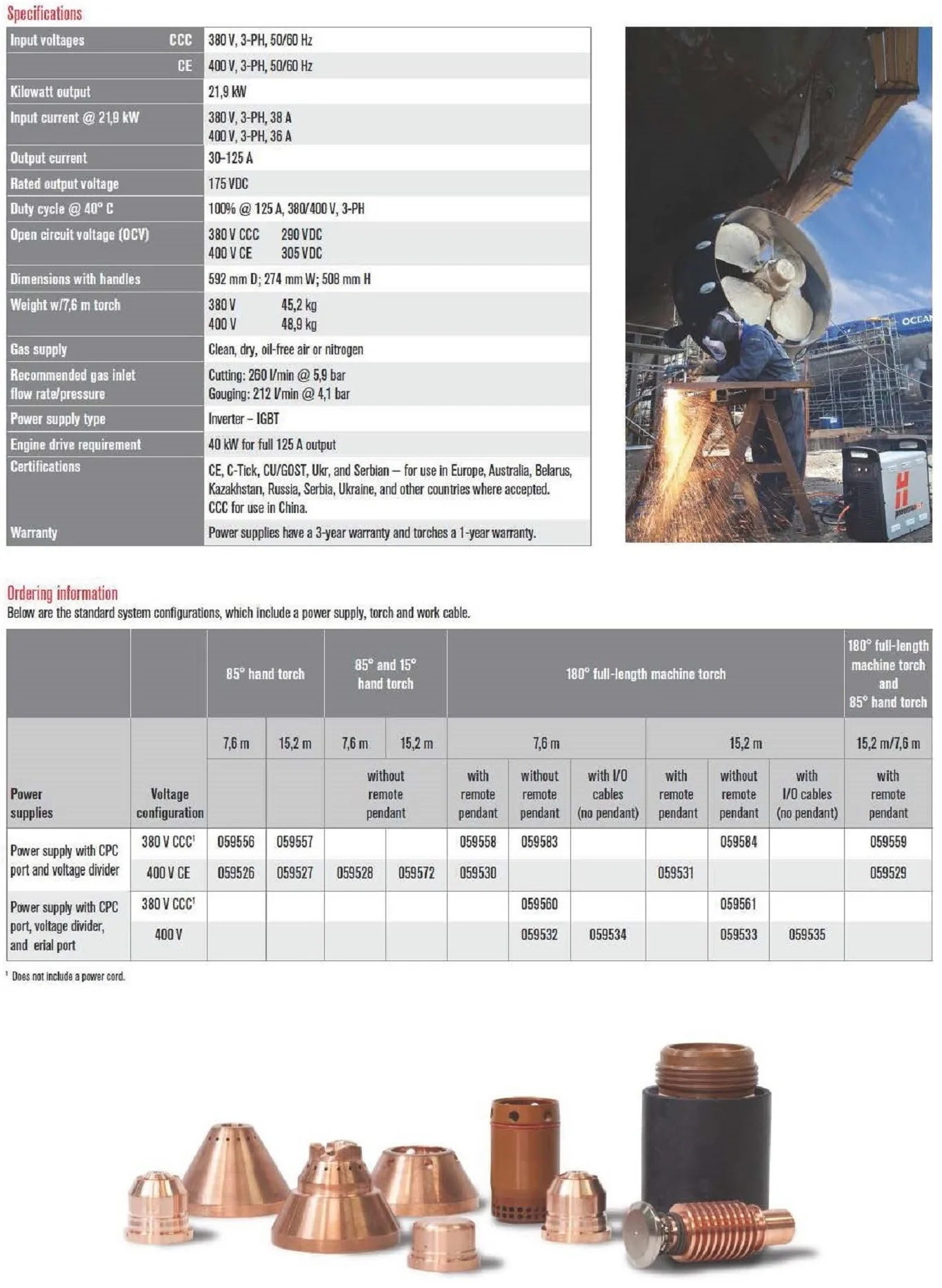

PLASMA POWER SOURCE | HYPERTHERM POWERMAX 125 | |
TORCH HIGHT CONTROL | HYPERTHERM THC | |
TORCH HIGHT CONTROL (OXY.) | – | IHT MSX750 (OPTIONAL) |
OXY CUTTING HEAD | TRIPLE OXY (OPTIONAL) | |
CUTTING CAPACITY MILD STEEL (OXY.) | mm | 10 – 300 |
MILD STEEL (PLASMA MAX. CUTTING CAPACITY) | mm | 44 |
MILD STEEL (PLASMA PRODUCTION PIERCE) | mm | 25 |
ENERGY | 400V, 50Hz, 6bar air | |
MACHINE SIZE (WXHXL) | mm | 2500 x 1500 x 4500 |
Specification
MACHINE COMPONENT DETAILS
1- Cutting Table ,Valves and PipesDesigned for CNC plasma and OXY cutting operations.
* With modular concept, adaptation to any required dimensions.
* Segmented structure and fully sealed pneumatic controlled lid systems ensure effective
* Two loading capacity option : 750 – 1500 kg/m2
* Easy to change big particles collecting
* With modular concept, adaptation to any required dimensions.
* Segmented structure and fully sealed pneumatic controlled lid systems ensure effective
* Two loading capacity option : 750 – 1500 kg/m2
* Easy to change big particles collecting
* High suction efficiency
* Easy installation and commissioning
* Can be actived and passived via cnc
* It may be implemented.
* Completely selenoid valve system
* No mechanical noises
* Welded construction. Attached to suction
* Easy installation and commissioning
* Can be actived and passived via cnc
* It may be implemented.
* Completely selenoid valve system
* No mechanical noises
* Welded construction. Attached to suction
2-X RAILS
Steel shaft on aluminum body in X (transverse) axis NTN, SNR,INA (GERMANY,EUROPE) brands rails are used.
* Double-sided rails loads coming from every direction is met rigidly.
* The ball carriage rail both wraps around the front without any gaps.
* Two tracks precision machined
* sweepers to protect dust from double sides of rail
* operate without maintenance for a long time.
* No lubrication required
* The ball carriage rail both wraps around the front without any gaps.
* Two tracks precision machined
* sweepers to protect dust from double sides of rail
* operate without maintenance for a long time.
* No lubrication required
3-Y RAILS
Ball type on Y (longitudinal) axis steel lineer rails NTN, SNR,INA (GERMANY,EUROPE)
brand (25mm) are used.
* It is resistant to heavy duty work and load.
* Induction hardened and
* Mounted on the highly sensitive machined surfaces.
* Against slags coming from working environment It is protected by sheet covers.
* Racking gears are mounted vertically on both rails.
* Both axes are available in two variants, mechanical and electronic
There are limit protections in the form.
In case of operator error, multiply the machine's rail limits, such as the emergence of negativity.
brand (25mm) are used.
* It is resistant to heavy duty work and load.
* Induction hardened and
* Mounted on the highly sensitive machined surfaces.
* Against slags coming from working environment It is protected by sheet covers.
* Racking gears are mounted vertically on both rails.
* Both axes are available in two variants, mechanical and electronic
There are limit protections in the form.
In case of operator error, multiply the machine's rail limits, such as the emergence of negativity.
4-HELIS PINION & RACK DRIVE SYSTEM
Hardened and ground precision NTN, SNR,INA,ATLANTA (GERMANY,EUROPE) pinions are used .
* Single machined in 2m length rack gear mechanisms are used.
* Thanks to the working system, pinion and rack without a gap.
* Gear mechanism meets high loads the possibility of motion without vibration and precision .
* Maintenance-free, long-lasting.
* Single machined in 2m length rack gear mechanisms are used.
* Thanks to the working system, pinion and rack without a gap.
* Gear mechanism meets high loads the possibility of motion without vibration and precision .
* Maintenance-free, long-lasting.
5-GEARBOX
EISELE (GERMANY) brand gear box is used.
* Works without gap.
* High load carrying capacity.
* Thanks to its thermal compensation feature, can work in climate condition.
* Maintenance is not required.
* Coupling without gap in inlet and outlet assembly and I use a camouflage system.
* Works without gap.
* High load carrying capacity.
* Thanks to its thermal compensation feature, can work in climate condition.
* Maintenance is not required.
* Coupling without gap in inlet and outlet assembly and I use a camouflage system.
7-MOTORS
In both axes (x-y) MITSUBISHI (JAPAN) Servo type engines are used.
* 2 synchronized motors on Y axis
* Synchronized driving ensures precise and vibration-free motion
* Servo motors Fed by PWM drivers.
* Precise positioning ensures high acceleration.
* 2 synchronized motors on Y axis
* Synchronized driving ensures precise and vibration-free motion
* Servo motors Fed by PWM drivers.
* Precise positioning ensures high acceleration.
8-CABLE TRAY
Comply with CE standards. Due to high quality plastic material used in the cable tray it encompasses quality, durability,
resistance to abrasion, durability to heavy loads and resistance to breaks and protects the cable ducts.
resistance to abrasion, durability to heavy loads and resistance to breaks and protects the cable ducts.
Packing & Delivery
Company Profile
EBR METAL has been producing sheet metal working machines with its production experience accumulated for many years. Our products are sold under the EBR METAL brand, which we derived from engineering, bending and rolling solutions. Our company has determined the concepts of trust, solution creation, problem solving, customer satisfaction, innovation as the strategy of EBR METAL brand. EBR METAL has chosen to make our high quality products easily accessible for everyone. EBR METAL does not compromise on innovation, ethical behavior, reliability, on-time delivery, high quality and low cost principles to achieve this goal.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1+ piece: US $4500 / piece
- Ships from: TR
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fans?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this centrifugal fans carry?
It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the centrifugal fans be supplied for my local voltage?
The standard configuration is 400V, 50Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
