Centrifugal Fans, Rhine

Henan Rhine Machinery lists this centrifugal fans with its own published specification, unedited. Supplier profile: 1 year on the platform. Send your target quantity and destination for a firm quotation with current lead times.

Key Features of These Centrifugal Fans

• 安装方式: 自立式
• 电压: 可定制
• 速度: 1480
• 刀片材质: 不锈钢
• 刀片直径: 可定制
• 风扇叶片数: 可定制

Technical Specifications

Product Details

Products Description

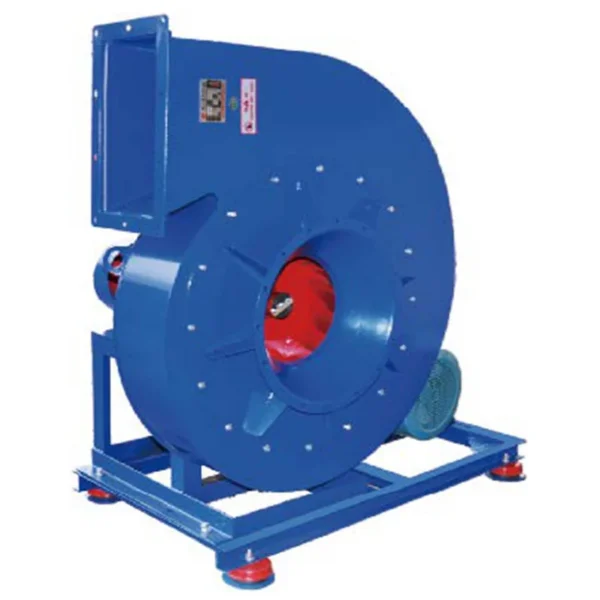

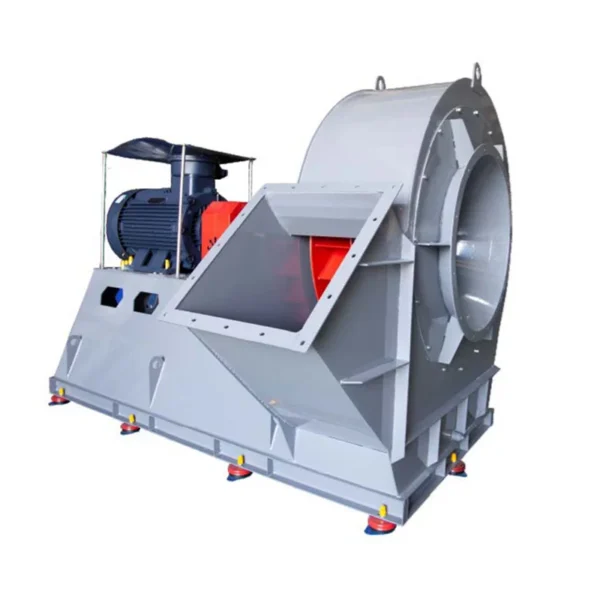

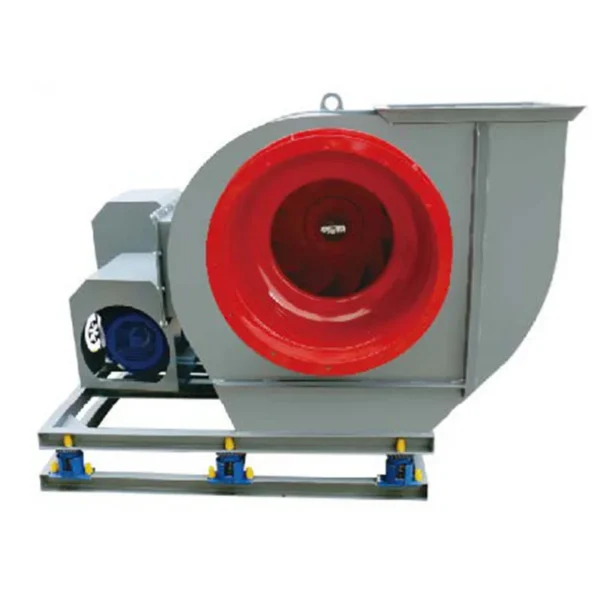

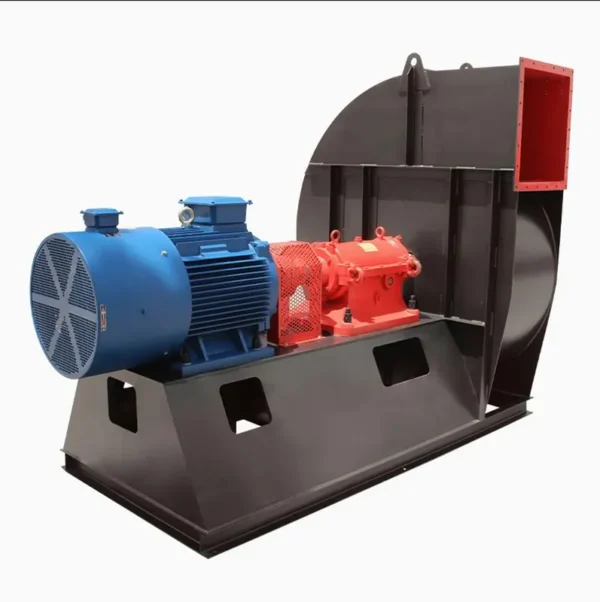

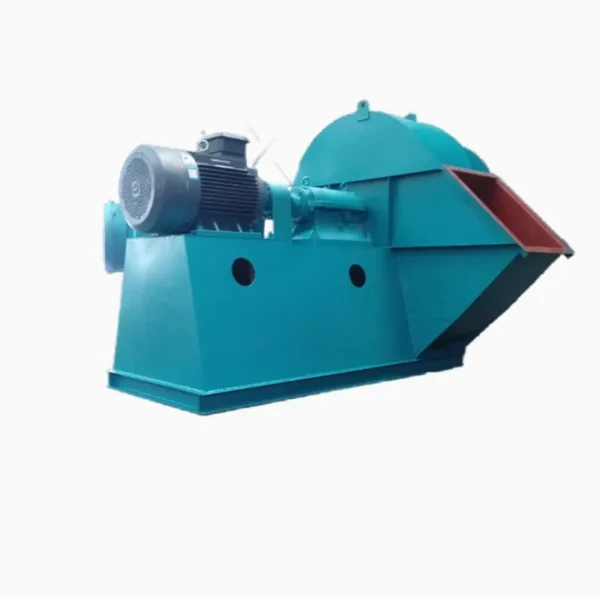

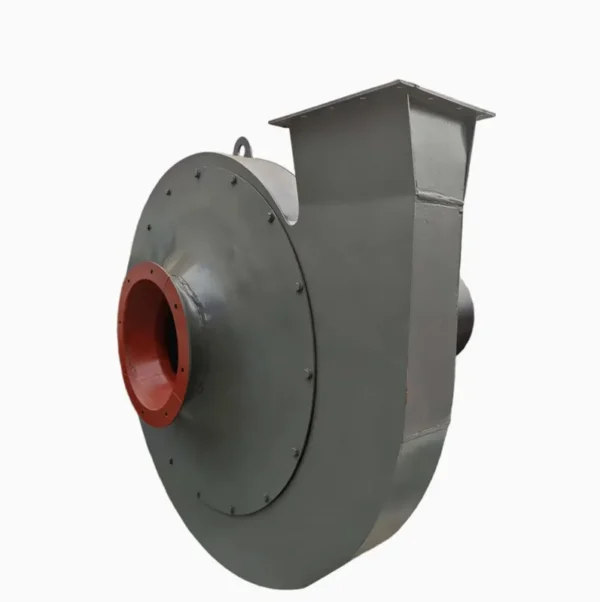

Boiler Induced Draft Fan

This is a new series of low-noise fans specifically engineered for industrial boilers that utilize various types of coal and are
equipped with dust and smoke elimination systems, achieving a maximum total pressure efficiency exceeding 80%. These fans can beselected based on comparable inlet conditions and performance characteristics.

Product Parameter

GY4-73	NO.	R/Min	Pa	m³/H	KW
		8D	1450	2104~1400	16156~30993	18.5
		9D	1450	2668~1775	23003~44128	30/37
				960	1163~775	15229~29216	11
		10D	1450	3301~2194	31554~60533	55
				960	1437~958	20891~40077	15 /18.5
				730	829~553	15886~30475	7.5
		11D	1450	4003~2659	41999~80570	75 /90
				960	1741~1160	27806~53343	22 /30
				730	1004~669	21144~40562	11
		12D	1450	4777~3171	54526~104600	132 /160
				960	2075~1381	36100~69253	37 /45
				730	1196~797	27451~52661	15 /18.5
		14D	1450	6541~4333	86586~166100	280 /315
				960	2831~1883	57326~109970	75 /90
				730	1630~1086	43591~83624	37 /45
		16D	960	3709~2465	85571~164150	185
				730	2133~1420	65069~124820	75
				580	1343~893	51699~99178	45
		18D	960	4710~3126	121830~233730	280
				730	2705~1800	92648~177730	132
				580	1702~1133	73610~141210	75
		20D	960	5837~3870	167130~320160
				730	3347~2225	127080~243800	220 /250
				580	2104~1400	100970~193700	110 /132
		22D	960	6865~4864	233000~434000	650~850
				730	3972~2815	177000~332000	310 /370
				580	2501~1775	141000~263000	165 /180
				480	1716~1216	116000~217000	140
		25D	730	5139~3648	260000~484000	570~700
				580	3236~2295	206000~384000	280 /350
				480	2216~1579	171000~318000	165 /210
		28D	730	6404~4541	365000~680000	1250
				580	4040~2864	289000~540000	630
				480	2775~1971	239000~446000	400
				375	1697~1206	187000~352000	320
		29.5D	745	7218~5100	435000~810000	1250/630 /1250
				596	4609~3236	348000~648000	800 /1000

Y5-47	NO.	R/Min	Pa	m³/H	KW
		4C	3300	1922~1393	2751~5190	4
				2900	1481~1079	2417~4561	3
		5C	2900	2324~1687	4723~8909	7.5
				2620	1893~1373	4267~8048	5.5
		6C	2850	3364~2452	8020~15129	18.5
				2620	2844~2069	7372~13908	15
		8C	2020	3001~2187	13474~25417	30
				1860	2550~1853	12407~23404	22
		9C	1900	3364~2452	18045~34039	45
				1800	3020~2197	17095~32247	37
		12C	1480	3628~2638	33318~62850	75~90
		12.4C	1480	3874~2824	36762~69347	110

Y5-48	NO.	R/Min	Pa	m³/H	KW
		4C	3550	2221~1501	2932~5564	5.5
				3150	1746~1180	2602~4937	4
				2800	1377~932	2313~4388	3
				2500	1097~742	2065~3918	2.2
		5C	3150	2819~1913	5304~9851	11
				2800	2223~1509	4715~8757	7.5
				2500	1769~1202	4210~7818	5.5
				2240	1419~964	3772~7005	4
		6.3C	2800	3545~2403	9432~17516	22
				2500	2819~1913	8421~15639	15
				2240	2259~1533	7546~14013	11
				2000	1798~1221	6737~12511	7.5
		8C	2000	3323~2253	13794~25619	30
				1800	2686~1823	12415~23057	22
				1600	2118~1438	11035~20495	15
				1400	1619~1100	9656~17933	11
		10C	1800	4483~2958	22250~44634	75
				1600	3531~2332	19778~39674	55
				1400	2696~1782	17305~34715	37
				1250	2145~1419	15451~30995	22
		12.5C	1400	4234~2794	33800~67803	110
				1250	3365~2223	30179~60538	75
				1120	2696~1782	27040~54242	55
				1000	2145~1419	24143~48431	37

GY6-51	NO.	R/Min	Pa	m³/H	KW
	8D	1450	2745~1859	11000~26400	15~22
	9D	1450	3474~2353	15700~37500	30 /45
	10D	1450	4289~2905	21500~51500	45~75
	11D	1450	5190~3515	28600~68500	75~110
			960	2275~1541	18900~45400	22 /30
	12D	1450	6176~4183	37100~89000	110~160
			960	2707~1834	24600~59000	37~55
	13D	1450	7248~4909	47200~113000	185~250
			960	3177~2152	31200~74900	55 /75
	14D	1450	8406~5694	58900~141000	250~355
			960	3685~2496	39000~93400	75~110
	15D	1450	9650~6537	72400~172000	355~500
			960	4230~2865	48100~115000	110~160
			730	2446~1657	36600~87400	45~75
	16D	1450	10980~7437	88100~211000	500~710
			960	4813~3260	58300~140000	160~200
			730	2783~1885	44300~106000	75 /90
	17D	960	5433~3680	69900~168000	200~280
			730	3142~2128	53200~128000	90~132
	18D	960	6091~4126	83000~199000	250~355
			730	3522~2386	63100~151000	110~160
	19D	960	6787~4597	97600~234000	315~500
			730	3924~2658	74200~178000	160~200
	20D	960	7520~5094	114000~273000	450~630
			730	4348~2946	86700~208000	185~280
	21D	960	8290~5616	132000~316000	560~800
			730	4794~3247	100000~240000	280 /355
			580	3026~2050	79500~191000	220
	22D	960	9099~6164	152000~363000	710~1000
			730	5261~3564	116000~276000	315~450
			580	3321~2250	92200~219000	220
	23.5D	960	10380~7033	185000~443000	1000~1400
			730	6003~4066	140000~336000	400~630
			580	3789~2567	112000~267000	220~315
	25D	730	6794~4603	169000~406000	630~800
			580	4289~2905	134000~323000	280~400
	26.5D	730	7633~5172	201000~483000	800~1120
			580	4818~3265	160000~385000	400~560
			480	3300~2236	132000~319000	220~315
	28D	730	8522~5774	237000~569000	1000~1400
			580	5280~3645	189000~454000	560~710
			480	3685~2496	156000~376000	315 /400
	29.5D	730	9460~6410	278000~667000	1250~2000
			580	5972~4046	221000~530000	710~1000
			480	4090~2771	185000~439000	400~560

Application

Including but not limited to: boiler ventilation, large building air exchange, gas transportation, smoke exhaust, and air blowing.Approved customization.

Product Packaging

Company Profile

Brand name	Rhine Machinery
Establishment time	since 1989
Production line	3
Factory area	10,000m²
Persons number	≥300
Main business	grain dryer,centrifugal fan,crushing machine

Main Products: Grain Dryer , ‪Grain Drying Machine , ‪Paddy Dryer , ‪Corn Dryer

Dryer Henan Rhine Machinery Co., Ltd is a professional manufacturer of grain drying equipment that integrates research and development,production, sales, installation, debugging, and after-sales service. The company′s core products include a series of grain drying equipment for 20ton, 32 tons, 40 tons, 120 tons, 150 tons, 200 tons, 300 tons, 2500tons and above. Also Independent research and development of centrifugal fan,crushing machine.

The company has strong technical strength, complete production equipment, complete testing methods, and stable product quality.
The product is sold to various regions abroad and domestically, and has received unanimous praise from domestic and foreign users.The company, together with the standard setter and operation team of China′s grain drying industry, focus on the production and sales of grain dryers and grain drying tower equipment. It is an international ISO9001 quality certification enterprise, and has been awarded the "contract abiding and trustworthy enterprise"and "exemplary organization of quality management". For many years, the company has attached great importance to technological exchange and cooperation, absorbing and learning from successful experiences and new technologies at home and abroad. It has signed a long-term strategic cooperation agreement with the China Academy of Agricultural Mechanization Sciences and invested a large amount of funds in the research and development of new equipment, striving to become the most leadind drying equipment manufacturer in the industry.

FAQ

1.the quality of production
Our machine are manufactured strictly according to national and international standard, and we take a test on every equipment before delivery.
2.Guaranteed
Our products are distributed throughout the world, being involved in more than Asia, Africa and South America countries and regions. And our products win the good reputation of our foreign customers.
3.How about price?
Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that “ for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity”.

Contact Us

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1+ set: US $90 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this centrifugal fans?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
