Manufactured by Ningbo Wonsmart Motor Fan, this centrifugal fans is documented here exactly as the factory publishes it. Supplier profile: 17 years on the platform, factory-assessed. Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of These Centrifugal Fans
- 管道直径: 200mm
- 安装方式: 其他
- 电压: 48VDC
- 速度: 26000rpm
- 材质: 塑料
- 刀片材质: 铝
Technical Specifications
| 管道直径 | 200mm |
|---|---|
| 安装方式 | 其他 |
| 电压 | 48VDC |
| 速度 | 26000rpm |
| 材质 | 塑料 |
| 刀片材质 | 铝 |
| 保修 | 1年 |
| 售后服务 | 在线支持 |
| 定制服务 | OEM, ODM, OBM |
| 噪音等级 | 40db及以上 |
| 产地 | Zhejiang, China |
| 品牌名称 | WONSMART |
| 型号 | WS130120S2-48-220-X300 |
| 提供售后服务 | 在线支持 |
| 轴承 | NMB球轴承 |
| 驾驶员 | 外部驱动程序 |
| 鼓风机类型 | 无刷直流电机 |
| 颜色 | 银色 |
| 空气流量 | 140m ³/h |
| 寿命 | 20000小时 (25摄氏度以下) |
| 额定电压 | 48V |
| 优势 | 高效率 |
| 销售单位 | 单个商品 |
| 单个包装尺寸 | 15X15X15 厘米 |
| 单个产品毛重 | 2.000 公斤 |
Product Details
Product Description

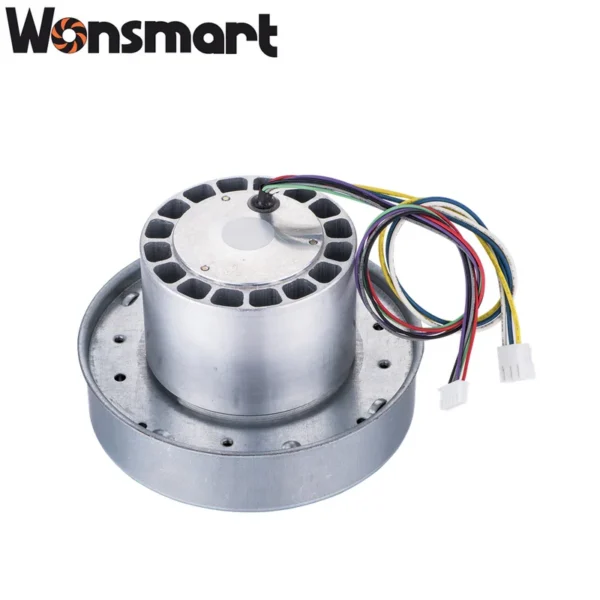

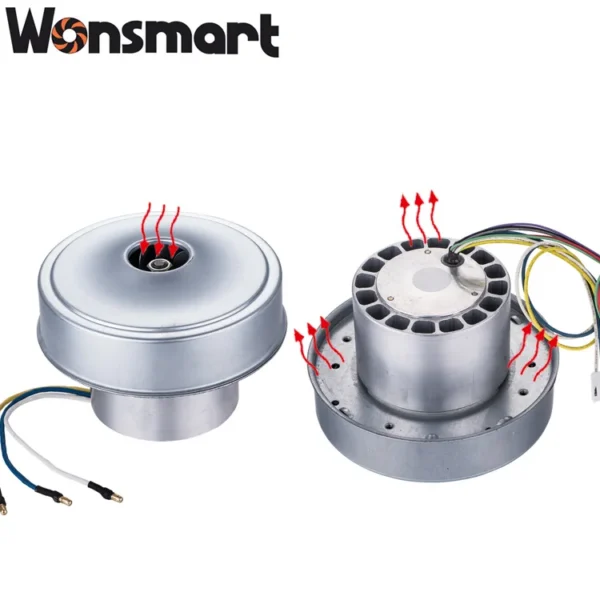

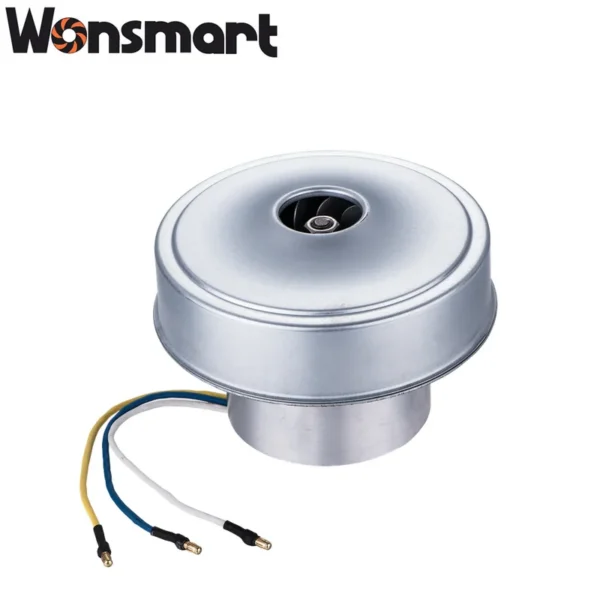

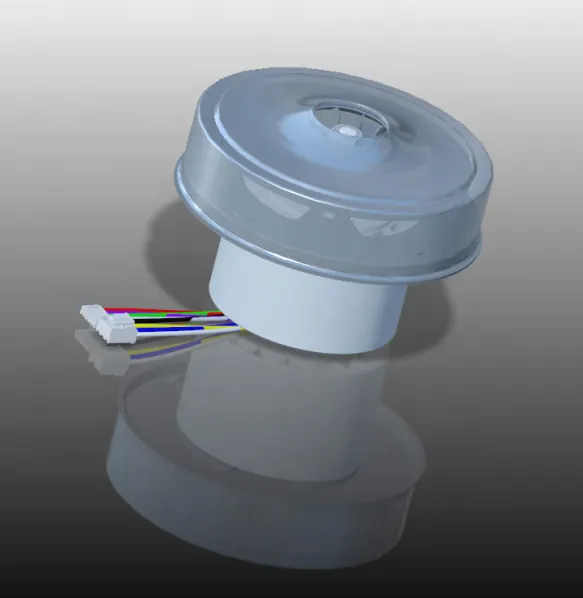

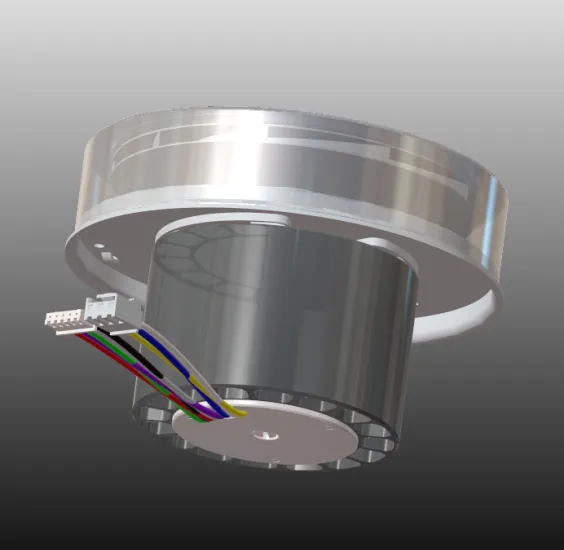

High airflow 24V DC brushless blower centrifugal fan with industry use and vacuum cleaner
Suitable for vacuum machine/fuel cell/medical equipment and inflatables.
Specification
Part name | 48vdc centrifugal blower fan |
Part No | WS130120S-48-220-X300 |
Rated votlage | 48VDC |
Max power consumption | 336W |
Life time(MTTF) | >20,000 hours |
Unit weight | 0.82KGS |
bearing | NMB ball bearing |
Unit size | D130*120mm |
Insulation class | Class F |
Speed control | PWM or 0~5V |

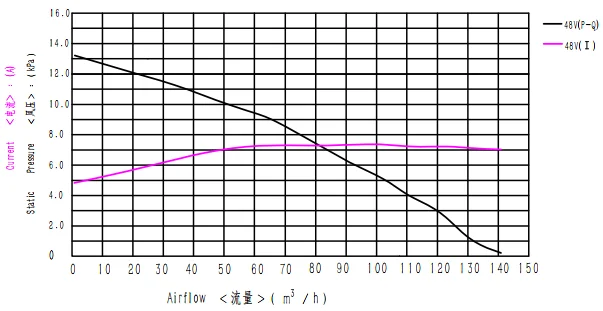

P-Q Curve for 48V dc centrifugal fans blowers
Wiring diagram for driver controller
We can supply standard drivers for this blower. If you want to design your own driver, you can refer to the wiring diagram on the
left picture.
We can supply standard drivers for this blower. If you want to design your own driver, you can refer to the wiring diagram on the
left picture.
Size Information

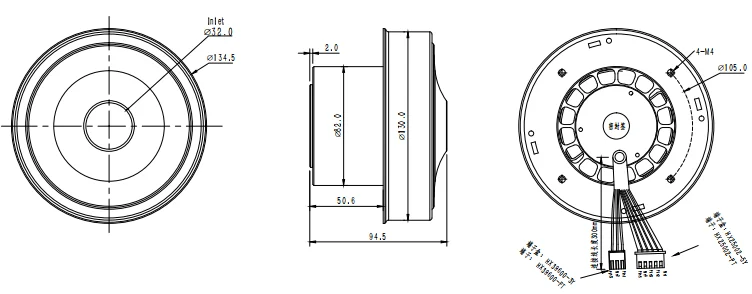

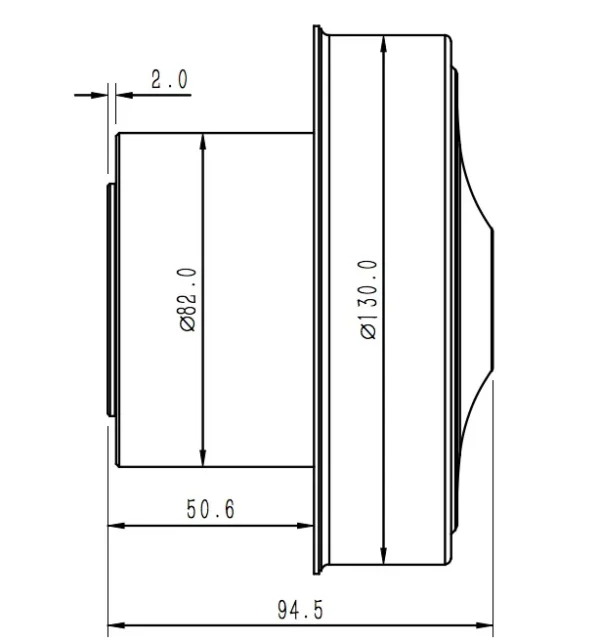

Product drawing as below:

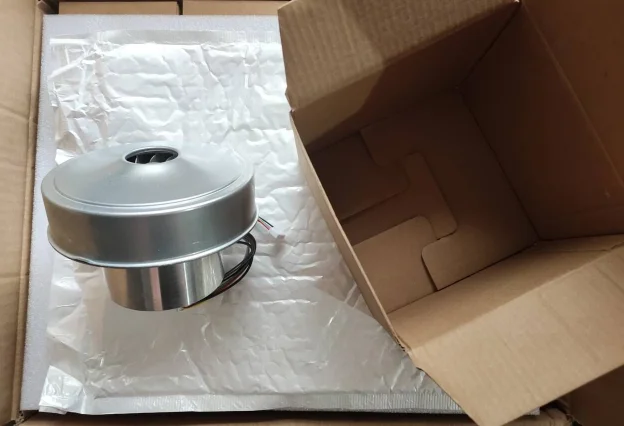

Packing & Delivery
Qty per Ctn: 16pcs Ctn size:582*292*275mm;
G.W.: 14.1KGS N.W.:13.1KGS
G.W.: 14.1KGS N.W.:13.1KGS
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Company Introduction
Ningbo Wonsmart Motor Fan Company is a professional manufacturer with a focus on small sized brushless dc motors and brushless dc blowers. Our blower’s max airflow reaches 200 cubic meter per hour and a max pressure
of 30 kpa. With our high quality parts and precise manufacturing process, WONSMART motors and blowers can
serve more than 20,000 hours.
Founded in 2009, Wonsmart has had a rapid growth rate of 30 % yearly and our products are widely used in Air cushion machines,Environment condition analyzers, Medical and other revolutionary Industrial equipment.
Wonsmart production and inspection equipment include auto winding machines, balancing machines, and CNC machines. We also have airflow and pressure testing equipment and motor performance testing equipment. All products are 100% inspected before delivery to guarantee all the products arrive at the customers with satisfied quality.
Wonsmart is certificated by ISO 9001 and ISO 13485,we have paid attention to product quality and customer service. Our professional and spry team hold the same goal of being one of the best brushless motor and blower supplier.
With ETL,CE, ROHS, REACH certification, 60% of Wonsmart’s products are exported to North America, EU, Japan and Korea. Customers from these countries are very satisfied with Wonsmart’s stable quality, fast delivery and reasonable price.
We also accept ODM and OEM projects and customized specification.
Please feel free to contact us.
Founded in 2009, Wonsmart has had a rapid growth rate of 30 % yearly and our products are widely used in Air cushion machines,Environment condition analyzers, Medical and other revolutionary Industrial equipment.
Wonsmart production and inspection equipment include auto winding machines, balancing machines, and CNC machines. We also have airflow and pressure testing equipment and motor performance testing equipment. All products are 100% inspected before delivery to guarantee all the products arrive at the customers with satisfied quality.
Wonsmart is certificated by ISO 9001 and ISO 13485,we have paid attention to product quality and customer service. Our professional and spry team hold the same goal of being one of the best brushless motor and blower supplier.
With ETL,CE, ROHS, REACH certification, 60% of Wonsmart’s products are exported to North America, EU, Japan and Korea. Customers from these countries are very satisfied with Wonsmart’s stable quality, fast delivery and reasonable price.
We also accept ODM and OEM projects and customized specification.
Please feel free to contact us.
Our Services & Strength
We also accept ODM and OEM projects and customized specification.We also accept ODM and OEM projects and customized specification.
We also accept ODM and OEM projects and customized specification.We also accept ODM and OEM projects and customized specification.
FAQ
Are you factory or trading company?
We are factory with 4,000 square meters and we have been focus on high pressure
We are factory with 4,000 square meters and we have been focus on high pressure
BLDC blowers for more than 10 years
Can you design a new blower fan if we give you target performance?
Yes, we offer ODM service for both blower fan and controller board
Can we connect this centrifugal air blower directly onto power source?
Can you design a new blower fan if we give you target performance?
Yes, we offer ODM service for both blower fan and controller board
Can we connect this centrifugal air blower directly onto power source?
This blower fan is with BLDC motor inside and it needs a controller board to run.
What kind of power source shall we use to drive this blower fan?
Generally, our customers use 24vdc switching power supply or Li-on battery.
Do you also sell controller board for this blower fan?
Yes, we can supply adapted controller board for this blower fan.
How to change impeller speed if we use your controller board?
You can use 0~5v or PWM to change speed. Our standard controller board is also with
What kind of power source shall we use to drive this blower fan?
Generally, our customers use 24vdc switching power supply or Li-on battery.
Do you also sell controller board for this blower fan?
Yes, we can supply adapted controller board for this blower fan.
How to change impeller speed if we use your controller board?
You can use 0~5v or PWM to change speed. Our standard controller board is also with
a potentiometer to change speed conveniently.
What is the MTTF of this centrifugal air blower?
MTTF of this centrifugal air blower is 20,000+ hours under 25 C degree.
Can we use this centrifugal air blower to suct water?
This blower fan can not be used to suck water. If you need to suck water, you can ask us
What is the MTTF of this centrifugal air blower?
MTTF of this centrifugal air blower is 20,000+ hours under 25 C degree.
Can we use this centrifugal air blower to suct water?
This blower fan can not be used to suck water. If you need to suck water, you can ask us
to choose proper item for this special working condition.
Can we use this centrifugal air blower to suck dust directly?
This blower fan can not be used to suck dust directly.If you need to suck dust, you can ask
us to choose proper item for this special working condition.
What we can do if the working condition is dirty?
A filter is strongly recommended to assemble onto the the inlet of the blower fan
How to decrease the noise of the blower?
Many of our customers use foam, silicone to fill between blower fan and machine to insulate
the blower noise.
Can we use this centrifugal air blower to suck dust directly?
This blower fan can not be used to suck dust directly.If you need to suck dust, you can ask
us to choose proper item for this special working condition.
What we can do if the working condition is dirty?
A filter is strongly recommended to assemble onto the the inlet of the blower fan
How to decrease the noise of the blower?
Many of our customers use foam, silicone to fill between blower fan and machine to insulate
the blower noise.
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–10 piece: US $64.9 / piece
- 11–49 piece: US $51.3 / piece
- 50–99 piece: US $42.6 / piece
- 100+ piece: US $37.6 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fans?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
