Centrifugal Fans, ANDELI, CUT-60, PRO, CNC

This centrifugal fans is published with the manufacturer’s full specification — model number CUT-60. Made by Andeli Group Wenzhou Import Export Co., Ltd. (5 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of These Centrifugal Fans

• Model Number: CUT-60
• For Material Type: ALL Material
• Warranty: 1 years
• Place Of Origin: China
• Single Package Size: XX cm
• Cutting Accuracy: ±1.0 mm

Technical Specifications

Product Details

Product Description

CUT-60

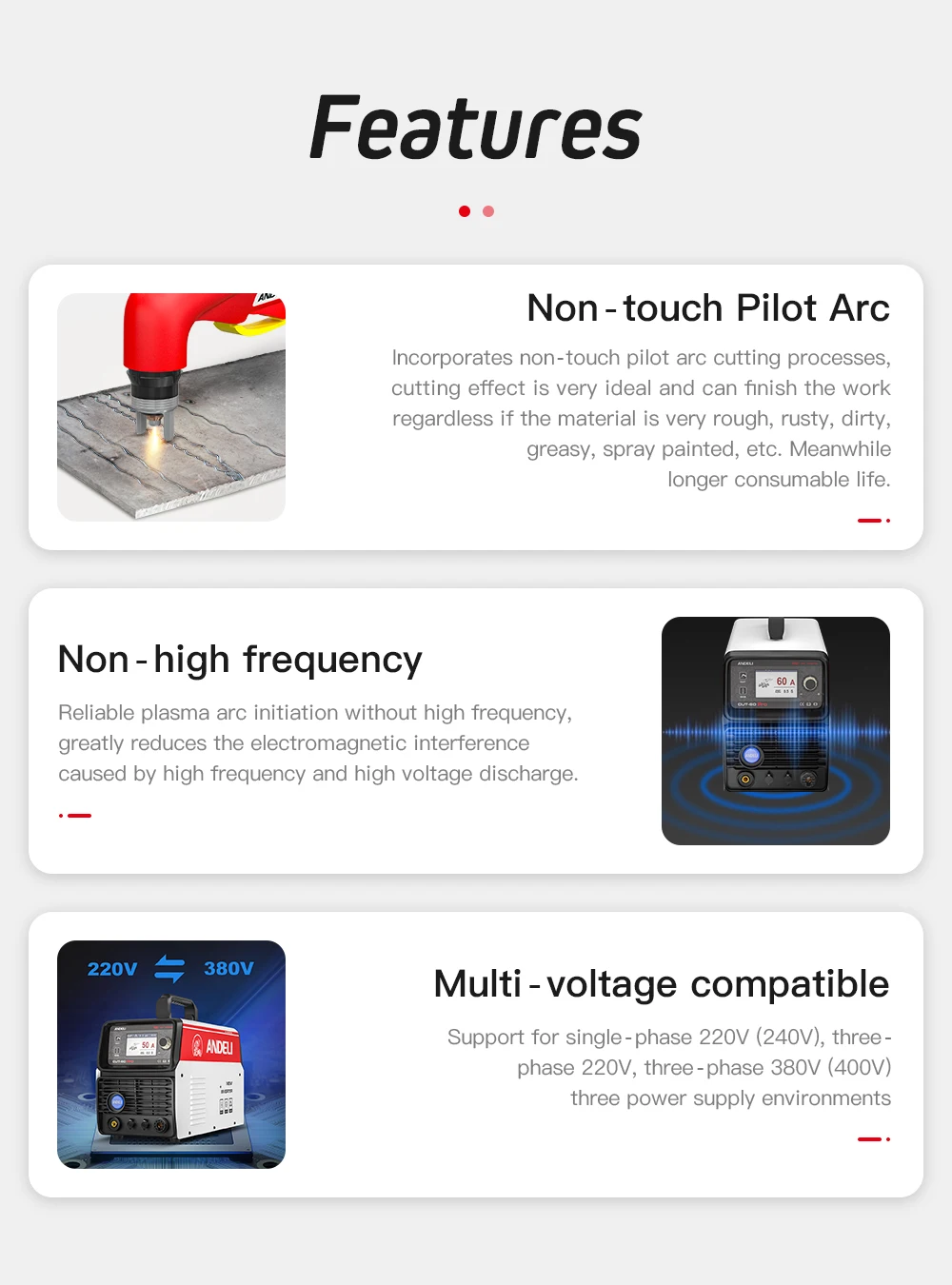

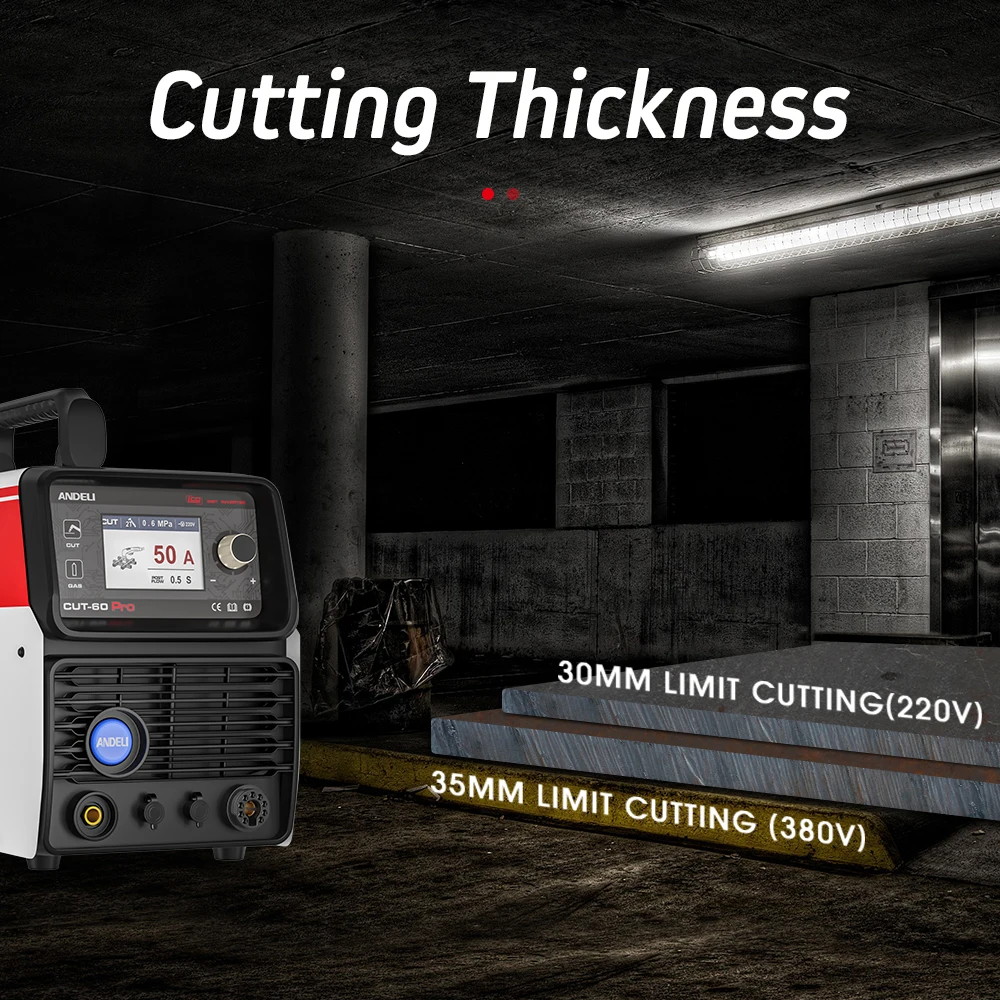

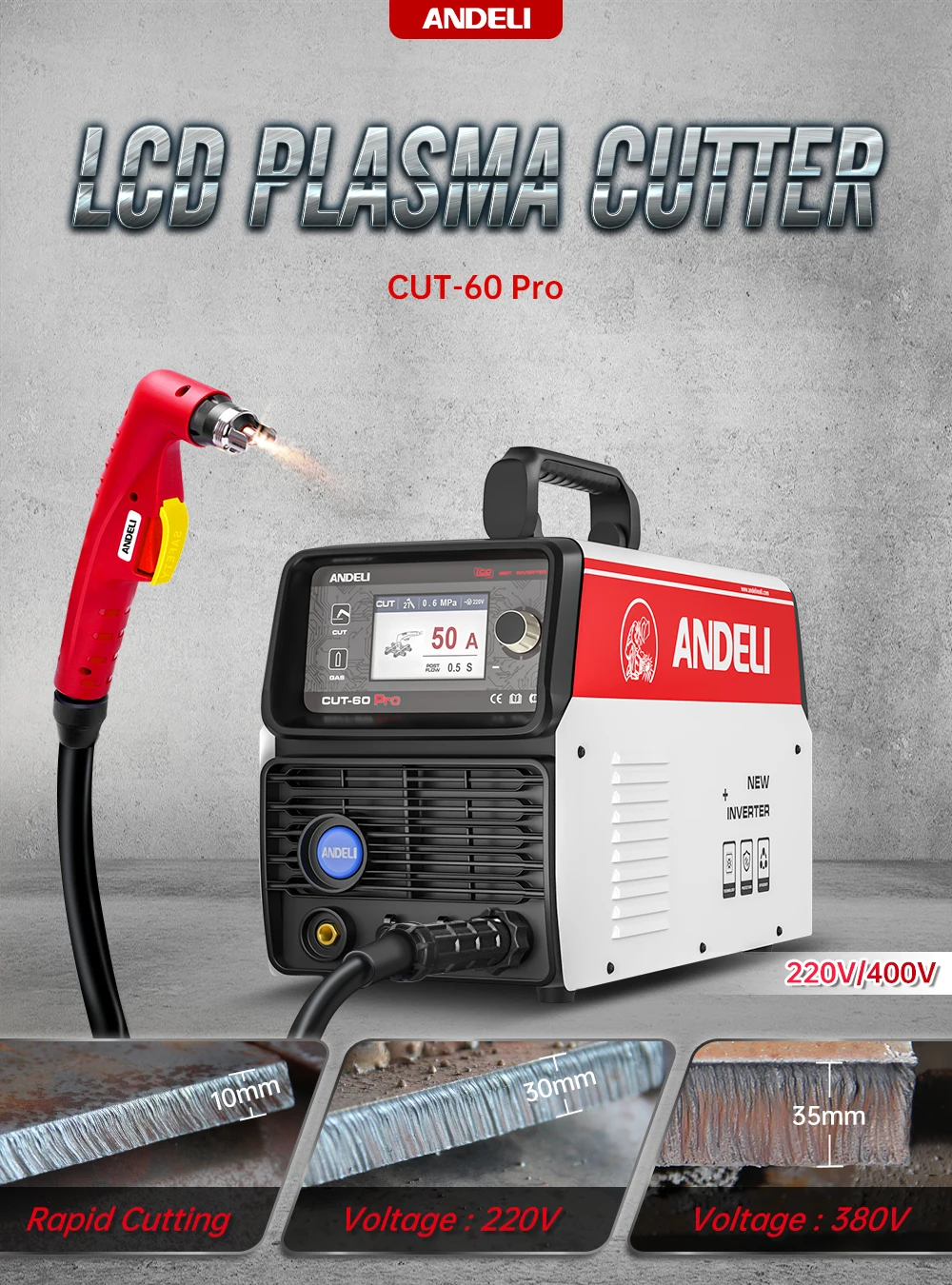

Professional plasma cutting machine, single-function professional cutting machine ,NON-HF 220V ,MAX cut thickness 35mm, effective cutting thickness 30mm,NON-HF 380V MAX cutting thickness 40mm, effective cutting thickness 35mm

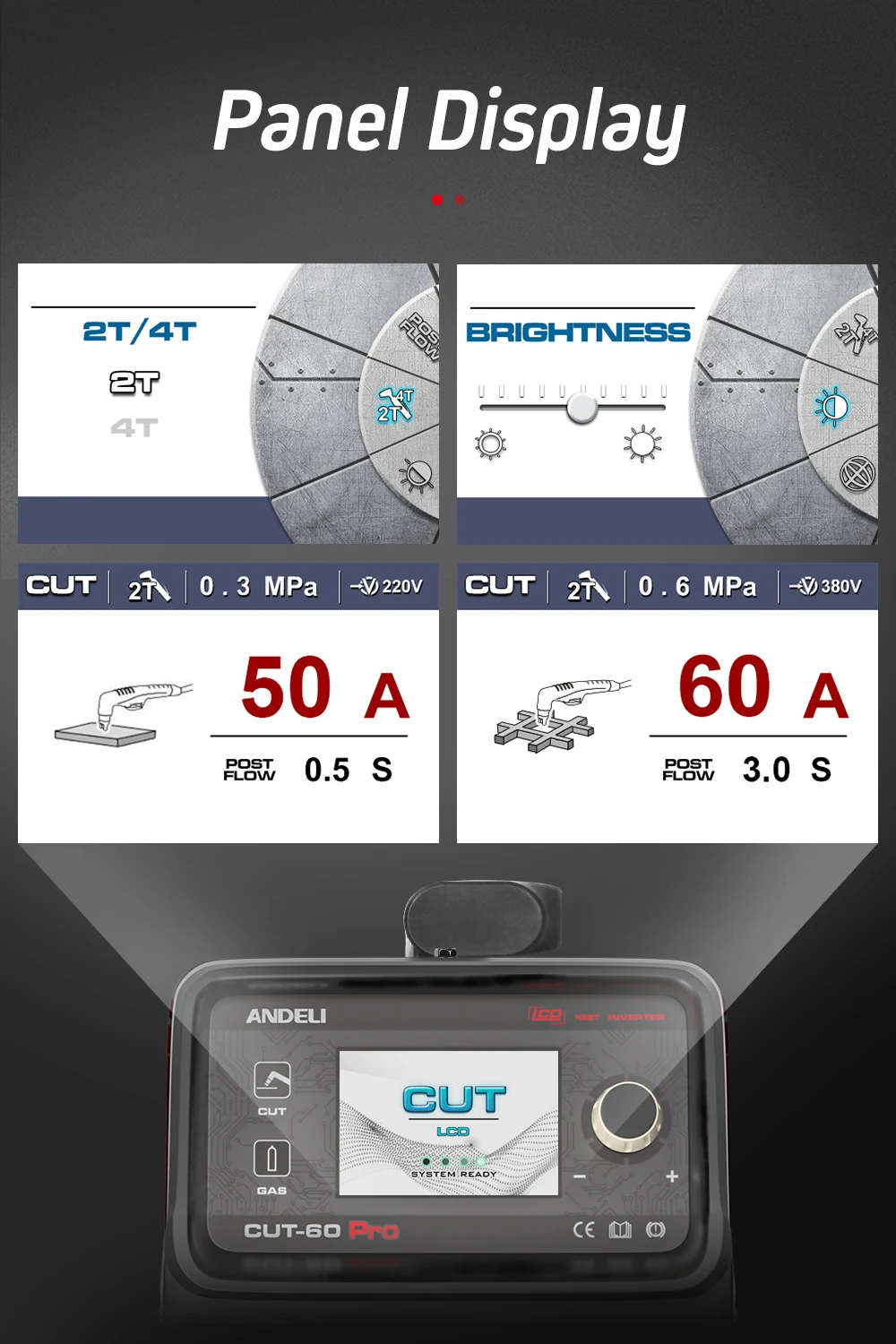

LCD Panel support parameters adjustment

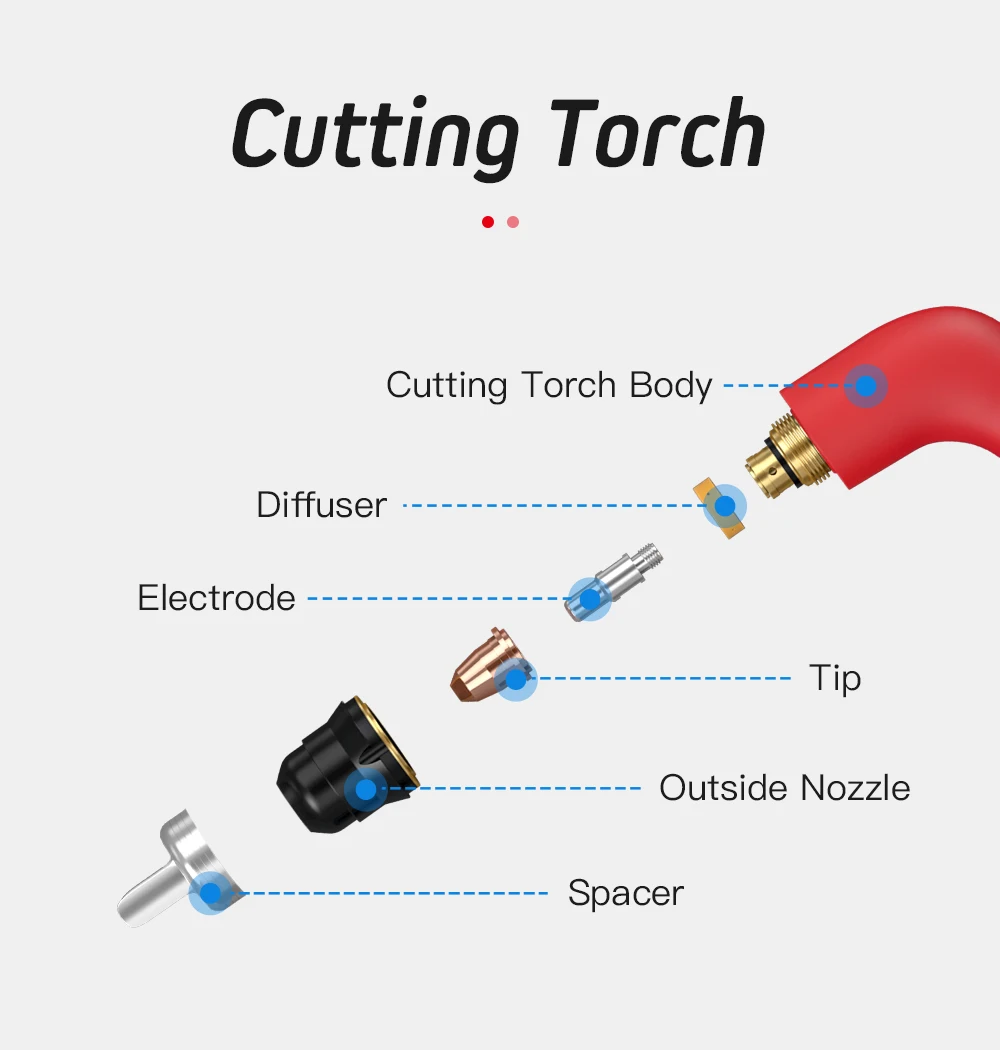

Current change automatically based upon plate thickness 2T/4T support easy function for torch .

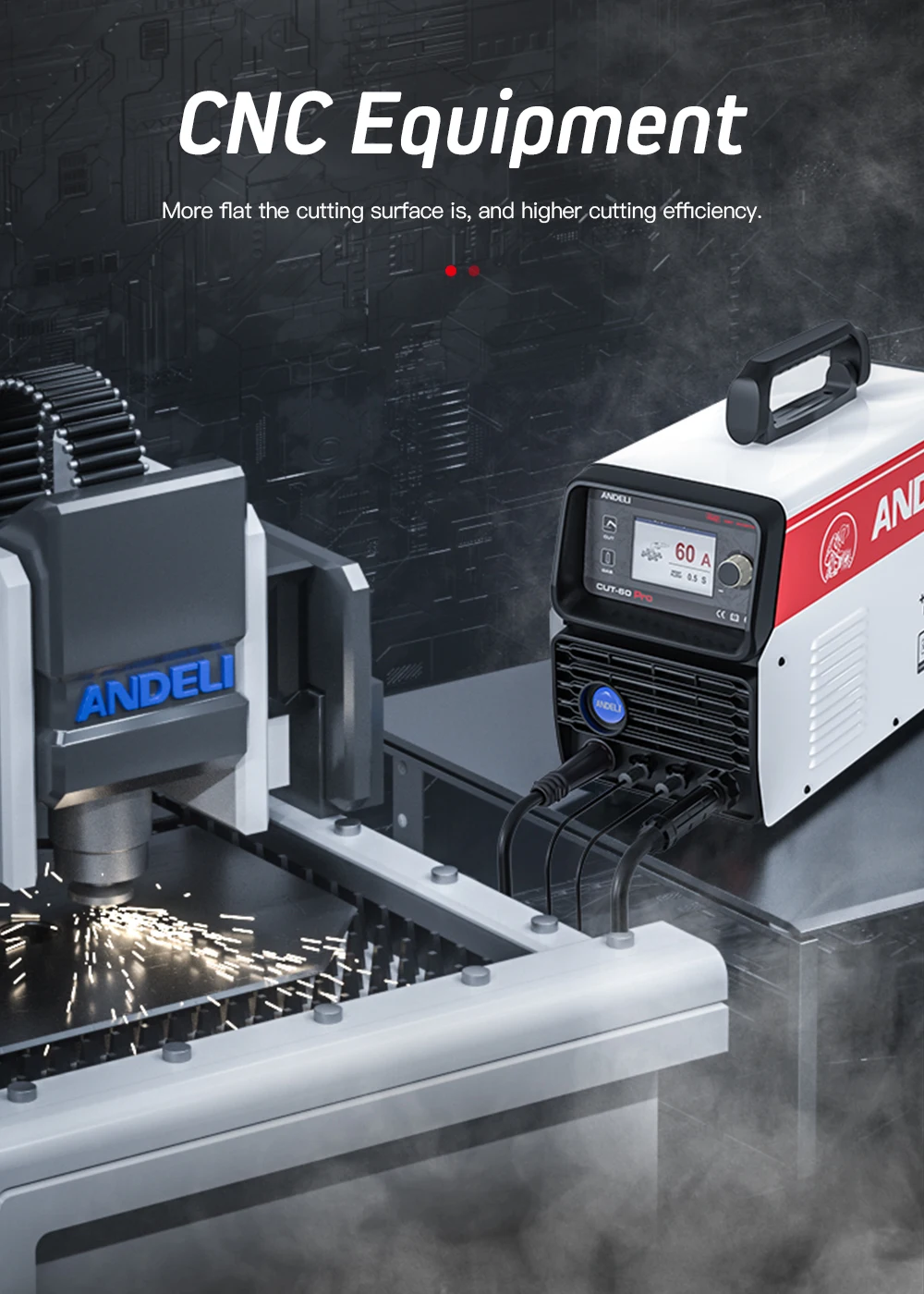

2cores and 4 cores CNC interface , CNC Compatiable.

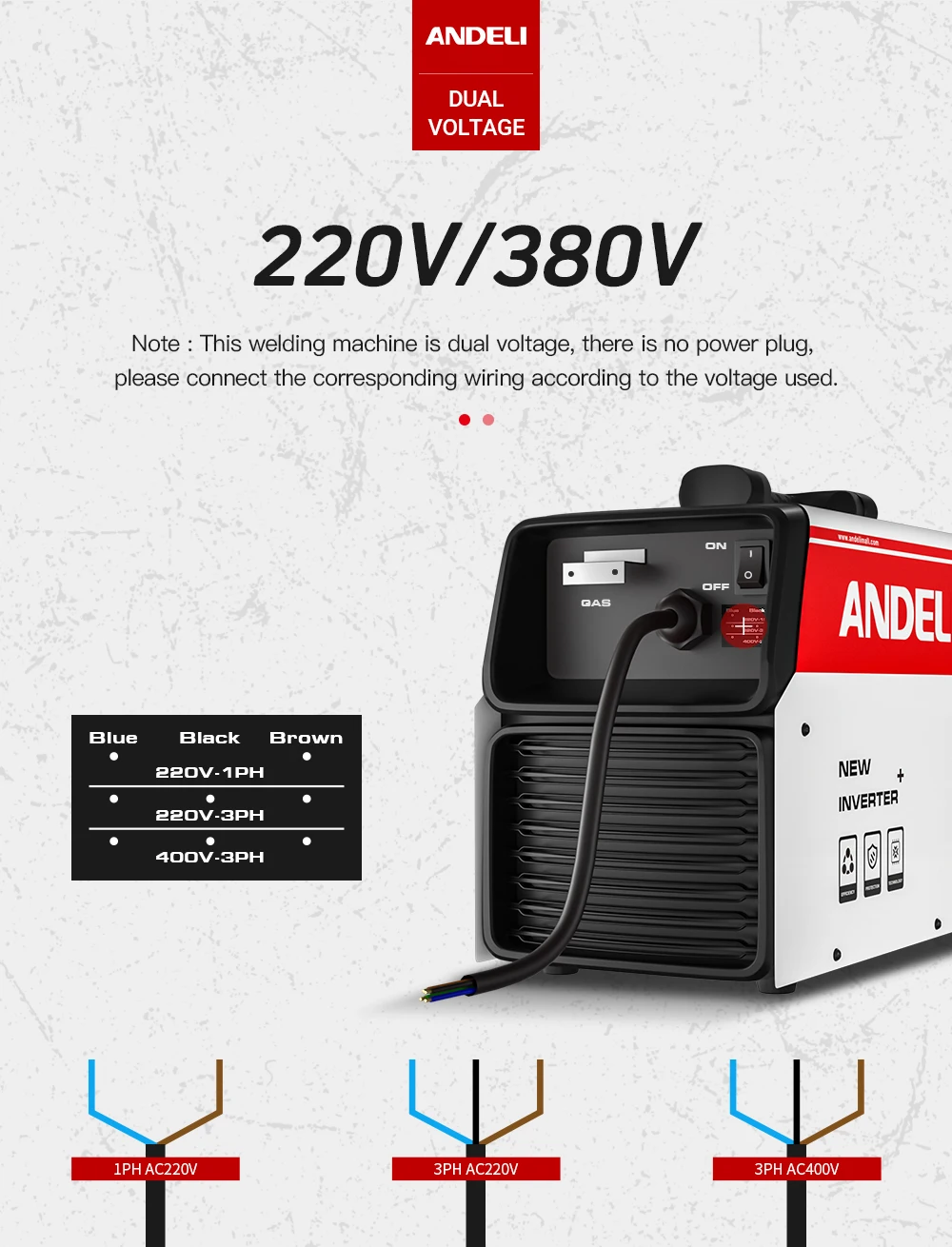

Multi-voltage compatible Support for single-phase 220V (240V), three- phase 220V, three-phase380V (400V) three power supply environments

Specification

item	LCD CNC CUT-60 PRO
Input Voltage  (V)	220V ±10%  1PH/3PH	400V ±10% 3PH
Rated Input Current	42	11
Rated Input Capacity	9.6	7.5
non-load voltage	365	320
current range ( A)	20-50	20-60
Rated Output Voltage	88-100	88-104
Efficiency %	85	86
power factor	0.63	0.99
30% Duty Cycle (40℃,10min)	50	60
60%  Duty Cycle (40℃,10min)	35	42
100%  Duty Cycle (40℃,10min)	27	33
CUTTING THICKNESS	CARBON STEEL	30 MM  110V/ 35MM 220V
		STAINLESS STEEL	20 MM  110V/ 25MM 220V
		COPPER	10 MM 110V/ 14MM 220V
		ALUMINIUM	15 MM 110V/ 20MM 220V
Pressure of Air Compressor (MPa)	0.3-0.6	0.3-0.6
Nozzle Inslde Hole(MM)	1.1	1.1
Insulation Class	H	H
Protection Class	IP21S	IP21S
Arcing Way	NON-TOUCH	NON-TOUCH
Grid Cut	YES	YES
Machine Dimensions(MM)	460*224*327	460*224*327
Weight(KG)	13.5	13.5

Company Profile

About Us Andeli Group Co,Ltd, founded in 1985, is located in the largest manufacturing base of low-voltage electric equipment of Liushi China, which is called "the Electric Device Metropolis of China". Andeli Group Co,Ltd is a leading group in the electrical indutry, with production, scientific research, transport, import and export trade, investment. We are a big group without regional limited,cross-industrial in China. Andeli owns 12 share holding companies in Zhejiang,Shanghai, Hunan, UAE, Russia, Brazil, Uganda, Pakistan and over 300 cooperating companies. Andeli has over 3000 workers with total assets of USD150,000,000 in 235,000 square meters. "ANDELl"trademark is identifed as one of the Chinese well-know trademarks. Andeli regards quality of products as life. We have passed ISO9001:2000 Quality Management System, Mesure Detection System,Standardization System Certification and"CCC" for all products in the market.We have also passed ROHS CECBSIMKO KEMA and so on international certifications.We produce and widely sell over 300 series more than 10000 types in high-and-low voltage electrical device,complete equipment power transformer, cable and wire, instrument and meter, welding equipment, which are praised by all users. A number of new independent intellectual property right, intelligent appliances is moving into the market.We are keeping our business principles for "Approaching the first-class management, producing the first-class products,providing the first-class service".All Andeli staffs are working hard and constantly innovate. Honest Andeli welcome to all users to fighting a better tomorrow hand in hand.

FAQ

1. who are we?
We are based in Zhejiang, China, start from 2010,sell to Eastern Europe(50.00%),North America(15.00%),Western Europe(10.00%),Eastern Asia(10.00%),South America(5.00%),Oceania(5.00%),Southeast Asia(5.00%). There are total about 501-1000 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Welding Machine;Helmet;Gloves;tungsten electrodes;welding rods,etc/

Ordering and Pricing

• Minimum order quantity: 1 box
• Volume pricing:
  • 1+ box: US $440 / box
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this centrifugal fans?

The standard minimum order quantity is 1 box. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 years warranty. Spare parts and technical support remain available after the warranty period.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Andeli Group Wenzhou Import Export Co., Ltd., based in China. The company 5 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Andeli Group Wenzhou Import Export Co., Ltd. range on HVACR Nexus.
