Centrifugal fans — 220 V, Other, type Testing Machine. The complete factory specification follows. Made by Dongguan Lonroy Equipment Co., Ltd. (9 years on the platform, typical reply ≤5h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of These Centrifugal Fans
- Power: /
- Voltage: 220 V, Other
- Warranty: 1 Year
- Place Of Origin: Guangdong, China
- Application: Auto Testing, Laboratory Testing, Lab Testing
- Type: Testing Machine
Technical Specifications
| Type | Testing Machine |
|---|---|
| Application | Auto Testing, Laboratory Testing, Lab Testing |
| Accuracy Class | High Accuracy |
| Voltage | 220 V, Other |
| Protection Class | IP66 |
| Warranty | 1 Year |
| Customized Support | OEM, OBM, ODM, Software Reengineering |
| Power | / |
| Accuracy | ±1.5% |
| Place Of Origin | Guangdong, China |
| Brand Name | LONROY |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
PRODUCT HIGHLIGHTS
- The complete equipment set shall include testing apparatus compliant with the full-scale seat combustion requirements of GB/T 25207-2010, GB/T 27904-2011, ISO 9705-1993, 16 CFR 1633, EN 45545-2, and DIN 5510-2. This includes a combustion chamber, smoke collection and gas sampling systems, gas analysis and data processing systems, and a gas supply system;

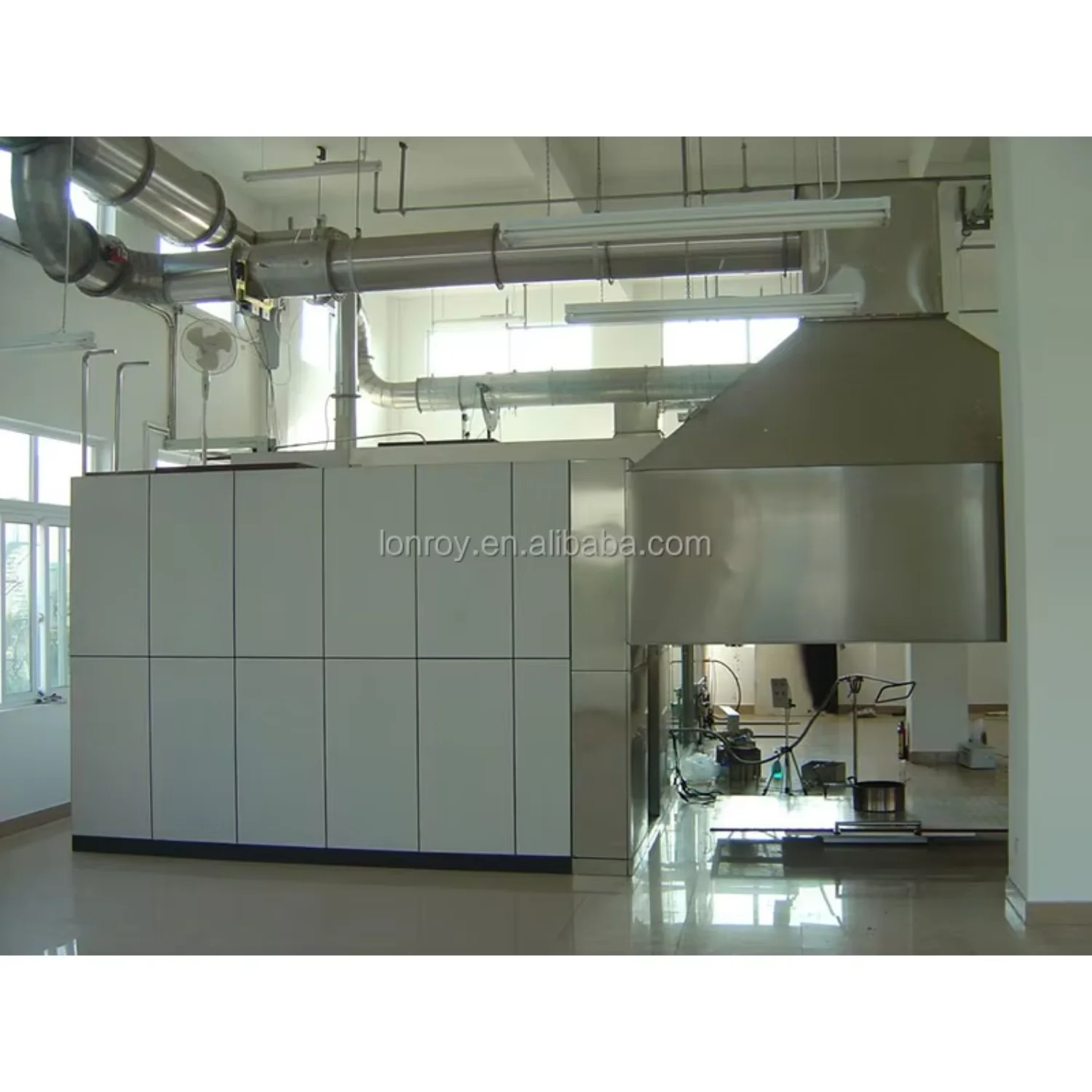

- A conical smoke collector is installed directly above the weighing platform and the test specimen; it features a base dimension of 3000 × 3000 mm and a height of 1000 mm. The top section is a 900 × 900 × 900 mm square, within which two 500 × 900 mm steel plates are installed to serve as a smoke mixing device;
- The stainless steel exhaust duct has a minimum length of 5000 mm and a diameter of 400 mm, with smoke mixing devices installed at both ends;
- The exhaust system possesses sufficient capacity to collect all smoke generated during combustion tests; the fan's exhaust volume is continuously adjustable, and the exhaust flow rate is no less than 3.5 m/s;
- The exhaust fan is a centrifugal type with a stainless steel inner casing capable of withstanding temperatures of at least 300°C; a variable frequency drive (VFD) is used to regulate the fan speed;
- The comprehensive measurement section is equipped with a pressure probe, three thermocouples, a gas sampling probe, and a smoke density measurement system;
- The sand-box burner is filled with gravel (4–8 mm particle size) and sand (2–3 mm particle size), with the top layer of sand flush with the upper edge of the burner;
- The sand-box burner utilizes a surface ignition method; ignition methods with low success rates, such as electric spark ignition, are not used.
- Equipped with a UV flame monitoring and flame-out protection device to ensure system safety;
- Mass flow controller with a range of 0 g/s–7 g/s, a reading accuracy of at least 1.5%, and a maximum output power of 300 kW;

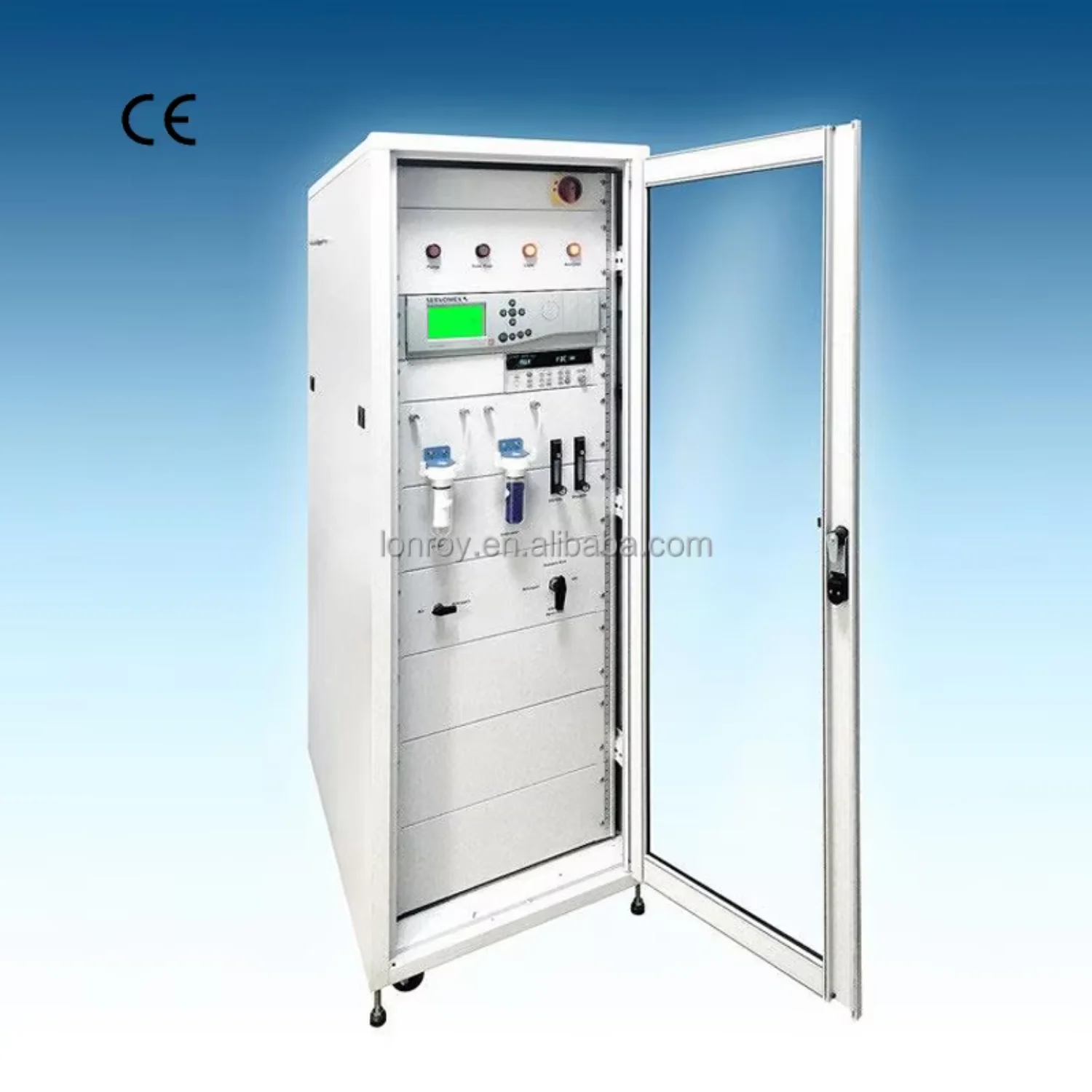

- Flue gas sampling system, consisting of a soot filter, compressor-type condenser, drying column, sampling pump, flow meter, etc., capable of effectively collecting flue gas samples and absorbing exhaust gas;
- Imported diaphragm pump with a sampling flow rate of at least 13 L/min;
- Imported soot filter head made of solid PTFE, containing 0.5 μm glass fiber filter material;
- Compressor-type condenser with a cooling capacity of 320 kJ/h, dew point stability of 0.1°C, static dew point variation of 0.1 K, and cooling flow rate of at least 6 L/min;
- Imported rotameter with a range of 0–5 L/min;
- Integrated measurement device including three imported OMEGA thermocouples; their contact points must be positioned on an arc with a radius of (87 ± 5) mm from the central axis, spaced at 120° intervals;
- Bidirectional probe connected to an imported pressure sensor with a range of at least (0–200) Pa and an accuracy of ±2 Pa; the response time for 90% of the pressure sensor's output must not exceed 1 s;
- Paramagnetic oxygen analyzer capable of measuring O2 concentrations of at least 16%–21% (v/v); response time not exceeding 12 s; drift and noise within 30 minutes not exceeding 100 × 10⁻⁶; output resolution to the data acquisition system of at least 100 × 10⁻⁶;
- IR-type carbon dioxide analyzer capable of measuring CO2 concentrations of at least 0%–10%; linearity of at least 1% of full scale. The response time of the analyzer shall not exceed 12 s;
- Smoke density measurement system: installed on a side branch of the exhaust pipe using a flexible connection; the incandescent lamp operates at a color temperature of (2900 ± 100) K;
- Optical measurement component: measurement range covers the visible light spectrum (400–750 nm), with a transmittance accuracy of 0.01%;
- Calibration method for the optical measurement component (100% and 0%): zero-point calibration is performed by turning off the incandescent light source and clicking "0%" in the software; 100% calibration is performed by clicking "100%" with the optical path unobstructed; neutral density filters are not used for curve fitting of optical path data;
- Device for measuring ambient atmospheric pressure, with an accuracy of ±200 Pa;
- Data acquisition and analysis system: ensures accurate and reliable data collection and automatically records required data every 3 seconds; software performs calculations correctly and yields valid results; provides the following calibration and operation interfaces;
- O2/CO2 analyzer calibration: calibration of O2/CO2 output noise and drift, plus result output forms; 27. Software includes optical system calibration, noise and drift calibration for the smoke measurement system, and result output forms;
- Software includes optical system calibration, filter calibration, and result output forms;
- Software includes airflow calibration, airflow control range calibration, and result output forms;
- Software includes step calibration and result output forms;
- Software includes heptane calibration and result output forms;
- Software includes test procedures and result output forms;
- Equipped with a computer and printer system;
- Equipped with a seating combustion test frame, burner, and gas flow control system;
- Equipped with a mattress combustion test frame, burner, and gas flow control system;
- Equipped with a rail transit seating test frame, burner, and gas flow control system.
ISO 9705 EN 45545 Seat Combustion Tester Furniture Mattress Burning Test Machine DIN 5510 Rail Transit Seat Fire Behavior Tester
Product Introduction
The integrated seat combustion test apparatus is designed to evaluate the combustion performance of rail transit seats, as well as upholstered furniture and their components. Testing involves igniting the seat, mattress, or component using a standard burner or a paper-pad ignition source. Smoke generated during combustion is collected via a hood, enabling the assessment of key fire-retardant performance indicators such as smoke density, peak heat release rate, total heat release, and flame spread. Applicable Industries: Aviation materials Applicable Standards EN (European Standard): EN 45545-2+A1:2022;
GB (Chinese National Standard): GB 8624:2025;
CPSC (US Consumer Product Safety Commission): CFR 1633;
DIN (German Institute for Standardization): DIN 5510-2;
ISO (International Organization for Standardization): ISO 9705:2016;
GB (Chinese National Standard): GB/T 27904:2011;
GB (Chinese National Standard): GB/T 25207:2010
ISO 9705 EN 45545 Seat Combustion Tester Furniture Mattress Burning Test Machine DIN 5510 Rail Transit Seat Fire Behavior Tester
Technical Specifications
Dimensions and Weight | |
Dimensions | Combustion chamber 2400 × 3600 × 2400 mm |
Smoke collection hood | 3000 × 3000 × 1000 mm |
Weight | 700 kg |
Installation Requirements | |
Power requirements | 220 V, 1.1 kW; 380 V, 5 kW |
Ambient temperature | 10°C to 35°C |
Gas requirements | Propane, nitrogen, and carbon dioxide (standard gases) |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal fans?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the centrifugal fans be supplied for my local voltage?
The standard configuration is 220 V, Other. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
