Centrifugal inline fan — 380V, blade material Mild Steel/galvanized steel. The complete factory specification follows. Made by Taizhou Lion King Signal Co.,Ltd (17 years on the platform, typical reply ≤6h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Centrifugal Inline Fan
- Model Number: BKB/BKBS
- Voltage: 380V
- Blade Material: Mild Steel/galvanized steel
- Warranty: 1 Year
- Certification: CE, ISO
- Place Of Origin: Zhejiang, China
Technical Specifications
| Mounting | Free Standing |
|---|---|
| Voltage | 380V |
| Blade Material | Mild Steel/galvanized steel |
| Electric Current Type | AC |
| Warranty | 1 Year |
| After-Sales Service Provided | Online support |
| Place Of Origin | Zhejiang, China |
| Brand Name | LIONKING |
| Model Number | BKB/BKBS |
| Certification | CE, ISO |

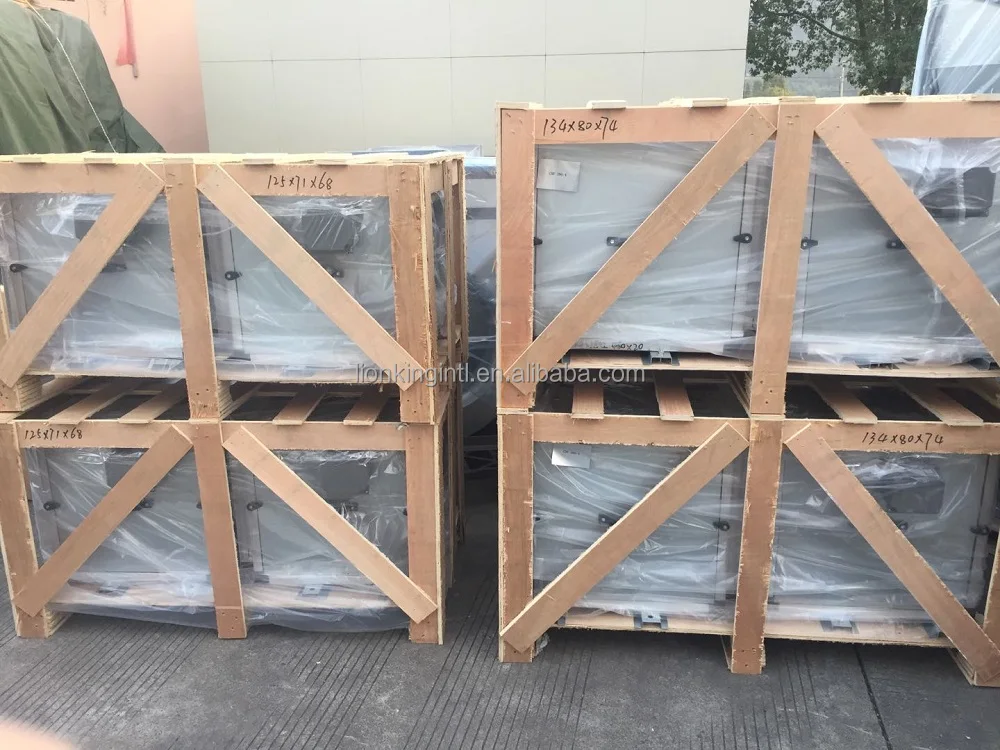

| Packaging Details | Wooden Frame |
| Port Of Dispatch | Shanghai/Ningbo |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 3000 pieces per Month |
Product Details

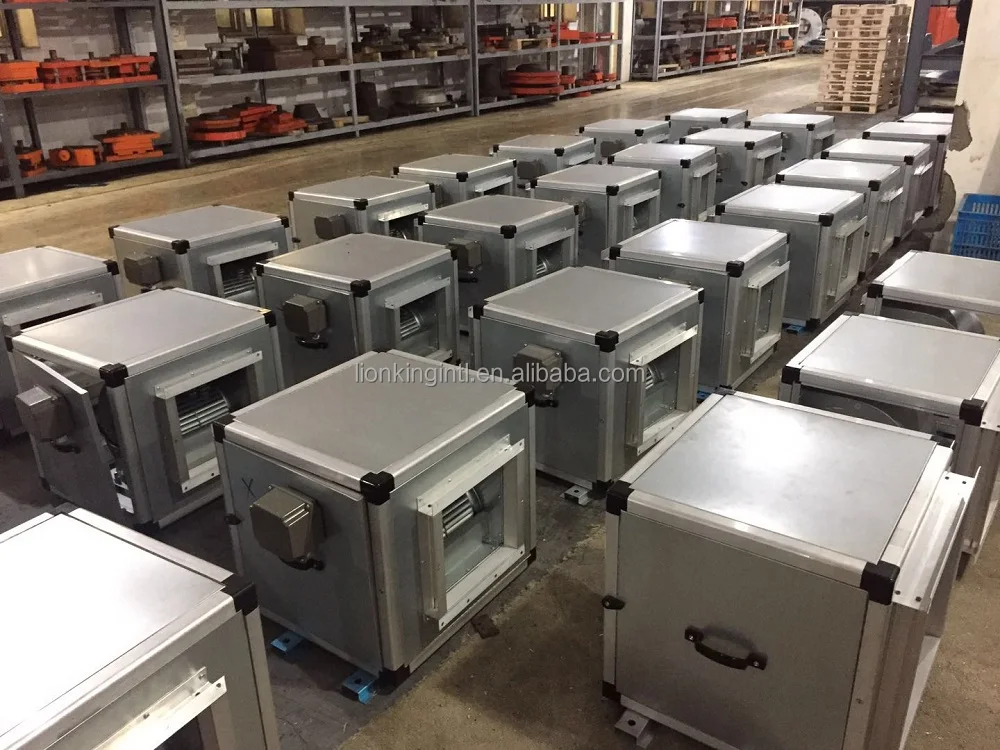

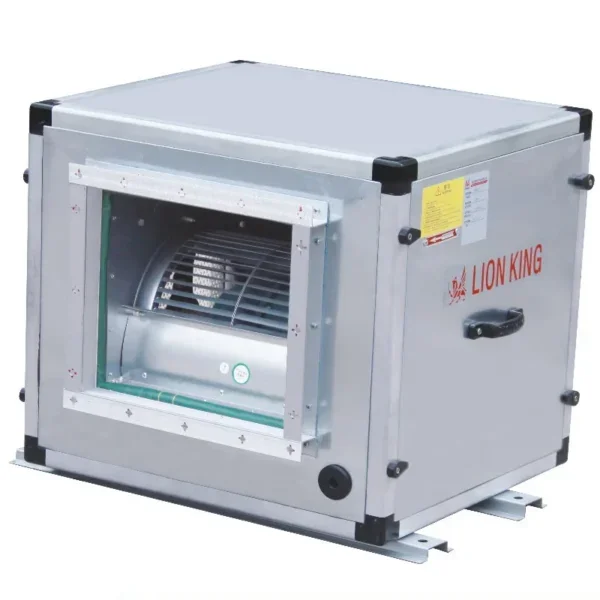

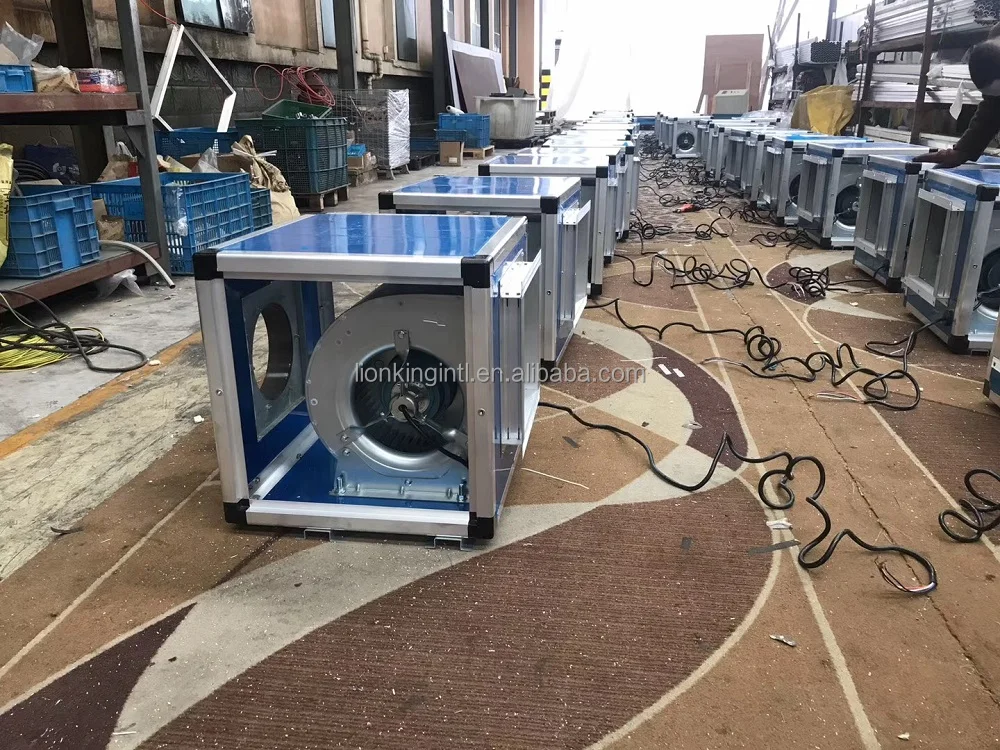

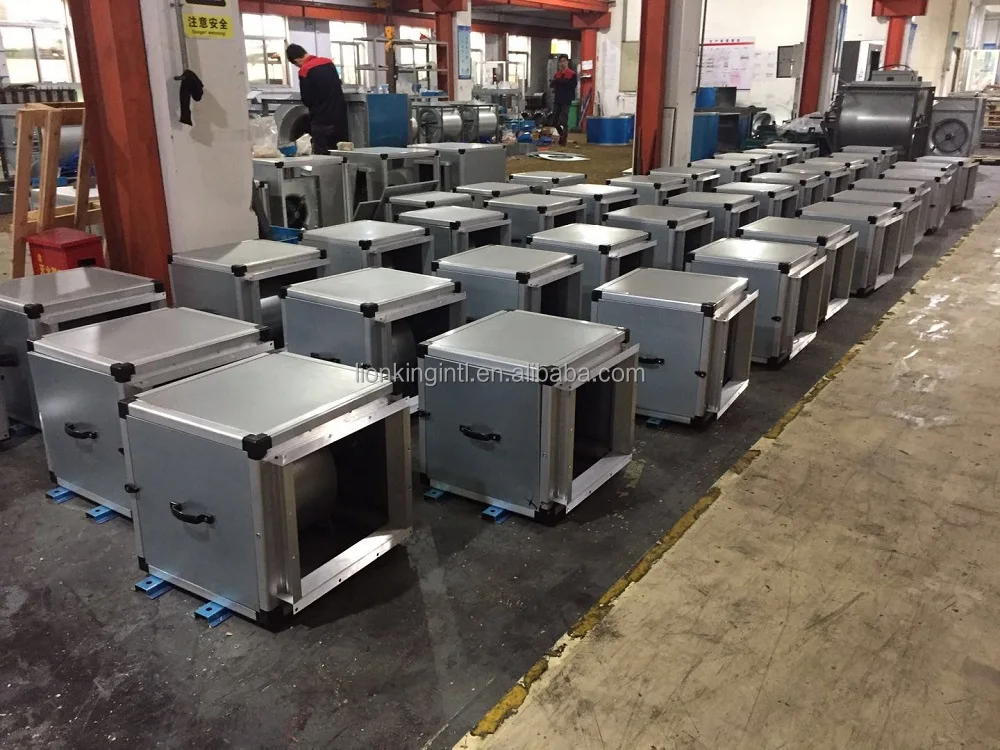

Centrifugal Inline fan, Direct Drive
The BKB series duct fan is build-in double inlet forward curve centrifugal fans. Than fan is driven by LKB series external rotor motor. The BKB series includes 9 models. The air volume and total pressure range from 1000m³/h to 20000m³/h and 200Pa to 600Pa. Customers can request a different site on the noise, can be used with BKBS-type silencer box to meet the requirements of low noise. Pipe fan of series special motors can be configured through the three-phase voltage regulator, SCR voltage regulator, inverter and other means of speed, changing to meet system load requirements.
Impeller Diameter:200-500mm
Air volume Range:500-20000 m³/h
Total pressure Range: up to 600 Pa
Drive Type: Direct Drive
Model: 200,225,250,280,315,355,400,450,500
Installation Type: Seat installation, hoisting installation
Applications: Mute ventilation, purification ventilation
Zhejiang Lion King Ventilator Co., Ltd., a professional manufacturer of various axial fans, centrifugal fans, air-conditioning fans, engineering fans, mainly consists of Research and Development Department, Production Department, Sales Department, Testing Center, and Customer Service.
It is located in Taizhou City, Zhejiang Province, which is near to Shanghai and Ningbo with very convenient transportation system. The company has CNC lathes, CNC machining centers, CNC punch press, CNC bending machine, CNC spinning lathes, hydraulic press, dynamic balancing machine and other equipment.
The company has perfect comprehensive Testing Center, which includes facilities for air volume test, noise test, torque force and tensile force test, high and low temperature test, overspeed test , life test etc.
Relying on its mold technology center and engineering technology center, the company has developed forward curved multi-blades centrifugal fan,backward centrifugal fan, voluteless fan, roof fan, axial flow fan, box-type fan series with more than 100 specifications of metal fans and low noise fans.
The company attaches great importance to quality management, and was awarded the ISO9001 international quality system certification very early. At present, the "LION KING" brand has enjoyed great popularity and well-deserved reputation. Meanwhile, the products are also exported to many countries, and honored with consistent high praise and recognition by domestic and foreign customers.
The company always insists the business philosophy of "Safety First, Quality First", and are keeping to serve all customers based on " innovation, rapid response, and full services."
Ordering and Pricing
- Minimum order quantity: 1 piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this centrifugal inline fan?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

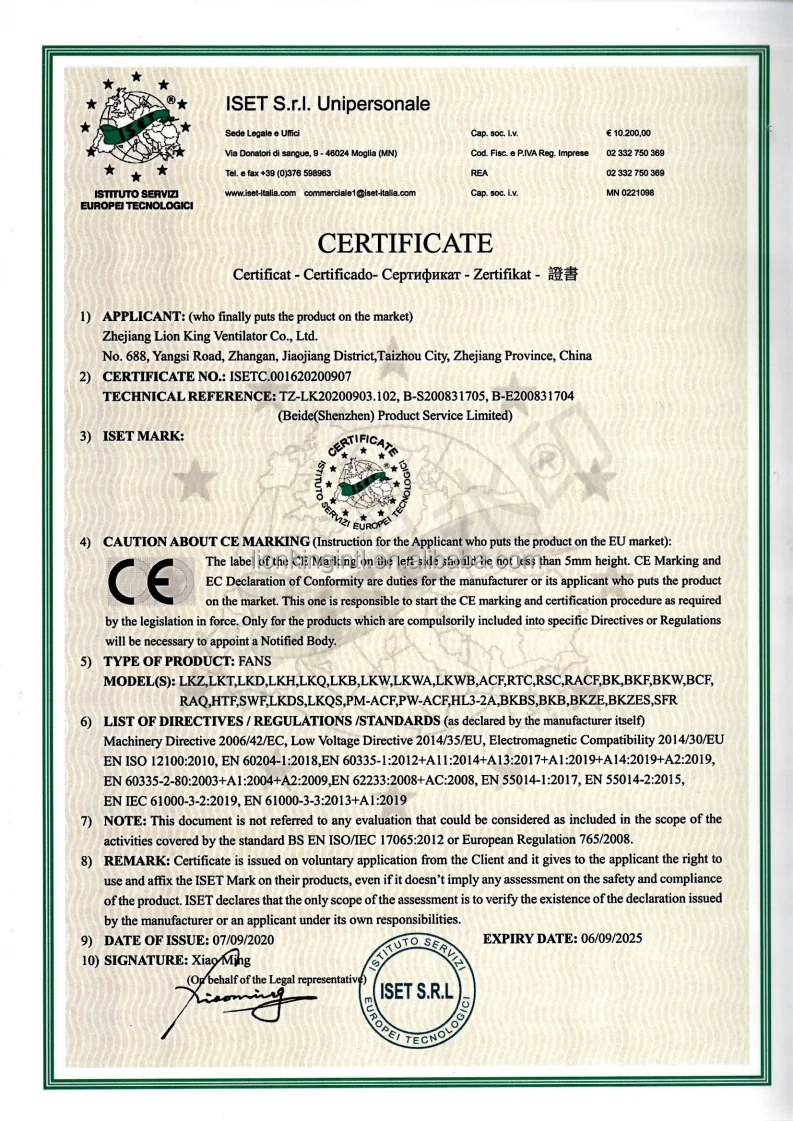

Which certifications does this centrifugal inline fan carry?
It is supplied with CE, ISO documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the centrifugal inline fan be supplied for my local voltage?
The standard configuration is 380V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Taizhou Lion King Signal Co.,Ltd, based in China. The company 17 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Taizhou Lion King Signal Co.,Ltd range on HVACR Nexus.
