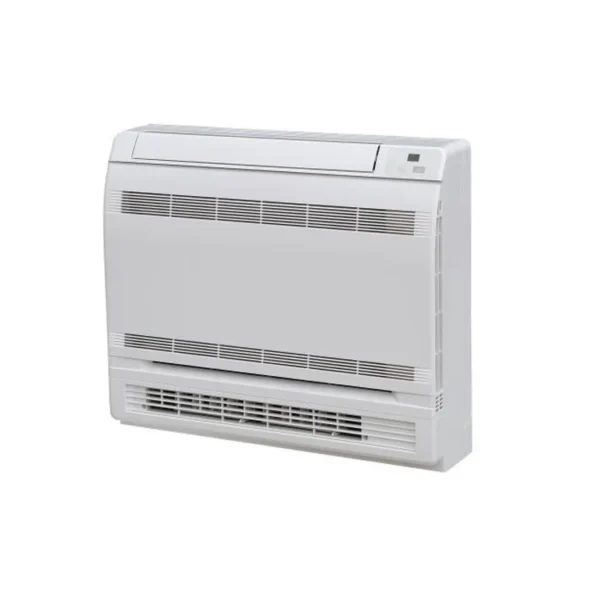

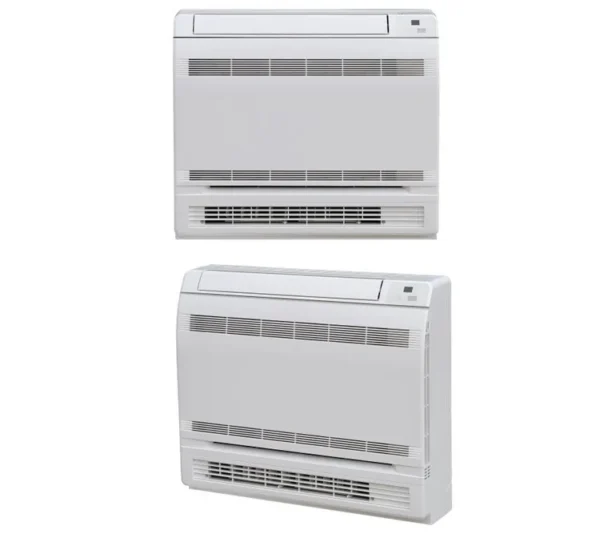

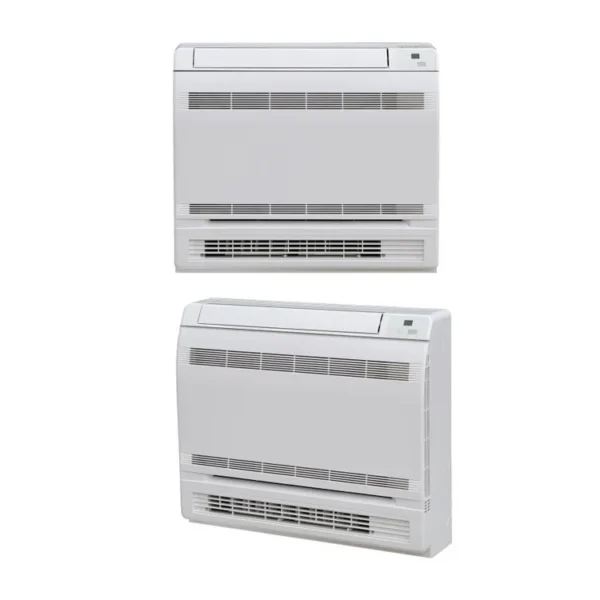

Fan coil unit — airflow 600m³/h, type Fan Coil Unit. The complete factory specification follows. Made by Shenzhen Monchrui Industry Development Co., Ltd. (9 years on the platform, typical reply ≤5h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Fan Coil Unit
- Operating Voltage: 220VAC
- Cooling Capacity: 2.2-3.8kW
- Heating Capacity: 2.1-5.6kW
- Airflow: 600m³/h
- Warranty: 1 Year
- After Warranty Service: Field maintenance and repair service
Technical Specifications
| Type | Fan Coil Unit |
|---|---|
| Airflow | 600m³/h |
| Operating Voltage | 220VAC |
| Mounting Type | Floor Standing |
| Key Selling Points | Energy Saving |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 16 KG |
| Brand Name | MONCHRUI |
| Dimension(L*W*H) | 705(L)*605(W)*220(H)mm |
| After Warranty Service | Field maintenance and repair service |
| After-Sales Service Provided | Online support |
| Cooling Capacity | 2.2-3.8kW |
| Heating Capacity | 2.1-5.6kW |
| DB/WB | 27℃ / 19.5℃ |
| Water In/Out | 7℃ / 12℃ |
| Air Volume | 300-680 M3/h |
| Size | 705(L)*605(W)*220(H)mm,Customized |
| Weight | 14kg |
| Control Method | LCD Remote control,LCD Wire controller |
| Packaging Details | Packing with carton to a wooden pallet |
| Port Of Dispatch | Shenzhen |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 10000 sets per Month |
Product Details
| Product name | fan coil unit |
| Cooling capacity | 2.2-3.8kW |
| Heating capacity | 2.1-5.6kW |
| DB/WB | 27℃ / 19.5℃ |
| Water in/out | 7℃ / 12℃ |
| Air volume | 300-680 M3/h |
| Size | 705(L)*605(W)*220(H)mm,Customized |
| Weight | 14kg |
| Noise | Low Noise |
| Control method | LCD Remote control,LCD Wire controller |
| Model:MRWM*V-A(E) | MRWM300V | MRWM400V | |||
| CFM | 300 | 400 | |||
| Air Flow Rate | H | m³/H | 510 | 680 | |
| M | 400 | 520 | |||
| L | 300 | 400 | |||
| Cooling | Cooling Capacity | H | kW | 3 | 3.8 |
| M | 2.6 | 3.1 | |||
| L | 2.2 | 2.6 | |||
| Water Flow Rate | L/H | 516 | 655 | ||
| Water Pressure Drop | kPa | 15 | 18 | ||
| Heating | Heating Capacity | H | kW | 4.2 | 5.6 |
| M | 3.5 | 4.2 | |||
| L | 2.1 | 3 | |||
| Fan Blower | Type | Centrifugal Fan | |||
| Qty. | pcs | 1 | |||
| Electric | Power Supply | V/Ph/Hz | 220/1/50 | ||
| Input Power | W | 40 | 45 | ||
| Current | A | 0.19 | 0.22 | ||
| Sound Pressure | dB(A) | 37 | 39 | ||
| Control | Wireless Remote Control | ||||
| Unit Dimensions | mm | 705*605*220 | |||
| Net Weight | kg | 14 | |||
| Water Connection | In | Inch | ZG1/2” | ||
| Out | inch | ZG1/2” | |||
| Drian Pipe(OD) | mm | 26 | |||
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $268 / set
- 10–19 set: US $262 / set
- 20+ set: US $255 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this fan coil unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the fan coil unit be supplied for my local voltage?
The standard configuration is 220VAC. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Monchrui Industry Development Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Monchrui Industry Development Co., Ltd. range on HVACR Nexus.
