Fan coil unit — airflow 510m³/h, 45W. The complete factory specification follows. Made by Shenzhen Monchrui Industry Development Co., Ltd. (9 years on the platform, typical reply ≤6h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Fan Coil Unit
- Power Input: 45W
- Operating Voltage: 220~240V/1ph/50Hz(or 60Hz)
- Cooling Capacity: 2.2-3kW
- Heating Capacity: 4.5-6.4kW
- Airflow: 510m³/h
- Warranty: 1 Year
Technical Specifications
| Type | Fan Coil Unit |
|---|---|
| Airflow | 510m³/h |
| Operating Voltage | 220~240V/1ph/50Hz(or 60Hz) |
| Mounting Type | Ceiling Mount |
| Key Selling Points | Ultra thin |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, Bearing |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 14 KG |
| Brand Name | MONCHRUI |
| Dimension(L*W*H) | 1180*465*175 |
| Product Name | Ultra thin fan coil unit roortop |
| Cooling Capacity | 2.2-3kW |
| Cooling Water Flow Rate | 516L/h |
| Cooling Water Pressure Drop | 15kPa |
| Heating Capacity | 4.5-6.4kW |
| CFM | 300 |
| Power Input | 45W |
| Sound Pressure | 37dB(A) |
| Fan | EC (electrical commutation) motor fan |
| After Warranty Service | Online support |
| Selling Units | Single item |
| Single Package Size | 135X60X30 cm |
| Single Gross Weight | 19.0 kg |
Product Details
Product Overview
Title goes here.
1 Ultra-thin Body. 2 High efficiency coil design 3 Silent high -quality plastic wheel fan 4 Built-in Drain pump float switch. 5 100% On-line test

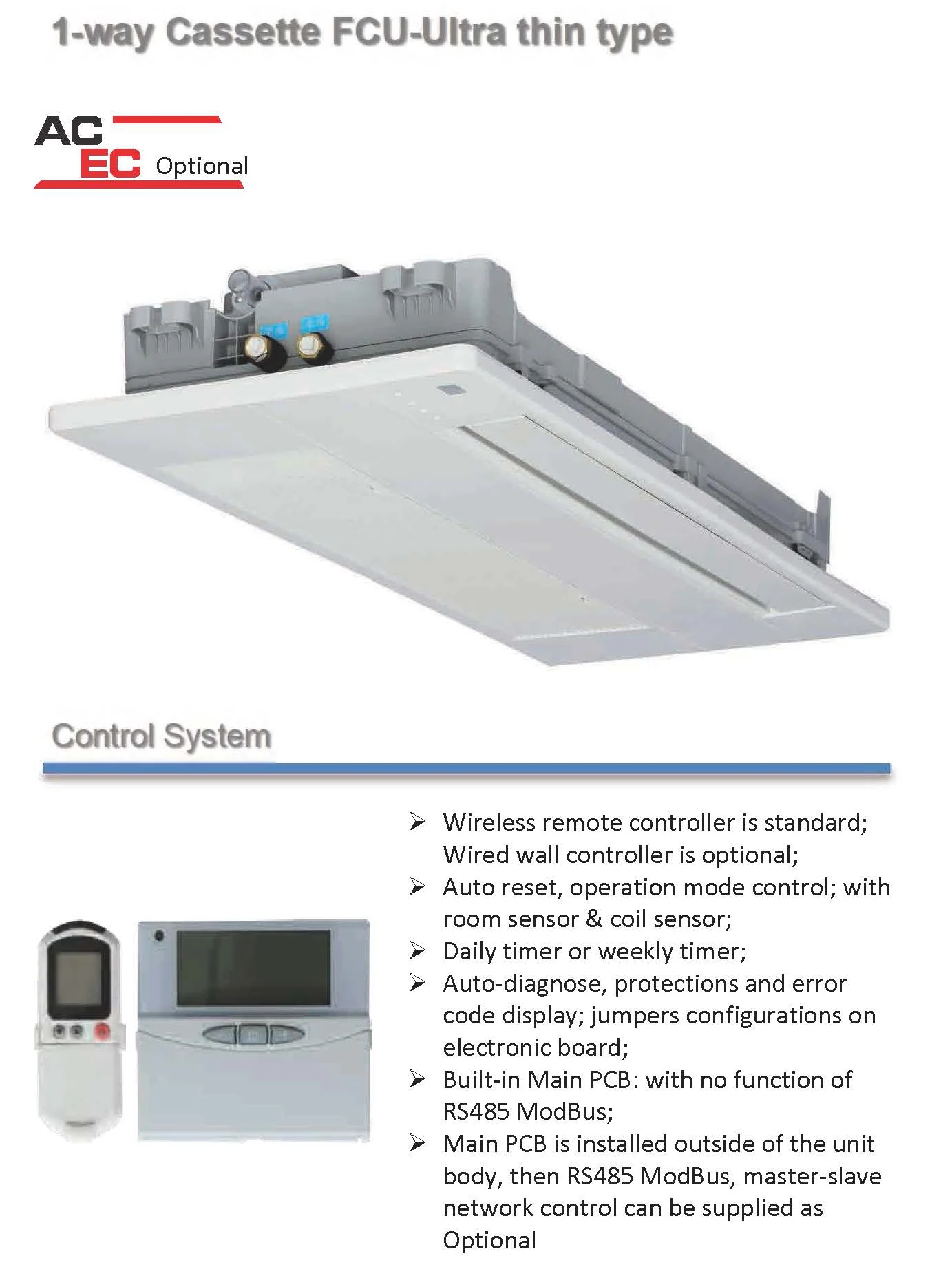

Control system
Wireless remote controller is standard; Wired wall controller is optional; Ø Auto reset, operation mode control; with room sensor & coil sensor;
Ø Daily timer or weekly timer; Ø Auto-diagnose, protections and error code display; jumpers configurations on electronic board; Ø Built-in Main PCB: with no function of RS485 ModBus;
Ø Main PCB is installed outside of the unit body, then RS485 ModBus, master-slave network control can be supplied as Optional
EC (eletrical commutation ) inverter Fan,infinitely variable speed, energy saving and high efficiency
What is the meaning of AC , DC, EC, fan
AC (Alternating Current) fan is an AC power frequency fan, input AC power, power frequency operation, only high, medium and low air volume, need to increase the frequency converter to adjust the frequency. DC (Direct Current) fan is a DC variable frequency fan, inputting DC power and requiring external conversion from AC to DC. EC (Electrical Commutation) fan is a DC brushless fan, input AC power, built-in intelligent control module, convert AC power to DC power, and it can adjust the speed according to the ambient temperature, less power consumption
AC (Alternating Current) fan is an AC power frequency fan, input AC power, power frequency operation, only high, medium and low air volume, need to increase the frequency converter to adjust the frequency. DC (Direct Current) fan is a DC variable frequency fan, inputting DC power and requiring external conversion from AC to DC. EC (Electrical Commutation) fan is a DC brushless fan, input AC power, built-in intelligent control module, convert AC power to DC power, and it can adjust the speed according to the ambient temperature, less power consumption
Design

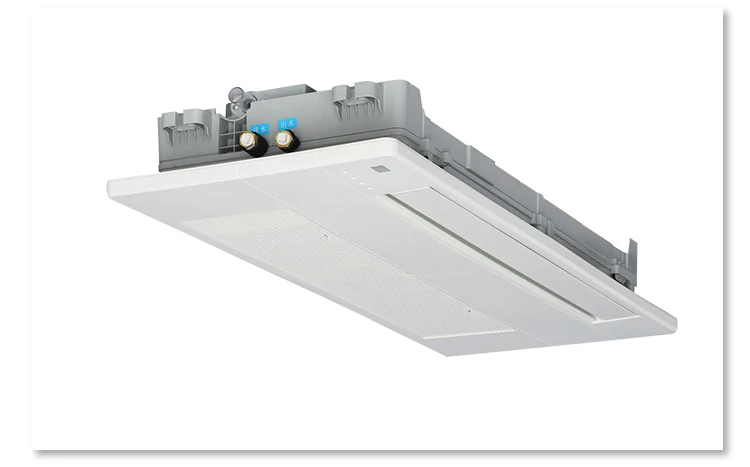

1-way ultra thin type cassette units,the height of the body is only 150mm,which is suitable for some very limited space and narrow space.It's panel and body are made of ABS,high production efficiency,exact dimension and good consistency.
√Unit Body
Aesthetic design, ECO-friendly ABS material and ultra slim,suitable for some limited space and narrow space. Panel Assembly

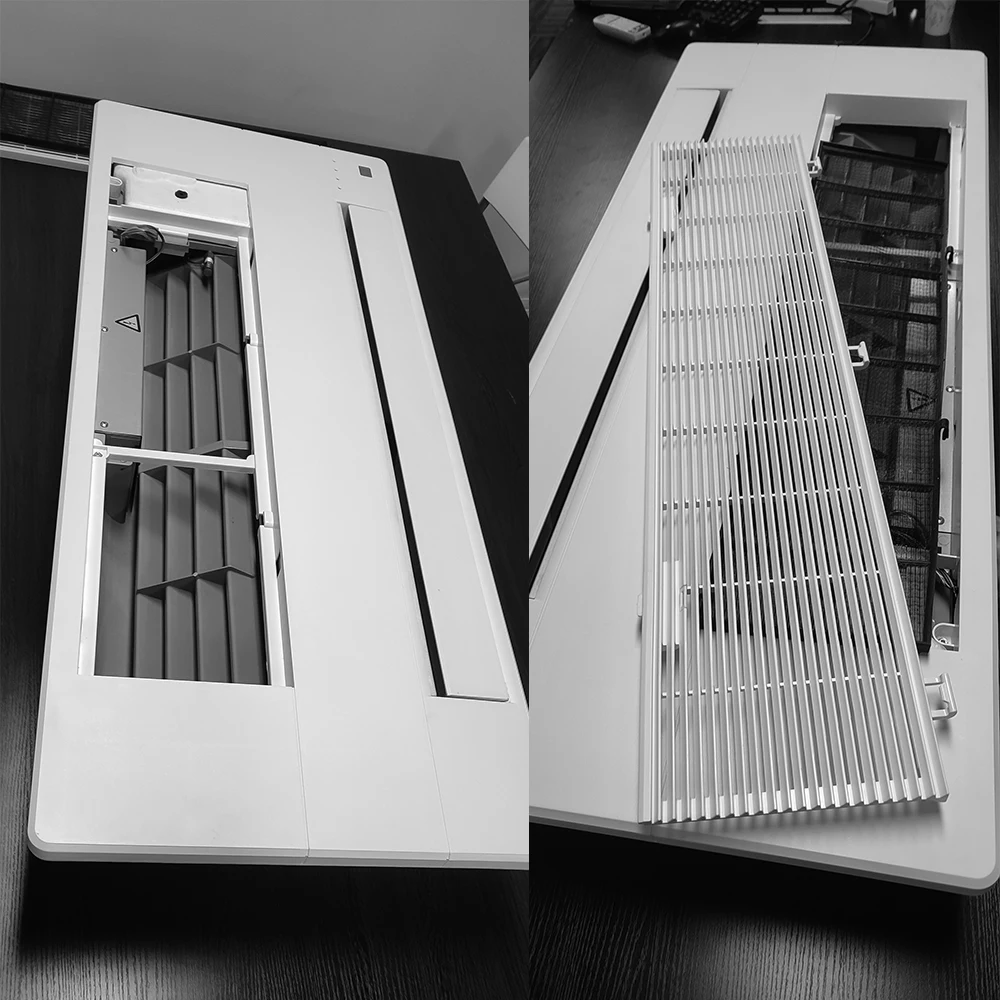

Aesthetic panel design, synthetic washable and removal air filter,auto swing.
√Quiet Running
Cross flow blower with 3 speed motor.
√High Efficiency Coil Coil
are made of copper tubes and high exchange surface area aluminum blue fins.All coils are 100%tested against leaks by 30bar(3Mpa)

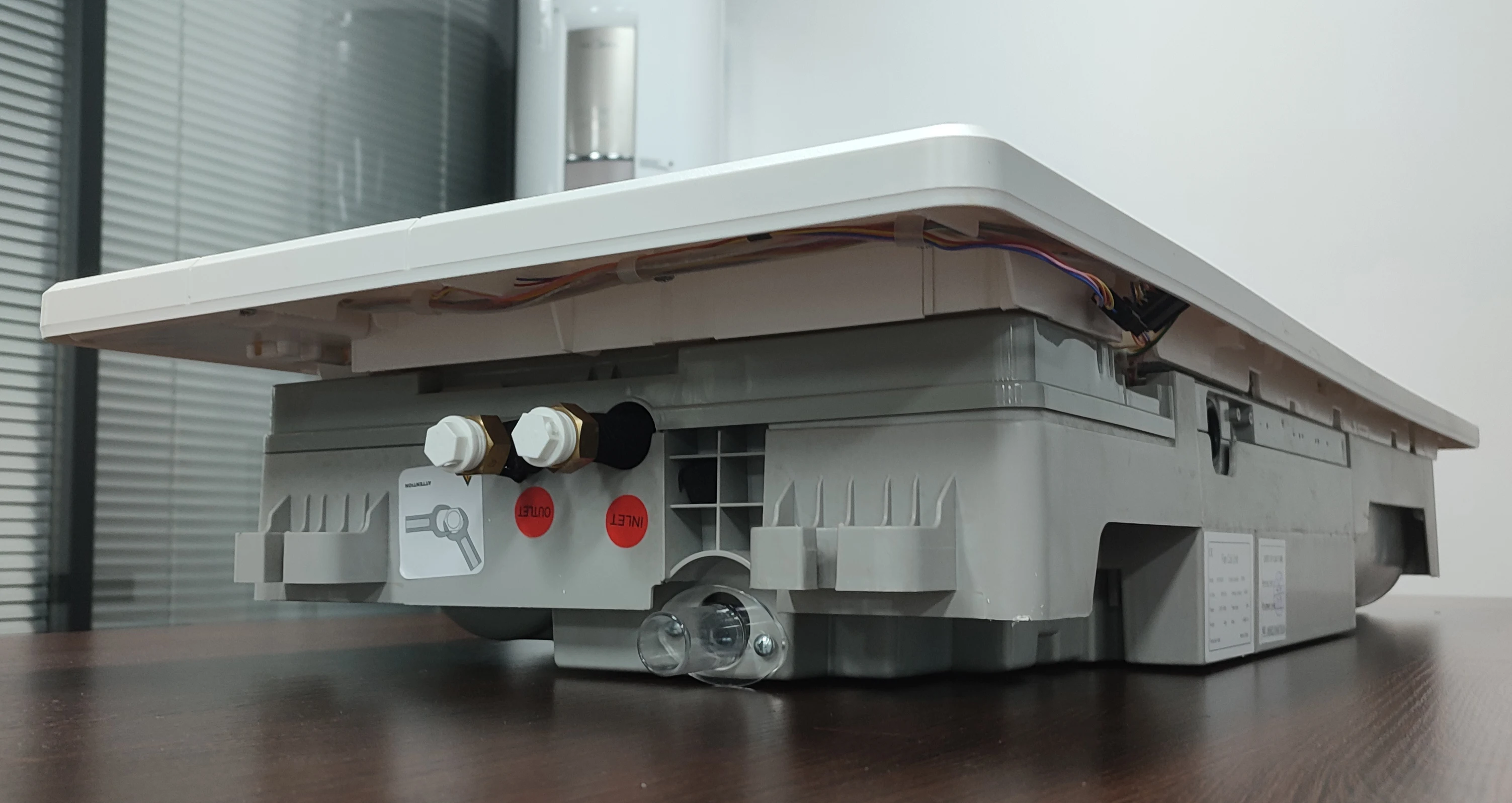

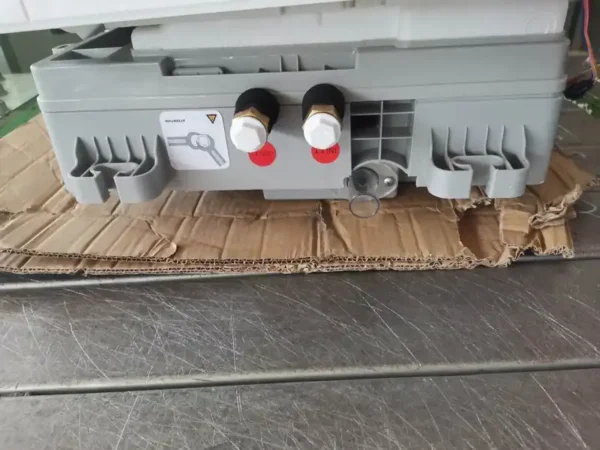

air pressure.with 3/4"pipe connections and air bleed vent.
√Condensate Drain Pan
The drain pan is produced by ABS material via injection forming, with high polystyrene insulation outside.
√Drain Pump and Float Switch
700mm head drain pump with no return valve is installed in the unit;an float switch inside as well to prevent from leaking.If the water raising to a certainly position,the float switch will act and alarm,then the unit will cut off the water valve or stop the fan motor.
Aesthetic design, ECO-friendly ABS material and ultra slim,suitable for some limited space and narrow space. Panel Assembly
Aesthetic panel design, synthetic washable and removal air filter,auto swing.
√Quiet Running
Cross flow blower with 3 speed motor.
√High Efficiency Coil Coil
are made of copper tubes and high exchange surface area aluminum blue fins.All coils are 100%tested against leaks by 30bar(3Mpa)
air pressure.with 3/4"pipe connections and air bleed vent.
√Condensate Drain Pan
The drain pan is produced by ABS material via injection forming, with high polystyrene insulation outside.
√Drain Pump and Float Switch
700mm head drain pump with no return valve is installed in the unit;an float switch inside as well to prevent from leaking.If the water raising to a certainly position,the float switch will act and alarm,then the unit will cut off the water valve or stop the fan motor.
PRODUCT SPECIFICATIONS
Model: M1KMS*V-A(E) | M1KMS 300V | M1KMS 400V | M1KMS 450V | |||||||||
CFM | 300 | 400 | 450 | |||||||||
Air Flow Rate | High | m3/h | 510 | 680 | 750 | |||||||
Medium | m3/h | 400 | 520 | 650 | ||||||||
Low | m3/h | 300 | 400 | 500 | ||||||||
Cooling | Total Capacity | High | kw | 3 | 3.8 | 4.2 | ||||||
Medium | kw | 2.6 | 3.1 | 3.6 | ||||||||
Low | kw | 2.2 | 2.6 | 3 | ||||||||
Sensible Capacity | High | kw | 2.2 | 2.8 | 3 | |||||||
Medium | kw | 1.8 | 2.3 | 2.7 | ||||||||
Low | kw | 1.5 | 1.9 | 2.2 | ||||||||
Water Flow Rate | L/H | 516 | 655 | 720 | ||||||||
Water Pressure Drop | kPa | 15 | 18 | 20 | ||||||||
Heating | Heating Capacity | High | kw | 5.1 | 6.4 | 7 | ||||||
Heating Capacity | Medium | kw | 4.5 | 5.2 | 6.1 | |||||||
Heating Capacity | Low | kw | 3.8 | 4.5 | 5 | |||||||
Power Supply | 220~240V/1PH/50Hz(or 60HZ) | |||||||||||
Power Input | kw | 40 | 45 | 50 | ||||||||
Sound Pressure | dB(A) | 37 | 39 | 40 | ||||||||
Fan | Type | Cross Flow Fan | ||||||||||
Model | mm | 97 | ||||||||||
Quantity | 1 | |||||||||||
Motor | Type | 3-speed Motor | ||||||||||
Quantity | 1 | 1 | 1 | |||||||||
Coil | Coil Rows | 2 | 2 | |||||||||
Max. Working Pressure | mPa | 1.6 | ||||||||||
Tube Diameter | inch | 3/8” | ||||||||||

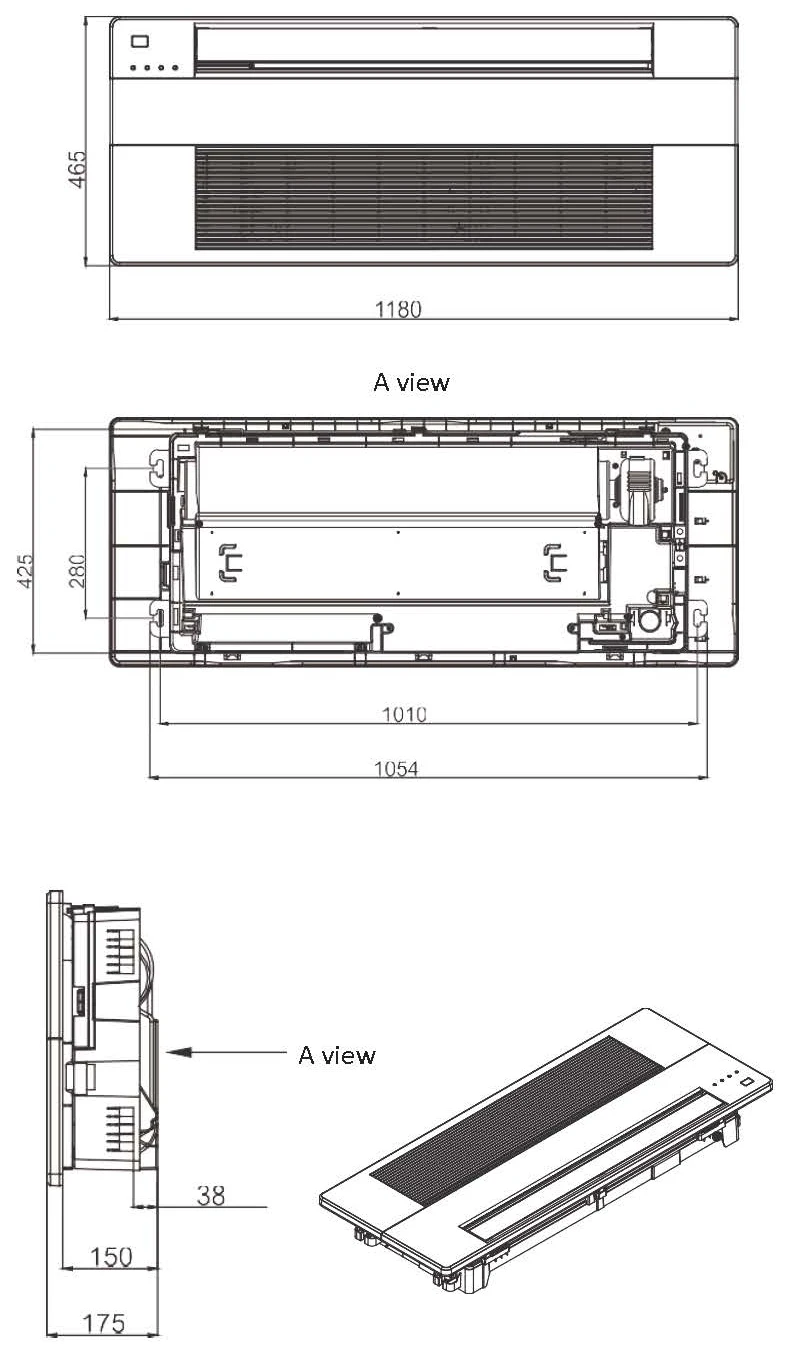

Dimensions | Unit Body | mm | 1054X425X169 | |||||||||
Panel Assembly | mm | 1180X465X25 | ||||||||||
Connection | Water Inlet/Outlet Pipe | inch | ZG1/2” / ZG1/2” | |||||||||
Condensate Discharge | inch | 26 | ||||||||||
Weight(with feet, with casing) | kg | 14 | 14 | 14 | ||||||||
1.Cooling: inlet air temp. DB+27oC/WB+19.5oC, water inlet/outlet temp. +7oC/+12oC 2.Heating: +21oC, water inlet temp. +60oC; Same water flow rate as for the cooling | ||||||||||||
Product images
Recommend Products
Certifications
Exhibition
About Us
Monchrui
Shenzhen Monchrui Industrial Development Co., Ltd.As the member of HongKong Monchrui International Group in Mainland China, which was established in response to the "Belt and Road" and "Industrial Power" initiative in 2015, and the team with more than 15 years experience in HVAC field.The company is located in Shenzhen, China's high and new technology development and innovation forefront , mainly engaged in high quality and energy-saving HVAC products & accessories research & development, manufacturing, sales, application and professional service, and also is the communication platform between China and International market in this field business.Mission: Provide maximum value added service for our customers, to help our customers be more successful!Vision: Become a well-known international HVAC system solution enterprise.Position: One-stop professional HVAC system solution provider!
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $378 / set
- 10–19 set: US $355 / set
- 20+ set: US $332 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this fan coil unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the fan coil unit be supplied for my local voltage?
The standard configuration is 220~240V/1ph/50Hz(or 60Hz). Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Monchrui Industry Development Co., Ltd., based in China. The company 9 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Monchrui Industry Development Co., Ltd. range on HVACR Nexus.
