Chambers cryopreservation chest freezer — capacity 568L, material plastics. The complete factory specification follows. Made by Henan Aoda Instrument Equipment Co., Ltd. (2 years on the platform, typical reply ≤2h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Chambers Cryopreservation Chest Freezer
- Model Number: 568L
- Capacity: 568L
- Material: plastics
- Refrigerant: R290
- Warranty: 1 Year
- Place Of Origin: Henan, China
Technical Specifications
| Warranty | 1 Year |
|---|---|
| Customized Support | OEM, ODM |
| Refrigerant | R290 |
| Place Of Origin | Henan, China |
| Model Number | 568L |
| Brand Name | AODA |
| Material | plastics |
| Size | 1870*745*805mm |
| Product Name | -25 Degree Cryopreservation Chest Freezer |
| Capacity | 568L |
| Cabinet Type | Chest |
| Climate Class | N |
| Sound Level | 58dB |
| Defrost Type | Manual |
| Controller | Microprocessor |
| Display | LCD |
| Temperature Range | -10~-25c |
| Temp.Accuracy | 0.1c |
| Selling Units | Single item |
Product Details

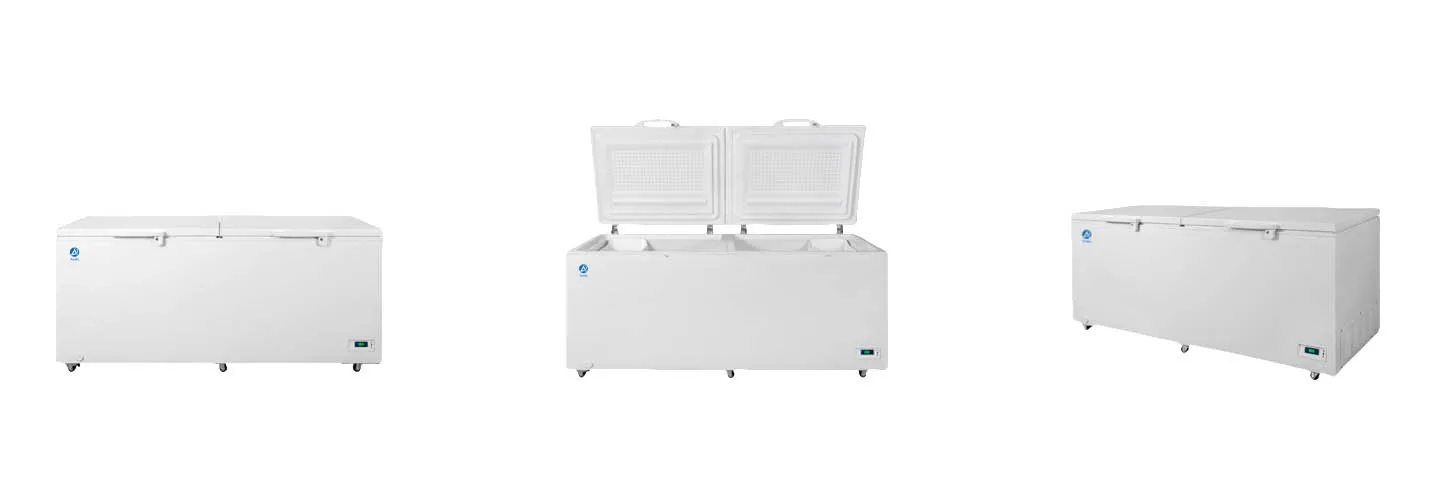

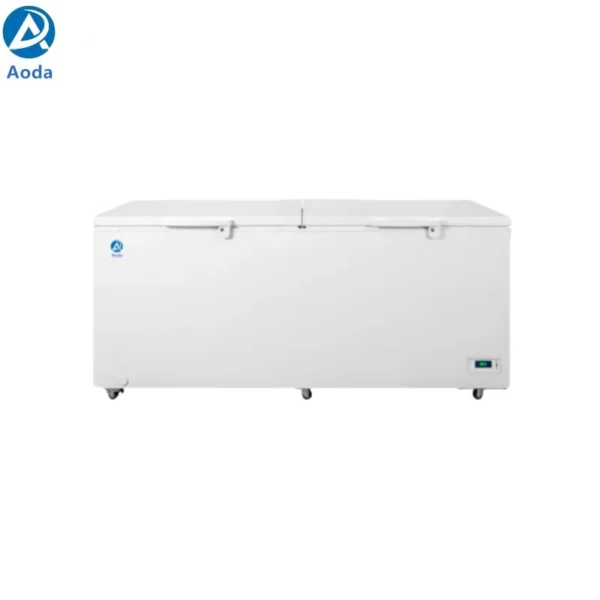

Aoda 568L -25 degree Double chambers Low temperature Cryopreservation Chest Freezer
industry, chemical industry.
Microcomputer temperature control, temperature accuracy 0.1ºC;
LED display, adjustable temperature ranges -10ºC~-25ºC;
Temperature variation ≤3ºC;
Security System
Startup delay and stop interval protection ensure reliable operation;
Perfect audible & visual alarm systems: High and low temperature alarm, power failure, sensor failure alarm, etc.
The alarm temperature can be set as required;
Multiple protection functions: keyboard protection, frequent start protection, refrigeration system keeps running even the sensor fails to ensure stable operation of the equipment.
Refrigeration System
Ultra-thick foam layer, double-sealed door design;
International famous compressor;
Optimized evaporator and condenser for strong cooling;
CFC free, environment friendly;
International famous brand fan, stable performance, and low noise.
Humanized Design
Food-contact grade stainless steel inner tank, easy to clean and corrosion-resistant;
Fixed caster + universal wheel;
Safety door lock;
Wide climate range;
Wide voltage tolerance design with applicable voltage;
Optional digital temperature recorder with USB port for recording and saving data.
-25 degree Double chambers Low temperature Cryopreservation Chest Freezer | ||||

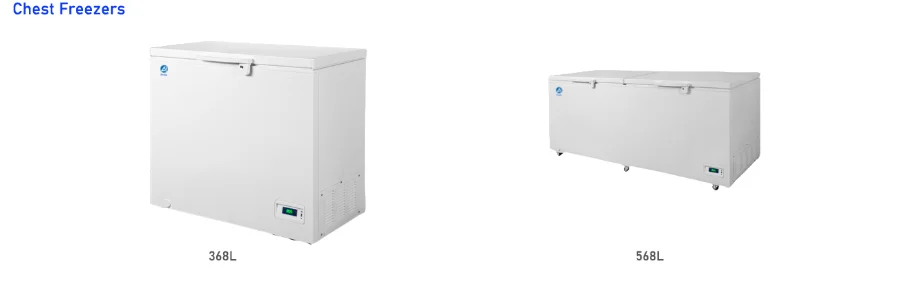

Model | 368L/-25ºC | 568L/-25ºC | ||
Cabinet type | Chest | |||
Climate class | N | |||
Noise(dB) | 48 | 58 | ||
Defrost type | Manual | |||
refrigerant | R290 | |||
Capacity (L/Cu.Ft) | 368/12.99 | 568/20.06 | ||
External / Internal material | PCM/PCM | |||
Display | LCD | |||
Temperature range | -10~-25ºC | |||
Temp.accuracy | 0.1ºC | |||
Inner size(W*D*H) | 870*550*648 230*550*428 | 1479*550*625 230*550*405 | ||
External size(W*D*H) | 1255*745*853 | 1870*745*805 | ||
Power supply | 100~240V 50/60Hz | |||
Alarm | High / Low Temperature Alarm Power Failure Alarm Low Battery Alarm Sensor Failure Alarm | |||
Data output | USB port,optional RS485 | |||
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $1500 / set
- 10+ set: US $1100 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this chambers cryopreservation chest freezer?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

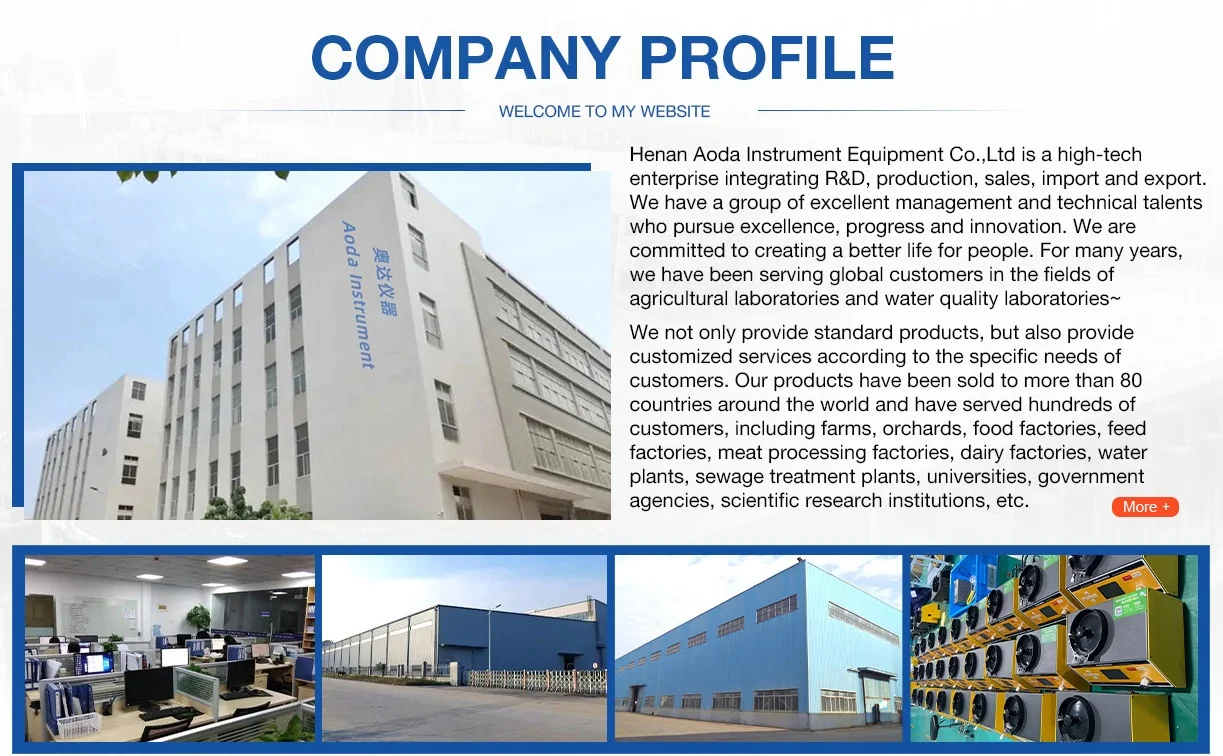

About the Manufacturer
