Freezing Equipment, 220v, R134a

Freezing equipment — 220v/380v/440v, refrigerant R134a. The complete factory specification follows. Made by Wuxi Julies Technology Co., Ltd. (1 year on the platform, typical reply ≤1h). Send your target quantity and destination for a firm quotation with current lead times.

Key Features of This Freezing Equipment

• Voltage: 220v/380v/440v
• Refrigerant: R134a
• Warranty: 1 Year
• Place Of Origin: Jiangsu, China
• Type: Tunnel Freezer
• Weight (Kg): 1200

Technical Specifications

Product Details

Application:

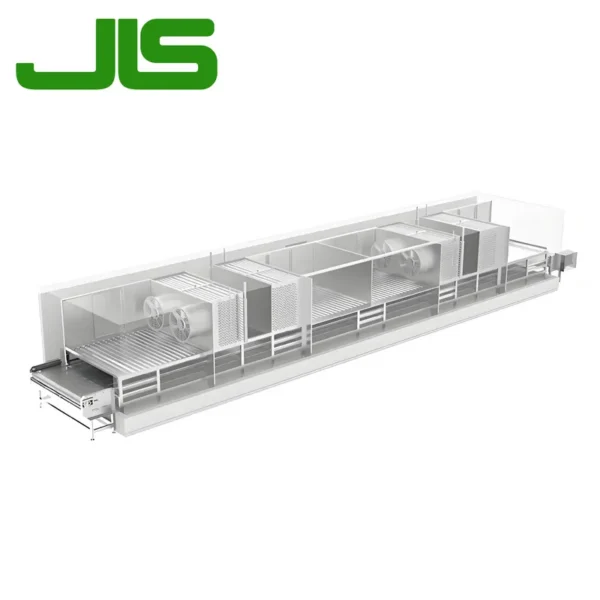

A tunnel freezer is an efficient, continuous industrial freezing equipment. It enables rapid cooling and freezing by allowing materials to be frozen to move along with the conveyor system inside a closed "tunnel" and conduct full heat exchange with the
low-temperature airflow within the tunnel. Its core features are continuous operation and uniform freezing. It is widely used in fields such as food and pharmaceuticals, and is particularly suitable for large-scale, assembly-line production needs.

1.Overall machine parameters
Device name	Tunnel type mesh belt quick freezing machine
Quick freezing capacity	300kg/h
Model	TFN-300
electric system	380V/3P/50Hz
refrigerant	R507
Library size	9000×3200×2600mm

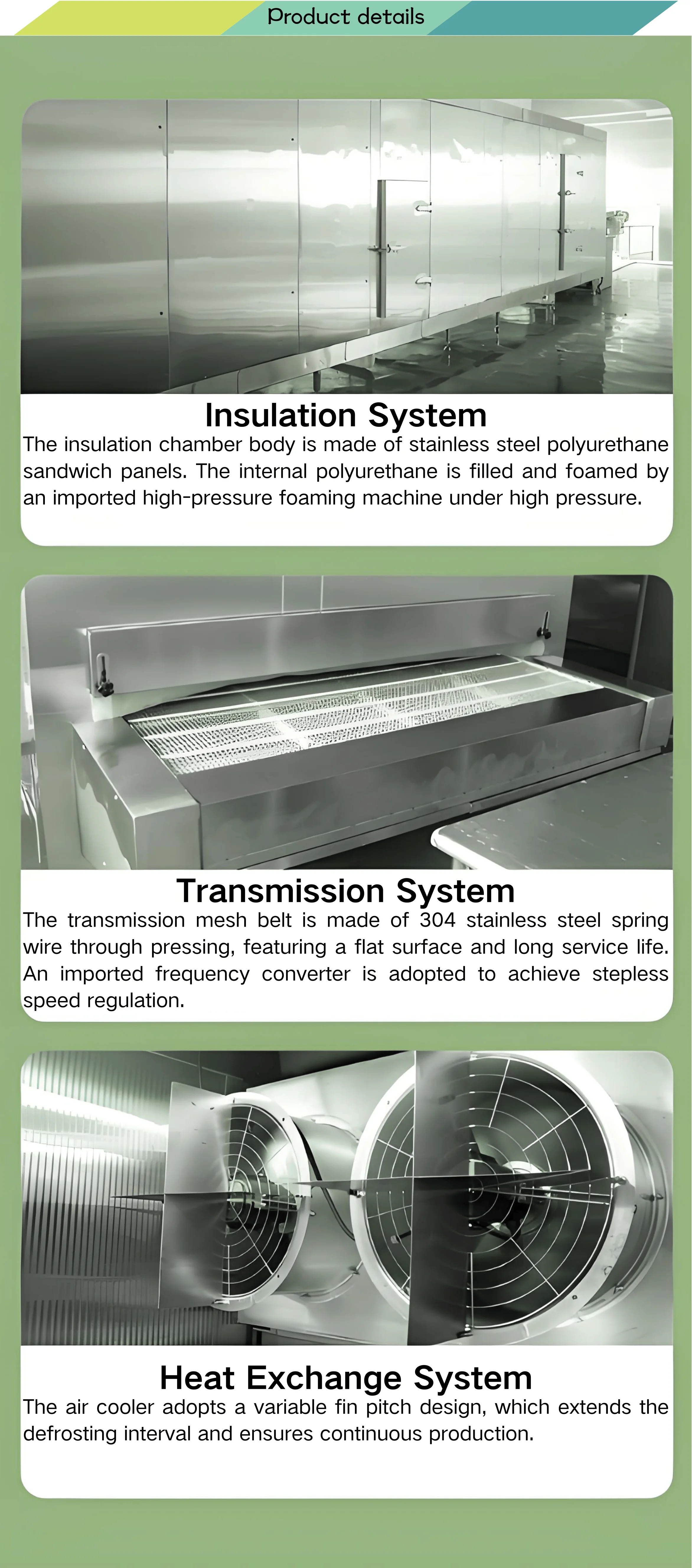

2.Adiabatic system parameters
Panel material	Double-sided 0.6mm stainless steel 304
Panel thickness	120mm
Foam density of Panel	≧42kg/m3
Number of warehouse doors	1 fan
Bottom sink panel material	stainless steel 304
Bottom drainage point	2 places, located at the corner of the reservoir body in the low pressure area
Lighting	Special LED for cold storage, waterproof, moisture-proof, explosion-proof and low temperature resistant
3.Transmission system parameters
Framework
Drive type	direct drive
Frame material	High strength stainless steel material
Protective strip in contact with mesh belt	UPE ultra high molecular polyethylene
Mesh belt
Chain plate material	Stainless steel 304
Belt width	2000mm
Belt pitch	38.1mm
Mesh belt pitch	5mm
Feed length	750mm
Discharge length	750mm
Reducer
brand	GUOMAO/SEW
power	0.25kw
quantity	1
4.Heat exchange system parameters
Evaporator
Evaporation tube material	aluminum
Evaporation tube specifications	Outer diameter 20mm, wall thickness 2mm
Fin material	aluminum
Frame material	stainless steel 304
Liquid supply method	Expansion valve
Defrost method	water melt frost
Frost flushing water volume	10t/h
Frost water pipe diameter	DN65

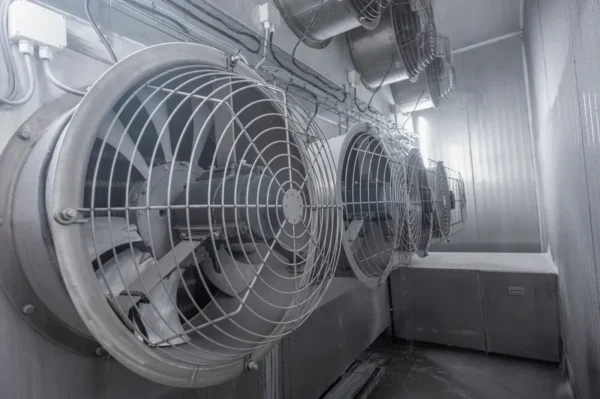

Fan
Number of fans	4
Fan power	2.2kw
Hairdryer material	stainless steel 304
Fan blade material	Aluminum alloy

Ordering and Pricing

• Minimum order quantity: 1 set
• Volume pricing:
  • 1+ set: US $150000 / set
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this freezing equipment?

The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.

Can the freezing equipment be supplied for my local voltage?

The standard configuration is 220v/380v/440v. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.

About the Manufacturer

This product is produced by Wuxi Julies Technology Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, Trading Company. Browse the full Wuxi Julies Technology Co., Ltd. range on HVACR Nexus.
