The circulator water bath chiller listed here carries 110V AC, material Stainless Steel, documented exactly as the manufacturer publishes it. Made by Jiangsu Tenlin Instrument Co., Ltd. (4 years on the platform, factory-assessed). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Circulator Water Bath Chiller
- Model Number: BD-0506 to BD-0530
- Power: 110V AC
- Material: Stainless Steel
- Warranty: 1 year
- Certification: CE ISO9001
- Place Of Origin: Jiangsu, China
Technical Specifications
| Type | Water Bath |
|---|---|
| Temperature Fluctuation | 0.005-0.01 |
| Power | 110V AC |
| Humidity Fluctuation | ±2% RH |
| Warranty | 1 year |
| Customized Support | OEM, ODM |
| Place Of Origin | Jiangsu, China |
| Model Number | BD-0506 to BD-0530 |
| Brand Name | Tenlin |
| Material | Stainless Steel |
| Weight | 31kg+ |
| Product Name | High accuracy refrigerated thermostat lab heating cooling water bath |
| Temperature Range | -5~100℃ |
| Tank Volume | 6L-30L |
| Digital Display Resolution | 0.001℃ |
| Volatility/Temperature Control Accuracy | ±0.005℃-0.01℃ |
| Circulation Mode | Inner circulation/Inner loop |
| Working Slot Opening/Tank Size(Mm) | 180*150, 235*180, 330*280 |
| Working Slot Depth/Tank Depth(Mm) | 150, 200, 230, 300 |
| Dimensions(Mm) | 320*370*675, 400*450*940, 450*645*990, 400*450*1050 |
| Certification | CE ISO9001 |
| Selling Units | Single item |
Product Details

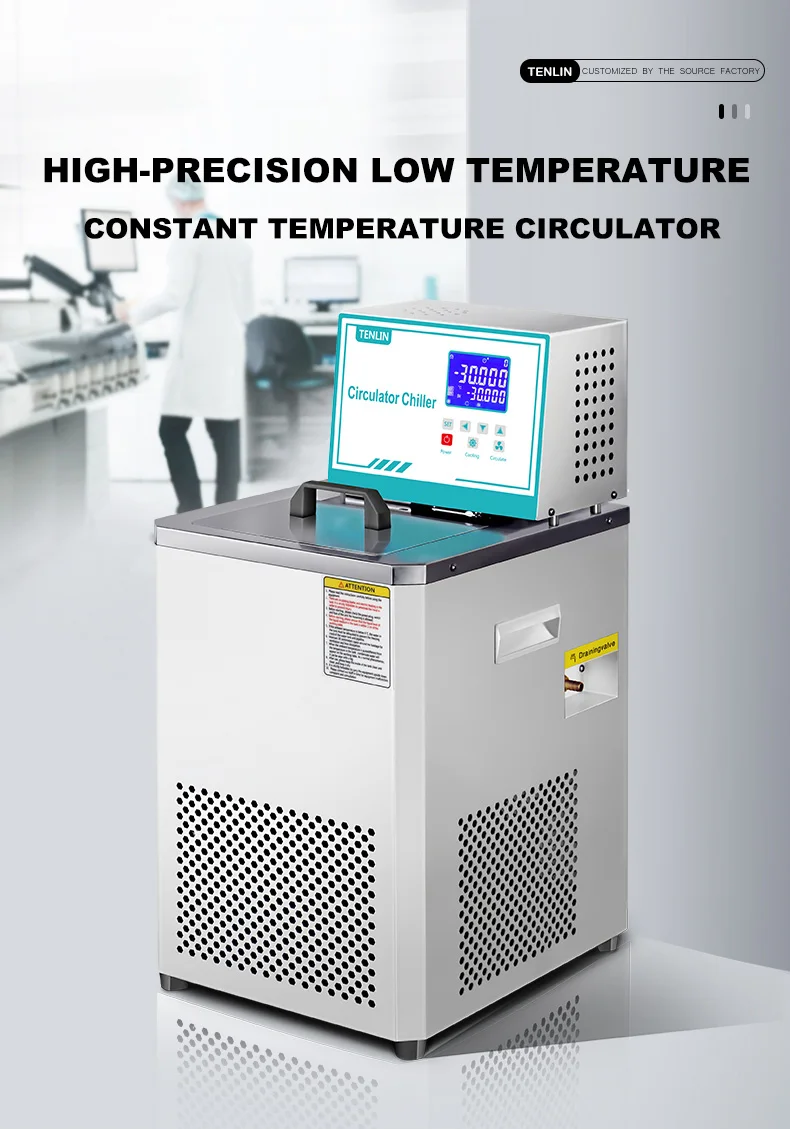

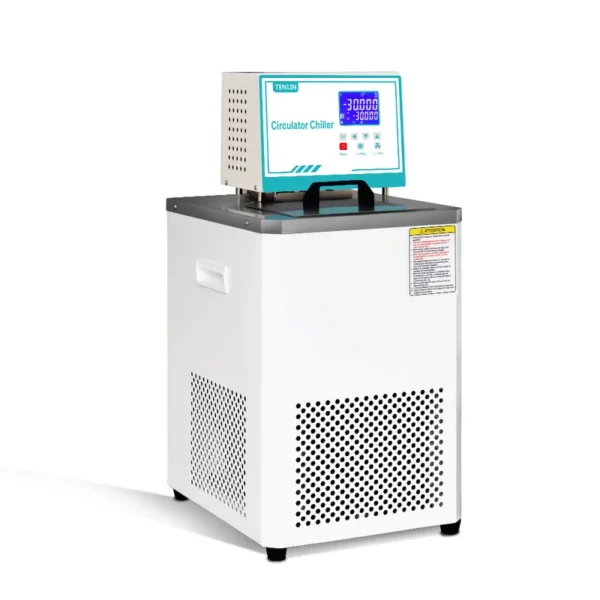

BD series low temperature refrigerated thermostatic circulating laboratory heating cooling water bath adopts an advanced fluorine-free refrigeration system. This series of instruments is mainly developed for low-temperature experiments in scientific research, biology, physics, medicine, chemical and other departments with high requirements for constant temperature accuracy. It has the characteristics of making the temperature in the tank uniform and intelligent temperature control more accurate (temperature fluctuation range: ± 0.005- ± 0.01 ℃). It can also be used for calibration purposes in the manufacturing of ordinary thermometers and other temperature measuring instruments.
Advantages
Specification

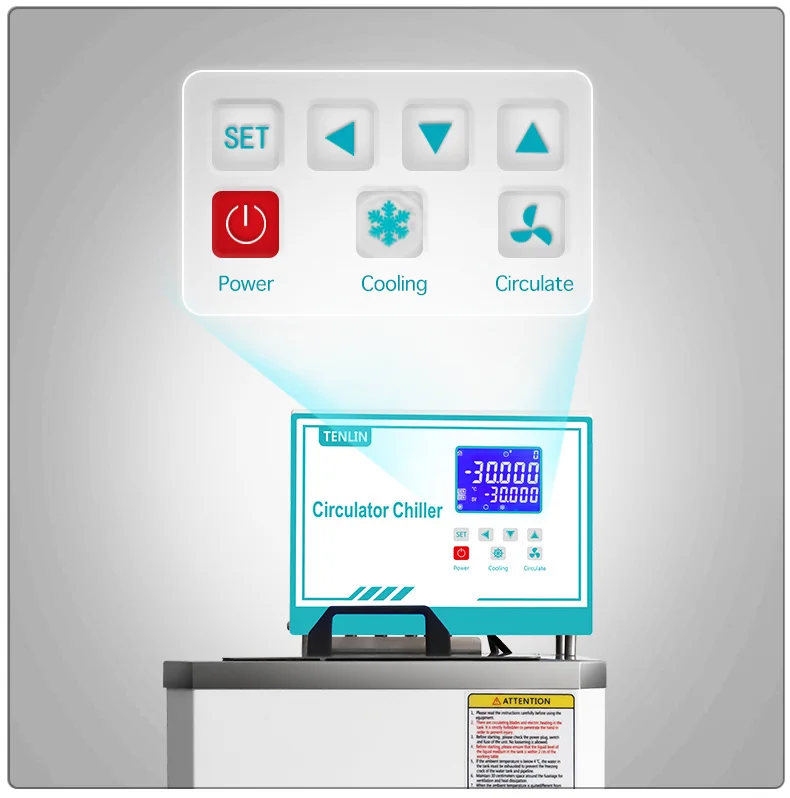

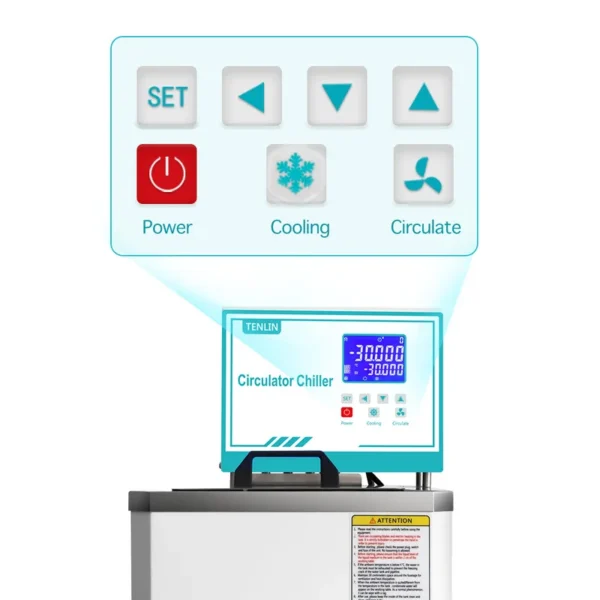

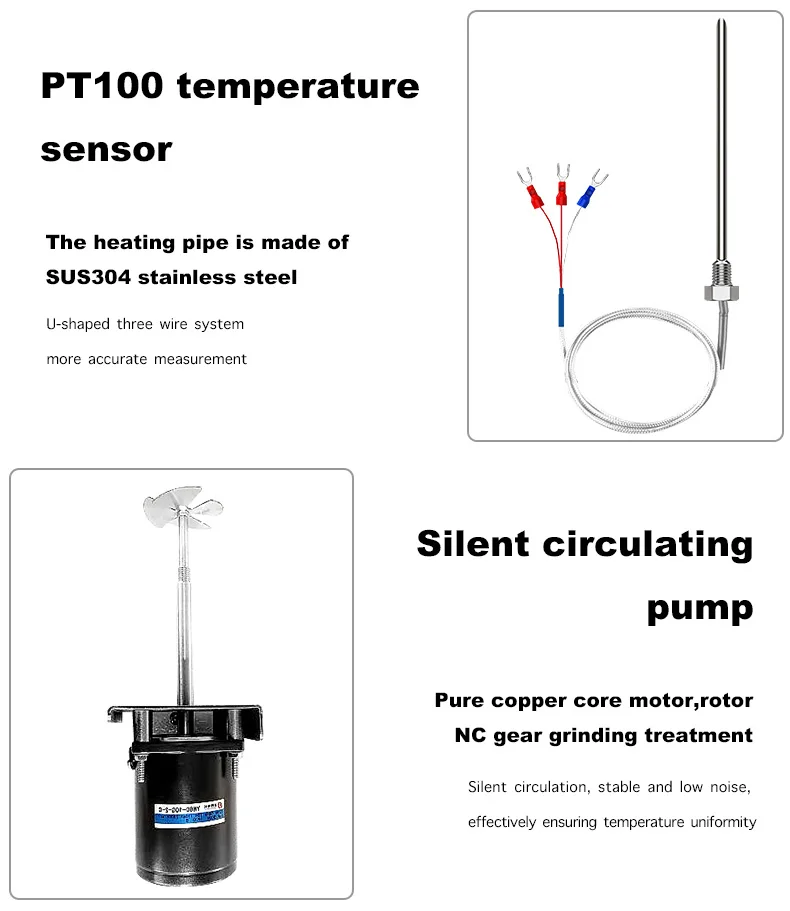

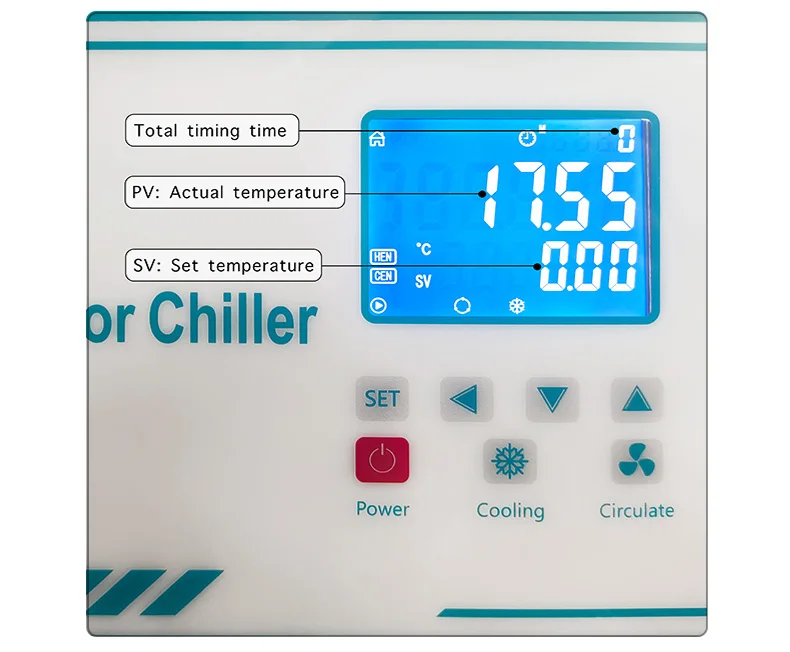

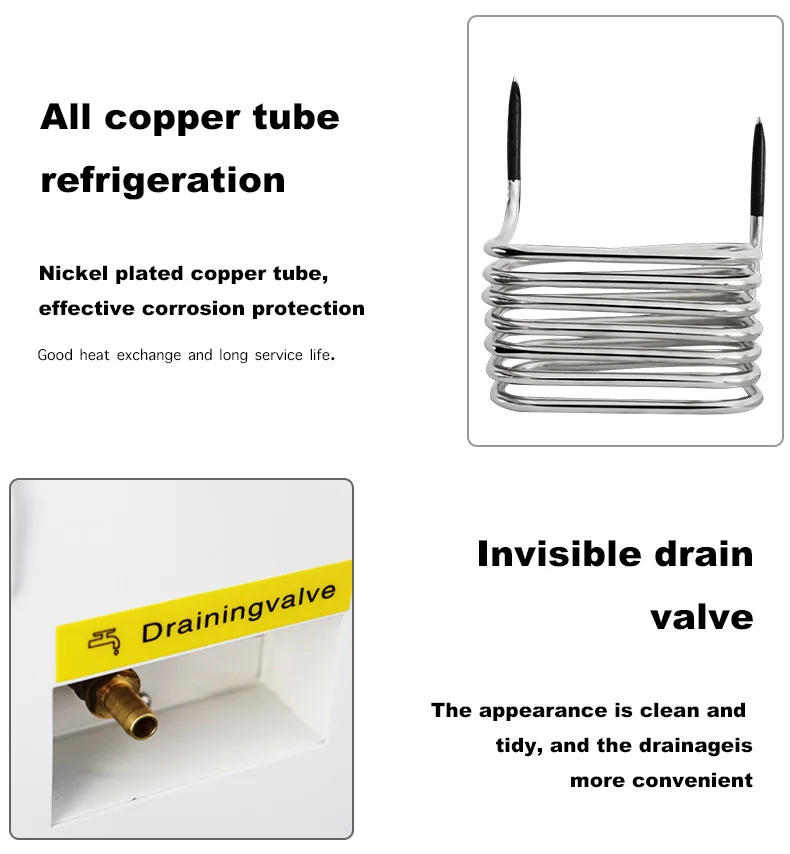

● The latest self-developed temperature control technology, equipped with high standard PT100 and fully imported electronic components. ● The software system can correct the error between the displayed temperature and the actual temperature, so that the displayed temperature value is accurate. ● Large LCD display as standard, many data at a glance, temperature display resolution up to 0.001℃. ● With over-temperature protection, over-temperature alarm, over-temperature alarm can be set, and the load can be cut off automatically when the temperature is over. ● With timer function, the total working time of the equipment can be set and the load can be cut off automatically when the time comes. ● Hidden cooling coil design ensures more space for use in the tank. ● Intelligent software with high temperature stability, PID can automatically adjust the best parameters according to different media, and special users can also manually readjust the parameters. ● Digital locking of the control system with software to avoid misuse by unrelated personnel and ensure correct data during experiments. ● High efficiency fully enclosed compressor refrigeration, fast cooling speed, with multiple protection such as overheating and over current. ● Internal circulation function: Adopting heatless stirring motor, avoiding the traditional pump from affecting the tank temperature field due to its own heat production. The internal circulation system is designed on the principle of multi-hole U-shaped reflux circulation, which achieves a turbulent and highly uniform flow and temperature field in the tank. ● Support for non-standard customisation.
Product Parameters:

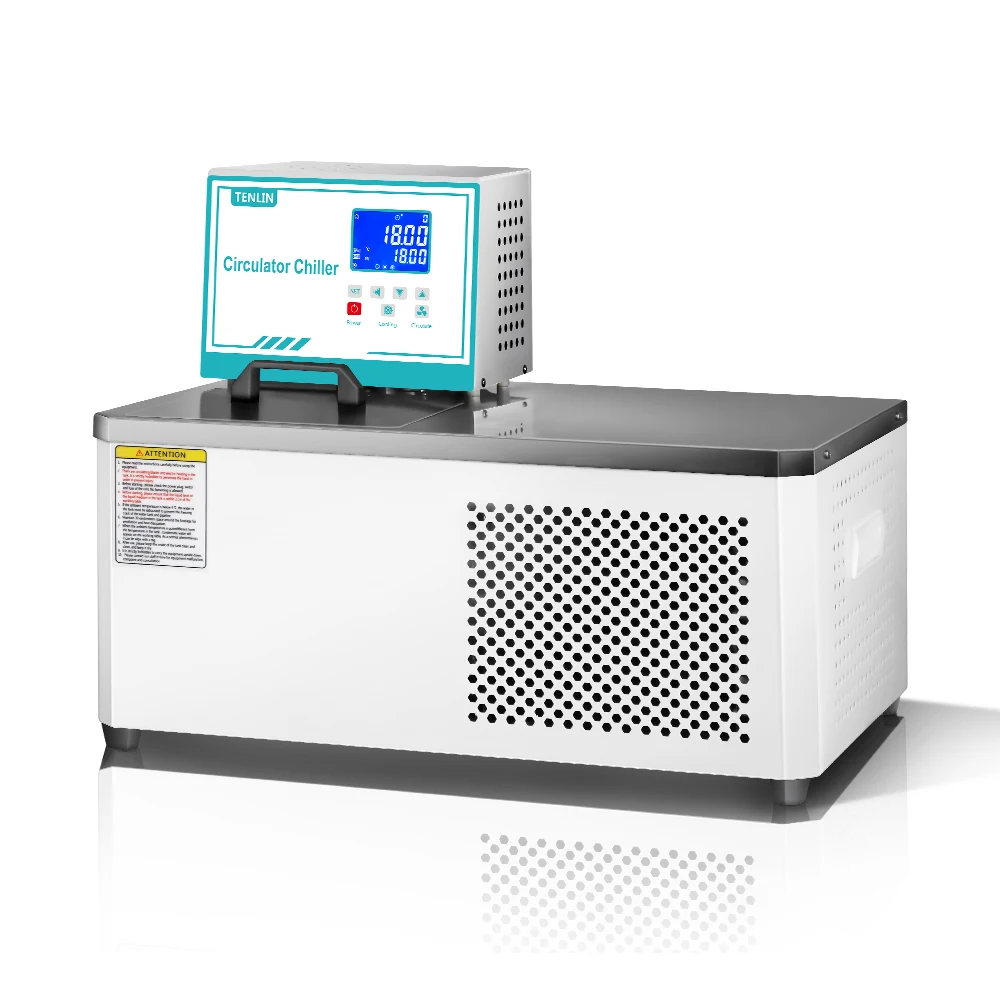

BD Series Laboratory High Accuracy/Precision Water Bath
Model | Temp range (℃) | Resolution (℃) | Fluctuation (±℃) | Tank volume (L) | Slot opening (mm) | Slot depth (mm) | Circulation way | Dimensions (mm) |
BD-0506 | -5~100 | 0.001 | 0.005-0.01 | 6 | 180*150 | 150 | Inner circulation | 320*370*675 |
BD-0510 | 10 | 180*150 | 200 | 320*370*765 | ||||
BD-0515 | 15 | 235*180 | 200 | 400*450*940 | ||||
BD-0520 | 20 | 235*180 | 300 | 400*450*1050 | ||||
BD-0530 | 30 | 330*280 | 230 | 450*645*990 | ||||
BD-1006 | -10~100 | 0.001 | 0.005-0.01 | 6 | 180*150 | 150 | Inner circulation | 320*370*675 |
BD-1010 | 10 | 180*150 | 200 | 320*370*765 | ||||
BD-1015 | 15 | 235*180 | 200 | 400*450*940 | ||||
BD-1020 | 20 | 235*180 | 300 | 400*450*1050 | ||||
BD-1030 | 30 | 330*280 | 230 | 450*645*990 | ||||
BD-2006 | -20~100 | 0.001 | 0.005-0.01 | 6 | 180*150 | 150 | Inner circulation | 320*370*675 |
BD-2010 | 10 | 180*150 | 200 | 320*370*765 | ||||
BD-2015 | 15 | 235*180 | 200 | 400*450*940 | ||||
BD-2020 | 20 | 235*180 | 300 | 400*450*1050 | ||||
BD-2030 | 30 | 330*280 | 230 | 450*645*990 | ||||
BD-3006 | -30~100 | 0.001 | 0.005-0.01 | 6 | 180*150 | 150 | Inner circulation | 320*370*765 |
BD-3010 | 10 | 180*150 | 200 | 320*370*765 | ||||
BD-3015 | 15 | 235*180 | 200 | 400*450*940 | ||||
BD-3020 | 20 | 235*180 | 300 | 450*645*1090 | ||||
BD-3030 | 30 | 330*280 | 230 | 450*645*990 | ||||
BD-4006 | -40~100 | 0.001 | 0.005-0.01 | 6 | 180*150 | 150 | Inner circulation | 400*450*940 |
BD-4010 | 10 | 180*150 | 200 | 400*450*940 | ||||
BD-4015 | 15 | 235*180 | 200 | 450*540*990 | ||||
BD-4020 | 20 | 235*180 | 300 | 450*645*1090 | ||||
BD-4030 | 30 | 330*280 | 230 | 450*645*990 | ||||
BD-5006 | -50~100 | 0.001 | 0.005-0.01 | 6 | 180*150 | 150 | Inner circulation | 550*655*1070 |
BD-5010 | 10 | 180*150 | 200 | 550*655*1070 | ||||
BD-5015 | 15 | 235*180 | 200 | 550*655*1070 | ||||
BD-5020 | 20 | 235*180 | 300 | 550*655*1170 | ||||
BD-5030 | 30 | 330*280 | 230 | 550*655*1070 | ||||
BD-6006 | -60~100 | 0.001 | 0.005-0.01 | 6 | 180*150 | 150 | Inner circulation | 550*655*1070 |
BD-6010 | 10 | 180*150 | 200 | 550*655*1070 | ||||
BD-6015 | 15 | 235*180 | 200 | 550*655*1070 | ||||
BD-6020 | 20 | 235*180 | 300 | 550*655*1170 | ||||
BD-6030 | 30 | 330*280 | 230 | 550*655*1070 | ||||
BD-7006 | -70~100 | 0.001 | 0.005-0.01 | 6 | 180*150 | 150 | Inner circulation | 550*655*1070 |
BD-7010 | 10 | 180*150 | 200 | 550*655*1070 | ||||
BD-7015 | 15 | 235*180 | 200 | 550*655*1070 | ||||
BD-7020 | 20 | 235*180 | 300 | 635*855*1350 | ||||
BD-7030 | 30 | 330*280 | 230 | 635*855*1200 | ||||
BD-8006 | -80~100 | 0.001 | 0.005-0.01 | 6 | 180*150 | 150 | Inner circulation | 550*655*1070 |
BD-8010 | 10 | 180*150 | 200 | 550*655*1070 | ||||
BD-8015 | 15 | 235*180 | 200 | 635*855*1200 | ||||
BD-8020 | 20 | 235*180 | 300 | 635*855*1350 | ||||
BD-8030 | 30 | 330*280 | 230 | 635*855*1200 |
Better communication if you can send us some details in advance:
1, Will you do the experiment inside the sink or outside the sink(bath)?
2, Your temperature range? and what temperatures are often used in experiments?
Product Description

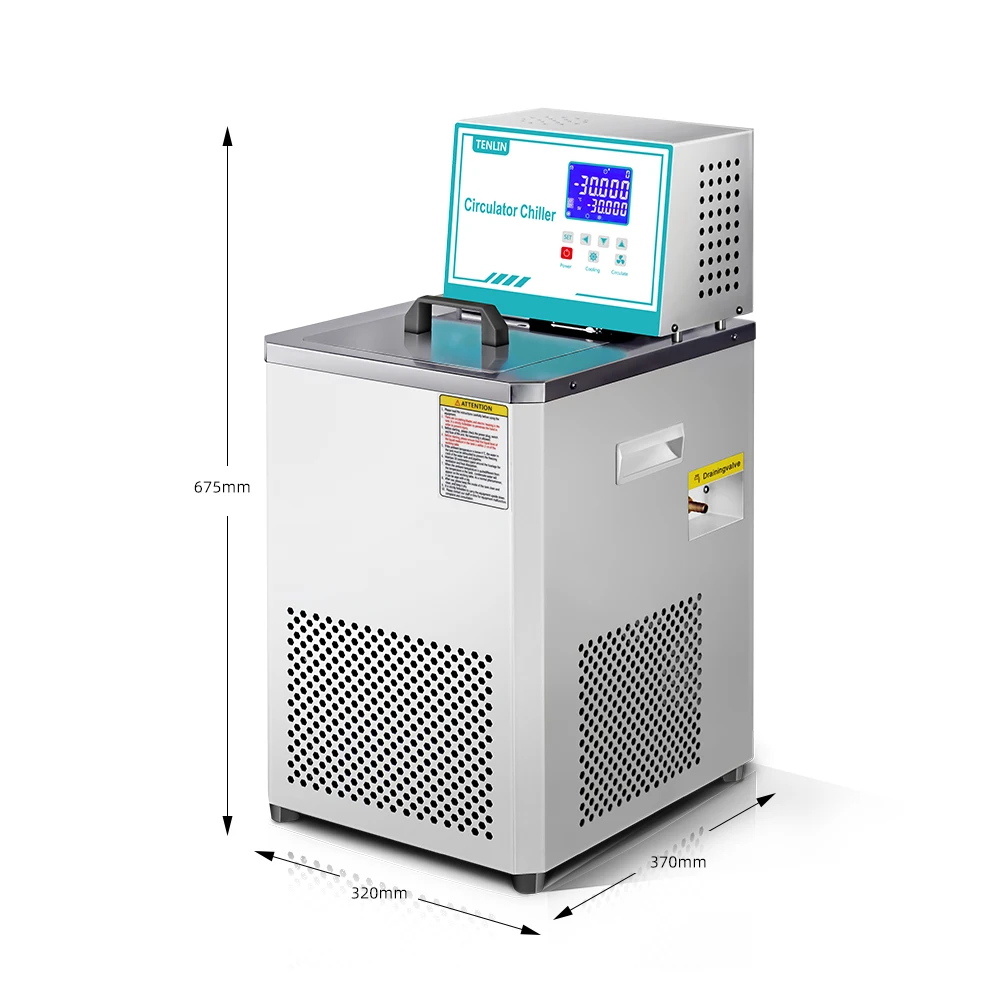

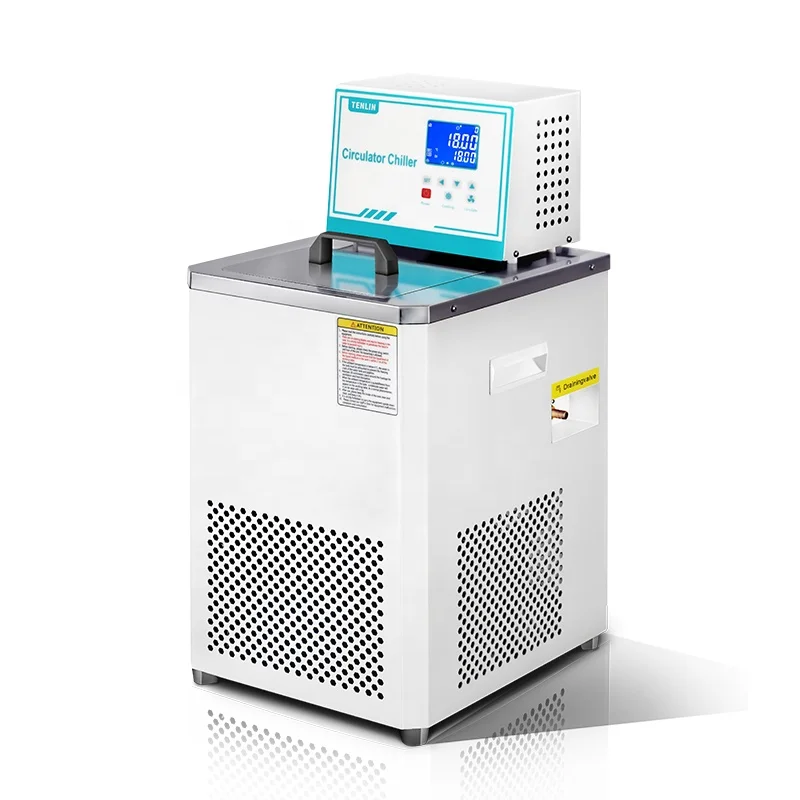

Overall dimension:

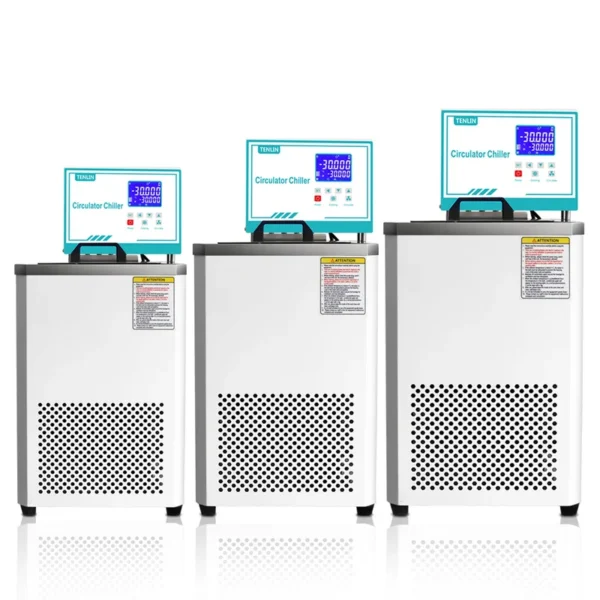

Just for your reference. Different models with different dimensions.
BD-0506 dimensions(L*W*H): 320*370*675mm

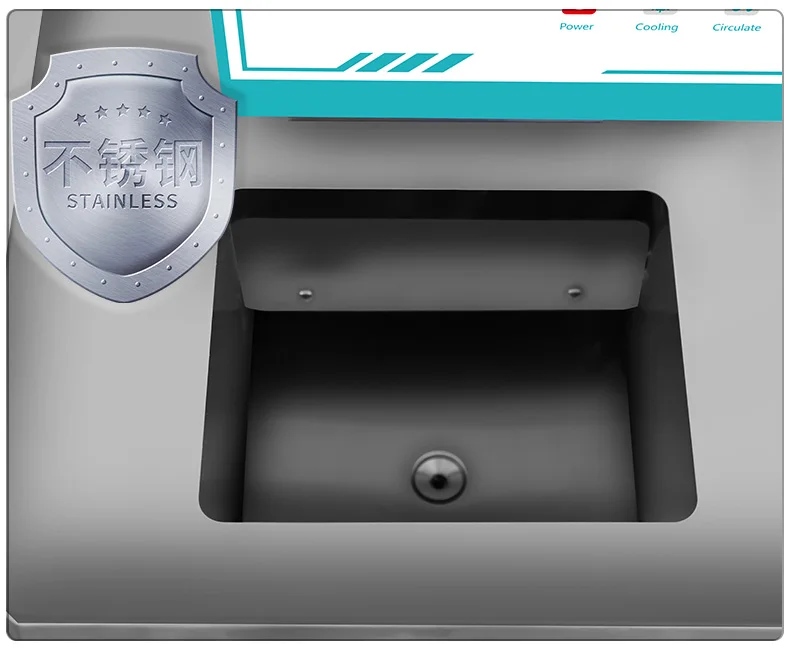

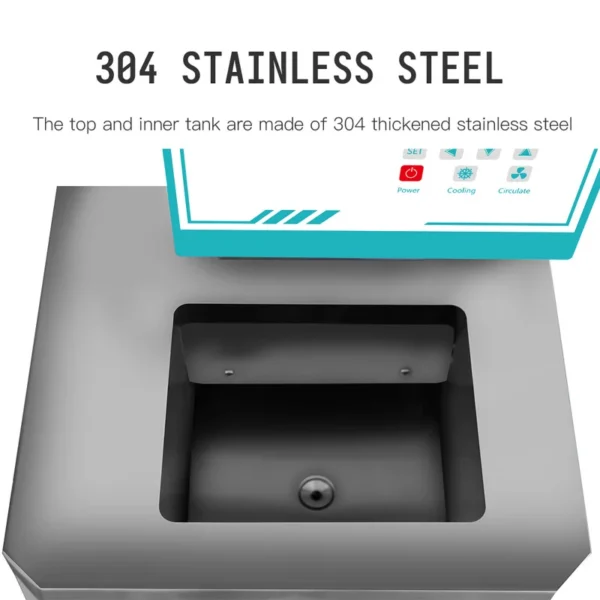

304 Stainless steel table top sink(tank): more stable in corrosion resistance and easy cleaning

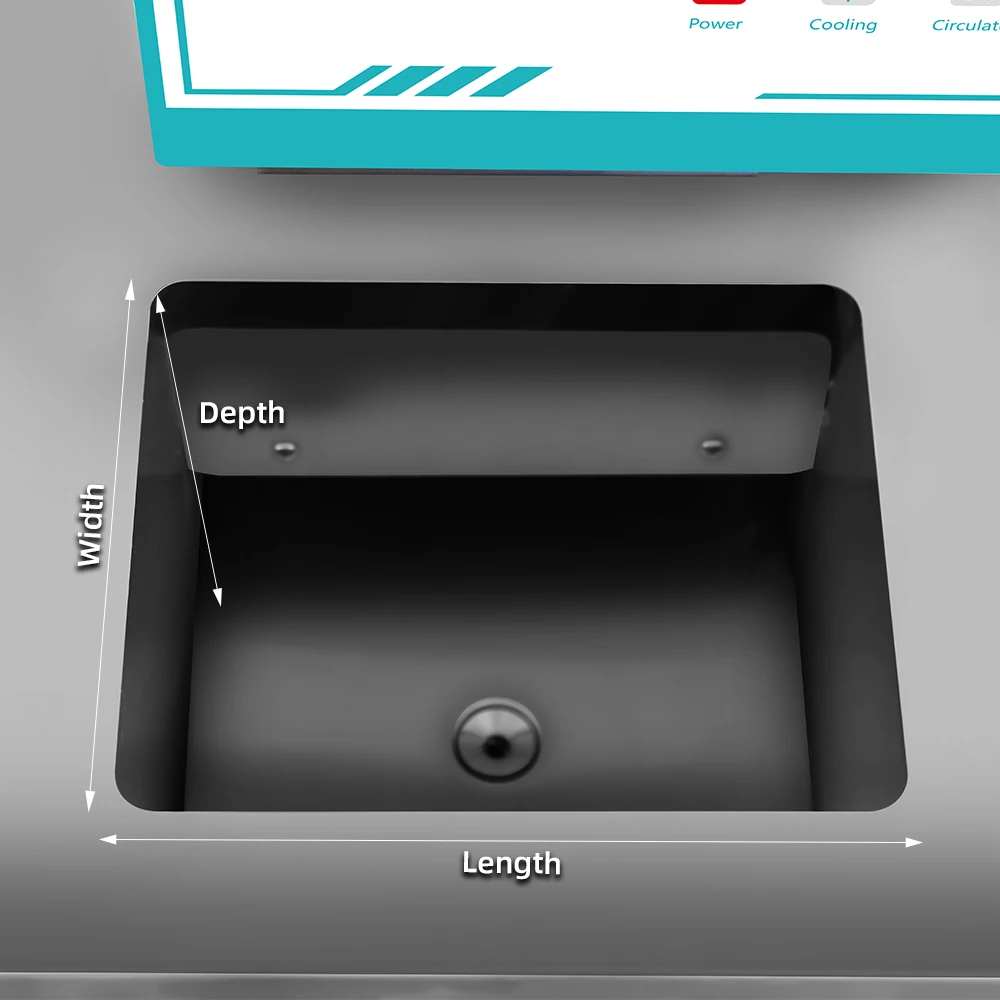

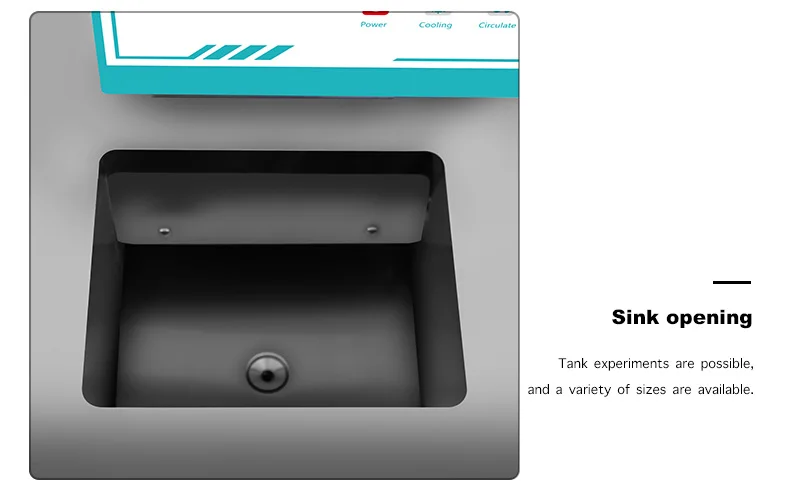

Different models with different slot size.
BD-0506 slot size: Length: 180mm, Width: 150mm, Depth: 150mm

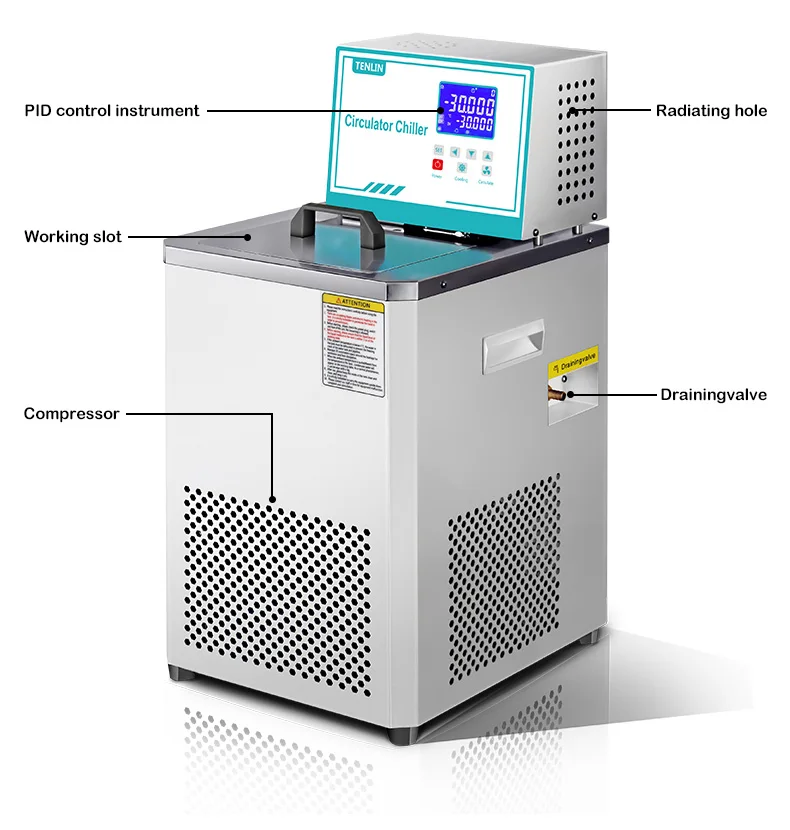

More detailed images：

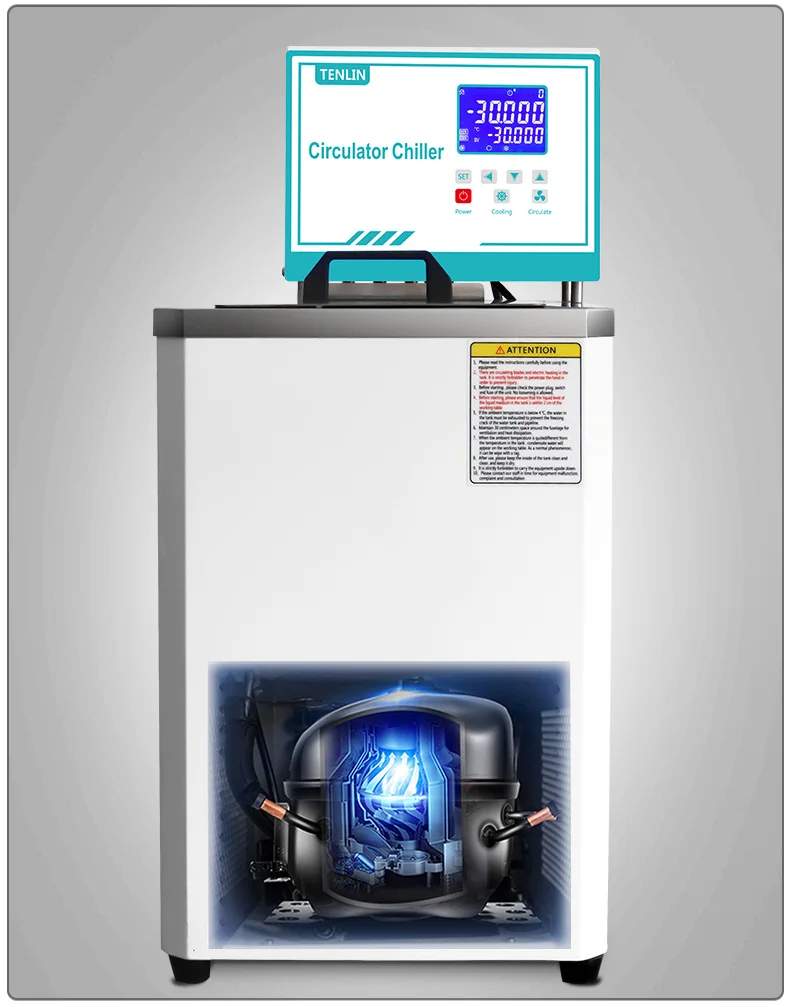

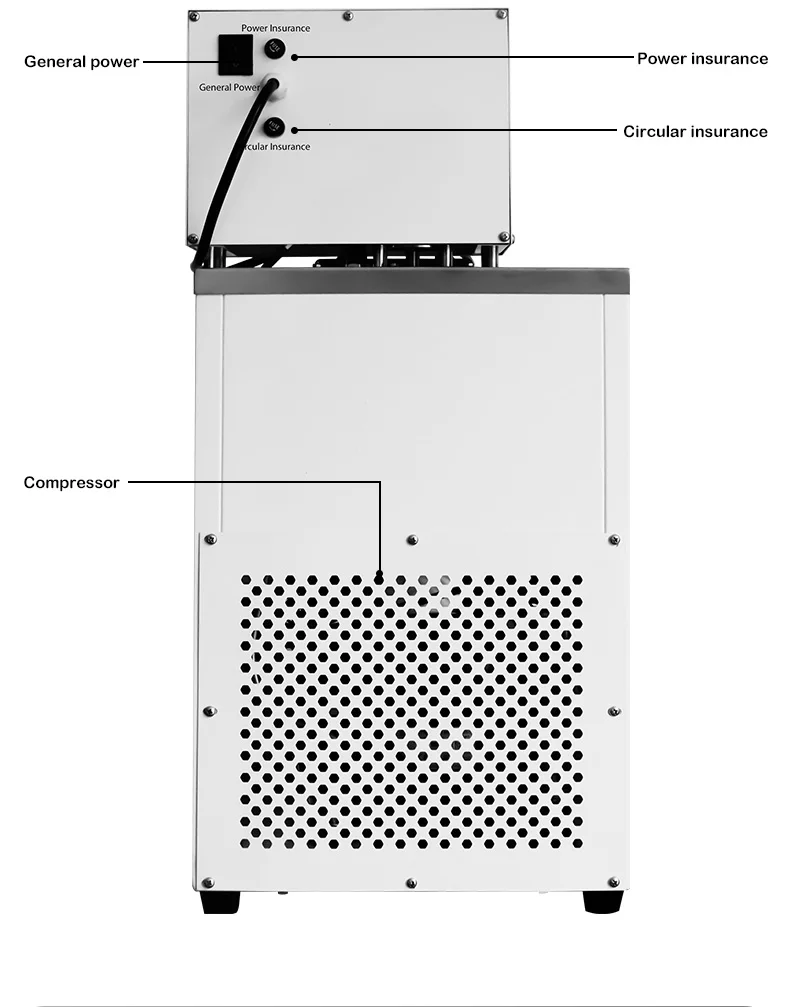

Totally Enclosed Compressor
Recommend Products
DC Series: Vertical Laboratory Heating Cooling Circulating Water Bath
DCW Series: Bench Top Lab Refrigerated Thermostatic Water Bath
SC Series: Laboratory Thermostatic Circulating Water Bath

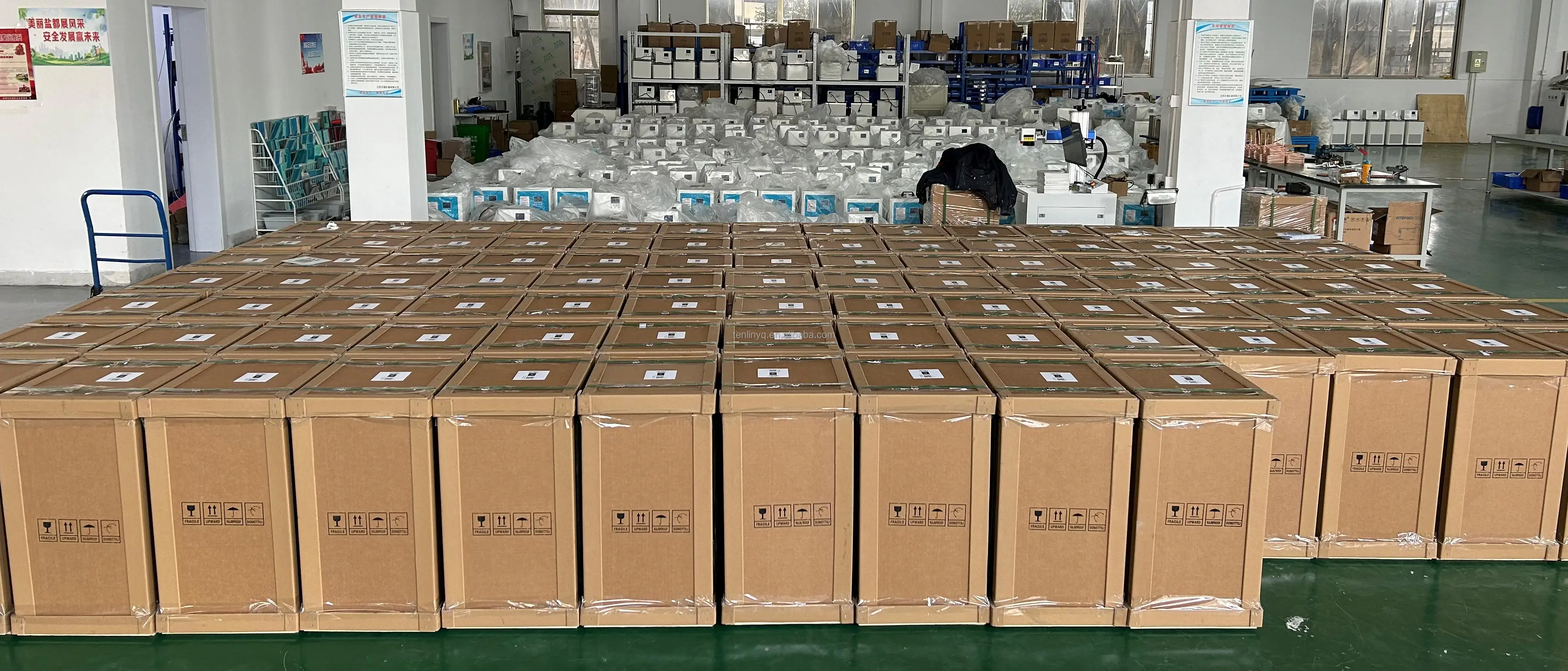

Packing & Delivery

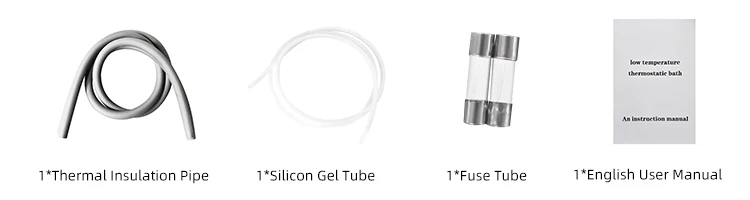

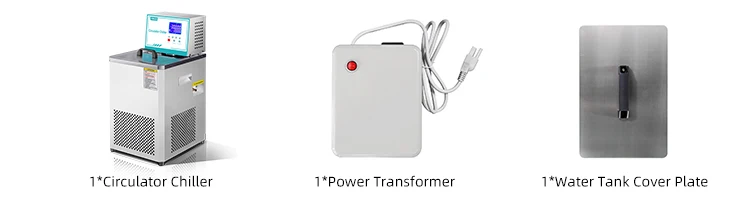

Package Content:

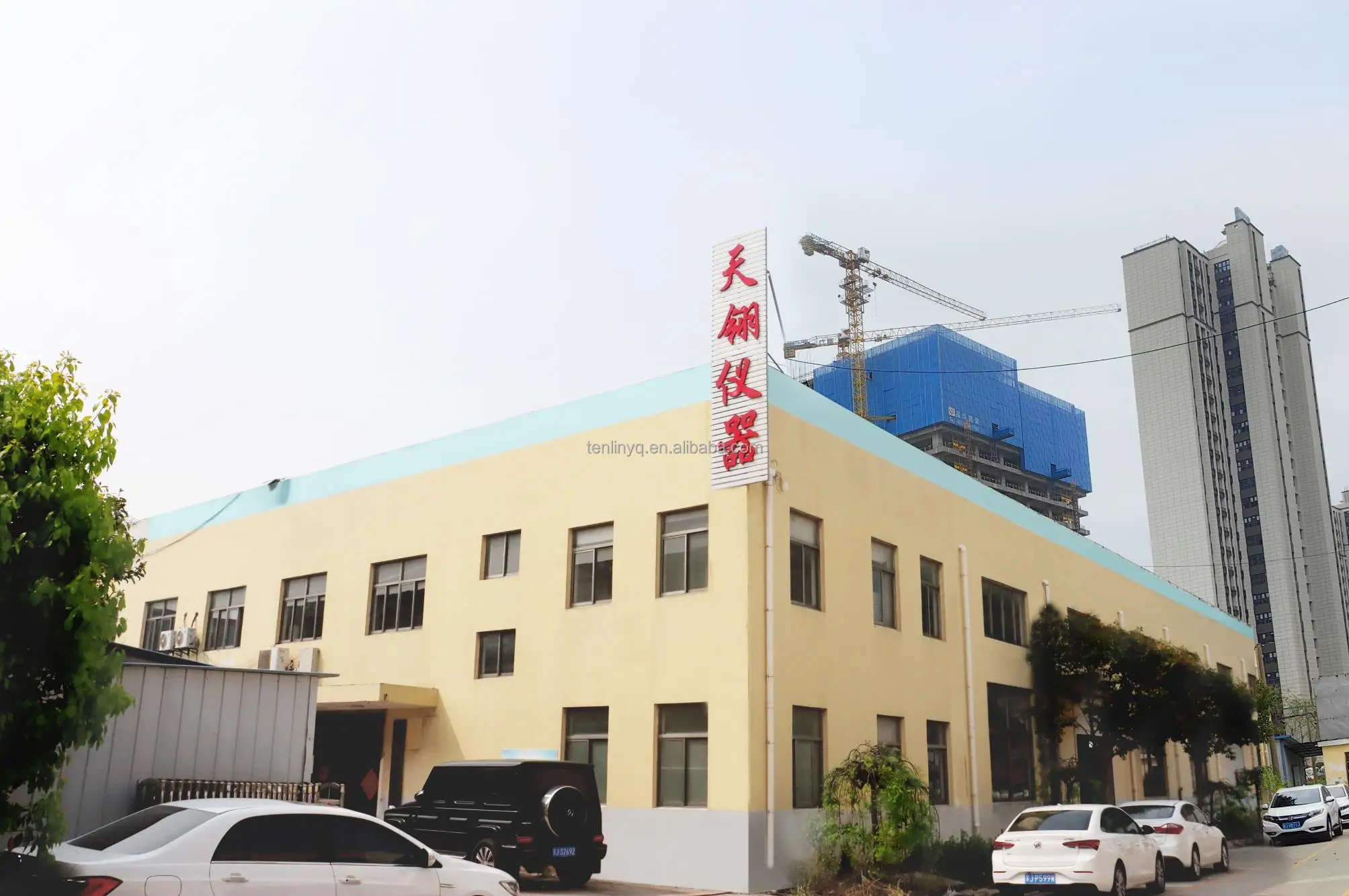

Company Profile

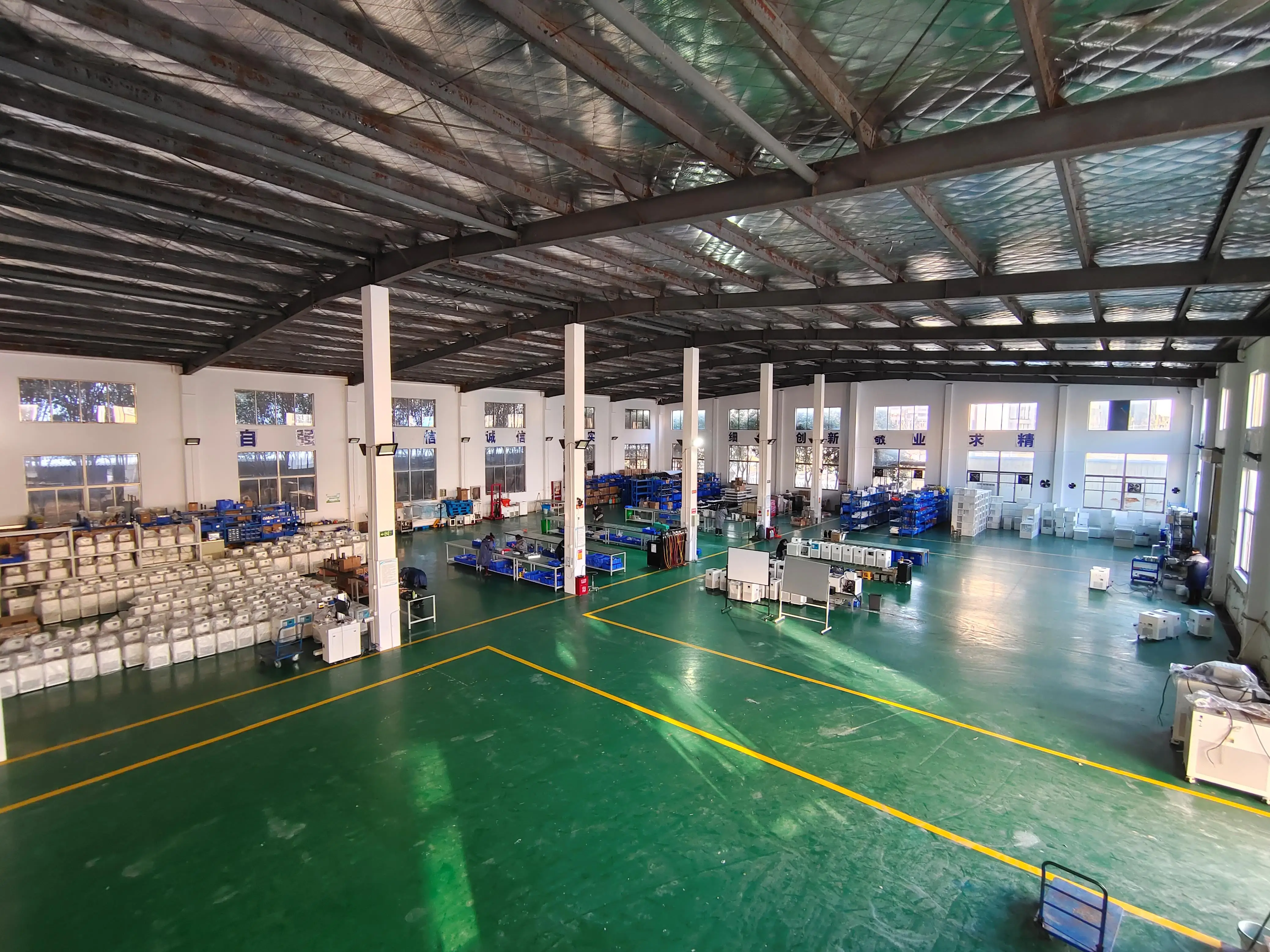

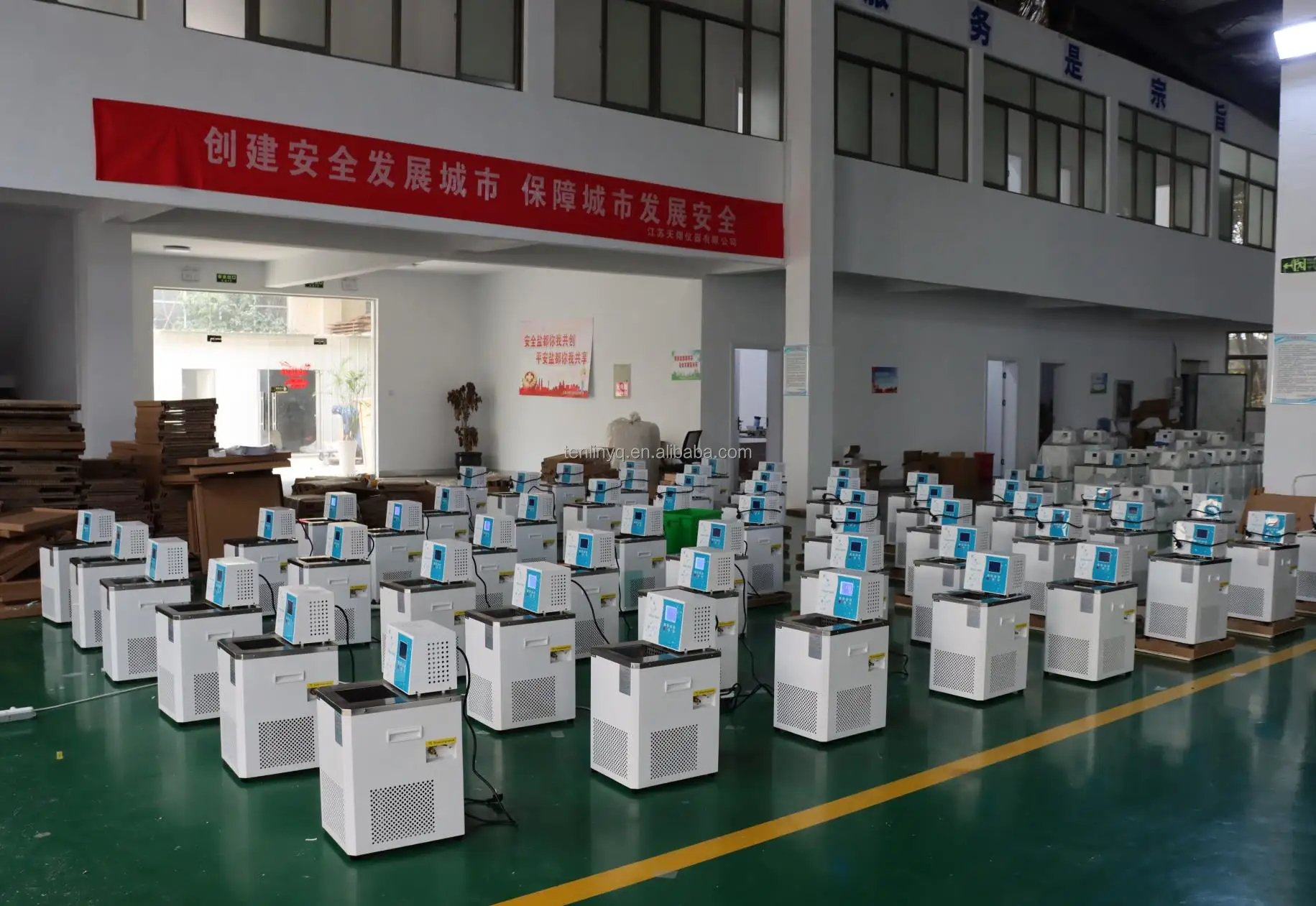

Jiangsu Tenlin Instrument CO., LTD. integrates Research and Development, production, and sales of laboratory equipment since 2015. Our company is committed to providing customers with technically exquisite and reliable quality laboratory instruments to meet their needs. We have a professional R&D team, a perfect management system and excellent after-sales service.
Each product is professionally tested and debugged and maintained, and only sent to customers when everything meets the performance standards. The company has strong technical force and brings together talents from various fields such as electronics, refrigeration, design and manufacturing. At present, we have high and low temperature thermostat series, photochemical reactor, spray dryer, vacuum freeze dryer, constant temperature shaker, microbial homogenizer, ultrasonic cell pulverizer series, sterile homogenizer, oscillator series, incubator series and other laboratory instruments and equipment.
We believe that Tenlin will be your first choice.
Each product is professionally tested and debugged and maintained, and only sent to customers when everything meets the performance standards. The company has strong technical force and brings together talents from various fields such as electronics, refrigeration, design and manufacturing. At present, we have high and low temperature thermostat series, photochemical reactor, spray dryer, vacuum freeze dryer, constant temperature shaker, microbial homogenizer, ultrasonic cell pulverizer series, sterile homogenizer, oscillator series, incubator series and other laboratory instruments and equipment.
We believe that Tenlin will be your first choice.
Certifications
FAQ
Q: Are you trading company or manufacturer ?
A: We are professional manufacturer with 8 years of experience in R&D and production of refrigerated circulating bath.
Q: How long is your delivery time?
A: Generally 3 working days after receipt of payment if goods are in stock, otherwise 8-15 working days depending on order quantity.
Q: What is your principle for the samples?
A: We do not provide free sample.
Q: What is your terms of payment ?
A: Payment<=15000USD, 100% T/T in advance. Payment>=15000USD, 30% T/T in advance, balance before shippment.
Q: Do you provide after-sales service?
A: We could provide Online instruction; Real-time support by call or voice-chat. During warranty time, we can send product accessories when you need for free. Technical guidance is free and ready forever.
Q: Does your factory accept customization?
A: Products can be customized according to your specific requirements.
Q: Who We Are?
A: Tenlin instrument is an enterprise that integrates the R&D, production, and sales of laboratory equipment.
At present, we have high and low temperature thermostat refrigerated circulator series, photochemical reactor, spray dryer, vacuum freeze dryer, constant temperature shaker, microbial homogenizer, ultrasonic cell pulverizer series, sterile homogenizer, oscillator series, incubator series and other laboratory instruments and equipment.
Ordering and Pricing
- Minimum order quantity: 2 set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this circulator water bath chiller?
The standard minimum order quantity is 2 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this circulator water bath chiller carry?
It is supplied with CE ISO9001 documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
