Cmh Air Handling Unit, TICA, AHU, 000, HVAC

Key specification for this cmh air handling unit: power supply 220-230V/380-400V~50/60Hz, cooling capacity 1.8-12.6KW. Everything below is reproduced from the factory data sheet. Made by Henan Shangfeng Hvac Engineering Co., Ltd. (4 years on the platform, typical reply ≤5h). For a binding price and lead time, send the volume you need and where it ships to.

Key Features of This Cmh Air Handling Unit

• Power Supply: 220-230V/380-400V~50/60Hz
• Cooling Capacity: 1.8-12.6KW
• Refrigerant: R134a
• Warranty: 3 Years
• Place Of Origin: Henan, China
• Application: Plant

Technical Specifications

Product Details

*Warm Reminder

Due to more product models and specifications and different prices, the product price is for reference only. If you

need a quotation, please contact customer service for specific consultation, customer service will design and formulate the most reasonable plan for you according to your needs.

Product Description

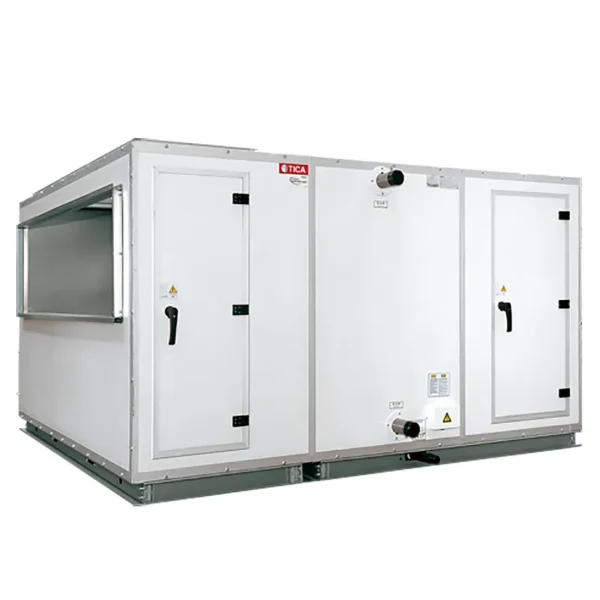

Standard AHU

Standard comfort type AHUs support the filter, cooling coil, and fan sections. By installation method, they can be classified into floor type units and ceiling type units. Floor type units are further divided into horizontal type (7 models) and vertical type (1 model), and the air volume ranges from 2000 to 50,000 CMH. Ceiling type units cover conventional type, jet type, heat recovery type, fresh air type, cool warehouse special type, and industrial large space special type, and the air volume ranges from 1000 to 10,500 CMH. Standard units are widely used in common comfort type places such as shopping malls, hotels, office buildings, supermarkets, factories, workshops, stadiums, and departure lounges.

FEATURES
No Cold Bridge and Not Rust	Polyurethane foamed under high pressure and sealing strips contribute to AHRI1350 CB2 (among CB0~CB4) cold bridge factor; sheet metal edges are protected to avoid rusting.
Compact Structure	Optimized structure for the full series, less installation space is required.
Simple Installation and Intelligent Control	Simple mechatronic control configuration, energy efficient and comfortable intelligent control.
Easy Maintenance	For ceiling-mounted units, DC fan is optional. There is no need of belt replacement. The filter is installed through connecting clips, which is easier and facilitates replacement.
Flexible Combination on Site	Standard models feature complete series and various functions.
Fast Delivery	Standard order processing, sufficient stock, fast delivery.

European Standard American Standard Certification and selection Software

①According to the rich design experience of TICA Group, the embedded template and unit model database can meet the requirements of box size in various places, and the model can be directly selected to speed up the selection. ②Core components such as heat exchangers and fan motors are specialized in type selection, automatically matching high cost-effective models, and heat exchanger selection is certified by American Standard.

③The selection results can intuitively and quickly output a complete set of reports,
including technical parameters of each functional section of the unit, details of coil selection, enthalpy and humidity diagram and operating point, schematic diagram of the shape and size of the unit, etc. The authenticity of the report was certified by the European Standard.

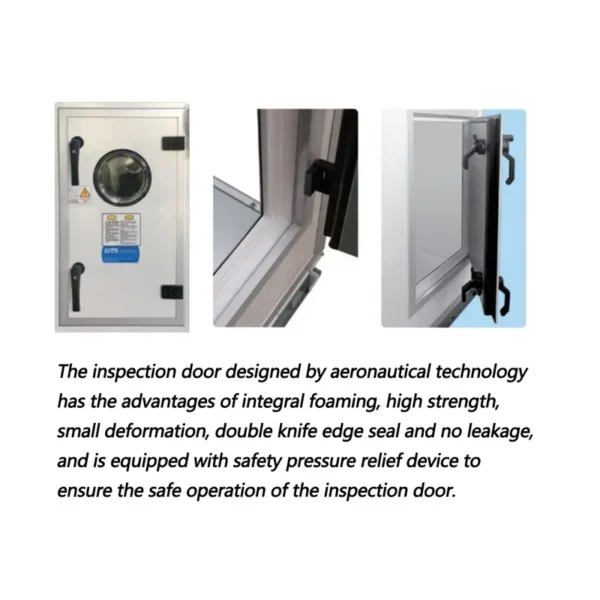

Aeronautical Technical Maintenance Door

The inspection door designed by aeronautical technology has the advantages of integral foaming, high strength, small deformation, double knife edge seal and no leakage, and is equipped with safety pressure relief device to ensure the safe operation of the inspection door.

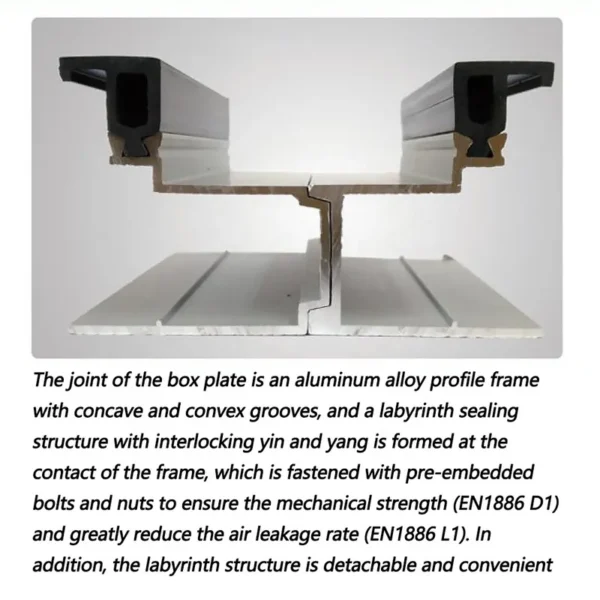

Invention of Labyrinth Box

The joint of the box plate is an aluminum alloy profile frame with concave and convex grooves, and a labyrinth sealing structure with interlocking yin and yang is formed at the contact of the frame, which is fastened with pre-embedded bolts and nuts to ensure the mechanical strength (EN1886 D1) and greatly reduce the air leakage rate (EN1886 L1). In addition, the labyrinth structure is detachable and convenient for maintenance.

Professional Detail Design

In TICA's installation and design of differential manometer, stainless steel pipe is used instead of traditional plastic pipe, and rubber sealing sleeve is used to seal the joint, which can effectively solve the problems of air leakage and pointer jitter caused by insufficient strength of differential manometer.

High Density Filter Frame.

The designed filter framework can greatly guarantee the performance of the filter section, and the filter bypass leakage rate can reach the European standard EN1886 grade (F9).

Product Display

Projects Introduction

Packing & Delivery

Company Profile

Ordering and Pricing

• Minimum order quantity: 1 piece
• Volume pricing:
  • 1–9 piece: US $3650 / piece
  • 10+ piece: US $3500 / piece
• Ships from: China
• Customization: OEM and ODM accepted on qualifying volumes.

Frequently Asked Questions

What is the minimum order quantity for this cmh air handling unit?

The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.

What warranty is provided?

The manufacturer provides a 3 Years warranty. Spare parts and technical support remain available after the warranty period.

Can the cmh air handling unit be supplied for my local voltage?

The standard configuration is 220-230V/380-400V~50/60Hz. Alternative voltage and frequency builds are available when specified at the time of order.

Do you accept OEM or custom branding?

Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.

How long does production and delivery take?

In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
