Key specification for this cold room storage: material Steel, refrigerant R22, R404Q. Everything below is reproduced from the factory data sheet. Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Cold Room Storage
- Model Number: PU Sandwich Panel
- Material: Steel
- Panel Material: Metal
- Refrigerant: R22, R404Q
- Warranty: 1 Year
- Place Of Origin: Shanghai, China
Technical Specifications
| Feature | Fire Resistant , Water Resistant |
|---|---|
| Application | Warehouse |
| Material | Steel |
| Panel Material | Metal |
| Warranty | 1 Year |
| After-Sale Service | Online Technical Support, Free Spare Parts |
| Project Solution Capability | graphic design, total solution for projects |
| Design Style | Industrial |
| Model Number | PU Sandwich Panel |
| Place Of Origin | Shanghai, China |
| Brand Name | CRYO SYSTEMS |
| Standard Air Cooler | Using SS cover |
| Refrigerant | R22, R404Q |
| Pu Panels | 50, 75, 100, 120, 150, 200mm |
| PU Panels Cover | Steel, stainless steel |
| Temp Range | =5~-35 degree |
| Volume | 2~300 cubit meters |
| MOQ | 1 set |
| Brand | Cryo Systems |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
1. Panels thickness
Panels thickness | heat transfer coefficient (w/m2·k) PU/PIR | Temperature difference inside and outside cold room | Suitable temperature for cold room |
75mm | 0.267/0.3 | 40°C | -5~25°C |
100mm | 0.2/0.23 | 50°C | -15~25°C |
150mm | 0.133/0.15 | 70°C | -25~25°C |
180mm | 0.11/0.125 | 80°C | -35~25°C |
200mm | 0.1/0.113 | 90°C | -50~25°C |

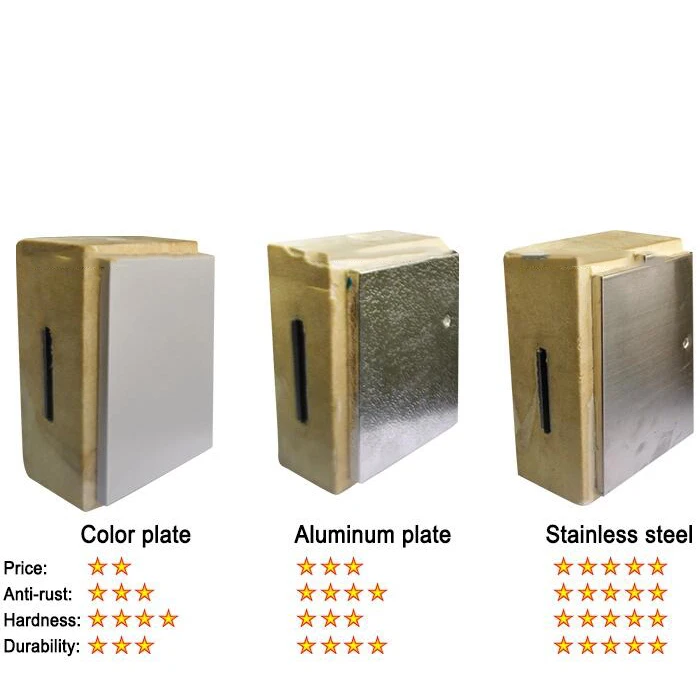

2. Panels surface steel
Types | Color plate | Baosteeel color plate | Galvanized steel | Aluminum steel | Salinization steel | Stainless Steel 304 |
Steel thickness(mm) | 0.426, 0.476 | 0.5, 0.6 0.8 | 0.8, 1 | 0.7, 0.8 | 0.6 | 0.5, 0.6, 0.7 0.8,1 |
Features | Widely use | Famous brand | More durable | Looks nicer | For seafood | For seafood, medicine |

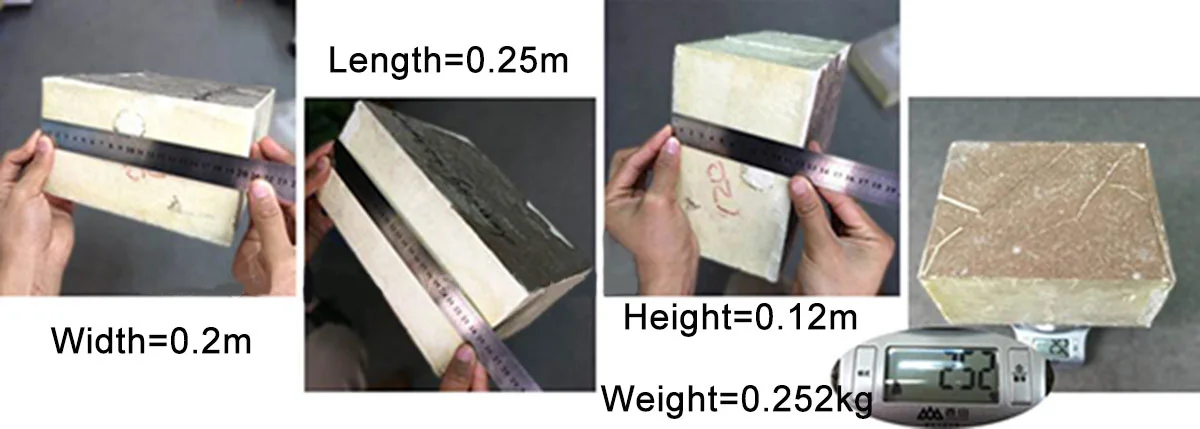

3. Panels density
Density
=Weight/Volume
=0.252/(0.2×0.25×0.12)
=42kg/m3

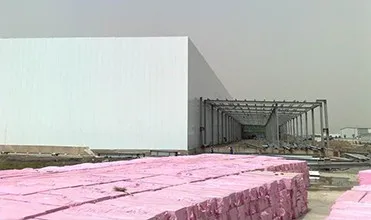

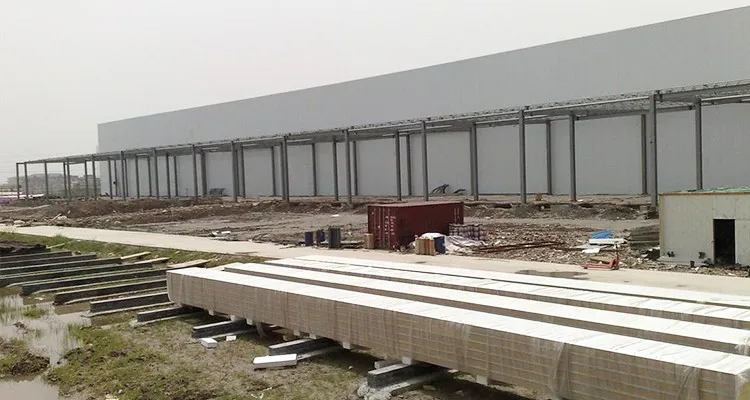

10,000 ton, 80x48x12 meter cold room project
Place: Shanghai, China
Roof/wall Panels: 200mm PIR panels with 0.6mm color palte (Baosteel)
Floor panels: 50mm XPS panels, 4 layers, 350KPA
Temperature: -23C~-25C
Application: cold-chain distribution, logistic refrigeration

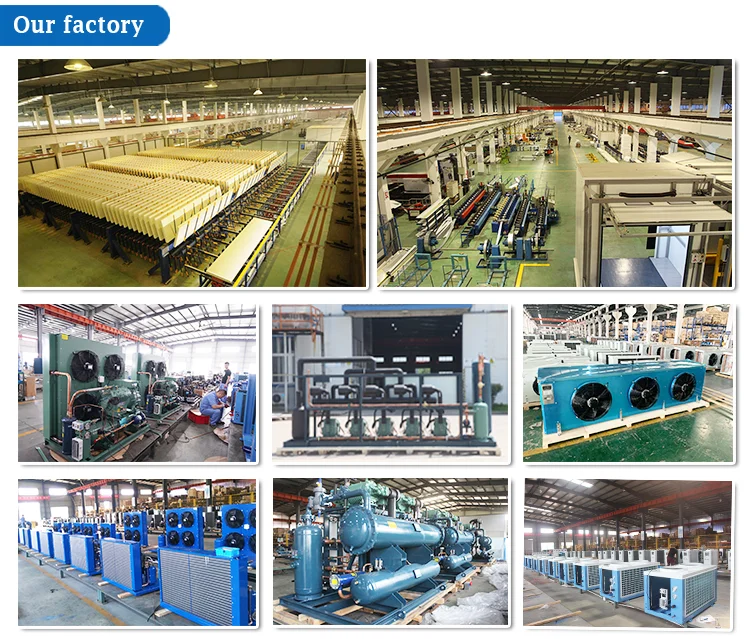

We're the only one manufacturer in China who has two continuous PIR automated lines, one from German, the other from Italy. Annual output up to 2,800,000 sqm panel, 10,000 units cold room doors. We can ensure our panels lifetime 20 years at least.
Answer: Bao-steel brand color plate: 0.5mm, 0.6mm, 0.8mm. The Bao-steel brand is the best in China.
Other suppliers may use 0.326mm, and 0.426mm, not the Bao-steel brand, which is too weak.
2. For PU panels, the higher density the better insulation, right?
Answer: No. The best density is 42kg/m3. We can do the 42kg/m3 to ensure the best insulation.
3. If PU panel adds flame retardant, what will cause?
Answer: Flame retardant is bad material. It will cause dense smoke and poor insulation.
4. What is the warranty for the PU panels?
Answer: We can guarantee you 3 years warranty and design the PU panels used for 20 years. Compared with suppliers, some give 1 year warranty, some even have no warranty grantee.
Ordering and Pricing
- Minimum order quantity: 50 square meter
- Volume pricing:
- 50+ square meter: US $20 / square meter
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cold room storage?
The standard minimum order quantity is 50 square meter. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Guangzhou Cryo Systems Refrigeration Equipment Co., Ltd., based in China. The company 16 years as a verified Alibaba.com supplier, Trading Company. Browse the full Guangzhou Cryo Systems Refrigeration Equipment Co., Ltd. range on HVACR Nexus.
