Key specification for this cold room storage: type PU panel, certificatioh ce. Everything below is reproduced from the factory data sheet. Made by Hangzhou Sino-Cold Sci-Tech Co., Ltd. (8 years on the platform, factory-assessed). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Cold Room Storage
- Panel Material: Color steel
- Core Material: PU Polyurethane
- Warranty: 1 Year
- Place Of Origin: ZHEJIANG
- Application: Cold room
- Feature: Fir proof and waterproof
Technical Specifications
| Application | Cold room |
|---|---|
| Type | PU panel |
| Warranty | 1 Year |
| Machinery Test Report | Provided |
| Video Outgoing-Inspection | Provided |
| Weight (Kg) | 13 |
| Place Of Origin | ZHEJIANG |
| Brand Name | Enfriar |
| Product Name | Hook Pu Panel |
| Panel Material | Color steel |
| Thickness Of Pu Panel | 150mm |
| Thickness Of Color Steel | 0.5mm |
| Core Material | PU Polyurethane |
| Grade | Complex B1 |
| Width | 960mm/1000mm |
| Feature | Fir proof and waterproof |
| Certificatioh | ce |
| After-Sales Service | Online surport |
| Selling Units | Single item |
| Single Package Size | 60X60X30 cm |
| Single Gross Weight | 1.500 kg |
Product Details
Product Description
PU PIR Insulated Panels XPS Floor Board PUR Sandwich Panel Cold Room Panels Manufacturer
Cam-lock System
PU sandwich panel (Polyurethane)is composed of 2 layers of weather-proof colored steel sheets and jetted the hard forms of
polyurethane between 2 layers which feature fireproof materials, which is embedded the eccentric hook in the mould around the
sandwich panel when produce, convenient assembly, and generally applicable to small or medium-sized cold room.
PU sandwich panel (Polyurethane)is composed of 2 layers of weather-proof colored steel sheets and jetted the hard forms of
polyurethane between 2 layers which feature fireproof materials, which is embedded the eccentric hook in the mould around the
sandwich panel when produce, convenient assembly, and generally applicable to small or medium-sized cold room.
Slip Joint System
It is suitable for the various roofs and walls referring to the large-size factory buildings, storage, exhibition halls,
gymnasiums, freezing stores, purification workshops, etc, which features temp-keeping, heat insulation, weight-bearing,
weatherproof with the rich colorfulness and good appearance.
It is suitable for the various roofs and walls referring to the large-size factory buildings, storage, exhibition halls,
gymnasiums, freezing stores, purification workshops, etc, which features temp-keeping, heat insulation, weight-bearing,
weatherproof with the rich colorfulness and good appearance.
Application: For cold room building ,here is our suggestion for cold room panel : | ||
Thickness of cold storage panel | Application temperature | |
50mm | Temperature 5°C or above | |
75mm | Temperature -5°C or above | |
100mm | Temperature -5'C~-25°C or above | |
150mm | Temperature -18'C~-45°C or above | |
200mm | Temperature -55°C or above | |
Features of PU Sandwich Panel:
(1) Size: the standard width will be 960mm/1000mm,the length can be customized ,but in order to suit the shipping container ,so we suggest to set the max length as 2900mm or 11800mm of each panel.(2) Material : we have changed the new environmental friendly – CFC FREE.
(3)Connection: connected by cam-lock, no need to fix by rivets , more stable and good sealing.
(3)Connection: connected by cam-lock, no need to fix by rivets , more stable and good sealing.
PRODUCT PARAMETERS
Cold Storage Sandwich Panels | ||||
Metal Sheet | PPGI steel sheet, PPGL steel sheet, Al-Mg-Mn sheet, Stainless steel sheet | |||
Thickness of Metal Sheet | 0.4mm-0.8mm | |||
Thickness of Panel | 50mm, 75mm, 100mm, 150mm, 200mm | |||
Effective Width of Panel | 960mm, 1000mm | |||
Length of Panel | 11800mm (According to the client's requirement) | |||
Color | White, Gray, Blue, Red or other RAL colors | |||
Coating | PE, HDP, SMP, PVDF | |||
Core Material | PU/PUR(Polyurethane) | PIR(Polyisocyanurate) | ||
Fireproof Grade | B2 | B1 | ||
Density | 38-40kg/m³ | 40-42kg/m³ | ||
Thermal Conductivity (25ºC) | ≤0.026w/(m.k) | ≤0.022w/(m.k) | ||
Closed Cell Rate | ≥97% | |||
Surface | Flat, Small Waves, Ribbing | |||
Installation Method | Horizontal or Vertical | |||
Customer Feedback
Project Cases of Our Cold Storage Sandwich Panels (Outer Looks)
Beside Our high quality cold storage sandwich paenls, we also supply all the falshings, exterior sandwich wall or roof panels,profiled steel sheet, windows and doors, installation accessories.
Beside Our high quality cold storage sandwich paenls, we also supply all the falshings, exterior sandwich wall or roof panels,profiled steel sheet, windows and doors, installation accessories.
Main Components of Cold Room
One-stop service
Integrating design, production, sales, installation, after-salesservice,development, and assembly.
Its reliable product qualityand comprehensive pre-sales andafter-sales servicehave been recognized by many customers
After placing the order , our designer will design an exact drawing for your cold room. Each panel has mark.

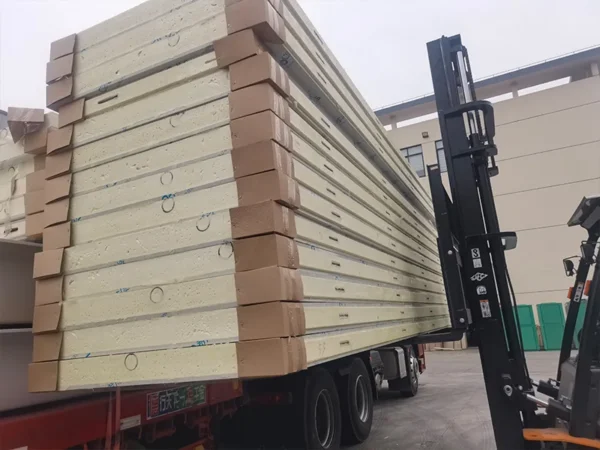

Packing & Delivery
CERTIFICATION
COMPANY PROFILE
➤➤➤
SinoCold is a professional refrigerator full supply chain solution provider, specializing in designing and producing refrigeration equipment. ONE-STOP service is our core advantage, that means you can get almost everything about refrigeration equipments for cold storage.
➤➤➤
Provide excellent after-sale service and establish sincere credibility. Our company has been awarded the ISO9001International Quality Management System Certification. All the products have obtained the production license of national refrigeration industry.
➤➤➤
The main products include cold room solution, semi-hermetic, hermetically sealed refrigerant compressors and condenser unit.various kinds of air-cooled condensers, air coolers and industry humidifier related accessories.
─ FACTORY ─
FAQ
A: Can you customize size for me?
B: Yes, all of our product is customized. Just let us know your dimension request or your total cargo kgs , will give you our
suggestion.
B: What brand compressor do you use?
We normally provide copeland etc famous brand compressor , quality guaranteed.
C: How about your delivery time?
For panels sample, normally 5~7 days.
For equipment .
B: Yes, all of our product is customized. Just let us know your dimension request or your total cargo kgs , will give you our
suggestion.
B: What brand compressor do you use?
We normally provide copeland etc famous brand compressor , quality guaranteed.
C: How about your delivery time?
For panels sample, normally 5~7 days.
For equipment .
1)If your voltage is same with China , like 380V/50HZ/3Phase , our delivery time can be about 15~25 work days.
2) If your voltage is different with China , like 220V/60HZ/3Phase etc , our delivery time is around 20-30 work days.
D: Can you arrange engineer for us to install my cold room?
Yes , we can provide engineer go abroad to guild the installation , you need to solve visa , air ticket , meal , hotel , salary
etc .
2) If your voltage is different with China , like 220V/60HZ/3Phase etc , our delivery time is around 20-30 work days.
D: Can you arrange engineer for us to install my cold room?
Yes , we can provide engineer go abroad to guild the installation , you need to solve visa , air ticket , meal , hotel , salary
etc .
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–19 set: US $30 / set
- 20–49 set: US $28 / set
- 50+ set: US $26 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cold room storage?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this cold room storage carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Hangzhou Sino-Cold Sci-Tech Co., Ltd., based in China. The company 8 years as a verified Alibaba.com supplier, Trading Company, passed third-party supplier assessment. Browse the full Hangzhou Sino-Cold Sci-Tech Co., Ltd. range on HVACR Nexus.
See more in Cold Room Storage on HVACR Nexus.
