Cold room storage — material Aluminum. The complete factory specification follows. Made by Shenzhen Lowcled Lighting Co., Ltd. (12 years on the platform, typical reply ≤9h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Cold Room Storage
- Input Voltage(V): AC100-240V(50/60Hz)
- Shade Material: Plastic
- Lamp Body Material: Aluminum Alloy, PC
- Material: Aluminum
- Warranty(Year): 5-Year
- Place Of Origin: Guangdong, China
Technical Specifications

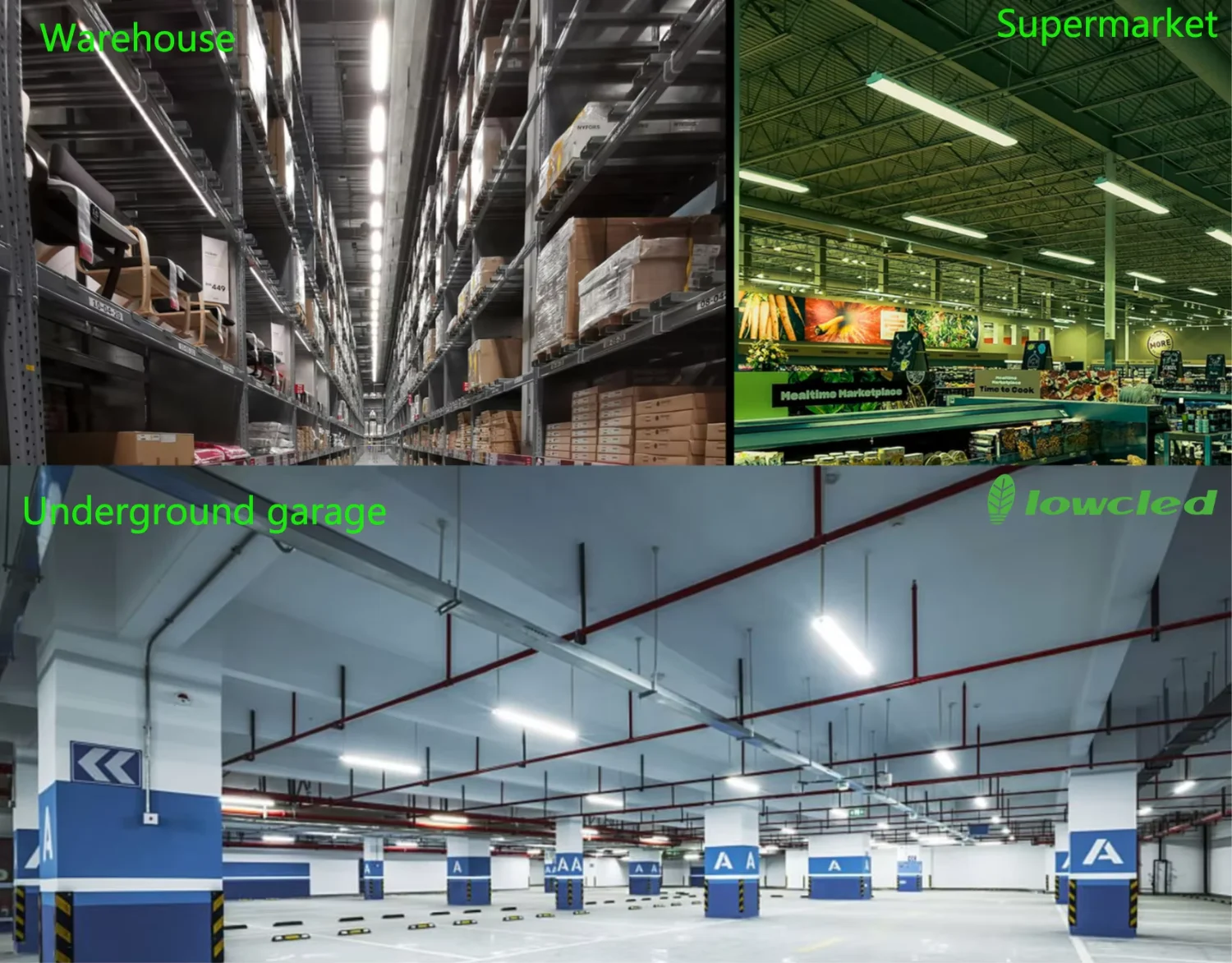

| Application | Warehouse, Hospital, Hotel, Office, Residential |
|---|---|
| Input Voltage(V) | AC100-240V(50/60Hz) |
| IP Rating | IP66 |
| Lamp Luminous Efficiency(Lm/W) | 110 |
| Lifespan (Hours) | 50000 |
| Color Temperature(CCT) | 3000K 4000K 6000K |
| Support Dimmer | No |
| Installation Style | Surface Mount, Suspended |
| Shade Material | Plastic |
| Lamp Body Material | Aluminum Alloy, PC |
| Warranty(Year) | 5-Year |
| Required Assembly | No |
| Color Rendering Index(Ra) | 80 |
| Light Source | LED |
| Material | Aluminum |
| Style | Industrial |
| Lighting Solutions Service | Lighting And Circuitry Design |
| Place Of Origin | Guangdong, China |
| Brand Name | Lowcled |
| Product Weight（Kg） | 1.4 |
| CRI (Ra>) | 80 |
| Selling Units | Single item |

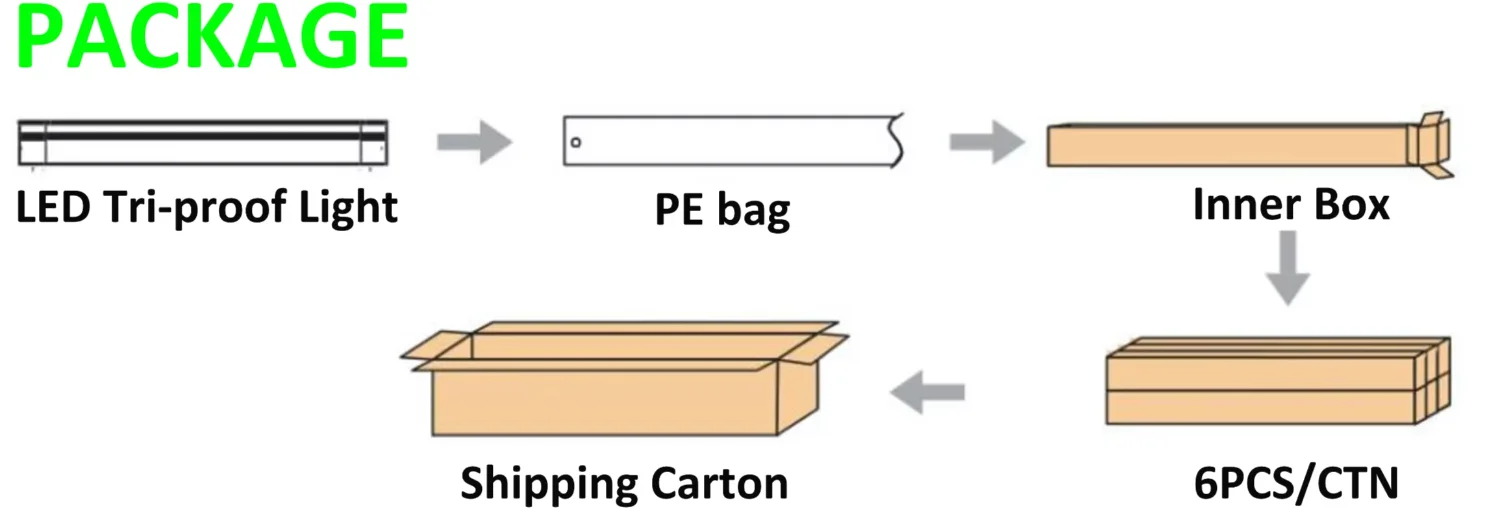

| Single Package Size | 133X27X20 cm |
| Single Gross Weight | 2.000 kg |
Product Details

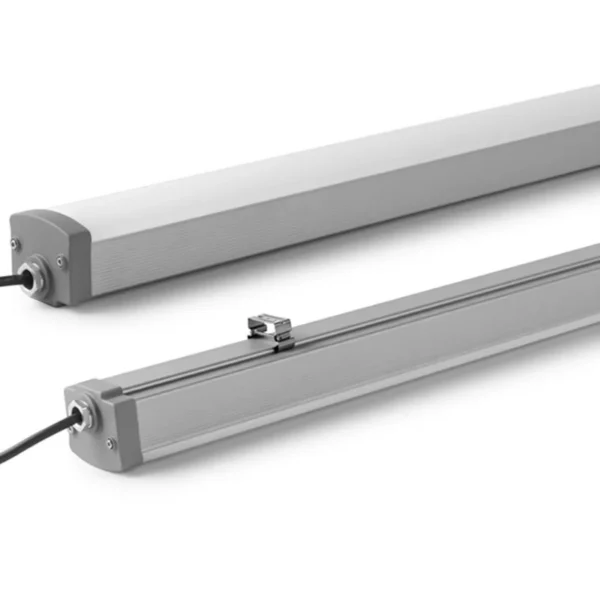

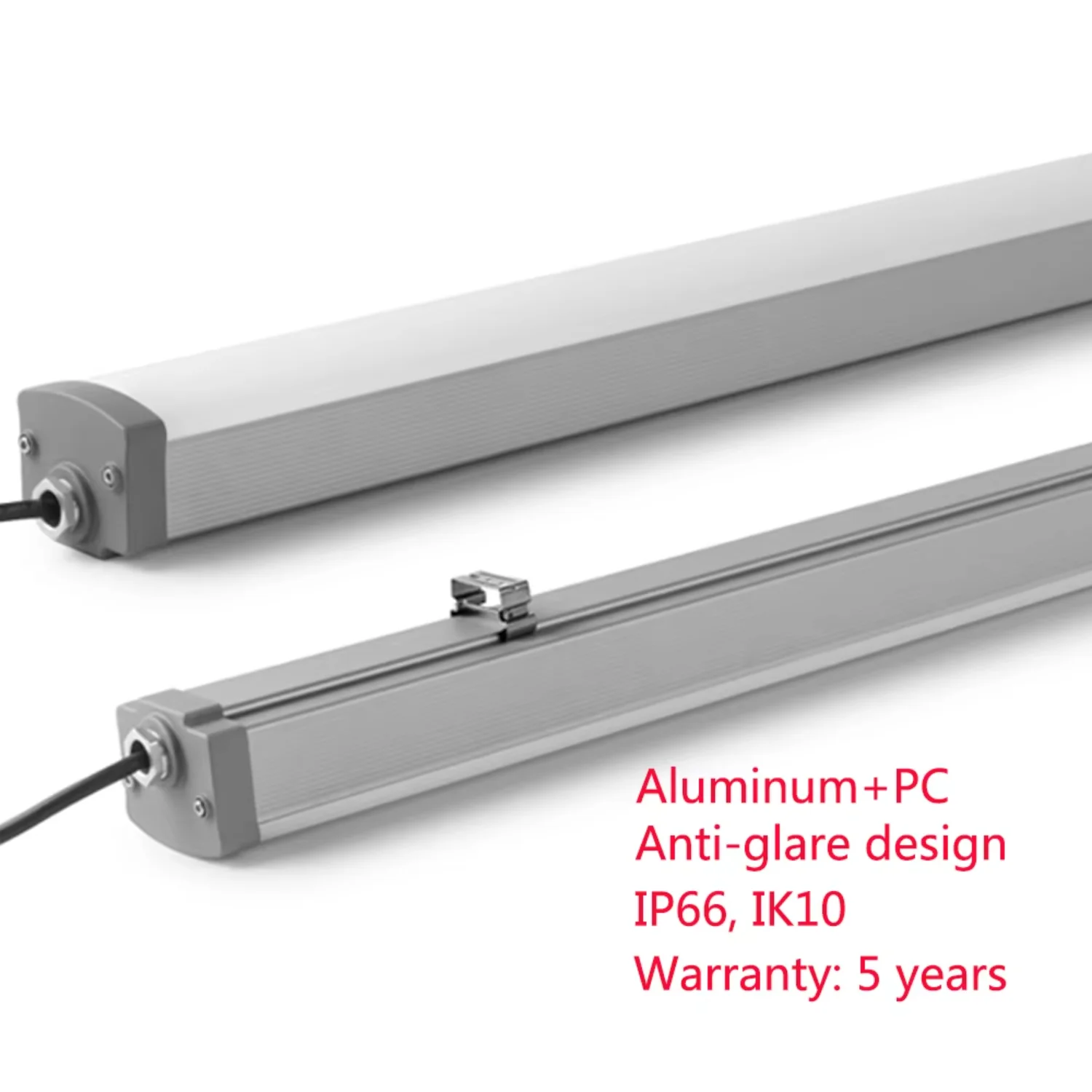

- The structure is composed of 6063 aluminum + PC, anti-glare design.
- The end cap of lamp is made of die-cast aluminum with a painted surface
- Ra:>80Ra LED: Highlight SMD2835 Beam Angle: 120°
- Power: 20W 30W 40W 50W 60W 80W 100W
- Input Voltage:AC200-240V/AC100-277V/DC24V

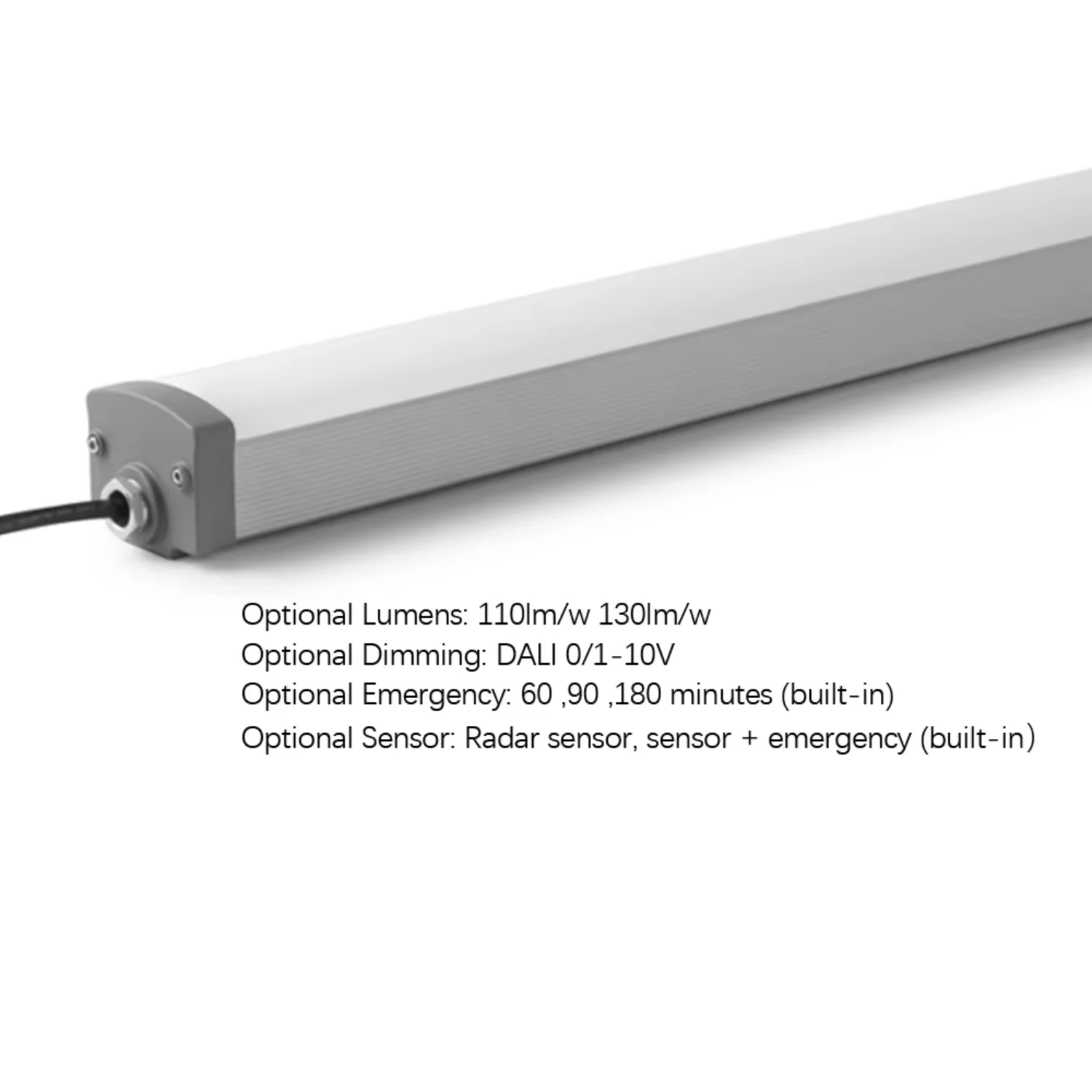

- Optional Lumens: 110lm/w 130lm/w
- Optional Dimming: DALI 0/1-10V
- Optional Emergency: 60 ,90 ,180 minutes (built-in)
- Optional Sensor: Radar sensor, sensor + emergency (built-in)

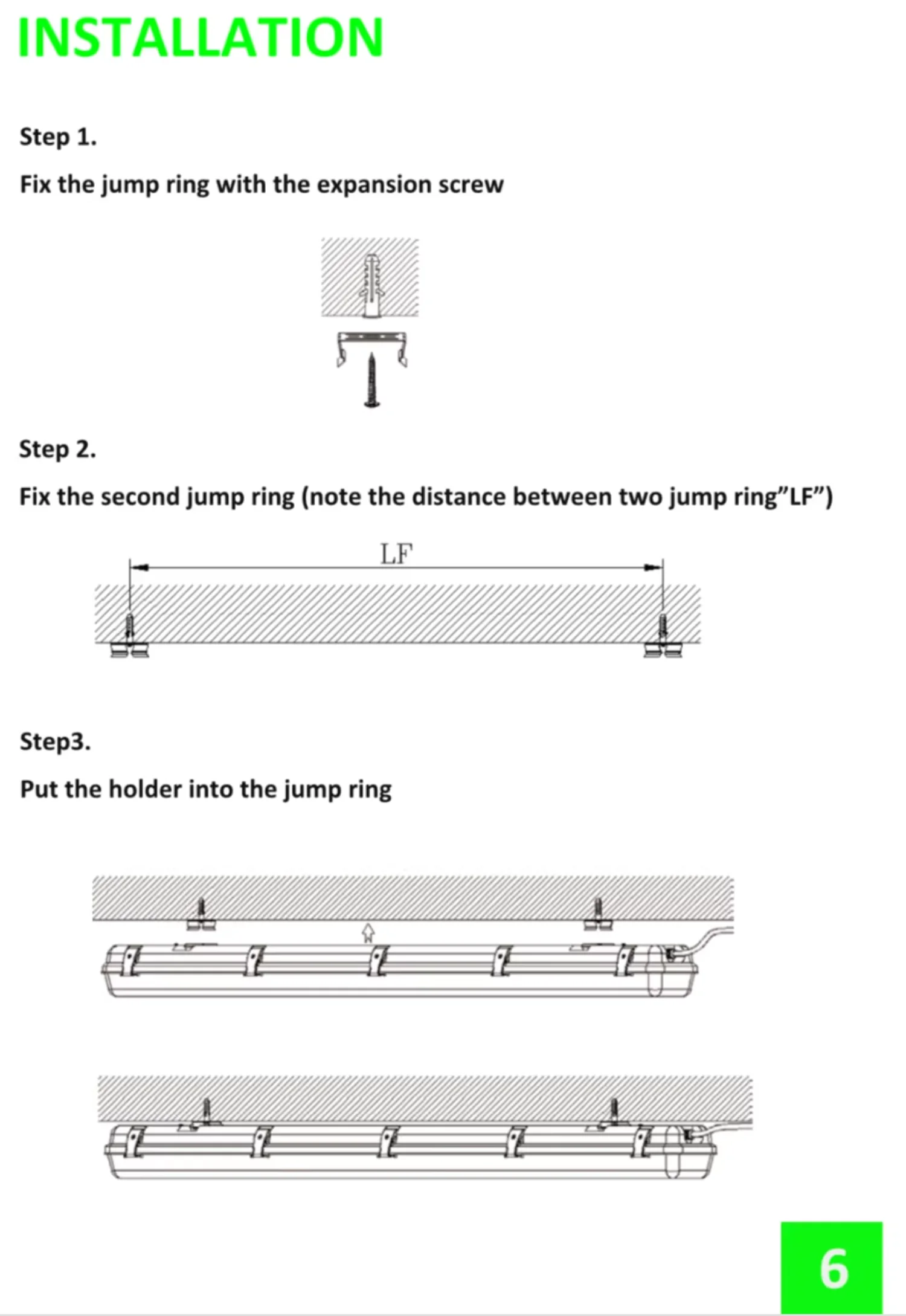

- Installation Method: Ceiling, Hanging wire, boom, Ceiling suspension rod, Holding tube,Flange tube

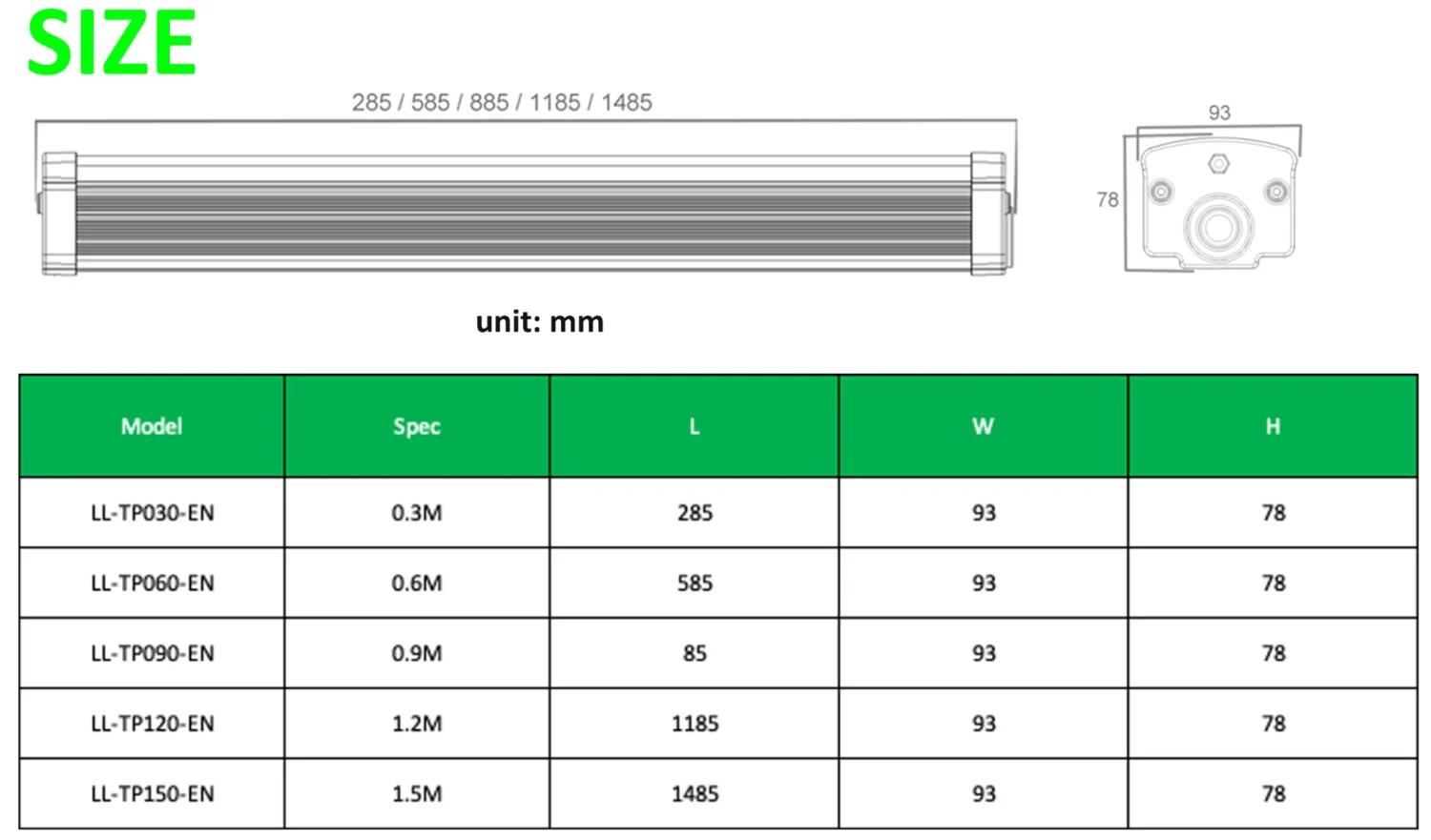

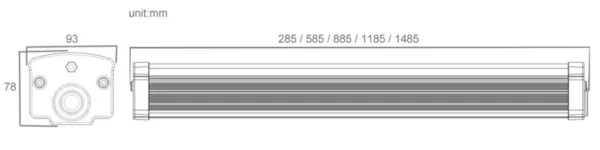

- Optional Size: Length 285mm 585mm 885mm 1185mm 1485mm, Width 93mm, Height 78mm
- IP Rating: IP66, IK10
- Warranty: 5 years
Product Name | LL-TP-EN2 | |

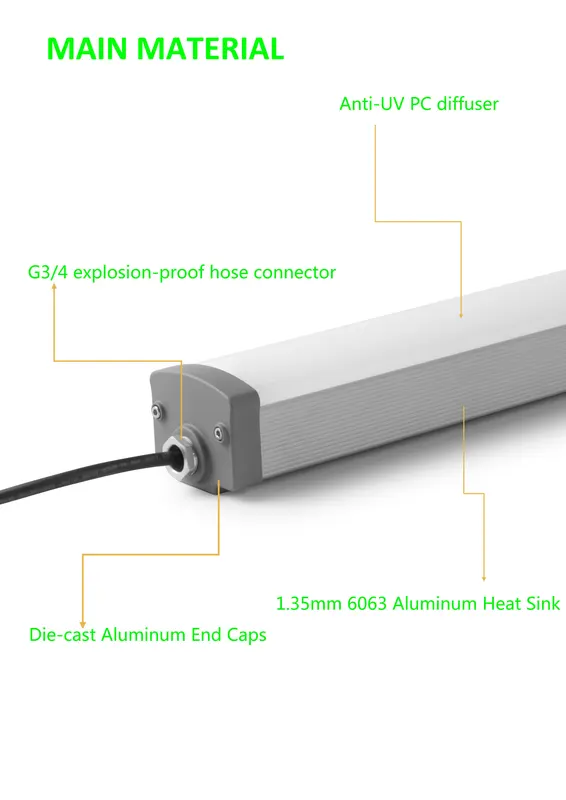

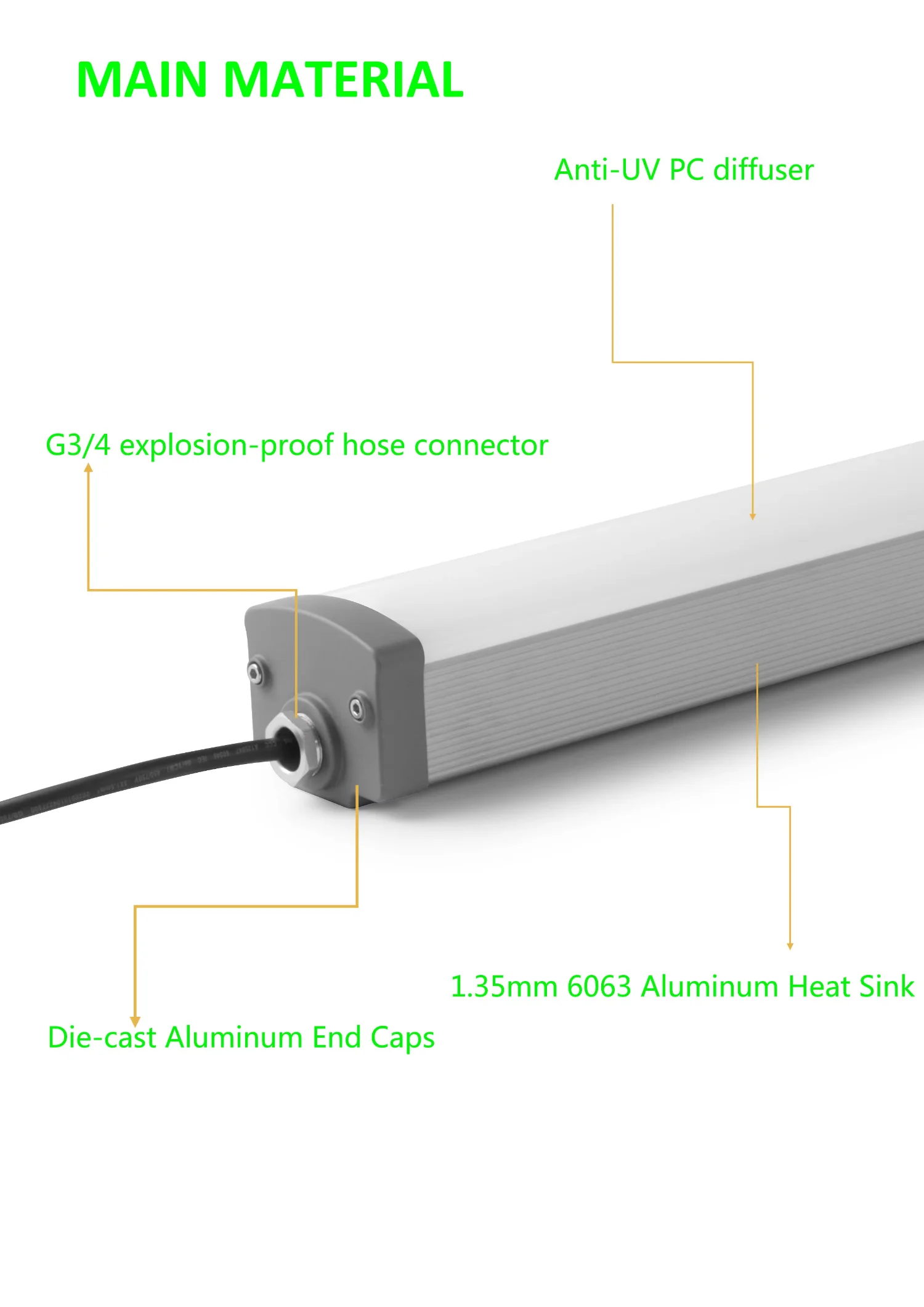

Material | PC+Aluminum Heat Sink+Die-cast Aluminum End Caps | |
Power | 20w / 30W / 40W / 50W / 60W / 80W / 100W | |
Size(Width 93MM,Height 78MM) | Length 300mm / 600mm / 900mm / 1200mm / 1500mm | |
Input Voltage | AC200-240V / 50-60HZ | |
Power Factor | >0.95 | |
Surge | >2.5KV | |
LED Chips | 2835SMD | |
Luminous Efficiency | 100LM/W , 130LM/W , 150LM/W | |
CCT | 3000K / 4000K / 5000K / 5700K / 6500K | |
CRI | 83Ra | |
Color Tolerance | SDCM<5 | |
Beam Angle | 120° | |
IP/IK Rating | IP66 , 1K10 , WF2 | |
Function | Emergency, DALI 0/1-10V Dimming, Sensor | |
Input Cable | Standard 40-50cm; customizable | |
Working Environment Temperature | -35+60℃ | |
Warranty | 5 Years | |

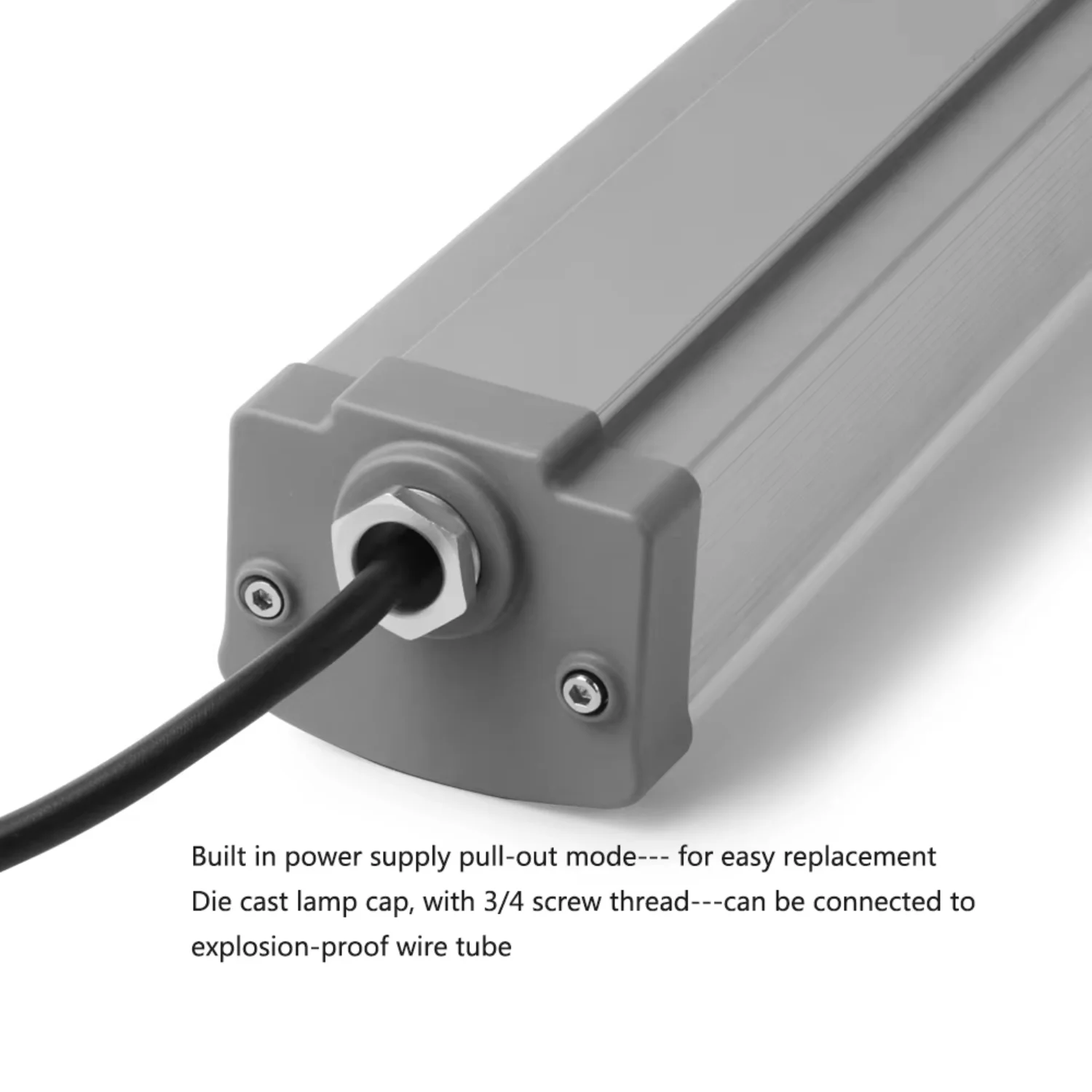

Inlet interface, can be equipped with G3/4 explosion-proof hose connector | ||
Ordering and Pricing
- Minimum order quantity: 2 piece
- Volume pricing:
- 2–9999 piece: US $19.18 / piece
- 10000+ piece: US $18.88 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cold room storage?
The standard minimum order quantity is 2 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 5-Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cold room storage be supplied for my local voltage?
The standard configuration is AC100-240V(50/60Hz). Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shenzhen Lowcled Lighting Co., Ltd., based in China. The company 12 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shenzhen Lowcled Lighting Co., Ltd. range on HVACR Nexus.
