This cold storage container freezer is published with the manufacturer’s full specification — 380V/50Hz, 2300w. Made by Qingdao Haiyirong Business Consulting Co., Ltd. (1 year on the platform, typical reply ≤5h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Cold Storage Container Freezer
- Model Number: 20ft container cold storage
- Power: 2300w
- Voltage: 380V/50Hz
- Refrigerant: R404A
- Noise Level: 60-70dB
- Warranty: 1 Year
Technical Specifications
| Compressor Brand | INVOTECH |
|---|---|
| Refrigerant | R404A |
| Voltage | 380V/50Hz |
| Power | 2300w |
| Machinery Test Report | Provided |
| Warranty | 1 Year |
| Noise Level | 60-70dB |
| Feature | Container, Solar |
| No. Of Doors | 2 |
| Solar Or Not | With Solar Panel, Without Solar Panel |
| Video Outgoing-Inspection | Provided |
| Core Components | Motor, Bearing, Pump |
| Key Selling Points | Easy To Operate, Automatic, High-Accuracy, Eco-Friendly, Competitive Price, High Productivity, Remote Monitoring, Long Service Life, Energy Saving, Low Maintenance Cost, Accurate Temperature Control, Other |
| Place Of Origin | Shandong, China |
| Weight (Kg) | 300 |
| Brand Name | DINGTENG |
| Model Number | 20ft container cold storage |
| Dimension(L*W*H) | 6058x2438x2896mm |
| Insulation Panel Parameters | 100 mm thickness |
| Cold-Room Door Size | 1400 mm * 2000 mm |
| Refrigeration Unit | 1 set of 3HP integrated variable-frequency refrigeration unit |
| Cooling Method | Air-cooled System |
| Compressor | 3HP Variable-frequency Compressor |
| Temperature Adjustment Range | -20℃ ~ 15℃ adjustable |
| Photovoltaic | The top layer, 5 photovoltaic panels(Optional) |
| Anti-Slip Aluminum Sheet | Optional |
| Floor | Color steel plate |
| Use | Frozen Food Storage |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
Product Details
PRODUCT HIGHLIGHTS
- Assembled PU panel frame with corner-lock connection — tool-free quick setup, fully reusable, and detachable for low-cost transport.
- Thermal energy storage technology cuts power costs by 40%. Runs on off-peak electricity and holds temperature 24 hours after a blackout.
- Optional 5-panel solar photovoltaic system for complete off-grid operation. Ideal for remote farms and areas with unstable power.
- Constant temperature with high humidity control — dramatically reduces fruit and vegetable weight loss, extending freshness by days.
- 3HP inverter-driven compressor with frequency conversion. Precise temperature regulation while keeping energy consumption low.
- New ISO container body with anti-corrosion color steel floor. Optional anti-slip aluminum plate for safety in wet processing areas.
- Fully free-size customization — length, width, height, door position, shelving layout, and temperature zones all built to your spec.
Parameter Item | 20‑foot Container Cold Storage |
Overall External Dimension | 6058×2438×2896 mm |
Insulation Panel Parameters | 100 mm thickness, polyurethane foam insulation panel with foam density of 40 kg/m³, 0.326 mm color steel sheet on both sides |
Cold‑room Door Size | 1400 mm × 2000 mm |
Refrigeration Unit | 1 set of 3HP integrated variable‑frequency refrigeration unit |
Cooling Method | Air‑cooled System |
Compressor | 3HP Variable‑frequency Compressor |
Operating Power | 2300 W |
Power Supply | 380 V / 50 Hz |
Refrigerant | R404a |
Temperature Adjustment Range | ‑20℃ ~ 15℃ adjustable |
标题

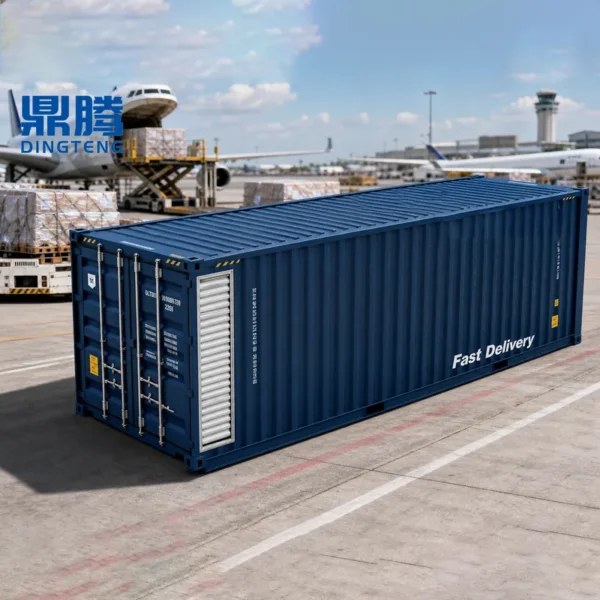

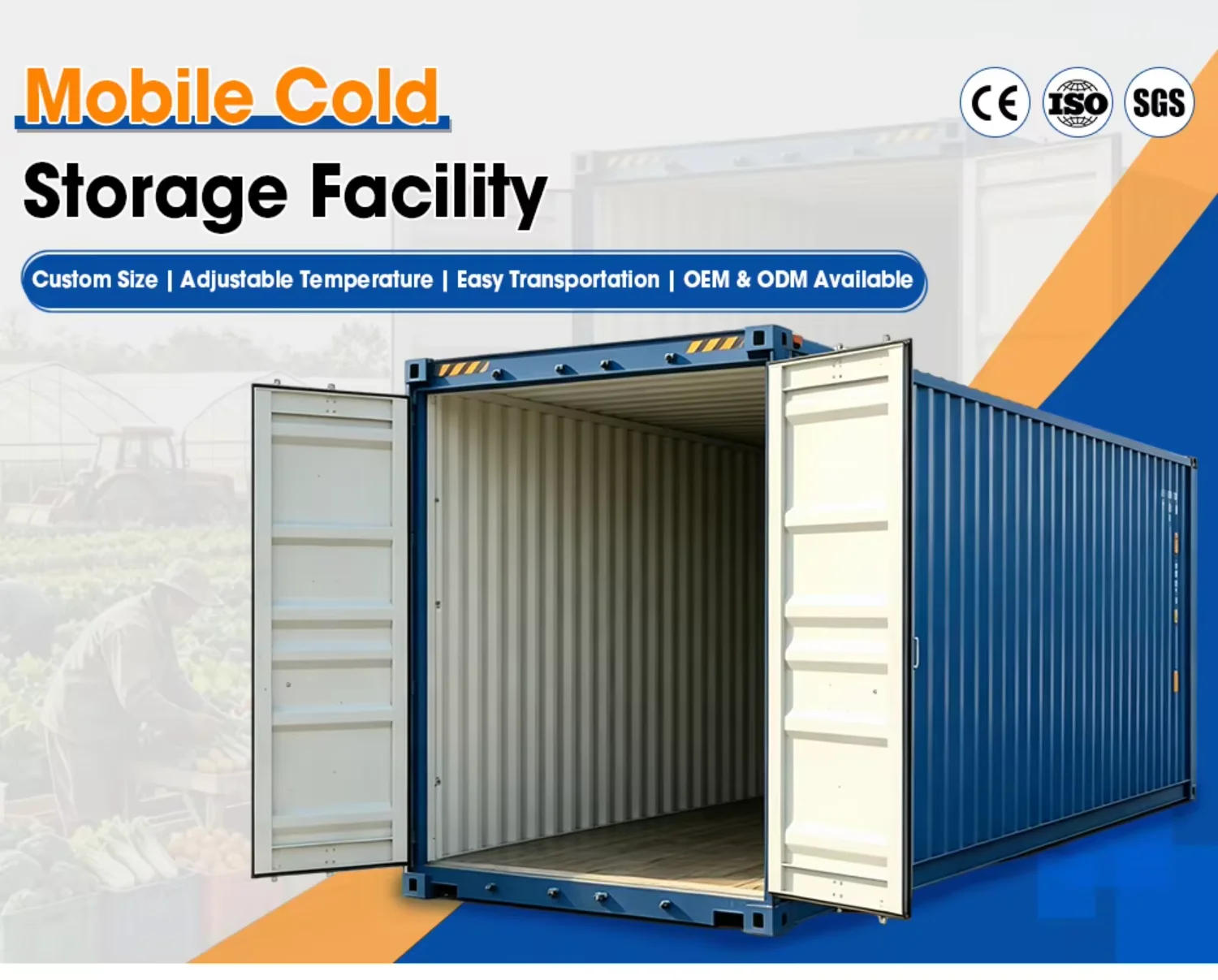

Mobile and Easy to Transport
Temporary Cold Storage Projects
Seasonal Agricultural Storage
Mobile Food Distribution
标题
Efficient Thermal Insulation The insulation material, panel thickness and sealing structure can be selected according to the required storage temperature, local climate and operating conditions.
标题

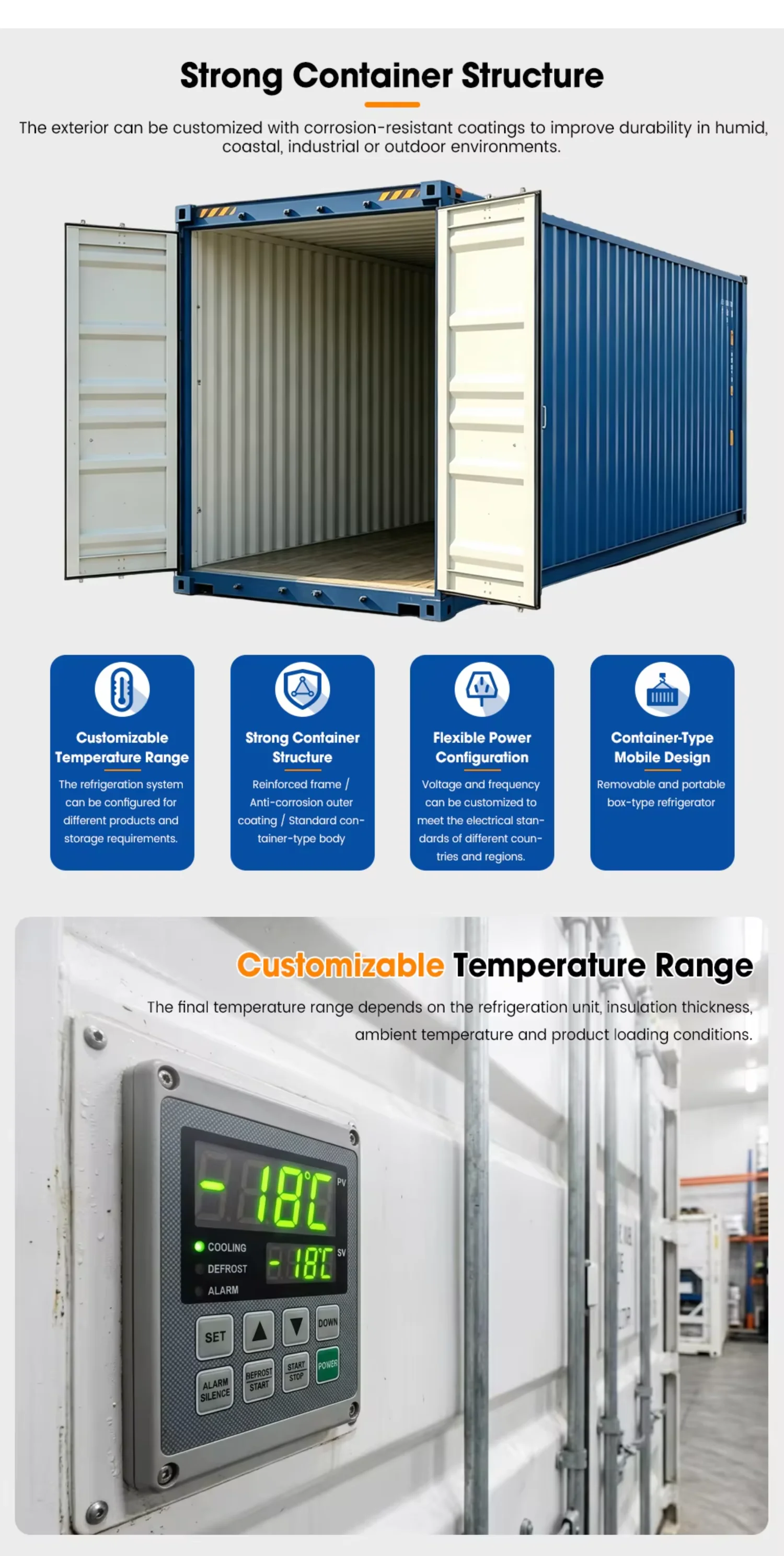

Strong Container Structure
The exterior can be customized with corrosion-resistant coatings to improve durability in humid, coastal, industrial or outdoor environments.
Customizable Temperature Range The refrigeration system can be configured for different products and storage requirements.
Strong Container Structure Reinforced frame/ Anti-corrosion outer coating / Standard container-type body
Flexible Power Configuration Voltage and frequency can be customized to meet the electrical standards of different countries and regions.
Container-Type Mobile Design Removable and portable box-type refrigerator
Customizable Temperature Range
The final temperature range depends on the refrigeration unit, insulation thickness, ambient temperature and product loading conditions.
Storage Type | Recommended Temperature |
Fresh fruits and vegetables | 0° C to 10° C |
Beverages and dairy products | 0° C to 8° C |
Meat and seafood chilling | -5° C to 0° C |
Frozen food storage | -18° C to -25° C |
Deep-freezing applications | Customized |

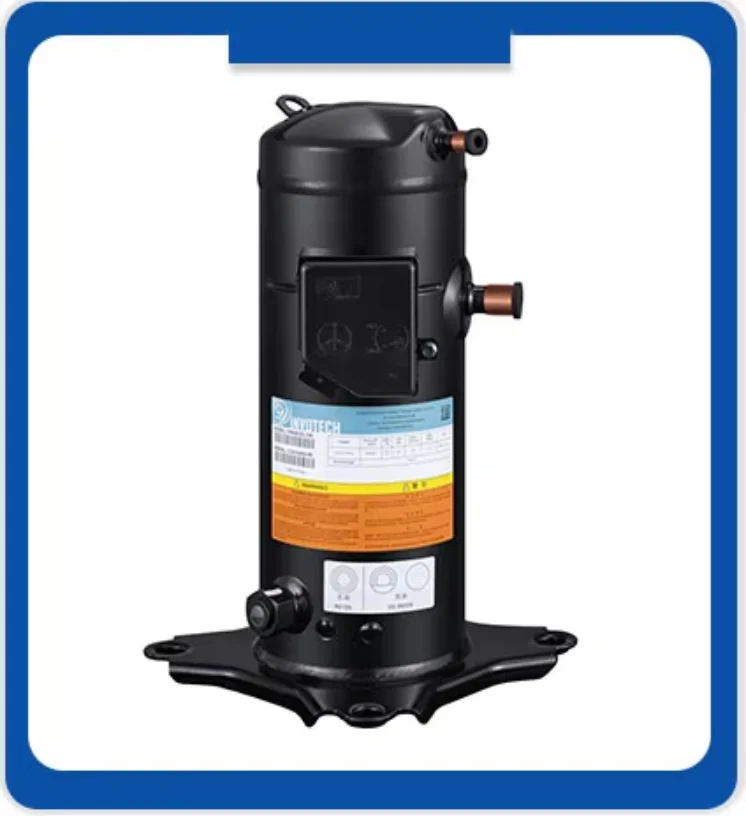

Refrigeration Compressor The refrigeration compressor is the "heart" of the refrigeration system, mainly responsible for compress-! ing and transporting the refrigerant, providing poweri for the entire cycle. It transforms the low-temperature and low-pressure gas into high-temperature and high-pressure gas, allowing the heat to be smoothly! discharged outdoors.

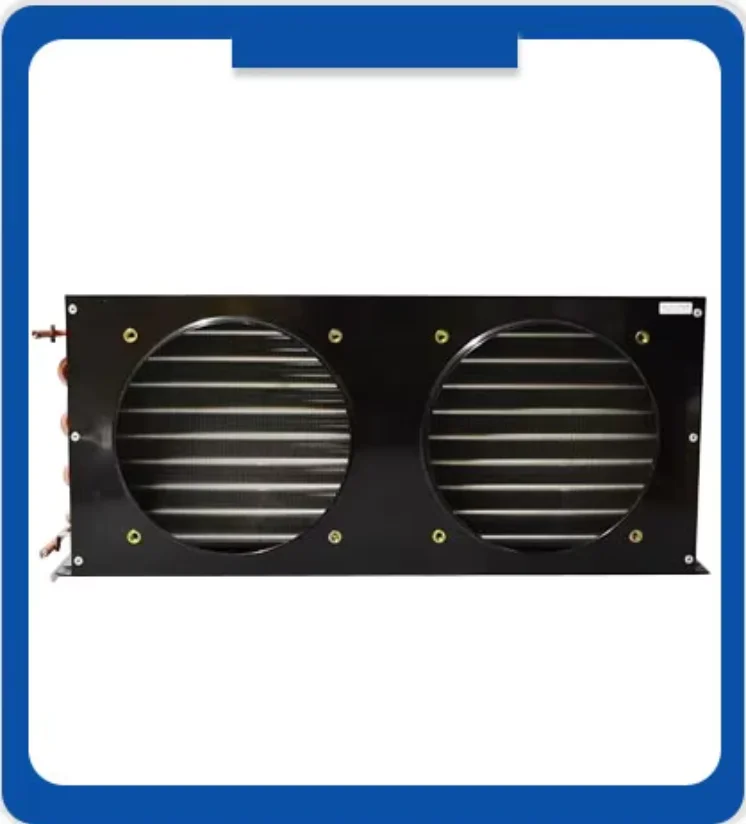

Condenser
The core function of the condenser is to convert the high-temperature gaseous refrigerant into liquid form, while also discharging the heat outside. It is like the responsible for releasing the heat transported from the interior to the outdoor environment. "heat release expert" of the refrigeration system,

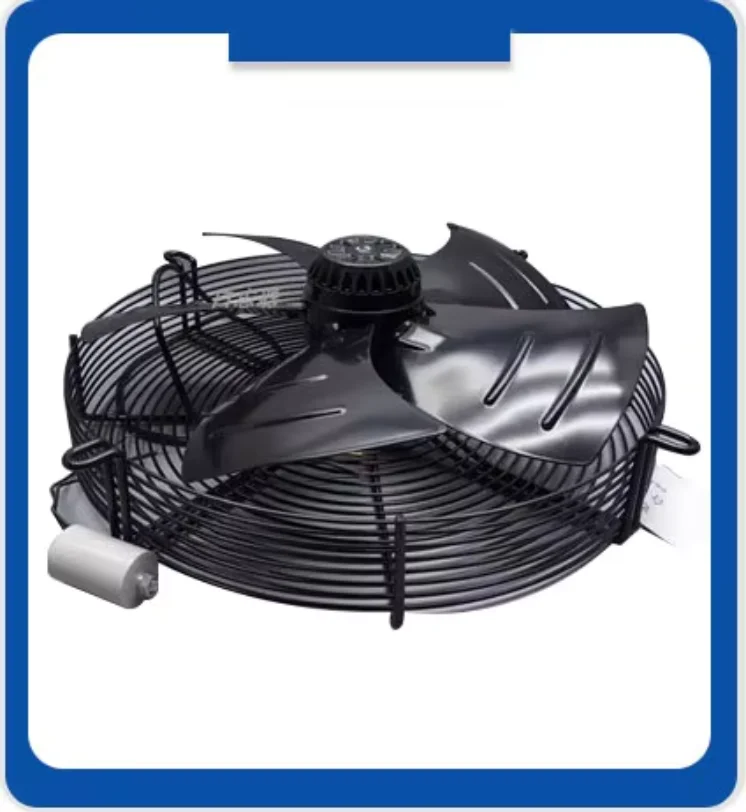

Condenser Fan The heat dissipation fan accelerates airflow through the condenser to quickly remove heat generated by! the refrigeration system. It helps maintain stable con-! densing pressure, reduces compressor load, improves cooling efficiency, and supports reliable long-term operation.
FAQs
What can you buy from us?
Explosion Proof Air Conditioner, Hazardous Area Air Conditioner, ATEX Air Conditioner, Explosion Proof Refrigerator, Explosion Proof Freezer, etc
What is your minimum order quantity?
Our minimum order quantity is 5-10 units.
Can it be customized?
We can offer OEM and ODM services, providing comprehensive customized solutions from the inside out.
How long is the delivery period?
Production will commence immediately upon receipt of payment. The exact delivery date will depend on the quantity.
Do you offer warranty services?
We guarantee a one-year warranty and offer online technical support for after-sales services.
Do you have any certificates?
The product has obtained CE and ISO certifications.
How can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
What services can we provide?
Accepted Delivery Terms: FOB Accepted Payment Currency: USD; Accepted Payment Type: T/T, L/C, Cash Language Spoken: English, Chinese
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $9198 / piece
- 10+ piece: US $8998 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this cold storage container freezer?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the cold storage container freezer be supplied for my local voltage?
The standard configuration is 380V/50Hz. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Qingdao Haiyirong Business Consulting Co., Ltd., based in China. The company 1 years as a verified Alibaba.com supplier, Trading Company. Browse the full Qingdao Haiyirong Business Consulting Co., Ltd. range on HVACR Nexus.
