The condensing unit listed here carries voltage 440~380v/220~230v/110v, power 14~30KWH/DAY, documented exactly as the manufacturer publishes it. Made by Henan Tianjie Cold Chain Equipment Science & Technology Co., Ltd. (3 years on the platform, typical reply ≤2h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Condensing Unit
- Model Number: tj0803
- Power(W): 14~30KWH/DAY
- Voltage: 440~380v/220~230v/110v
- Refrigerant: R22,R404A or others
- Warranty: 2 Years
- Certification: ce
Technical Specifications
| Voltage | 440~380v/220~230v/110v |
|---|---|
| Refrigerant | R22,R404A or others |
| Compressor Brand | Bitzer/Emerson |
| Core Components | Pressure Vessel, Motor, Other, Bearing, PLC |
| Warranty | 2 Years |
| Key Selling Points | Eco-Friendly, Automatic, High-Accuracy, Easy To Operate, Energy Saving |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Henan, China |
| Power(W) | 14~30KWH/DAY |
| Model Number | tj0803 |
| Temperature | -5~+10, 0~-20 °C,-35~0 |
| Cooling Type | Air cooled |
| Application | Fresh-keeping, frozen food storage, quick-freezing |
| OEM Service | Yes |
| Packing | Plywood Case |
| Machinery Test Report | Provided |
| Certification | ce |
| Brand Name | Tianjie |
| Selling Units | Single item |
| Single Package Size | 70X32X56 cm |
| Single Gross Weight | 40.0 kg |
Product Details

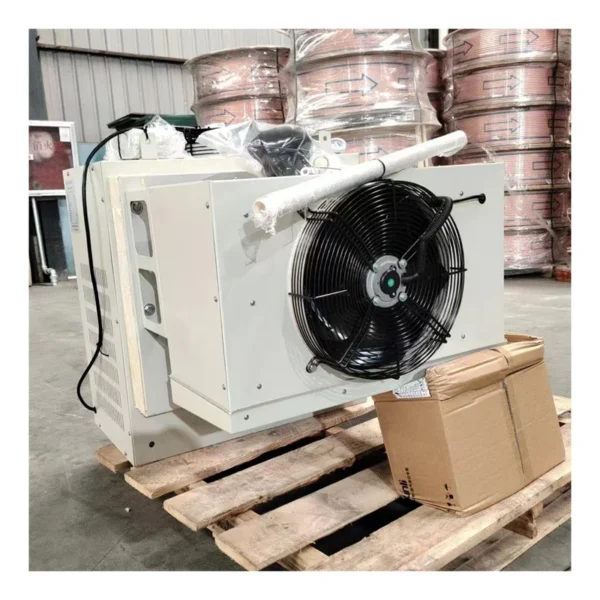

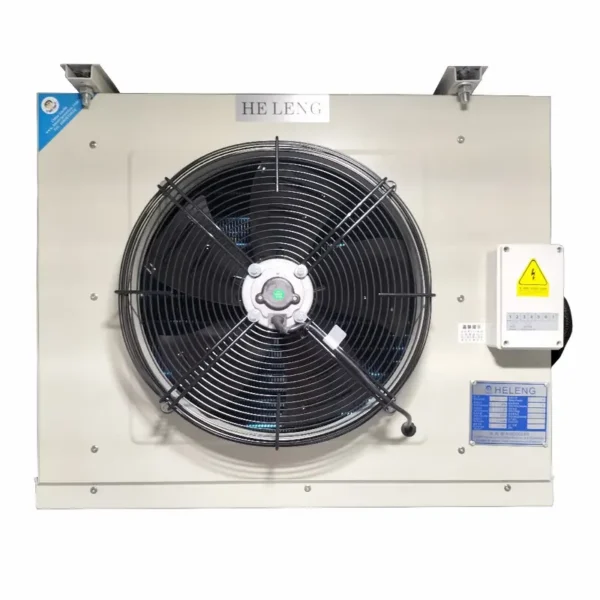

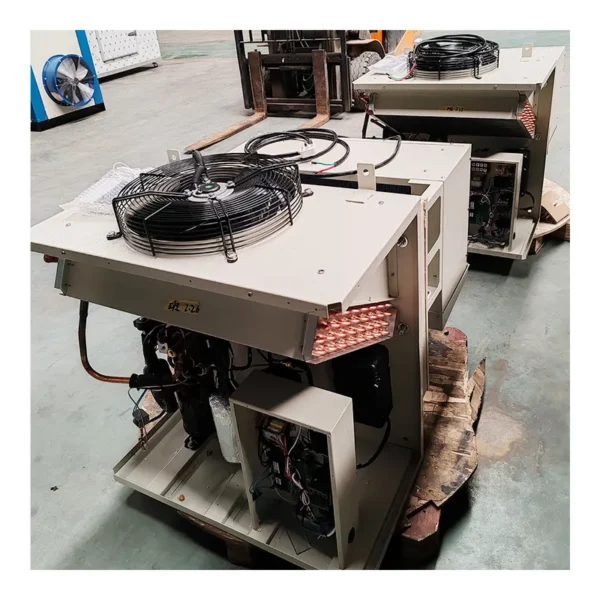

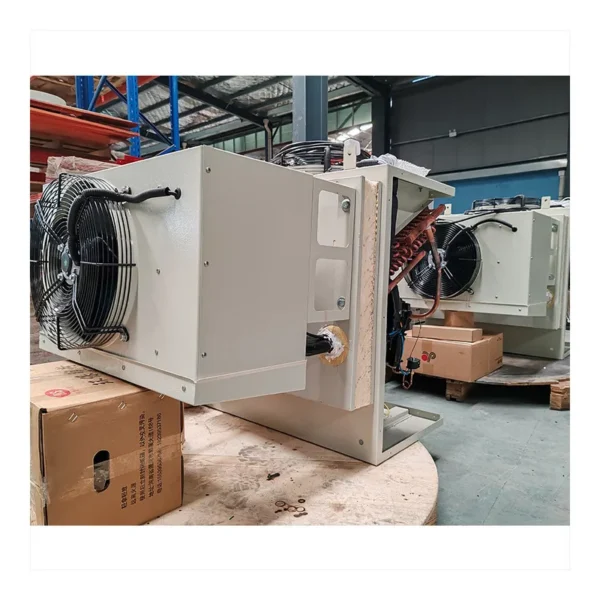

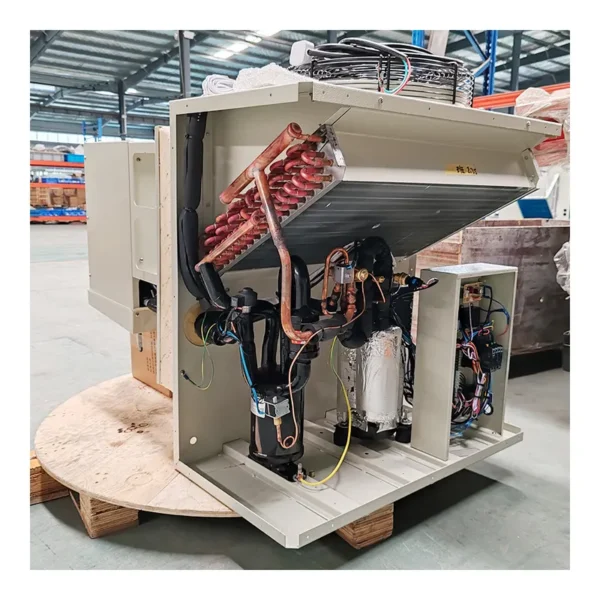

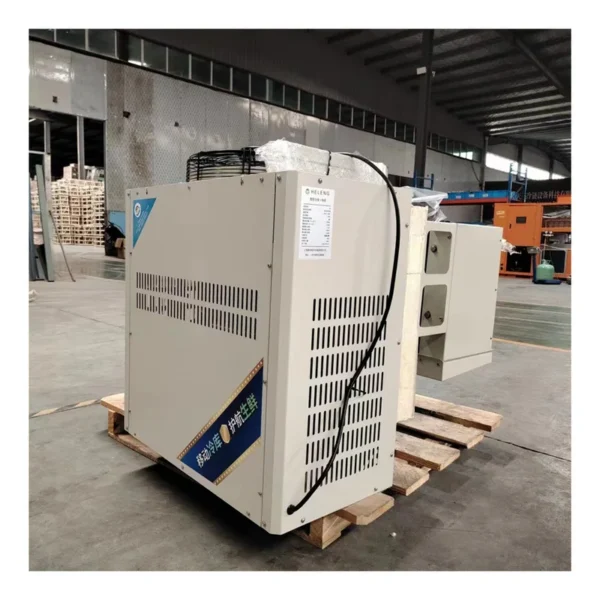

Easy Installation 3HP Monoblock Refrigeration Unit Condensing Unit For Sale
| R22 MEDIUM/HIGH BACK PRESSURE 50Hz | ||||||||
MODEL | AOS-2HP | AOS-3HP | AOS-3HP | AOS-3.5HP | AOS-4HP | AOS-SHP | AOS-6HP | AOS-7HP |
HORSE POWER | 2HP | 3HP | 3HP | 3.5HP | 4HP | 5HP | 6HP | 7HP |
NOMINALCAPACITY | 3200 | 5000 | 5000 | 6000 | 7000 | 8000 | 8800 | 9200 |
DISPLACEMENT | 44 | 58.2 | 74 | 90.2 | 112.5 | 124.4 | 134.8 | |
OUTLINE SIZE | 700×320×560 | 955x365x800 | 955x365x1250 | |||||
GROSS WEIGHT(kg) | 82 | 92 | 92 | 93 | 93 | 125 | 127 | 130 |
| (kg) NET WEIGHT | 80 | 86 | 86 | 87 | 87 | 118 | 120 | 123 |
| PIPE(mm) | INφ 16 OUTφ 10 | INφ19 OUTφ12 | ||||||
FANSIZE(mm) | 1Ad.450mm | 1Ad.450mm | 2Ad.450mm | |||||
POWER SUPPLY | 220-240V-50Hz | 380V3-50Hz | ||||||
| REFRIGERANT | R22 | |||||||
| OIL | SUNISO3GS SUNISO4GS | |||||||
NOISE(dB)(at 1m) | 56 | 57 | 57 | 57 | 58 | 62 | 63 | 64 |
REFRIGERANTCHARGE(kg) | 2-2.5 | 2.5-3.5 | 2.5-3.5 | 2.5-3.5 | 3-4 | 5.5-6.5 | 6-7 | 6.5-7.5 |
REFRIGERATION VOLUME(m³) | 25 | 40 | 40 | 45 | 50 | 70 | 80 | 90 |
| REFERENCE EVAPORATING(m²) | 20-25 | 25-30 | 25-30 | 35 | 25-35 | 30-45 | 40-48 | 40-55 |
| R404A MEDIUM/HIGH BACK PRESSURE 50Hz | ||||||||
MODEL | AOS-2HP | AOS-3HP | AOS-3HP | A0S-3.5P | A0S-4HP | AOS-5HP | A0S-6HP | A0S-7HP. |
HORSE POWER | 2HP | 3HP | 3HP | 3.5HP | 4HP | 5H | 6HP | 7HP |
| NOMINAL CAPACITY | 3200 | 5000 | 5000 | 6000 | 7000 | 8000 | 8800 | 9200 |
DISPLACEMENT | 44 | 58.2 | 74 | 90.2 | 112.5 | 124.4 | 134.8 | |
OUTLINE SIZE | 700×320×560 | 955x365x800 | 55x365x1250 | |||||
| (kg) GROSS WEIGHT | 82 | 92 | 92 | 93 | 93 | 125 | 127 | 130 |
| (kg) NET WEIGHT | 80 | 86 | 86 | 87 | 87 | 118 | 120 | 123 |
| PIPE(mm) | INφ16OUTφ 10 | INφ19OUTφ12 | ||||||
| FAN SIZE(mm) | 1Ad.400mm | 1Ad.450mm | 2Ad.450ms | |||||
POWER SUPPLY | 220-240V-50Hz | 380V3-50Hz | ||||||
| REFRIGERANT | R404A | |||||||
| OIL | RL-32H | |||||||
NOISE(dB)(at 1m) | 56 | 57 | 57 | 57 | 58 | 62 | 62 | 64 |
REFRIGERANTCHARGE(kg) | 2-2.5 | 2.5-3.5 | 2.5-3.5 | 2.5-3.5 | 3-4 | 5.5-6.5 | 6-7 | 6.5-7.5 |
REFRIGERANT COOL VOLUME(m³) | 25 | 40 | 40 | 45 | 50 | 70 | 80 | 90 |
| EFFRENCE EVAPORATING(m²) | 20-25 | 25-30 | 25-30 | 35 | 25-35 | 30-45 | 40-48 | 40-55 |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–4 piece: US $340 / piece
- 5–9 piece: US $330 / piece
- 10+ piece: US $320 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this condensing unit?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 2 Years warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this condensing unit carry?
It is supplied with ce documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the condensing unit be supplied for my local voltage?
The standard configuration is 440~380v/220~230v/110v. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Henan Tianjie Cold Chain Equipment Science & Technology Co., Ltd., based in China. The company 3 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Henan Tianjie Cold Chain Equipment Science & Technology Co., Ltd. range on HVACR Nexus.
