Condensing unit — 220 V, 380 V, 400V, cooling capacity 4. The complete factory specification follows. Made by Shengzhou Chenda Refrigeration Equipment Co., Ltd. (2 years on the platform, typical reply ≤6h). Quantity and destination market determine the final price — tell us both for a firm quote.
Key Features of This Condensing Unit
- Model Number: CD-480
- Voltage: 220 V, 380 V, 400V
- Cooling Capacity: 4
- Refrigerant: R-404A, R-22, R507A
- Warranty: 1 Year
- Place Of Origin: Zhejiang, China
Technical Specifications
| Cooling Capacity | 4 |
|---|---|
| Temperature | -35℃ to +15℃ |
| Voltage | 220 V, 380 V, 400V |
| Compressor Type | semi-hermetic |
| Refrigerant | R-404A, R-22, R507A |
| Compressor Brand | Bitzer |
| Core Components | PLC |
| Warranty | 1 Year |
| Key Selling Points | High-Accuracy, Easy To Operate, Competitive Price |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Zhejiang, China |
| Weight (Kg) | 200 |
| Model Number | CD-480 |
| Dimension(L*W*H) | Customized |
| Application | Food Beverage Chemical Industry |
| Function | Vegetable Fruit Meat Storage |
| Compressor | Copeland,Bitzer,Tecumseh |
| Condenser Type | Copper Tube Condenser |
| Cooling Type | Air Cooling |
| Advantage | Low Consumption High Efficiency |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |

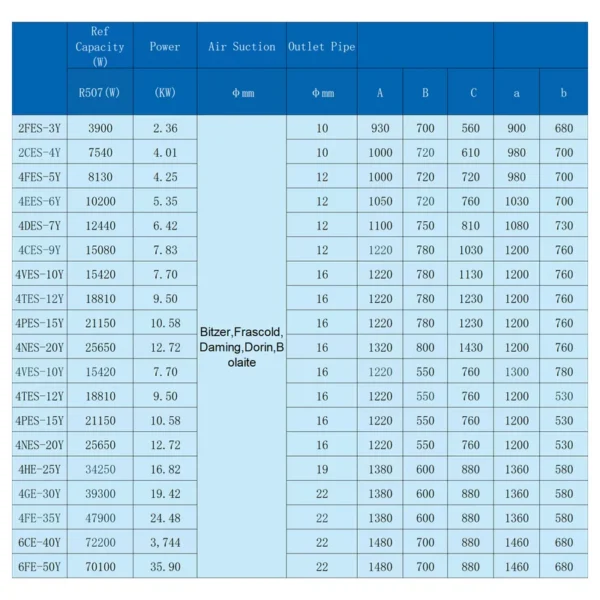

Product Details
Ref Capacity (W) | Power | Air Suction | Outlet Pipe | |||||||||
R507 (W) | (KW) | φmm | φmm | A | B | C | a | b | ||||
2FES-3Y | 3900 | 2.36 | Bitzer,Frascold,Daming,Dorin,Bolaite | 10 | 930 | 700 | 560 | 900 | 680 | |||
2CES-4Y | 7540 | 4.01 | 10 | 1000 | 720 | 610 | 980 | 700 | ||||
4FES-5Y | 8130 | 4.25 | 12 | 1000 | 720 | 720 | 980 | 700 | ||||
4EES-6Y | 10200 | 5.35 | 12 | 1050 | 720 | 760 | 1030 | 700 | ||||
4DES-7Y | 12440 | 6.42 | 12 | 1100 | 750 | 810 | 1080 | 730 | ||||
4CES-9Y | 15080 | 7.83 | 12 | 1220 | 780 | 1030 | 1200 | 760 | ||||
4VES-10Y | 15420 | 7.70 | 16 | 1220 | 780 | 1130 | 1200 | 760 | ||||
4TES-12Y | 18810 | 9.50 | 16 | 1220 | 780 | 1230 | 1200 | 760 | ||||
4PES-15Y | 21150 | 10.58 | 16 | 1220 | 780 | 1230 | 1200 | 760 | ||||
4NES-20Y | 25650 | 12.72 | 16 | 1320 | 800 | 1430 | 1200 | 760 | ||||
4VES-10Y | 15420 | 7.70 | 16 | 1220 | 550 | 760 | 1300 | 780 | ||||
4TES-12Y | 18810 | 9.50 | 16 | 1220 | 550 | 760 | 1200 | 530 | ||||
4PES-15Y | 21150 | 10.58 | 16 | 1220 | 550 | 760 | 1200 | 530 | ||||
4NES-20Y | 25650 | 12.72 | 16 | 1220 | 550 | 760 | 1200 | 530 | ||||
4HE-25Y | 34250 | 16.82 | 19 | 1380 | 600 | 880 | 1360 | 580 | ||||
4GE-30Y | 39300 | 19.42 | 22 | 1380 | 600 | 880 | 1360 | 580 | ||||
4FE-35Y | 47900 | 24.48 | 22 | 1380 | 600 | 880 | 1360 | 580 | ||||
6CE-40Y | 72200 | 3,744 | 22 | 1480 | 700 | 880 | 1460 | 680 | ||||
6FE-50Y | 70100 | 35.90 | 22 | 1480 | 700 | 880 | 1460 | 680 | ||||
Q1: What is your delivery time? |
Generally 15-25 working days, but exact delivery time depends on exact order quantity and the shipping way you choose. |
Q2: Where is your factory located? |
Our factory is located in Shengzhou city, Zhejiang province, you can go there by plane to Hangzhou international airport, it is about 100km from airport to our factory. |
Q3: Is a sample available? |
Yes, but the sample will be at your charge. |
Q4: What is the main market for your products? |
Our main market is in Middle East, South America, Europe and USA. |
Q5: What is your warranty? |
We can assure you one year against manufacturing defect. |
Q6:Can we do our OEM logo? |
Yes,we can do OEM logo for you. |
Q7: How can we guarantee quality? |
Always a pre-production sample before mass production; Always final Inspection before shipment; |
Q8: Can we accept customized products? |
Yes, we can according to your drawings, technical parameters, configuration requirements, and then combined with the equipment and mold specifications of our factory to match your requirements. |
Ordering and Pricing
- Minimum order quantity: 10 piece
- Volume pricing:
- 10–199 piece: US $1200 / piece
- 200–999 piece: US $700 / piece
- 1000+ piece: US $500 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this condensing unit?
The standard minimum order quantity is 10 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the condensing unit be supplied for my local voltage?
The standard configuration is 220 V, 380 V, 400V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Shengzhou Chenda Refrigeration Equipment Co., Ltd., based in China. The company 2 years as a verified Alibaba.com supplier, operates its own manufacturing. Browse the full Shengzhou Chenda Refrigeration Equipment Co., Ltd. range on HVACR Nexus.
