The condensing unit listed here carries 220 V, 110 V, 380 V, documented exactly as the manufacturer publishes it. Made by Jinan Bestar Inc. (20 years on the platform, typical reply ≤3h). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Condensing Unit
- Voltage: 220 V, 110 V, 380 V
- Cover Material: Steel casing
- Refrigerant: R-404A, R134a, R-410A, R-22, R-12, R-32, R-290, R-600a
- Warranty: 1 Year
- Place Of Origin: Anhui, China
- Application: small cold room and cold storage
Technical Specifications
| Temperature | -20-8c |
|---|---|
| Voltage | 220 V, 110 V, 380 V |
| Compressor Type | Scroll |
| Refrigerant | R-404A, R134a, R-410A, R-22, R-12, R-32, R-290, R-600a |
| Compressor Brand | embraco |
| Core Components | Pressure Vessel, Motor, Bearing |
| Warranty | 1 Year |
| Key Selling Points | Eco-Friendly, Automatic, High-Accuracy |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Anhui, China |
| Weight (Kg) | 20 |
| Dimension(L*W*H) | / |

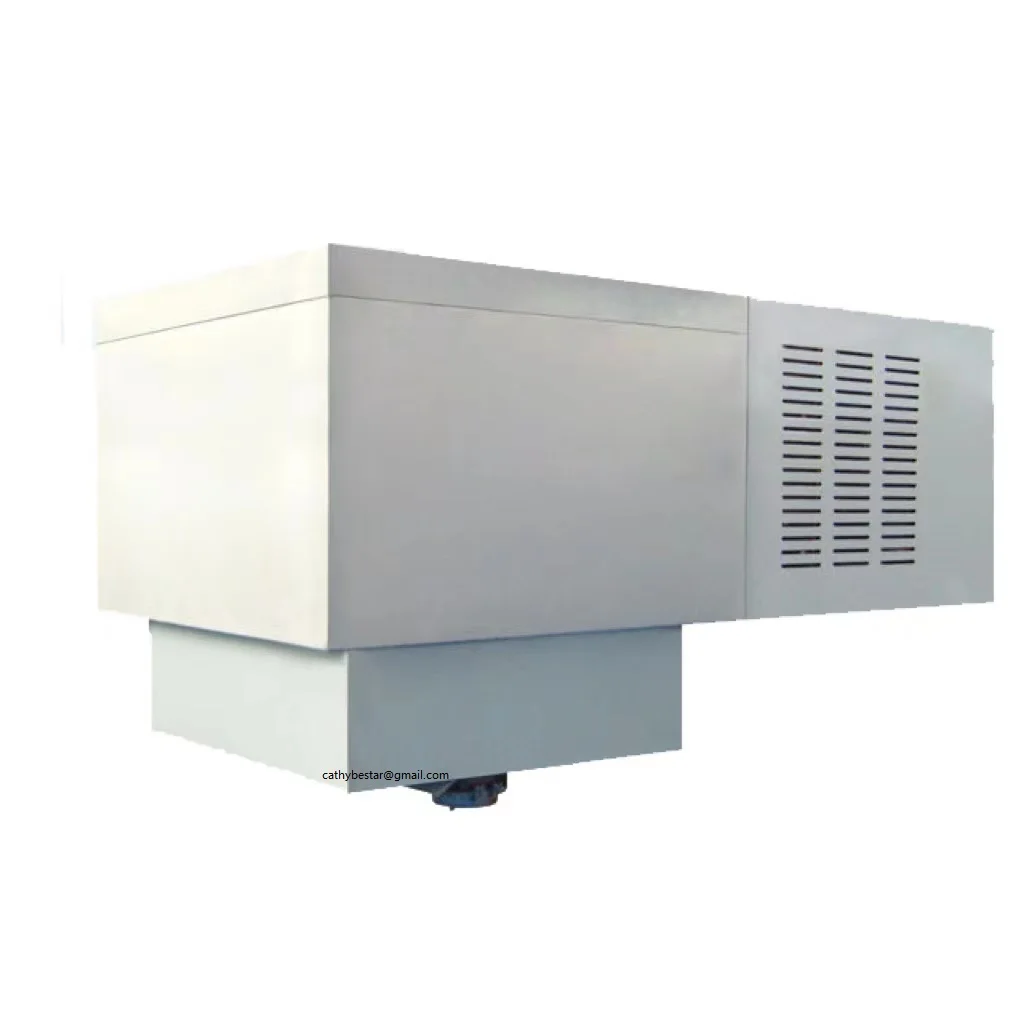

| Item | Roof Mounted Monoblock Refrigeration Unit For Small Cold Room |
| Controller | Automatic electric controller, PLC |
| Application | small cold room and cold storage |
| Cover Material | Steel casing |
| Fin | Hydrophilic aluminium fin |
| Selling Units | Single item |
| Single Package Size | 10X10X10 cm |
| Single Gross Weight | 10.000 kg |
Product Details
| Item | Monoblock Refrigeration Unit |
| Raw Material | Copper Tube , Aluminium Fin,Galvanized Plate and stainless steel plate |
| Size Of Copper Tube | 7mm,7.94mm,9.52mm ; |
| Aluminium Foil | Hydrophilic or Bare ; |
| Fin Type | Louver fin , Flat Fin , Corrugated fin ; |
| Pitch of holes and pitch of rows | 25*21.65mm;19.05*12.7mm; 25.4*22mm . |
| Pitch of fins | 1.8-6mm |

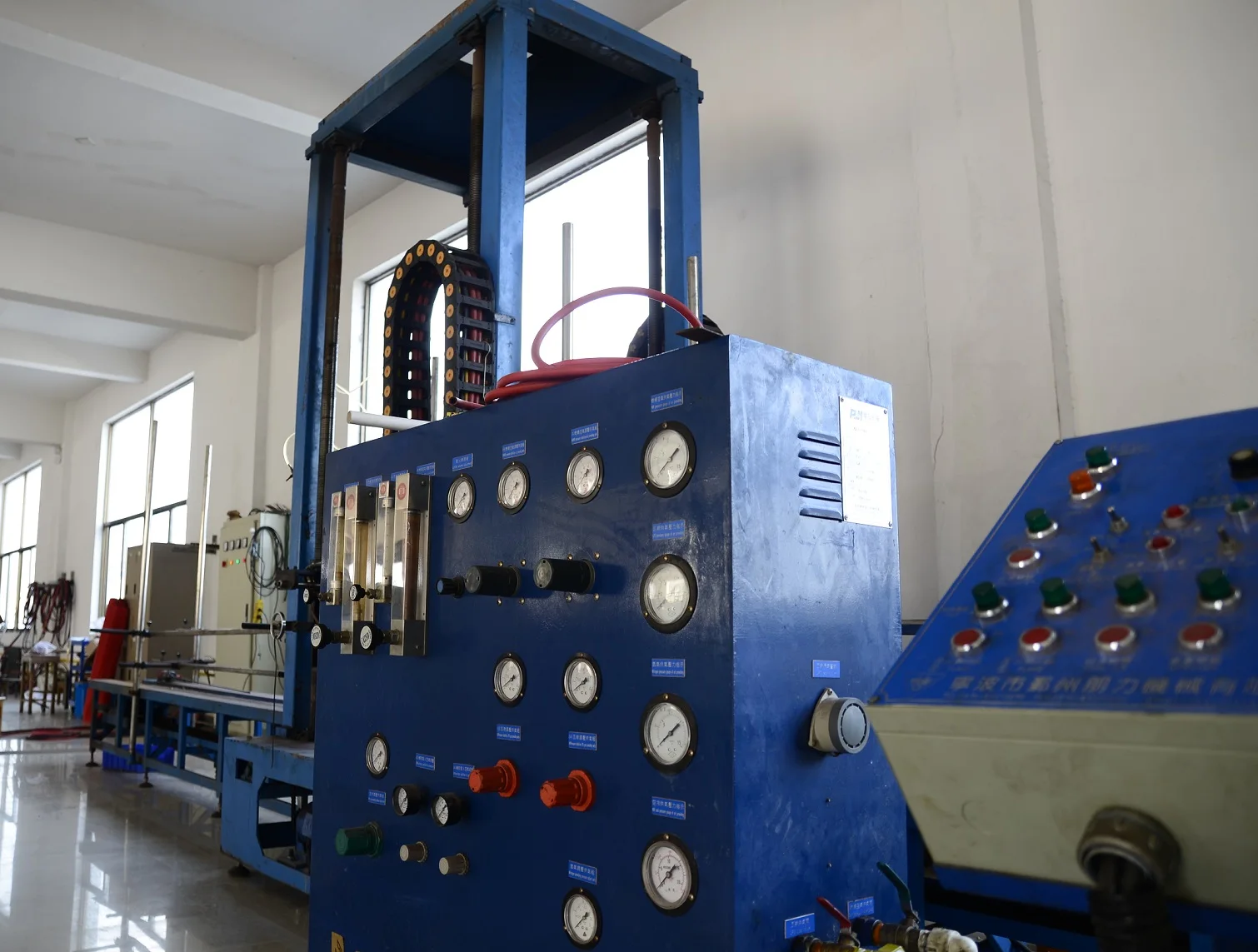

| Test | 30MPA air pressure notrogen leakage test |
VALVE, DANF*SS PRESSURE SWITCHES, DANF*SS FILTER DRIER, DANF*SS SIGHT GLASS, ALCO* SOLENOID VALVE, DIXELL* THERMOSTAT, SCHNEIDER ELECTRICAL
This kind of machine is widely used in miniature and small cold room for temperature of 5C to -5C, and -15C to -25C. It's mainly used to keep fresh or frozen of product.
With Features;

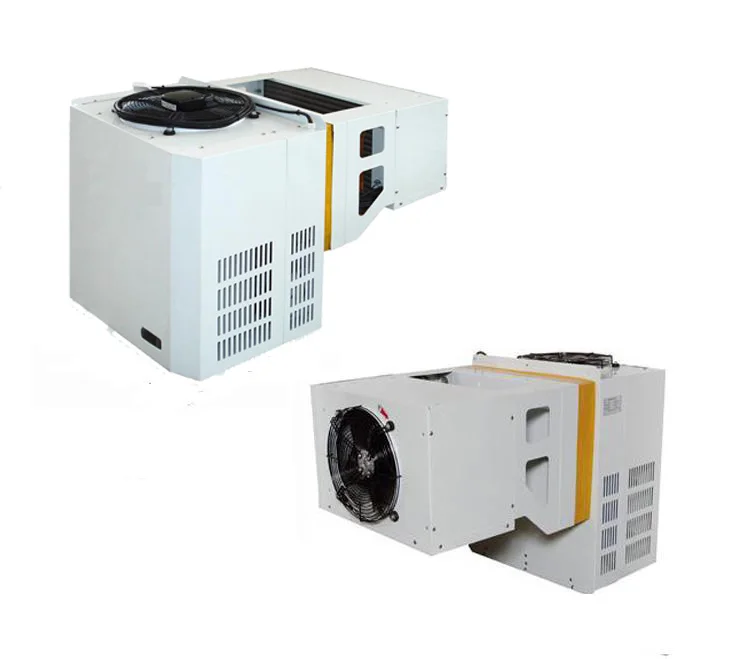

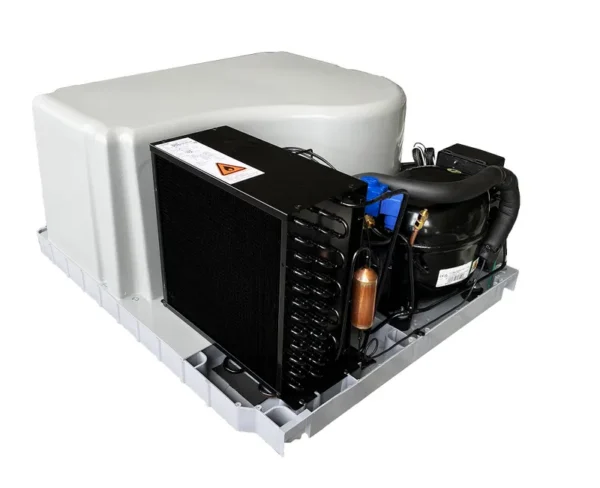

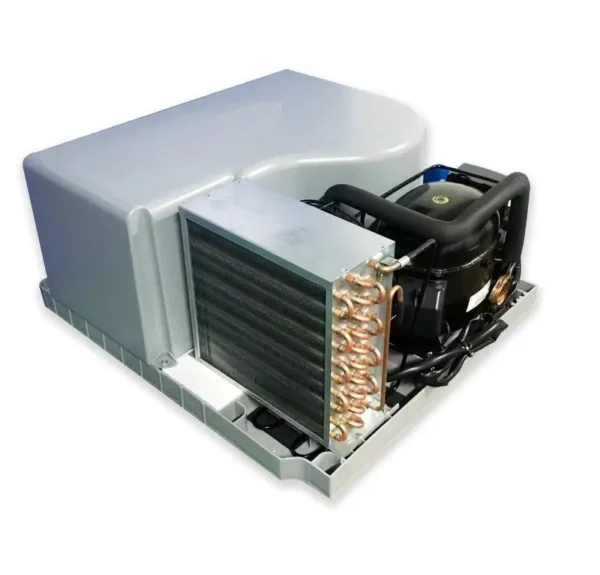

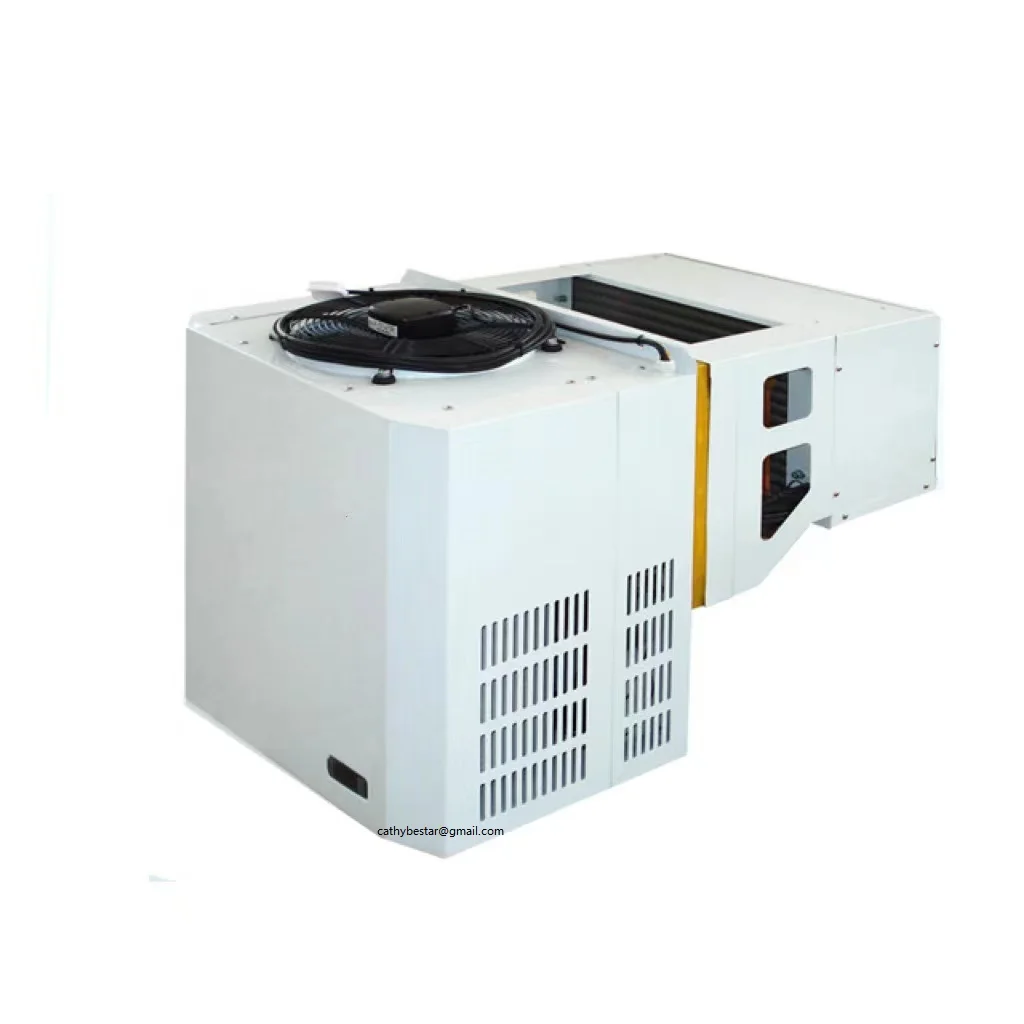

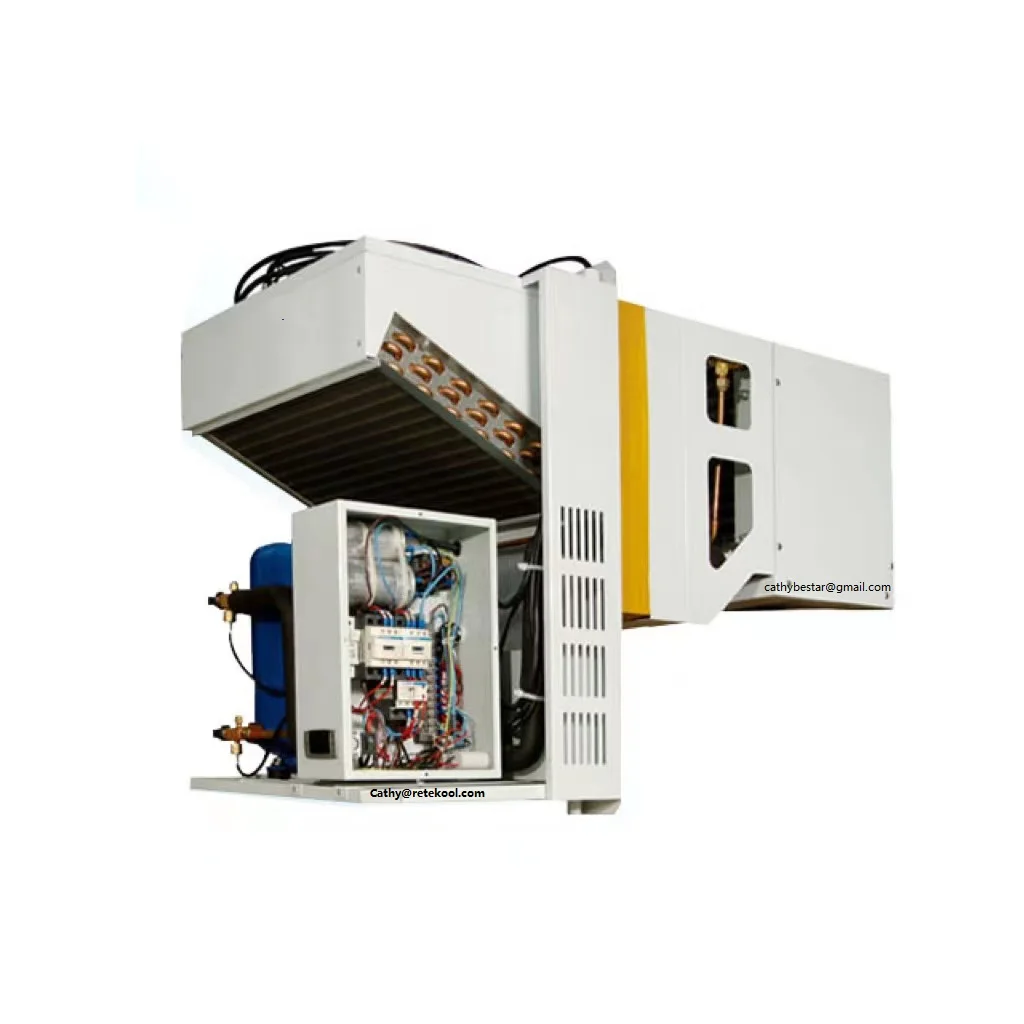

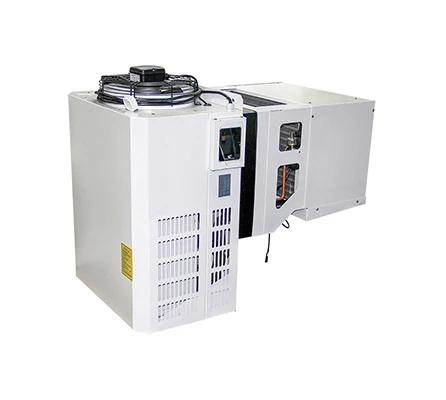

1) Integral compact structure consists of evaporator, condenser, compressor and electric device;
2) Easy to be installed, it's only need to make a hole in the cold room wall and put unit into the hole;
3) Tecumseh* compressor and Danf*ss brand spare parts;
4) Heat exchanger with high efficience in grooved copper tube and aluminum fin;
5) EBM* motor with excellent reliability;
6) DIXELL* control board with automatic electric heater defrosting;
7) Self protection of over loading, sub-heating, lack of phase, high & low pressure etc.
We are cooperating with many refrigerator & freezer & heater factories . From year 2018 , we begin to develop 5G Base Station Radiator . Now we are supplying 5G station radiator to one famous mobile company . If you have any interest in our products , pls just send an email to us or call us .
| Model | LYJ33MY-P | LYJ50MY-P | LYJ63MY-P | LYJ100MY-P | LYJ125MY-P | LYJ175MY-P | LYJ200MY-P | LYJ275MY-P | LYJ350MY-P | |||||||||
| Cap (W) | 530 | 810 | 1050 | 1560 | 2230 | 2950 | 3250 | 4400 | 5200 | |||||||||
| Input (KW) | 0.68 | 0.85 | 1.1 | 1.3 | 1.75 | 2.52 | 2.61 | 3.33 | 4.2 | |||||||||
| Power supply | 220V/50HZ | 380V /50HZ | ||||||||||||||||
| Tem range (℃) | 0~5℃ | |||||||||||||||||
| Cond fan(W) | 1×75 | 1×75 | 1×75 | 1×80 | 1×80 | 1×155 | 1×155 | 2×80 | 2×80 | |||||||||
| Evap fan(W) | 1×75 | 1×75 | 1×75 | 1×80 | 1×80 | 1×155 | 1×155 | 2×80 | 2×80 | |||||||||
| Defrost type | Electrical Heating | |||||||||||||||||
| Throttle | Expansion Valve | |||||||||||||||||
| Refrigerant | R404A | |||||||||||||||||
| Cold room Volume(m³) | 3 | 5 | 7 | 10 | 18 | 24 | 30 | 40 | 50 | |||||||||
| WT(kg) | 57 | 60 | 62 | 87 | 90 | 117 | 120 | 150 | 155 | |||||||||
| Model | LYJ50LY-P | LYJ63LY-P | LYJ100LY-P | LYJ150LY-P | LYJ200LY-P | LYJ300LY-P | LYJ400LY-P | ||||||
| Cap (W) | 550 | 660 | 750 | 1050 | 1580 | 2060 | 3100 | ||||||
| Input (KW) | 0.63 | 0.71 | 1.04 | 1.35 | 2.01 | 2.63 | 3.26 | ||||||
| Power supply | 220V/50HZ | 380V /50HZ | |||||||||||
| Tem range (℃) | -18~-20℃ | ||||||||||||
| Cond fan(W) | 1×75 | 1×75 | 1×80 | 1×80 | 1×155 | 1×155 | 2×80 | ||||||
| Evap fan(W) | 1×75 | 1×75 | 1×80 | 1×80 | 1×155 | 1×155 | 2×80 | ||||||
| Defrost type | Electrical Heating | ||||||||||||
| Expansion type | Expansion Valve | ||||||||||||
| Refrigerant | R404A | ||||||||||||
| Cold room Volume(m³) | 2 | 3 | 5 | 6 | 10 | 20 | 35 | ||||||
| WT(kg) | 60 | 62 | 88 | 92 | 123 | 128 | 160 | ||||||
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $1150 / piece
- 10–499 piece: US $1130 / piece
- 500+ piece: US $165 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this condensing unit?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Can the condensing unit be supplied for my local voltage?
The standard configuration is 220 V, 110 V, 380 V. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Jinan Bestar Inc., based in China. The company 20 years as a verified Alibaba.com supplier, Trading Company. Browse the full Jinan Bestar Inc. range on HVACR Nexus.
