Key specification for this condensing unit: 220V 1PH 60HZ, cooling capacity low temperature. Everything below is reproduced from the factory data sheet. Made by Shanghai KUB Refrigeration Equipment Co., Ltd. (18 years on the platform, typical reply ≤3h). Send your target quantity and destination for a firm quotation with current lead times.
Key Features of This Condensing Unit
- Model Number: KUB500L
- Horse Power: 5HP
- Voltage: 220V 1PH 60HZ
- Cooling Capacity: low temperature
- Refrigerant: R404a
- Warranty: 1 Year
Technical Specifications
| Cooling Capacity | low temperature |
|---|---|
| Temperature | -20-8c, 8-18c, 18-20c |
| Voltage | 220V 1PH 60HZ |
| Compressor Type | Scroll |
| Compressor Brand | invotech |
| Core Components | compressor |
| Warranty | 1 Year |
| Key Selling Points | Competitive Price |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Shanghai, China |
| Weight (Kg) | 55 |
| Model Number | KUB500L |
| Dimension(L*W*H) | 1050*710*580mm |
| Certification | CE |
| Refrigerant | R404a |
| Compressor | Invotech compressor |
| Horse Power | 5HP |
| Key Words | condensing unit |
| Condenser Type | Air Cooler Condenser |
| Condition | New |
| Warranty Of Core Components | 1 Year |
| Selling Units | Single item |
Product Details

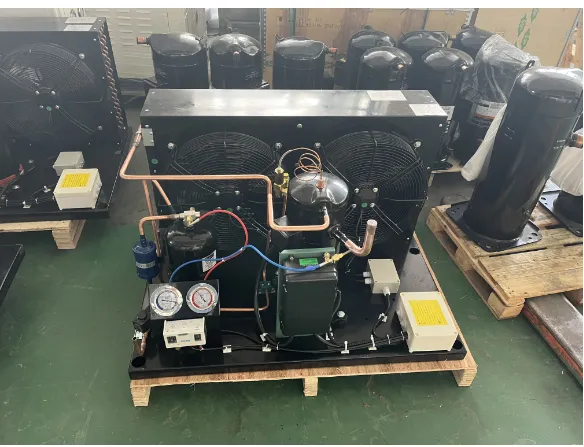

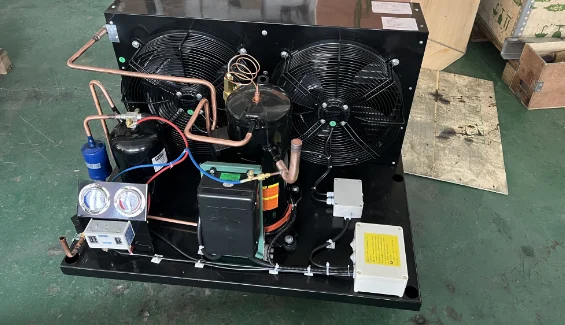

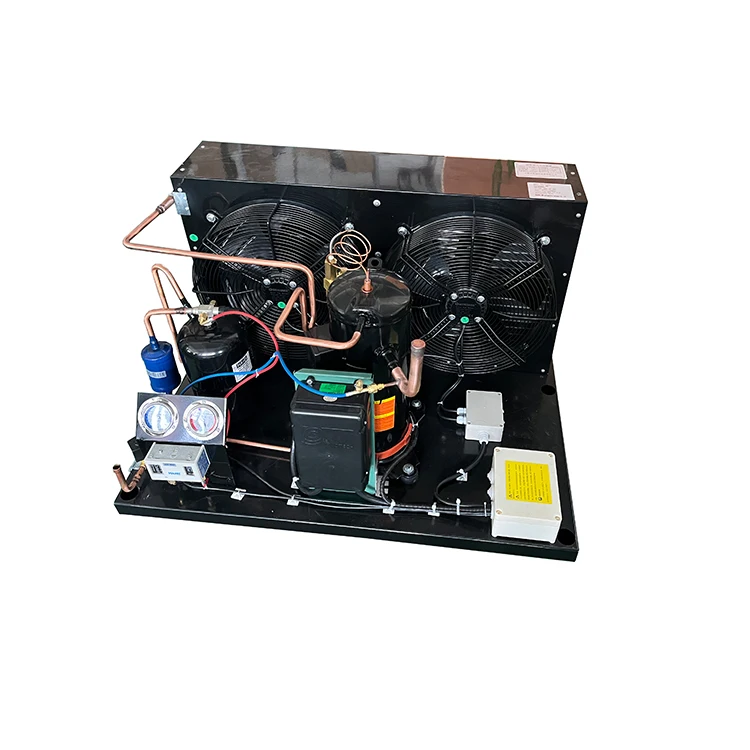

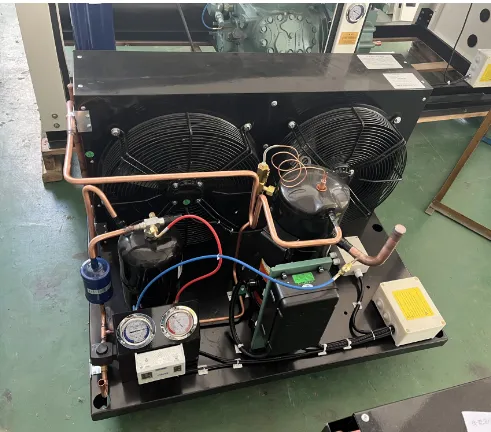

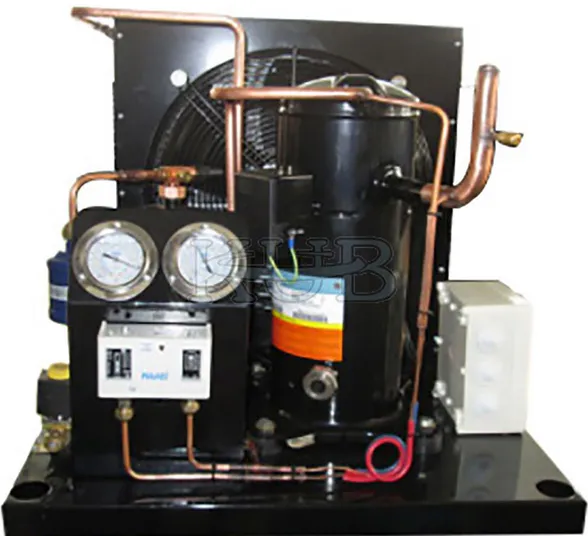

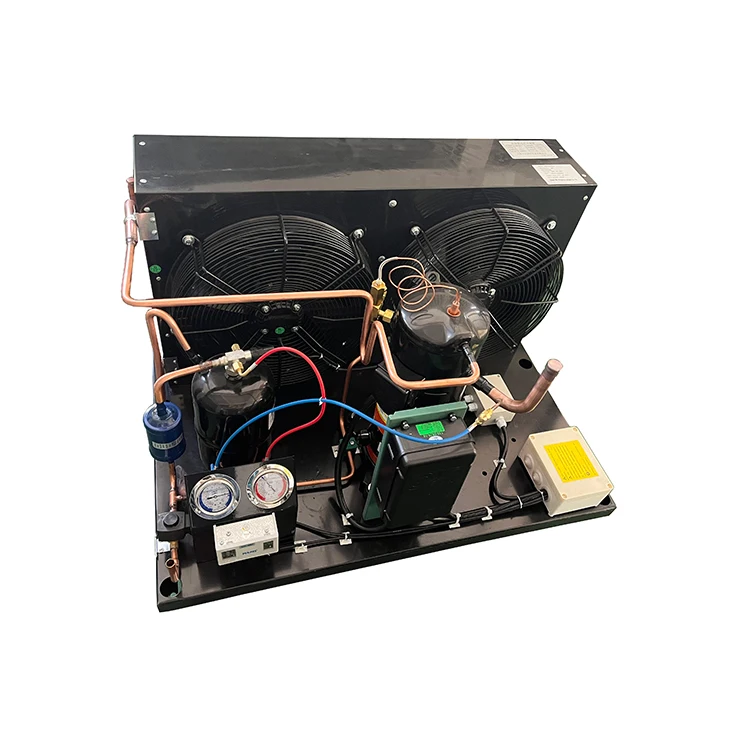

KUB500L YF35E3G-Q100 220V 1PH 60HZ refrigeration condensing unit low temperature 5HP scroll compressor condensing units price
Condensing Unit configuration list
| KUB500L | ||
|
| Model | Quantity |
| Compressor (Invotech) | YF35E3G-Q100 | 1 |
| Air cooler condenser | FNH-12.3/41 | 1 |
| Fan | 400mm | 2 |
| reservoir | 6L | 1 |
| Filter drier (KUB) | 164S | 1 |
| Solenoid valve | SV68-4 | 1 |
| Pressure controller | P830E | 1 |
| Oil gauge (High ) |
| 1 |
| Oil gauge (low ) |
| 1 |
| Junction Box |
| 1 |
| bottom plate | 1050*710 | 1 |
| Condensing unit size : 1050*710*580mm | ||

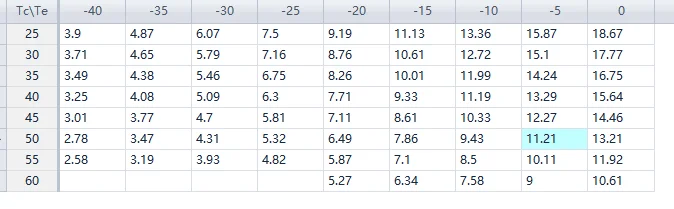

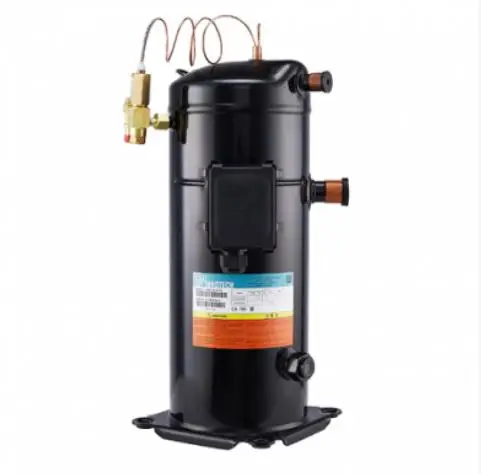

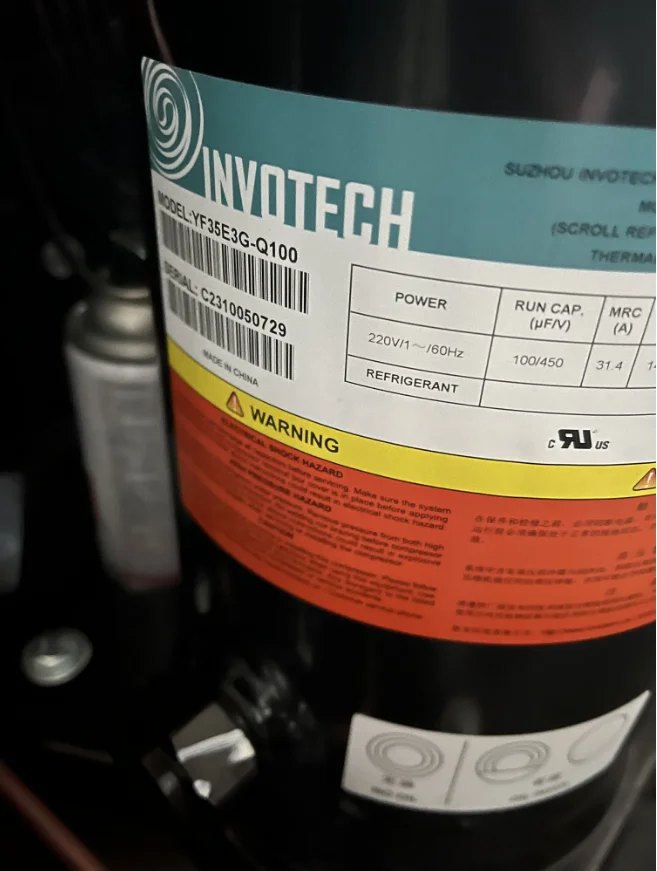

| Compressor parameters | |
| Compressor model | YM35E3G-Q100 |
| Voltage | 220v 1ph 60hz |
| Refrigerant | R404A |
| Nominal horsepower | 5HP |
| Nominal Cooling capacity | 4932W |
| Nominal input power | 3719W |
| Nominal working condition energy efficiency ratio | 1.33 |
| Nominal working current | 18.8A |
| LRA | 140A |
| MOC | 31.4A |
| Exhaust pipe diameter (inch) | 1/2 |
| Suction pipe diameter (inch) | 7/8 |
| Compressor size L*W*H | 239*239*463mm |
| Foot installation size | 190*190 |
| Lubricant Type | POE |
| Weight | 38KG |
| Exhaust volume | 17.4m³/h |
Q1: Are you a manufacturer or trading company?
A1:This compressor we are agent , But we are factories that produce condensing units, chillers,Evaporator.
Q2: What about the shipping methods?
A2: By express/By air/By sea.
Q3: What about the payment methods &payment terms
A3: We accept T/T ,Paypal, Western Union, Cash and etc.After 30% deposit,and 70%balance before the shipment.
Q4: What's your delivery time?Where is the loading port?
A4: Usually within 35-60 days after receiving the payment. Loading port:Shanghai,other place in china according your requirement.
Q5:Can I have a sample first ?
A5:You have to pay sample cost.
Q6: How do you ship the goods and how long does it take arrive?
A6: We usually ship goods by LCL or FCL by sea, by air or express delivery. Usually it takes 30 days by sea, 5-7 days by air or express delivery.
The delivery time is according to the way of shipping.
A. Individuation & Customization

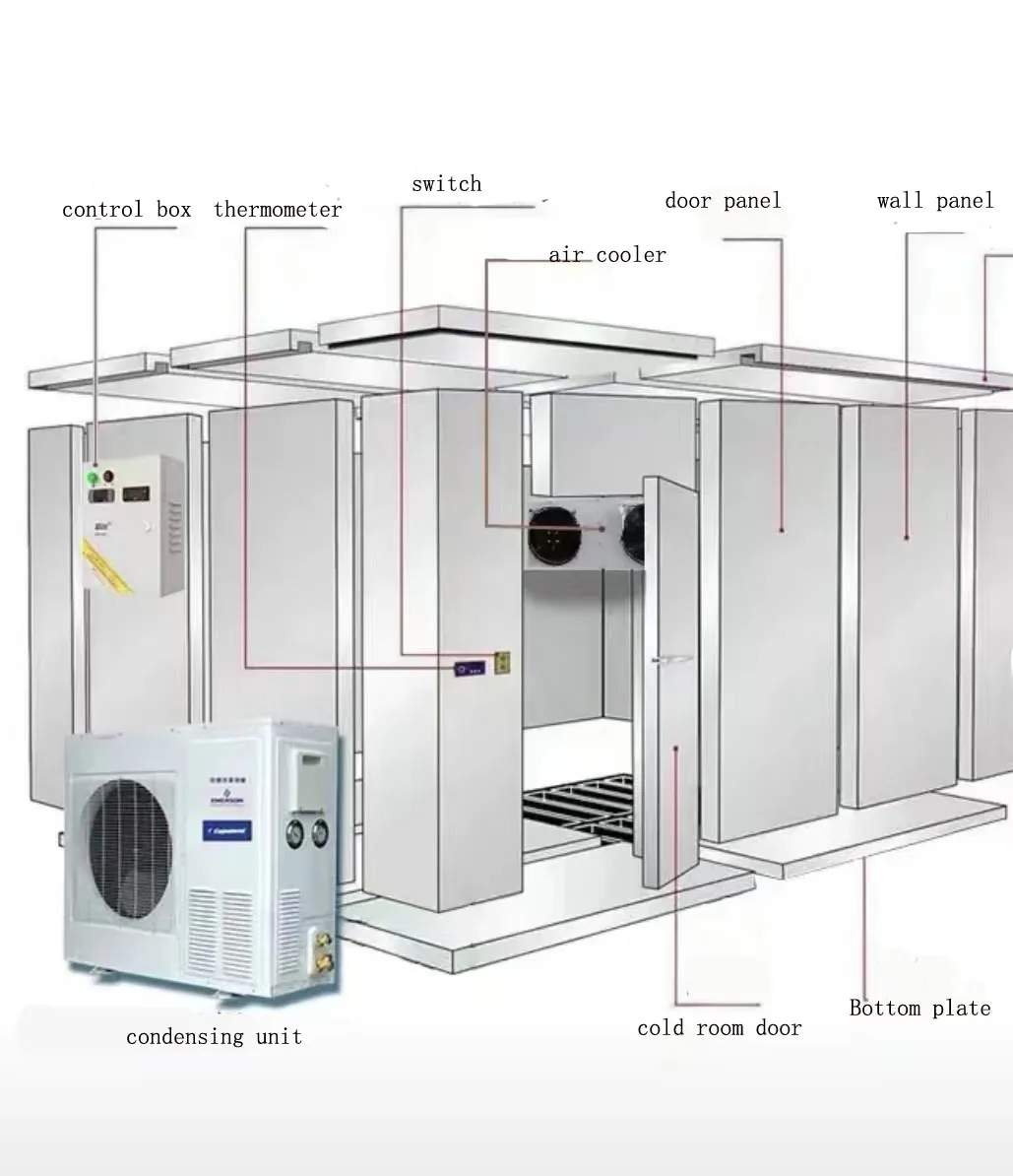

Refrigeration industry, cold storage engineering;
Agriculture,food, restaurant, chemical industry; we can undertake designs according to customer's requirements.
B. Excellent warranty
KUB provides up to one year warranty period.
If there is any product quality problems, we will return processing, and is responsible in the end.
We provide excellent service to solve your worries.
Ordering and Pricing
- Minimum order quantity: 1 set
- Volume pricing:
- 1–9 set: US $1200 / set
- 10+ set: US $1150 / set
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this condensing unit?
The standard minimum order quantity is 1 set. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 1 Year warranty. Spare parts and technical support remain available after the warranty period.
Which certifications does this condensing unit carry?
It is supplied with CE documentation, which covers the requirements of most import markets. Additional test reports can be issued on request.
Can the condensing unit be supplied for my local voltage?
The standard configuration is 220V 1PH 60HZ. Alternative voltage and frequency builds are available when specified at the time of order.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
