The condensing unit listed here carries 5.2KW, type Air Cooler, documented exactly as the manufacturer publishes it. Made by Xi Maike (guangdong) Refrigeration Technology Co., Ltd. (11 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Condensing Unit
- Capacity: 5.2KW
- Air Flow: 6000
- Warranty: 5 year
- Place Of Origin: Guangdong, China
- Type: Air Cooler
- Weight (Kg): 51
Technical Specifications
| Core Components | evaporator |
|---|---|
| Warranty | 5 year |
| Video Outgoing-Inspection | Provided |
| Place Of Origin | Guangdong, China |
| Weight (Kg) | 51 |
| Type | Air Cooler |
| Product Name | air cooler/evaporator |
| Color | White |
| Capacity | 5.2KW |
| Surface | 18.9 |
| Tube Volume | 5.5 |
| Air Flow | 6000 |
| Air Throw | 10m |
| Inlet | 12 |
| Outlet | 22 |
| Weight | 51KG |
| Packaging Details | air cooler/evaporator packed with wooden/case. ND20/235L-ET 3HP 380V Capacity 3.3KW 350mm Fan Refrigeration Evaporator Cooler. |
| Selling Units | Single item |
| Single Volume | 0 cm³ |
| Single Gross Weight | 0.0 kg |
| Supply Ability | 1000 pieces per Month air cooler/evaporator |
Product Details

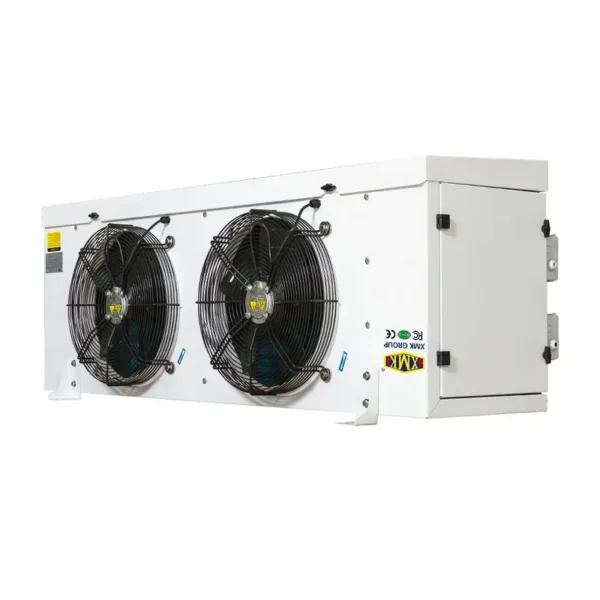

ND19/240L-ET Cold Room Condensing Unit 2hp With Evaporator
Product description:

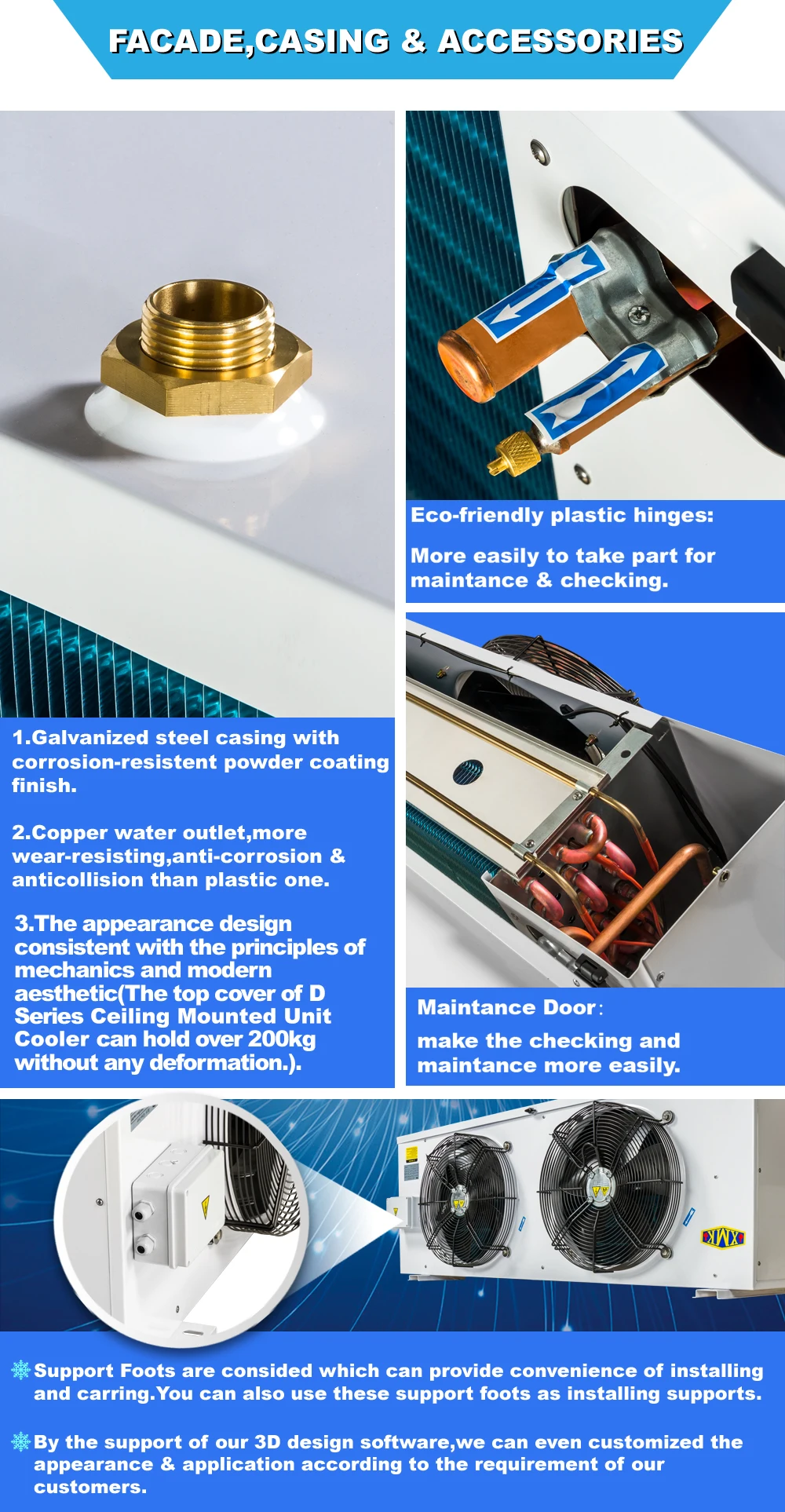

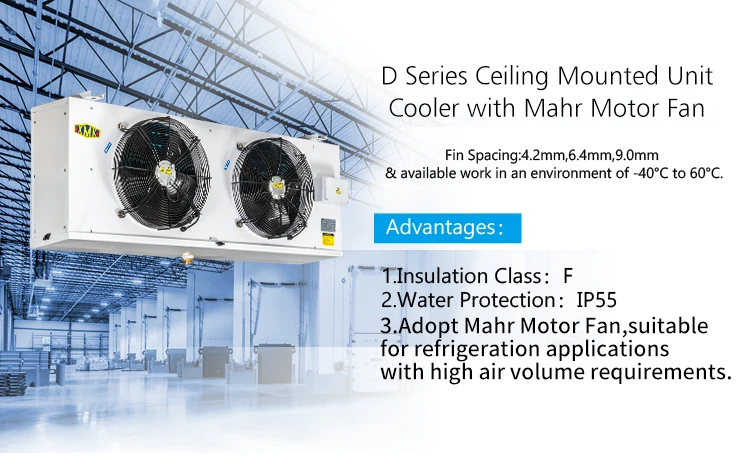

1.Casing: Adopt high-quality steel plate with powder coating RAL 9003,

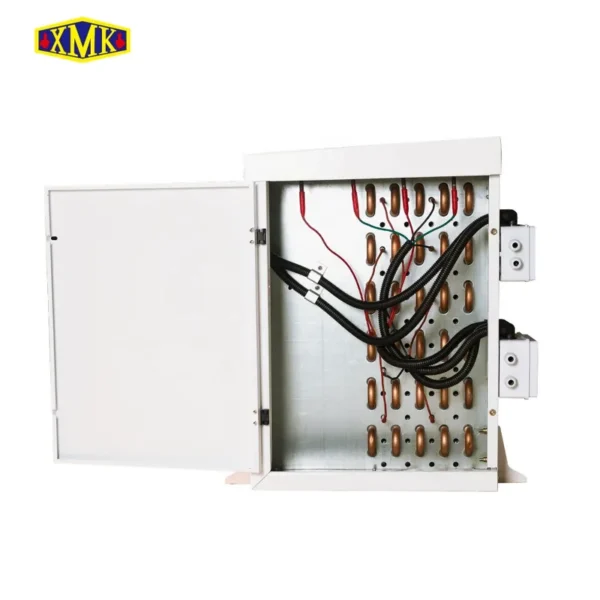

Hinged structure is adopted for both side plate sand external drip tray, which is convenient and quick to operate.

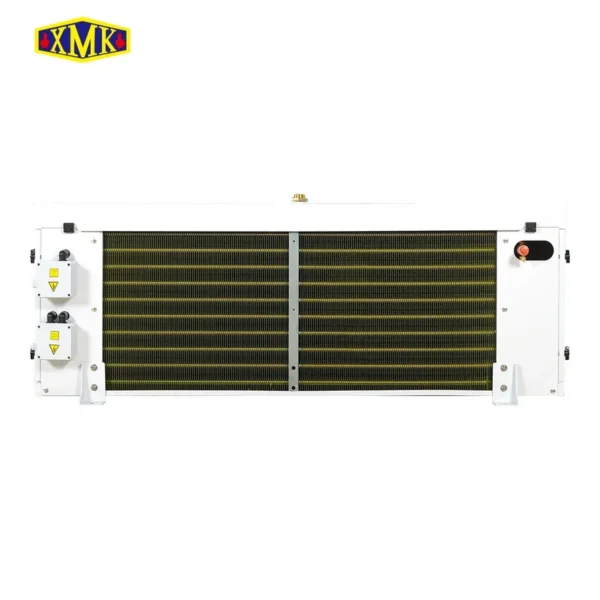

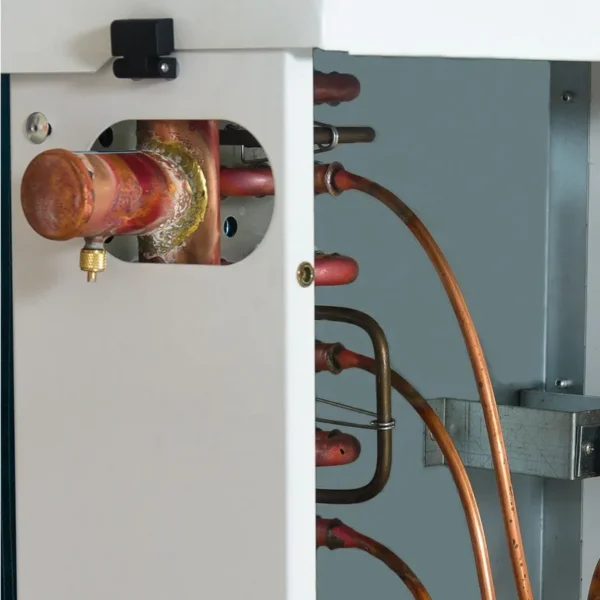

2.Heat Exchange Coil: copper tubingφ15,spacing50X 50,
Corrugated aluminium fins,fin spacing 4. 2mmand 6.4mm and 9.0mm.
3.It can meet the requirements of R404A, R507A,R448A, R449A, R134a, R22 and other refrigerants.

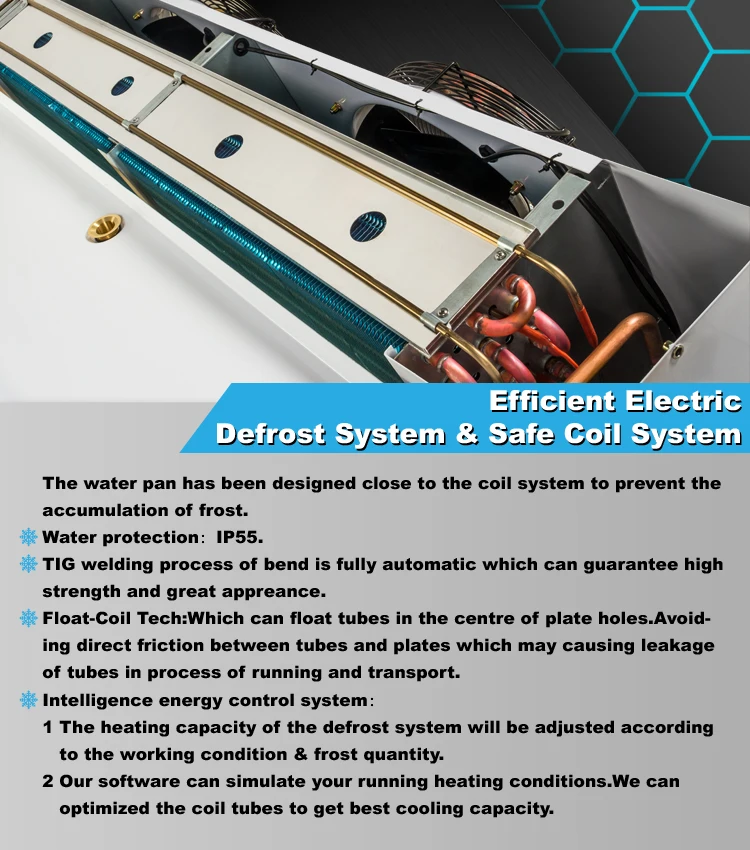

4.Defrosting:Standard use of electric defrosting stainless heating pipes installed in the middle of coil and inner water plate.
Independent electric heating tube junction box.

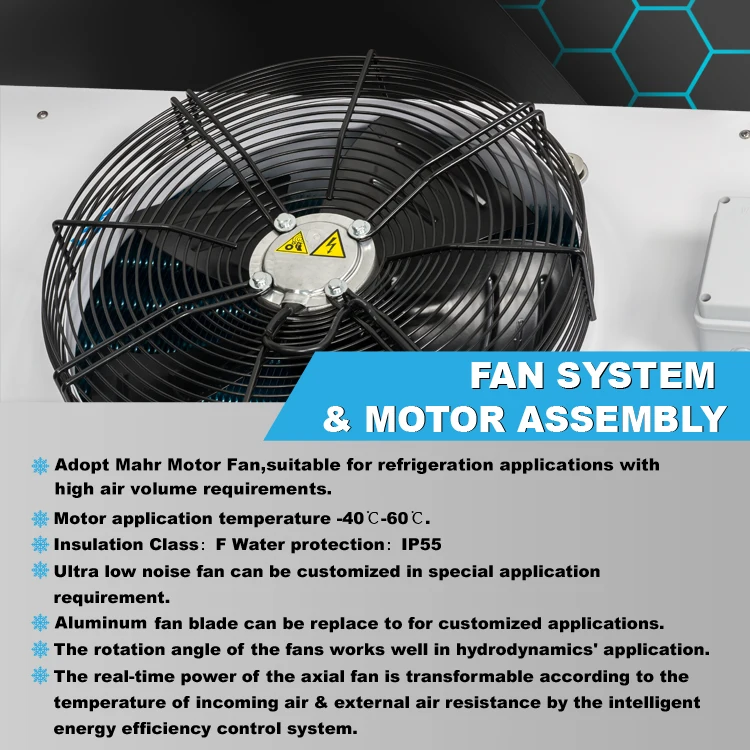

Fans: External rotor motor with high wind pressure,working temperature -40~60C.
5.Fans individually connected to junction box
Fan blade 300mm, 350mm,400mm, 500mm, 630mm, standard4-pole motor.

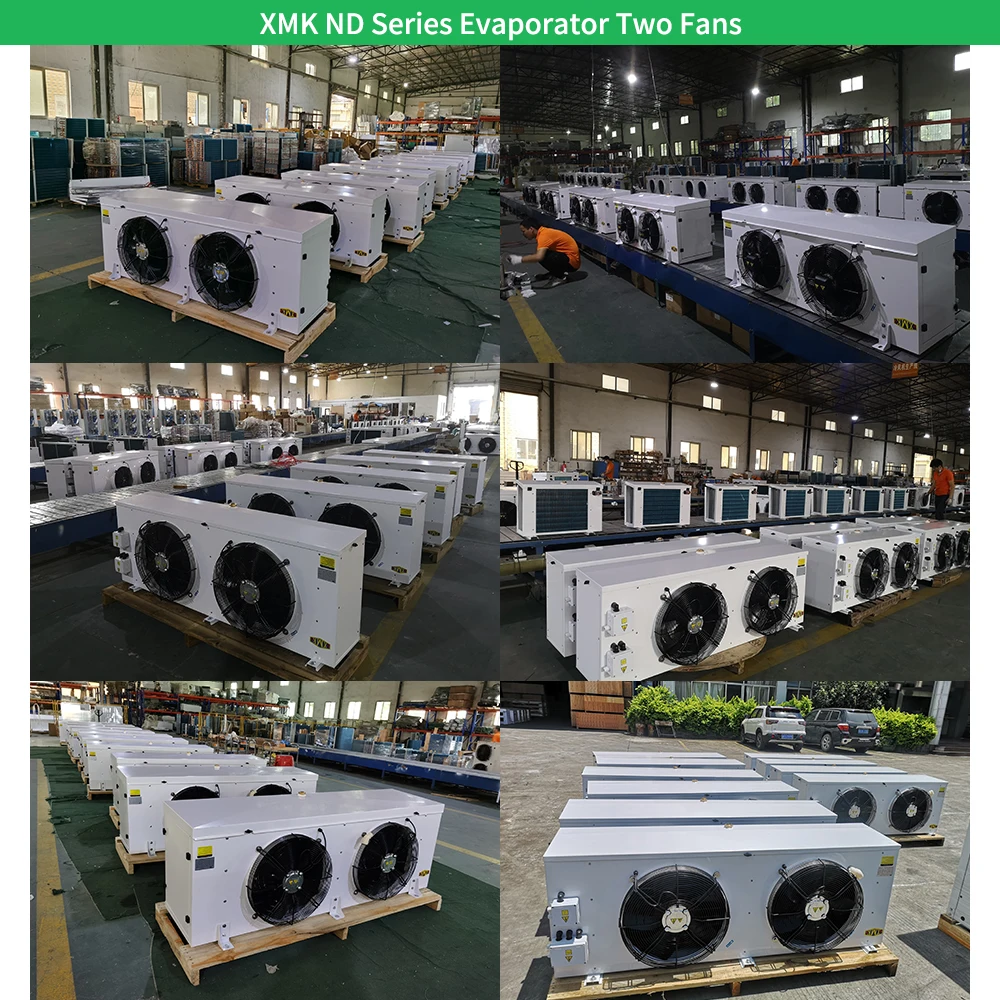

| ND Series Evaporator 6.0mm Fin Data | |||||||||
| Model | Capacity(KW) R404A | Surface | Tube Volume | Air Flow | Air Throw | Connection Pipe(mm) | |||
| 0 degree | -18 degree | m | Inlet | Outlet | Drain | ||||
| ND7/130L-ES | 1.3 | 1 | 6.6 | 1.6 | 1800 | 5 | 12 | 19 | G1 |
| ND10/135L-ET | 2.1 | 1.7 | 9.8 | 2.4 | 2100 | 6 | 12 | 19 | G1 |
| ND13/230L-ES | 2.6 | 2.1 | 13.1 | 2.9 | 3600 | 7 | 12 | 16 | G1 |
| ND20/235L-ET | 4.2 | 3.3 | 19.7 | 4.3 | 4200 | 8 | 12 | 19 | G1 |
| ND30/240L-ET | 5.3 | 4.2 | 29.5 | 6.3 | 6400 | 10 | 12 | 22 | G1.5 |
| ND40/240L-ET | 6.6 | 5.2 | 39.4 | 8.4 | 6000 | 10 | 16 | 28 | G1.5 |
| ND50/240L-ET | 7.8 | 6.2 | 49.2 | 10.5 | 5400 | 9 | 16 | 28 | G1.5 |
| ND60/250L-ET | 13 | 10.3 | 59 | 12.4 | 13000 | 16 | 22 | 35 | G1.5 |
| ND74/250L-ET | 15.9 | 12.6 | 73.8 | 15.5 | 12000 | 15 | 22 | 35 | G1.5 |
| ND100/350L-ET | 21.6 | 17.1 | 98.4 | 20.4 | 19500 | 18 | 22 | 42 | G2.5 |
| ND120/350L-ET | 24.7 | 19.5 | 118.1 | 24.5 | 18000 | 18 | 22 | 42 | G2.5 |
| ND160/450L-ET | 32.8 | 25.9 | 159.9 | 32.5 | 26000 | 22 | 28 | 54 | G2.5 |
| ND192/450L-ET | 36.5 | 28.8 | 191.9 | 39 | 24000 | 21 | 28 | 54 | G2.5 |
| ND213/455L-ET | 42.6 | 33.7 | 213.2 | 43.4 | 30000 | 25 | 28 | 54 | G2.5 |
| ND256/455L-ET | 46.1 | 36.4 | 255.8 | 52 | 28000 | 24 | 28 | 54 | G2.5 |
| ND266/463L-ET | 51.9 | 41 | 265.7 | 53.9 | 38800 | 30 | 28 | 54 | G2.5 |
| ND320/463L-ET | 57.4 | 45.3 | 318.8 | 64.7 | 36800 | 29 | 28 | 54 | G2.5 |
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–9 piece: US $285 / piece
- 10+ piece: US $280 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this condensing unit?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a 5 year warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Xi Maike (guangdong) Refrigeration Technology Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Xi Maike (guangdong) Refrigeration Technology Co., Ltd. range on HVACR Nexus.
