The chiller listed here carries capacity 33, documented exactly as the manufacturer publishes it. Made by Xi Maike (guangdong) Refrigeration Technology Co., Ltd. (11 years on the platform, factory-assessed). For a binding price and lead time, send the volume you need and where it ships to.
Key Features of This Chiller
- Capacity: 33
- Air Flow: 24800
- Warranty: Unavailable
- Place Of Origin: Guangdong, China
- Weight (Kg): 243
- Weight: 243Kg
Technical Specifications
| Core Components | copper |
|---|---|
| Machinery Test Report | Provided |
| Warranty | Unavailable |
| Video Outgoing-Inspection | Provided |
| Weight (Kg) | 243 |
| Place Of Origin | Guangdong, China |
| Brand Name | XMK |
| Product Name | air cooler/evaporator |
| Color | White |
| Capacity | 33 |
| Air Flow | 24800 |
| Inlet | 28 |
| Outlet | 50 |
| Air Volume | 2*3500 |
| Air Throw | 25 |
| Weight | 243Kg |
| Packaging Details | air cooler/evaporator packed with wooden/case. Chiller Cold Room Fan Air Cooler Evaporator. |
| Port Of Dispatch | huangpu port |
| Selling Units | Single item |
| Supply Ability | 1000 pieces per Month Air Cooler Refrigeration |
Product Details

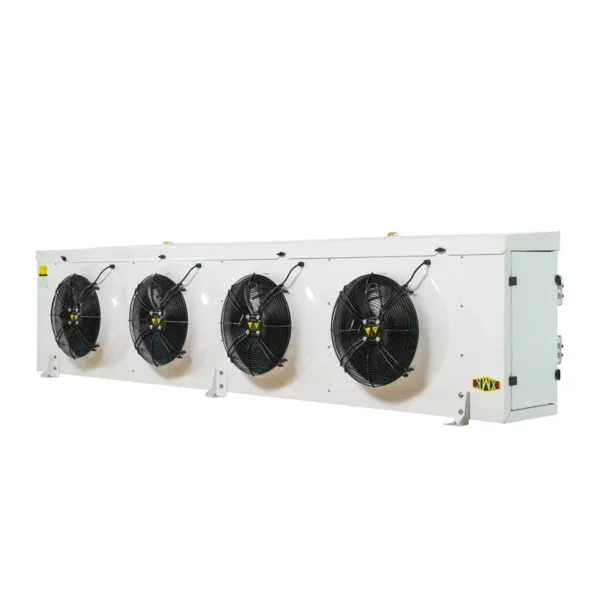

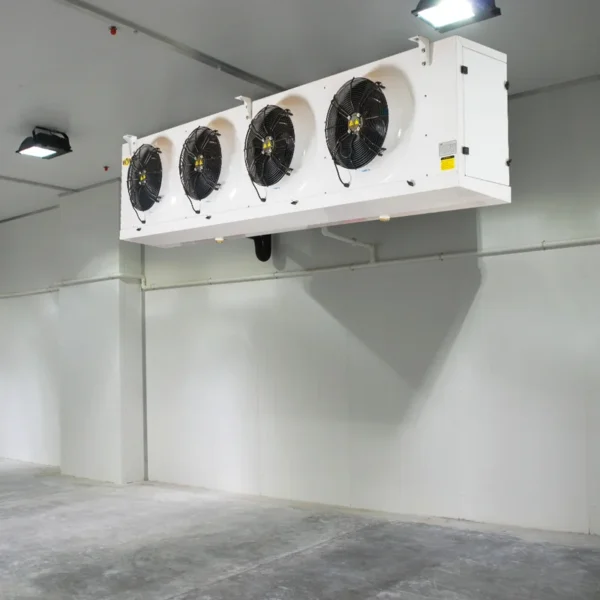

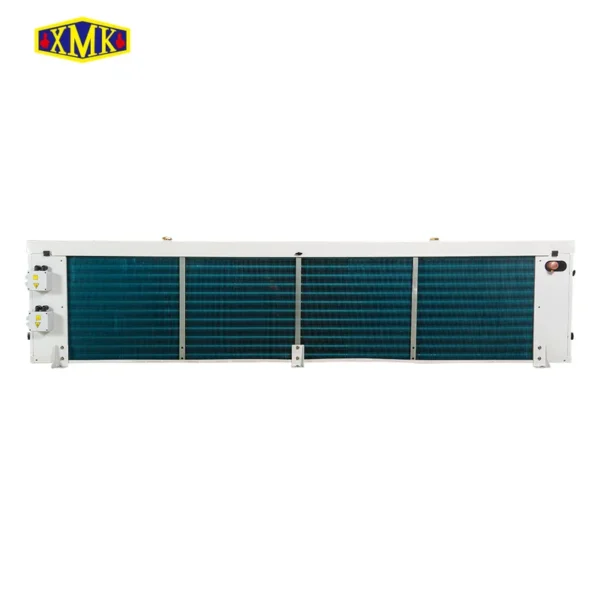

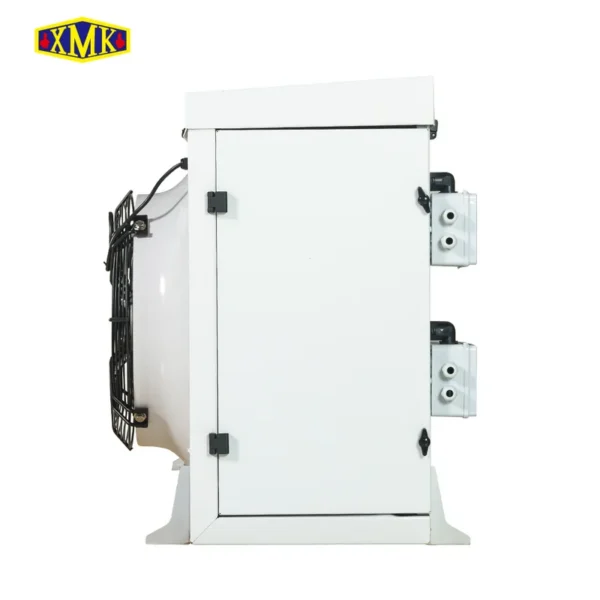

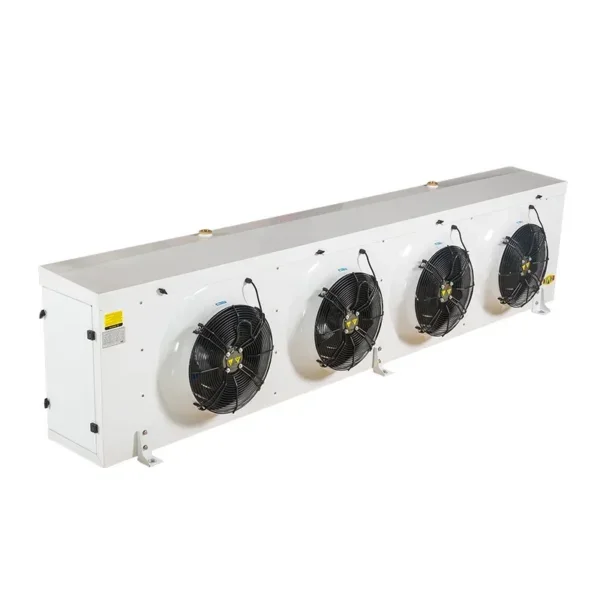

Chiller Cold Room Fan Air Cooler Evaporator

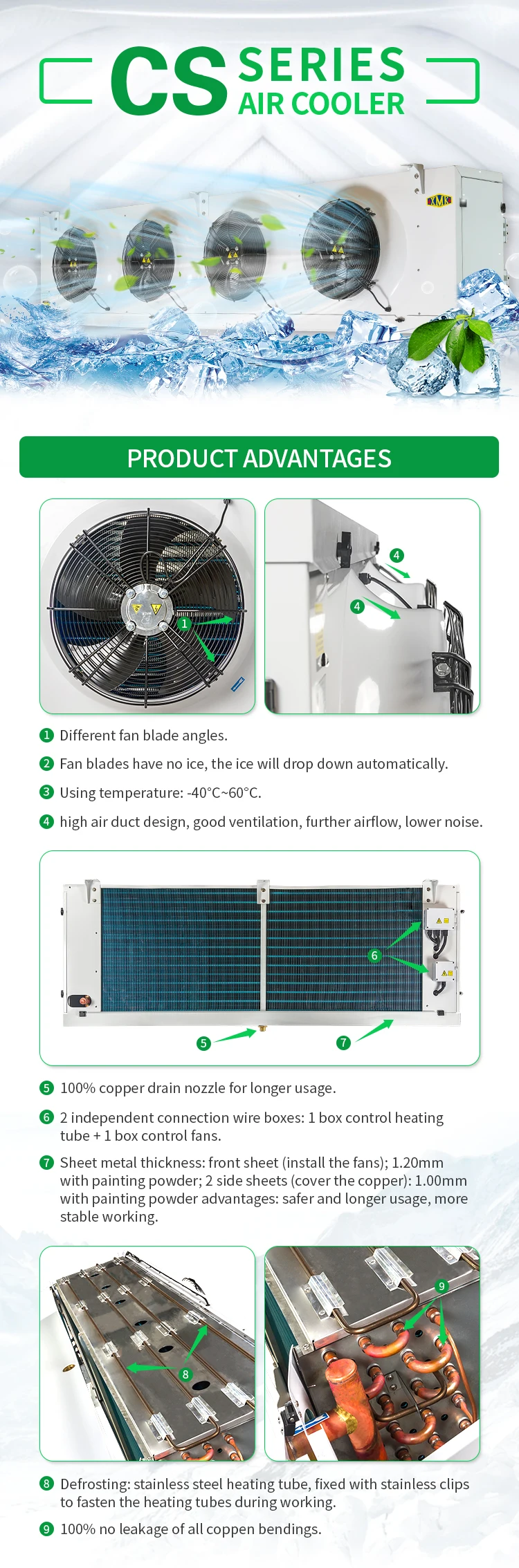

Product description:
1.Casing:Adopt high-quality steel plate with powder coating RAL9003.
Hinged structure isaaphich is convenient and quick to operate.
2.It can meet the requirements of R404A,R507A,R448A,R449A,R134a, R22 and other refrigerants.
3.Defrosting: Standard use of electric defrosting,staininner water plate.lndependent electric heating tubejunction box. Hot gas defrosting or coil hot gas
defrosting can also be used.

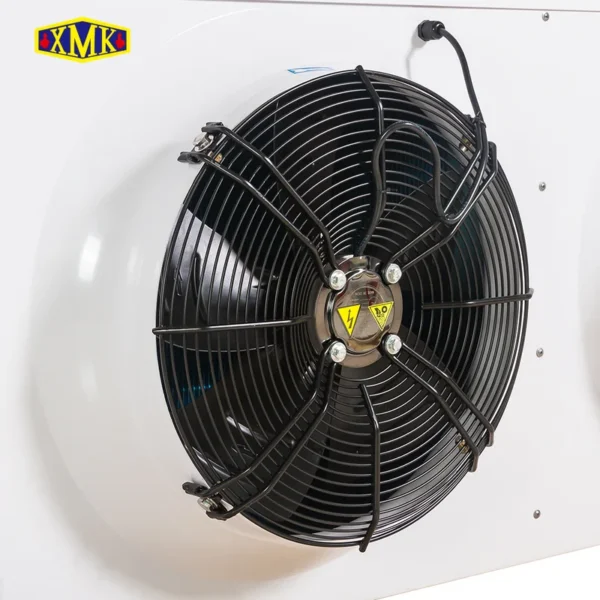

4.Fans: External rotor motor with high wind pressure,working temperature -40~60℃,High air duct designwith Integral stretching, good ventilation effect,furtherairthrow, lower noise;Fans individually connected tojunction box,Fan bladep300,$400,$500,$630,standard 4-pole motor.
| XMK Air Cooler Data | |||||||||
| Model | R404A(KW) | surface | Tube volume | airflow | airflow | Connection pipe (mm) | |||
| Capacity | |||||||||
| Tc=0℃ | Tc=-18℃ | m2 | dm3 | m3/h | m | inlet | outlet | drain | |
| ΔΤ=8K | ΔΤ=7K | ||||||||
| Fan 400 | |||||||||
| CS18/140L-ET | 3.2 | 2.6 | 18 | 4.4 | 3200 | 8 | φ12 | φ22 | G1 |
| CS24/140L-ET | 4.1 | 3.3 | 24.1 | 5.9 | 2900 | 7 | φ12 | φ22 | G1 |
| CS24/240L-ET | 4.6 | 3.8 | 24.1 | 5.9 | 6600 | 13 | φ12 | φ22 | G1-1/2 |
| CS36/240L-ET | 6.4 | 5.1 | 36.1 | 8.2 | 6400 | 12 | φ16 | φ28 | G1-1/2 |
| CS48/240L-ET | 8.2 | 6.6 | 48.2 | 10.9 | 5800 | 11 | φ16 | φ28 | G1-1/2 |
| CS56/340L-ET | 9.7 | 7.8 | 55.6 | 12.3 | 9600 | 14 | φ22 | φ42 | G1-1/2 |
| CS74/340L-ET | 12.5 | 10 | 74.1 | 16.4 | 8700 | 13 | φ22 | φ42 | G1-1/2 |
| CS72/440L-ET | 12.8 | 10.2 | 72.3 | 15.8 | 12800 | 16 | φ22 | φ42 | G1-1/2 |
| CS96/440L-ET | 16.4 | 13.1 | 96.3 | 21.1 | 11600 | 15 | φ22 | φ42 | G1-1/2 |
| CS120/540L-ET | 20.5 | 16.4 | 120.4 | 26.2 | 14500 | 18 | φ28 | φ54 | G1-1/2 |
Click Me To See All Categories.
A1: We have a factory
Q2: Where is your factory located?
A2: Our factory is located in Guangzhou, Guangdong province.
Q3: Is a sample available?
A3: Yes, but the sample will be at your charge.
Q4: What is the main market for your products?
A4: Our main market is in Middle East, Palestine, Turk, Africa and so on.
Welcome to contact us for more details!
Ordering and Pricing
- Minimum order quantity: 1 piece
- Volume pricing:
- 1–4 piece: US $990 / piece
- 5–9 piece: US $970 / piece
- 10+ piece: US $950 / piece
- Ships from: China
- Customization: OEM and ODM accepted on qualifying volumes.
Frequently Asked Questions
What is the minimum order quantity for this chiller?
The standard minimum order quantity is 1 piece. Trial orders can usually be arranged for buyers evaluating the product before a full production run.
What warranty is provided?
The manufacturer provides a Unavailable warranty. Spare parts and technical support remain available after the warranty period.
Do you accept OEM or custom branding?
Yes. Custom logo, colour, packaging and specification changes are accepted on qualifying order volumes. Send your artwork and technical requirements with your enquiry.
How long does production and delivery take?
In-stock configurations typically ship within 7–15 days. Customised or large-volume orders are usually produced in 25–35 days, confirmed on order.
About the Manufacturer
This product is produced by Xi Maike (guangdong) Refrigeration Technology Co., Ltd., based in China. The company 11 years as a verified Alibaba.com supplier, operates its own manufacturing, passed third-party supplier assessment. Browse the full Xi Maike (guangdong) Refrigeration Technology Co., Ltd. range on HVACR Nexus.
